Electrical Equipment and Instruments | MB 280SL W107.042 with engine 110.990

MB 280SL W107.042 with engine 110.990

Chosen model:

Current unit you are viewing: 54 Electrical Equipment and Instruments

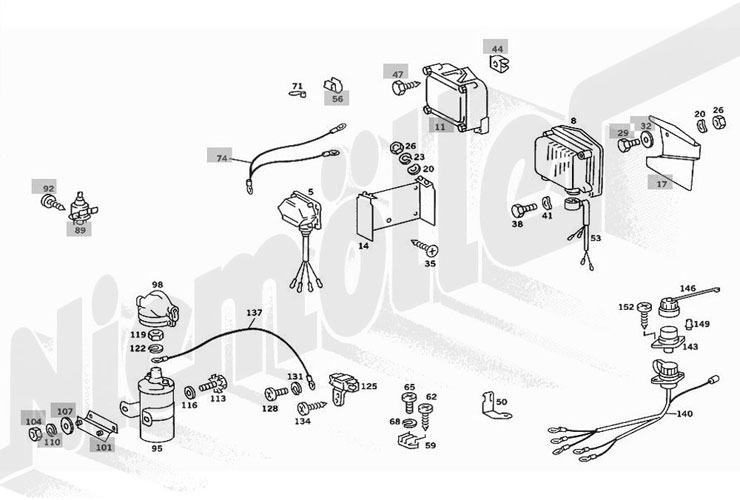

54 Electrical Equipment and Instruments Unit overview 54 Electrical Equipment and Instruments
.product-group-5 .product-group-8 .product-group-14 .product-group-20 .product-group-20 .product-group-23 .product-group-26 .product-group-26 .product-group-35 .product-group-38 .product-group-41 .product-group-50 .product-group-53 .product-group-59 .product-group-62 .product-group-65 .product-group-68 .product-group-71 .product-group-95 .product-group-98 .product-group-113 .product-group-116 .product-group-119 .product-group-122 .product-group-125 .product-group-128 .product-group-131 .product-group-134 .product-group-137 .product-group-140 .product-group-143 .product-group-149 .product-group-152 Panel
Views:
Draft & List Draft & Gallery Gallery
Pic. Niemöller
part-no.		 Designation   Price/unit
excl. tax.

Image number 5
F 54 809 -
F 54 809 F 54 809 Switch, transistor ignition system Switch, transistor ignition system
000 545 87 32 oder 0005458732
no longer available no longer available on request on request
Image number 8
F 54 460 -
F 54 460 Transistor ignition system switch
000 545 76 32 oder 0005457632
no longer available on request Choose the suitable product variant
Image number 8
F 54 810 -
F 54 810 Switch for transistor ignition
001 545 86 32 oder 0015458632
currently not in stock, but available for order €127.50
Image number 14
F 54 806 -
F 54 806 F 54 806 Holder switchgear transistor igniter wheel arch Holder switchgear transistor igniter wheel arch
107 540 03 73 oder 1075400373
currently not in stock, but available for order currently not in stock, but available for order €311.43 €311.43
Image number 20
G 30 102 - spring washer
G 30 102 G 30 102 Spring washer Spring washer
000 137 006 204 oder 000137006204
in stock in stock €0.72 €0.72
Image number 23
G 22 020 - Lock washer
G 22 020 G 22 020 Lock washer Lock washer
912 004 006 102 oder 912004006102
in stock in stock €0.30 €0.30
Image number 26
G 42 104 - Nut, hydraulic unit on holder
G 42 104 G 42 104 Nut, hydraulic unit on holder Nut, hydraulic unit on holder
304 032 006 008 oder 304032006008
in stock in stock €14.34 €14.34
Image number 35
G 54 153 -
G 54 153 G 54 153 Sheet metal screw, valve on stem Sheet metal screw, valve on stem
007 981 004 318 oder 007981004318
no longer available no longer available on request on request
Image number 38
D 83 311 - Screw
D 83 311 D 83 311 Screw Screw
304 017 006 020 oder 304017006020
in stock in stock €2.16 €2.16
Image number 41
G 30 102 - spring washer
G 30 102 G 30 102 Spring washer Spring washer
000 137 006 204 oder 000137006204
in stock in stock €0.72 €0.72
Image number 50
F 54 815 -
F 54 815 F 54 815 Holder on switchgear Holder on switchgear
107 546 21 43 oder 1075462143
no longer available no longer available on request on request
Image number 53
F 54 813 -
F 54 813 Lead Transistor Ignition System
107 540 86 09 oder 1075408609
no longer available on request Choose the suitable product variant
Image number 53
F 54 814 -
F 54 814 Lead Transistor Ignition System
107 540 40 08 oder 1075404008
no longer available on request
Image number 59
C 26 260 - cable connector - 2 poles C 26 260 - cable connector - 2 poles
D 08 236 C 26 260 Cable connector Cable connector - 2 poles
000 546 70 41 oder 0005467041
no longer available in stock on request €33.08
C 26 260 Replacement: Cable connector - 2 poles in stock €33.08
Image number 62
G 54 176a - Sheet metal screw 4,2x22 G 54 176a - Sheet metal screw 4,2x22
G 54 176 G 54 176a Sheet metal screw 4,2x16 Sheet metal screw 4,2x22
007 981 004 331 oder 007981004331
no longer available in stock on request €13.50
G 54 176a Replacement: Sheet metal screw 4,2x22 in stock €13.50
Image number 65
G 54 124 - oval head screw 4x8 DIN 7985 G 54 124 - oval head screw 4x8 DIN 7985
G 54 124 G 54 124 Oval head screw 4x8 DIN 7985 Oval head screw 4x8 DIN 7985
007 985 004 107 oder 007985004107
in stock in stock €2.00 €2.00
Image number 68
B 07 032 - Lock washer
B 07 032 B 07 032 Lock washer Lock washer
912 004 004 102 oder 912004004102
in stock in stock €0.72 €0.72
Image number 71
F 54 816 -
F 54 816 F 54 816 Cable terminal Cable terminal
000 546 80 40 oder 0005468040
no longer available no longer available on request on request
Image number 95
D 55 078 -
D 55 078 Ignition coil, transistor ignition system
000 158 28 03 oder 0001582803
no longer available on request Choose the suitable product variant
Image number 95
F 54 802 - ignition coil F 54 802 - ignition coil
F 54 802 Ignition coil
000 158 40 03 oder 0001584003
in stock €72.00
Image number 98
F 54 177 -
F 54 177 Safety cover
000 158 12 85 oder 0001581285
currently not in stock, but available for order €15.13 Choose the suitable product variant
Image number 98
F 54 177 -
F 54 177 Safety cover
000 158 14 85 oder 0001581485
currently not in stock, but available for order €15.13
Image number 98

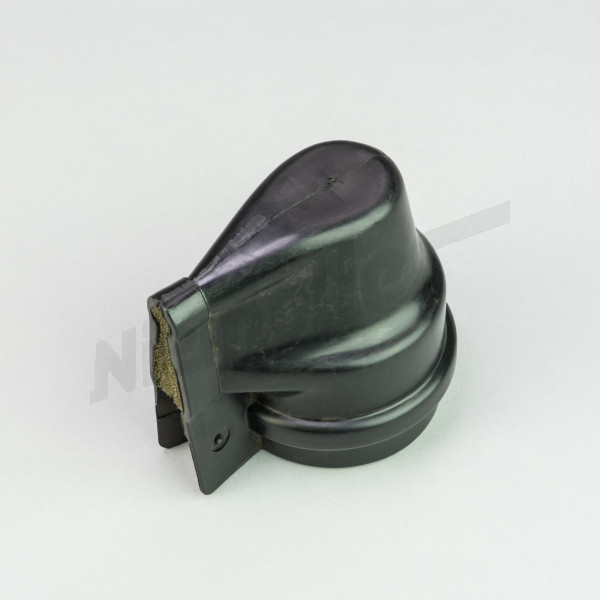

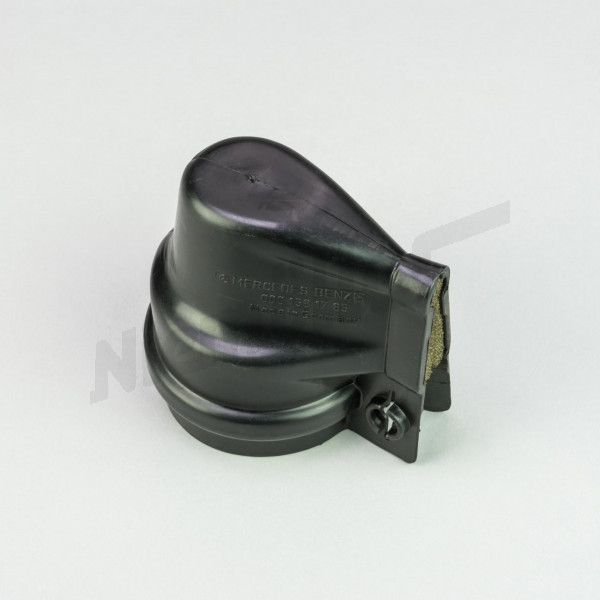

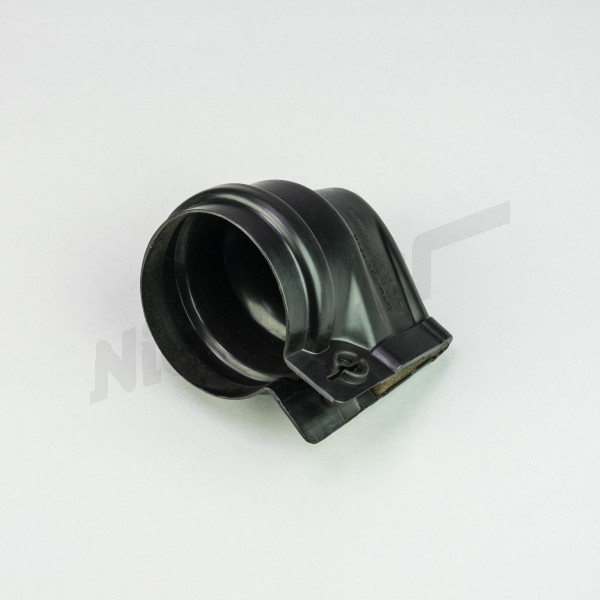

F 54 805 - safety cover F 54 805 - safety cover F 54 805 - safety cover
F 54 805 Safety cover
000 158 17 85 oder 0001581785
in stock €18.50
Image number 113
G 54 164 -
G 54 164 G 54 164 Screw, ignition coil on wheel arch plate Screw, ignition coil on wheel arch plate
201 990 22 01 oder 2019902201
no longer available no longer available on request on request
Image number 116
C 68 084 - spring washer
C 68 084 C 68 084 Spring washer Spring washer
000 990 08 48 oder 0009900848
in stock in stock €8.34 €8.34
Image number 119
C 88 251g - Hex. nut
C 88 251g Hex. nut
000 934 005 008 oder 000934005008
in stock €0.34 Choose the suitable product variant
Image number 119
G 42 104 - Nut, hydraulic unit on holder
G 42 104 Nut, hydraulic unit on holder
304 032 006 008 oder 304032006008
in stock €14.34
Image number 122
G 46 040 -
G 46 040 Spring washer
912 004 005 100 oder 912004005100
no longer available on request Choose the suitable product variant
Image number 122
G 22 020 - Lock washer
G 22 020 Lock washer
912 004 006 102 oder 912004006102
in stock €0.30
Image number 125
D 55 090 - resistor 0,4 Ohm
D 55 090 Resistor 0,4 Ohm
000 158 19 45 oder 0001581945
in stock €46.00 Choose the suitable product variant
Image number 125
F 54 184 -
F 54 184 Series resistor
000 158 20 45 oder 0001582045
no longer available on request
Image number 125
D 55 086 - resistor 0,6 Ohm
D 55 086 Resistor 0,6 Ohm
000 158 13 45 oder 0001581345
in stock €45.00
Image number 128
G 54 045 -
G 54 045 G 54 045 Screw, guide on starter terminal 50 Screw, guide on starter terminal 50
007 985 004 123 oder 007985004123
no longer available no longer available on request on request
Image number 131
B 07 032 - Lock washer
B 07 032 B 07 032 Lock washer Lock washer
912 004 004 102 oder 912004004102
in stock in stock €0.72 €0.72
Image number 134
G 54 176 -
G 54 176 Sheet metal screw 4,2x16
007 981 004 331 oder 007981004331
no longer available on request Choose the suitable product variant
Image number 134
G 54 596 -
G 54 596 Self-tapping screw, control unit to bracket
000 000 000 459 oder 000000000459
currently not in stock, but available for order €1.12
Image number 137
D 55 087 -
D 55 087 D 55 087 Connecting pipe Connecting pipe
107 546 01 03 oder 1075460103
currently not in stock, but available for order currently not in stock, but available for order €9.24 €9.24
Image number 140
F 54 759 -
F 54 759 Head of Diagnosis
107 540 53 08 oder 1075405308
no longer available on request Choose the suitable product variant
Image number 140
F 54 760 -
F 54 760 Head of Diagnosis
107 540 87 09 oder 1075408709
no longer available on request
Image number 143
F 54 369 -
F 54 369 F 54 369 Power outlet Power outlet
123 545 00 26 oder 1235450026
currently not in stock, but available for order currently not in stock, but available for order €13.52 €13.52
Image number 149
G 54 191 -
G 54 191 G 54 191 Round receptacle 2.5 mm Round receptacle 2.5 mm
002 545 99 26 oder 0025459926
currently not in stock, but available for order currently not in stock, but available for order €4.08 €4.08
Image number 152
G 81 048 - sheet metal screw G 81 048 - sheet metal screw
G 81 048 G 81 048 Sheet metal screw Sheet metal screw
000 000 000 460 oder 000000000460
in stock in stock €1.26 €1.26
Please note that the product names may be an automatic translation for which no guarantee can be given.
  • in stock in stock
  • low stock level low stock level
  • currently not in stock, but available for order currently not in stock, but available for order
  • no longer available no longer available
Views:
Draft & List Draft & Gallery Gallery
54 Electrical Equipment and Instruments Unit overview 54 Electrical Equipment and Instruments
Switch, transistor ignition system
As of ident. no.
042 011569 ALSO INSTALLED ON
no longer available F 54 809
Transistor ignition system switch
As of ident. no.
022 001879
042 001510
Up to ident. no.:
022 002390 EXCEPT FOR 002285,002389,002390
042 001835 EXCEPT FOR
no longer available F 54 460
Switch for transistor ignition
As of ident. no.
022 002391 ALSO INSTALLED ON 002285,002389,002390
042 001836 ALSO INSTALLE DON
currently not in stock, but available for order F 54 810 €127.50
Holder switchgear transistor igniter wheel arch
As of ident. no.
022 002391 ALSO INSTALLED ON 002285,002389,002390
042 001836 ALSO INSTALLE DON
currently not in stock, but available for order F 54 806 €311.43
Spring washer
As of ident. no.
022 002391 ALSO INSTALLED ON 002285,002389,002390
042 001836 ALSO INSTALLE DON
in stock G 30 102 €0.72
Lock washer
As of ident. no.
022 002391 ALSO INSTALLED ON 002285,002389,002390
042 001836 ALSO INSTALLE DON
in stock G 22 020 €0.30
Nut, hydraulic unit on holder
Up to ident. no.:
022 002390 EXCEPT FOR 002285,002389,002390
042 001835 EXCEPT FOR
in stock G 42 104 €14.34
Sheet metal screw, valve on stem
Up to ident. no.:
022 002390 EXCEPT FOR 002285,002389,002390
042 001835 EXCEPT FOR
no longer available G 54 153
Screw
Up to ident. no.:
022 002390 EXCEPT FOR 002285,002389,002390
042 001835 EXCEPT FOR
in stock D 83 311 €2.16
Spring washer
Up to ident. no.:
022 002390 EXCEPT FOR 002285,002389,002390
042 001835 EXCEPT FOR
in stock G 30 102 €0.72
Holder on switchgear
As of ident. no.
023 010805
024 012079 ALSO INSTALLED ON 009359,011723,011972
043 012224 ALSO INSTALLED ON 012101
044 029876 ALSO INSTALLED ON 029640
As of ident. no.
022 001879
042 001510
no longer available F 54 815
Lead Transistor Ignition System
As of ident. no.
023 010805
024 012079 ALSO INSTALLED ON 009359,011723,011972
043 012224 ALSO INSTALLED ON 012101
044 029876 ALSO INSTALLED ON 029640
As of ident. no.
022 001879
042 001510
no longer available F 54 813
Lead Transistor Ignition System
As of ident. no.
023 010805
024 012079 ALSO INSTALLED ON 009359,011723,011972
043 012224 ALSO INSTALLED ON 012101
044 029876 ALSO INSTALLED ON 029640
As of ident. no.
022 001879
042 001510
no longer available F 54 814
Cable connector
As of ident. no.
023 010805
024 012079 ALSO INSTALLED ON 009359,011723,011972
043 012224 ALSO INSTALLED ON 012101
044 029876 ALSO INSTALLED ON 029640
As of ident. no.
022 001879
042 001510
no longer available D 08 236
Replacement item available
To the replacement item
Sheet metal screw 4,2x16
As of ident. no.
023 010805
024 012079 ALSO INSTALLED ON 009359,011723,011972
043 012224 ALSO INSTALLED ON 012101
044 029876 ALSO INSTALLED ON 029640
As of ident. no.
022 002391 ALSO INSTALLED ON 002285,002389,002390
042 001836 ALSO INSTALLE DON
no longer available G 54 176
Replacement item available
To the replacement item
Oval head screw 4x8 DIN 7985
Up to ident. no.:
023 010804
024 012079 ALSO INSTALLED ON 009359,011723,011972
043 012223 EXCEPT FOR 012101
044 029875 EXCEPT FOR 029640
Up to ident. no.:
022 002390 EXCEPT FOR 002285,002389,002390
042 001835 EXCEPT FOR
in stock G 54 124 €2.00
Lock washer
As of ident. no.
023 010266
024 010204
043 011889 ALSO INSTALLED ON 011887
044 026206 EXCEPT FOR 026301
As of ident. no.
022 002391 ALSO INSTALLED ON 002285,002389,002390
042 001836 ALSO INSTALLE DON
in stock B 07 032 €0.72
Cable terminal
As of ident. no.
023 010266
024 010204
043 011889 ALSO INSTALLED ON 011887
044 026206 EXCEPT FOR 026301
As of ident. no.
022 002391 ALSO INSTALLED ON 002285,002389,002390
042 001836 ALSO INSTALLE DON
no longer available F 54 816
Ignition coil, transistor ignition system
Up to ident. no.:
023 010265
024 010203
043 011888 EXCEPT FOR 011887
044 026259 ALSO INSTALLED ON 026301
Up to ident. no.:
022 002390 EXCEPT FOR 002285,002389,002390
042 001835 EXCEPT FOR
no longer available D 55 078
Ignition coil
Up to ident. no.:
023 010265
024 010203
043 011888 EXCEPT FOR 011887
044 026259 ALSO INSTALLED ON 026301
Up to ident. no.:
022 002390 EXCEPT FOR 002285,002389,002390
042 001835 EXCEPT FOR
in stock F 54 802 €72.00
Safety cover
As of ident. no.
023 004756
043 009310
Up to ident. no.:
042 011568 EXCEPT FOR
currently not in stock, but available for order F 54 177 €15.13
Safety cover
As of ident. no.
023 004756
043 009310
Up to ident. no.:
042 011568 EXCEPT FOR
in stock F 54 805 €18.50
Screw, ignition coil on wheel arch plate
As of ident. no.
023 004756
043 009310
Up to ident. no.:
042 011568 EXCEPT FOR
no longer available G 54 164
Spring washer
As of ident. no.
042 011569 ALSO INSTALLED ON
in stock C 68 084 €8.34
Hex. nut
in stock C 88 251g €0.34
Nut, hydraulic unit on holder
As of ident. no.
042 011569 ALSO INSTALLED ON
in stock G 42 104 €14.34
Spring washer
no longer available G 46 040
Lock washer
As of ident. no.
042 011569 ALSO INSTALLED ON
in stock G 22 020 €0.30
Resistor 0,4 Ohm
As of ident. no.
042 011569 ALSO INSTALLED ON
in stock D 55 090 €46.00
Series resistor
As of ident. no.
042 011569 ALSO INSTALLED ON
no longer available F 54 184
Replacement item available
To the replacement item
Resistor 0,6 Ohm
Up to ident. no.:
042 011568 EXCEPT FOR
in stock D 55 086 €45.00
Screw, guide on starter terminal 50
Up to ident. no.:
042 011568 EXCEPT FOR
no longer available G 54 045
Lock washer
Up to ident. no.:
042 011568 EXCEPT FOR
in stock B 07 032 €0.72
Sheet metal screw 4,2x16
Up to ident. no.:
042 011568 EXCEPT FOR
no longer available G 54 176
Replacement item available
To the replacement item
Self-tapping screw, control unit to bracket
Up to ident. no.:
042 011568 EXCEPT FOR
currently not in stock, but available for order G 54 596 €1.12
Connecting pipe
Up to ident. no.:
022 008365 EXCEPT FOR
currently not in stock, but available for order D 55 087 €9.24
Head of Diagnosis
Up to ident. no.:
022 008365 EXCEPT FOR
no longer available F 54 759
Head of Diagnosis
Up to ident. no.:
022 008365 EXCEPT FOR
no longer available F 54 760
Power outlet
As of ident. no.
022 005201 ALSO INSTALLED ON 005190-005192,005194-005199
023 012497
024 021804 ALSO INSTALLED ON 021794-021802
042 004222 ALSO INSTALLED ON 004213,004215-004218,004220
043 013577
044 013577 ALSO INSTALLED ON 047061,0470764-047066
currently not in stock, but available for order F 54 369 €13.52
Round receptacle 2.5 mm
Up to ident. no.:
023 010804
024 012079 ALSO INSTALLED ON 009359,011723,011972
043 012223 EXCEPT FOR 012101
044 029875 EXCEPT FOR 029640
currently not in stock, but available for order G 54 191 €4.08
Sheet metal screw
Up to ident. no.:
023 010804
024 012079 ALSO INSTALLED ON 009359,011723,011972
043 012223 EXCEPT FOR 012101
044 029875 EXCEPT FOR 029640
in stock G 81 048 €1.26
  • in stock in stock
  • low stock level low stock level
  • currently not in stock, but available for order currently not in stock, but available for order
  • no longer available no longer available
54 Electrical Equipment and Instruments Unit overview 54 Electrical Equipment and Instruments
.product-group-5 .product-group-8 .product-group-14 .product-group-20 .product-group-20 .product-group-23 .product-group-26 .product-group-26 .product-group-35 .product-group-38 .product-group-41 .product-group-50 .product-group-53 .product-group-59 .product-group-62 .product-group-65 .product-group-68 .product-group-71 .product-group-95 .product-group-98 .product-group-113 .product-group-116 .product-group-119 .product-group-122 .product-group-125 .product-group-128 .product-group-131 .product-group-134 .product-group-137 .product-group-140 .product-group-143 .product-group-149 .product-group-152 Panel
Views:
Draft & List Draft & Gallery Gallery
Switch, transistor ignition system
no longer available F 54 809
Transistor ignition system switch
no longer available F 54 460
Switch for transistor ignition
currently not in stock, but available for order F 54 810 €127.50
Holder switchgear transistor igniter wheel arch
currently not in stock, but available for order F 54 806 €311.43
Spring washer
in stock G 30 102 €0.72
Lock washer
in stock G 22 020 €0.30
Nut, hydraulic unit on holder
in stock G 42 104 €14.34
Sheet metal screw, valve on stem
no longer available G 54 153
Screw
in stock D 83 311 €2.16
Spring washer
in stock G 30 102 €0.72
Holder on switchgear
no longer available F 54 815
Lead Transistor Ignition System
no longer available F 54 813
Lead Transistor Ignition System
no longer available F 54 814
Cable connector
no longer available D 08 236
Replacement item available
To the replacement item
Sheet metal screw 4,2x16
no longer available G 54 176
Replacement item available
To the replacement item
Oval head screw 4x8 DIN 7985
in stock G 54 124 €2.00
Lock washer
in stock B 07 032 €0.72
Cable terminal
no longer available F 54 816
Ignition coil, transistor ignition system
no longer available D 55 078
Ignition coil
in stock F 54 802 €72.00
Safety cover
currently not in stock, but available for order F 54 177 €15.13
Safety cover
in stock F 54 805 €18.50
Screw, ignition coil on wheel arch plate
no longer available G 54 164
Spring washer
in stock C 68 084 €8.34
Hex. nut
in stock C 88 251g €0.34
Nut, hydraulic unit on holder
in stock G 42 104 €14.34
Spring washer
no longer available G 46 040
Lock washer
in stock G 22 020 €0.30
Resistor 0,4 Ohm
in stock D 55 090 €46.00
Series resistor
no longer available F 54 184
Replacement item available
To the replacement item
Resistor 0,6 Ohm
in stock D 55 086 €45.00
Screw, guide on starter terminal 50
no longer available G 54 045
Lock washer
in stock B 07 032 €0.72
Sheet metal screw 4,2x16
no longer available G 54 176
Replacement item available
To the replacement item
Self-tapping screw, control unit to bracket
currently not in stock, but available for order G 54 596 €1.12
Connecting pipe
currently not in stock, but available for order D 55 087 €9.24
Head of Diagnosis
no longer available F 54 759
Head of Diagnosis
no longer available F 54 760
Power outlet
currently not in stock, but available for order F 54 369 €13.52
Round receptacle 2.5 mm
currently not in stock, but available for order G 54 191 €4.08
Sheet metal screw
in stock G 81 048 €1.26
  • in stock in stock
  • low stock level low stock level
  • currently not in stock, but available for order currently not in stock, but available for order
  • no longer available no longer available
Oldtimer Gummiprofile
Please visit our special shop for classic rubber profiles.
Lade Inhalte ...
