MB 500SL W107.046 engine 117.962 80-85

Chosen model:

Chassis: 107.046
Engine: 117.962
Choose different model

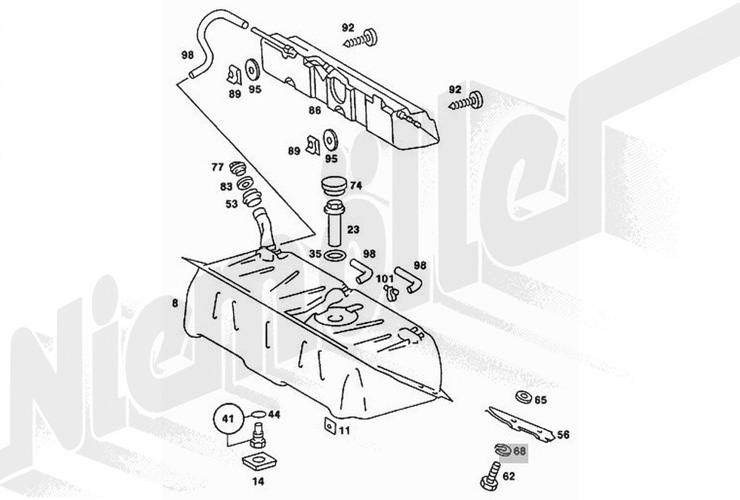

Current unit you are viewing: 47 Fuel System

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 8		F 47 176	Fuel tank 107 470 45 01 oder 1074704501		€3,635.76	Choose the suitable product variant
Image number 8	Image number 8		F 47 176a	Fuel tank / replica (with this tank, the original filter G 47 008 is no longer used - instead, screw the extraction hose directly onto the already mounted nozzle) 107 470 45 01 oder 1074704501		Choose the suitable product variant	€610.00
Image number 23		F 47 183 F 47 183	Fuel sender unit Fuel sender unit 107 542 08 04 oder 1075420804		€245.47 €245.47
Image number 35		F 47 055 F 47 055	Sealing ring for fuel sender unit Sealing ring for fuel sender unit 107 997 13 45 oder 1079971345		€1.50 €1.50
Image number 41		G 47 008 G 47 008	Fuel strainer with gasket Fuel strainer with gasket 201 470 04 06 oder 2014700406		€36.33 €36.33
Image number 44		D 47 036 D 47 036	Seal ring Seal ring 110 997 01 45 oder 1109970145		€5.42 €5.42
Image number 53		F 47 187 F 47 187	Grommet Grommet 123 997 35 81 oder 1239973581		€3.97 €3.97
Image number 62		G 25 018 G 25 018	Screw Screw 304 017 008 034 oder 304017008034		€3.90 €3.90
Image number 65		D 33 142 D 33 142	Washer, rubber bearing on body-floor Washer, rubber bearing on body-floor 108 990 03 40 oder 1089900340		€7.59 €7.59
Image number 74		A 68 032 A 68 032	Cover Cover 110 987 01 45 oder 1109870145		€11.03 €11.03
Image number 77		D 47 049	Filler cap 124 470 00 05 oder 1244700005		€70.80	Choose the suitable product variant
Image number 77	Image number 77		F 47 071	Tank cap Fa. Huf 201 471 01 30 oder 2014710130		Choose the suitable product variant	on request
Image number 86		F 47 190 F 47 190	Bins Bins 107 470 07 89 oder 1074700789		€1,076.13 €1,076.13
Image number 89		C 54 174 C 54 174	Plug clip nut for fuse box Plug clip nut for fuse box 000 994 25 45 oder 0009942545		€2.19 €2.19
Image number 92		G 54 075 G 54 075	Self-tapping screw, conductive connector to holder Self-tapping screw, conductive connector to holder 007 981 004 325 oder 007981004325		€22.86 €22.86
Image number 95		G 88 123 G 88 123	Washer 5.3 DIN 9021 Washer 5.3 DIN 9021 009 021 005 205 oder 009021005205		€0.99 €0.99
Image number 98		G 47 024 G 47 024	Fuel hose 6mm / sold per meter Fuel hose 6mm / sold per meter 107 476 37 26 oder 1074763726		€7.50 €7.50
Image number 101		E 47 006 E 47 006	Clamp 11mm Clamp 11mm 916 033 011 100 oder 916033011100		on request on request

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

As of ident. no.
042 002002
043 012556
044 034421

F 47 176 €3,635.76

The original G 47 008 filter is no longer used with this tank - instead, screw the removal hose directly onto the already fitted connection piece

F 47 176a €610.00

As of ident. no.
042 002002
043 012556
044 034421

F 47 183 €245.47

As of ident. no.
023 005010
043 009411

F 47 055 €1.50

G 47 008 €36.33

D 47 036 €5.42

As of ident. no.
042 008786
044 065003
045 000319
046 000171

F 47 187 €3.97

G 25 018 €3.90

D 33 142 €7.59

A 68 032 €11.03

Up to ident. no.:
023 001000
043 007533
044 004969

D 47 049 €70.80

As of ident. no.
022 006131
023 012983
024 024514
026 000428-001875
042 005114
043 014030
044 051686
046 000001-000170
STATE LOCK NUMBER WHEN ORDERING
045 SWITZERLAND 019228 EXCEPT FOR 014997
UP TO CHASSIS NEW EQUIPMENT 9/82
042 014437 EXCEPT FOR

F 47 071

As of ident. no.
043 003443 EXCEPT FOR 003852-003894

F 47 190 €1,076.13

C 54 174 €2.19

G 54 075 €22.86

G 88 123 €0.99

ORDER BY THE METER

G 47 024 €7.50

E 47 006
