250SE/Cp Mercedes-Benz w111

Chosen model:

Chassis: 111.021
Engine: 129.980,981
Choose different model

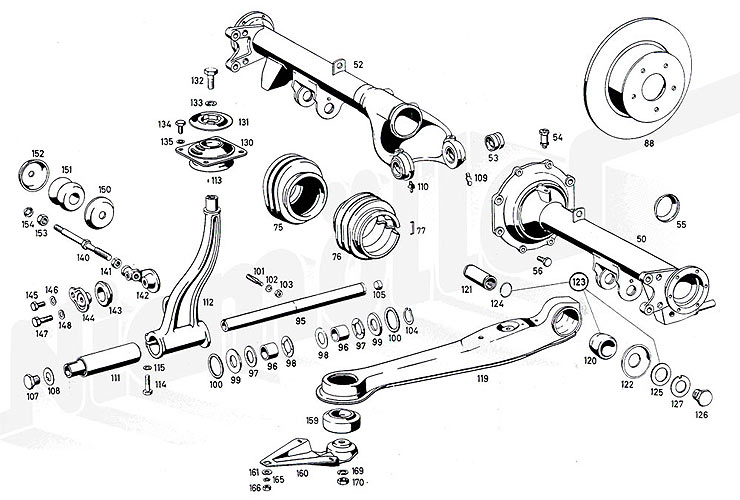

Current unit you are viewing: 35 Rear Axle 2

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 50		D 35 217 D 35 217	Support tube, left Support tube, left 108 350 02 19 oder 1083500219		on request on request
Image number 52		D 35 229 D 35 229	Support tube, right Support tube, right 108 350 03 19 oder 1083500319		on request on request
Image number 0		D 35 236 D 35 236	Bracket left, for shock absorber Bracket left, for shock absorber 110 320 24 43 oder 1103202443		€196.04 €196.04

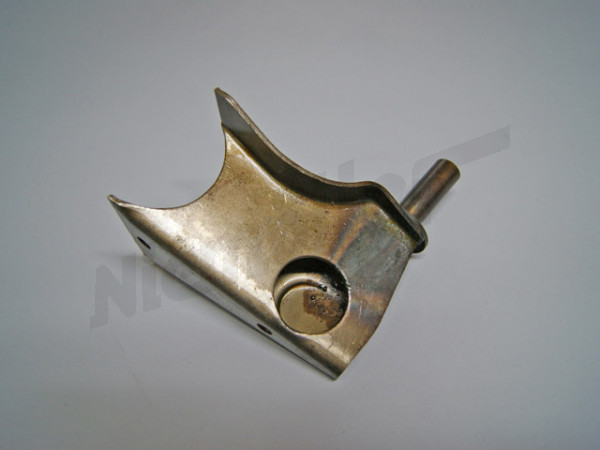

Image number 0		D 35 238 D 35 238	Support, right, for shock absorber Support, right, for shock absorber 110 320 25 43 oder 1103202543		€250.00 €250.00
Image number 53		C 35 126 C 35 126	Bushing Bushing 180 351 01 50 oder 1803510150		€24.90 €24.90
Image number 54		D 35 240 D 35 240	Vent (for left support tube) Vent (for left support tube) 115 350 02 90 oder 1153500290		€77.16 €77.16
Image number 55		D 35 242 D 35 242	Oil shield ring Oil shield ring 108 351 00 68 oder 1083510068		on request on request
Image number 75		C 35 196	Rear axle boot / solid 110 357 04 91 oder 1103570491		€24.50	Choose the suitable product variant
Image number 75	Image number 75		C 35 196o	Rubber sleeve for the rear axle closed 110 357 01 91 oder 1103570191		Choose the suitable product variant	€72.64
Image number 76		C 35 197	Rear axle boot / split version 110 357 03 91 oder 1103570391		€24.50	Choose the suitable product variant
	Image number 76		C 35 197a	Hose strap / big			€2.00
	Image number 76		C 35 197b	Hose strap / small			€2.00
Image number 77		D 35 267 D 35 267	Clamp for split version rubber boot Clamp for split version rubber boot 002 988 10 78 oder 0029881078		€1.05 €1.05
Image number 88		D 35 291 D 35 291	Brake disc rear W108,109,111,113, 114,115,116,123,126 Brake disc rear W108,109,111,113, 114,115,116,123,126 108 423 02 12 oder 1084230212		€39.50 €39.50
Image number 95		D 35 303 D 35 303	Pin Pin 110 351 00 74 oder 1103510074		€85.00 €85.00
Image number 96		C 35 226	Spacer tube 26,0mm 180 351 01 53 oder 1803510153		€40.00	Choose the suitable product variant
	Image number 96		C 35 227	Sleeve 25,8 mm long 180 351 18 53 oder 1803511853			on request
	Image number 96		C 35 228	Sleeve 25,6 mm long 180 351 17 53 oder 1803511753			€99.88
	Image number 96		C 35 229	Sleeve 25,4 mm long 180 351 16 53 oder 1803511653			€99.88
	Image number 96		D 35 305	Sleeve 25,2mm long 180 351 15 53 oder 1803511553			on request
	Image number 96		C 35 230	Sleeve 25,00 mm long 180 351 14 53 oder 1803511453			€108.55
Image number 97		C 35 225 C 35 225	Spacer washer 2,00mm Spacer washer 2,00mm 180 351 05 52 oder 1803510552		€22.00 €22.00
Image number 98		D 35 306	Spacer washer 1,9mm 180 351 13 52 oder 1803511352		€77.35	Choose the suitable product variant
	Image number 98		C 35 232	Shim 2.1 mm thick 180 351 15 52 oder 1803511552			€72.10
	Image number 98		C 35 233	Shim 2.2 mm thick 180 351 16 52 oder 1803511652			€68.09
	Image number 98		C 35 234	Shim 2.3 mm thick 180 351 17 52 oder 1803511752			€66.16
	Image number 98		C 35 235	Shim 2.4 mm thick 180 351 18 52 oder 1803511852			€48.00
	Image number 98		C 35 236	Shim 2.5 mm thick 180 351 19 52 oder 1803511952			on request
	Image number 98		C 35 238	Shim 2.60 mm thick 180 351 27 52 oder 1803512752			on request
	Image number 98		C 35 239	Shim 2.70 mm thick 180 351 28 52 oder 1803512852			on request
	Image number 98		D 35 307	Shim 2,8mm thick 180 351 29 52 oder 1803512952			€85.28
	Image number 98		C 35 240	Shim 2.90 mm thick 180 351 30 52 oder 1803513052			€77.90
	Image number 98		C 35 237	Shim 3.0 mm thick 180 351 20 52 oder 1803512052			on request
	Image number 98		C 35 241	Shim 3.10 mm thick 180 351 31 52 oder 1803513152			on request
	Image number 98		C 35 242	Shim 3.20 mm thick 180 351 32 52 oder 1803513252			on request
Image number 99		C 35 243 C 35 243	Spacer ring Spacer ring 180 351 03 51 oder 1803510351		€15.50 €15.50
Image number 100		C 35 244 C 35 244	Rubber ring Rubber ring 180 351 09 86 oder 1803510986		€3.46 €3.46
Image number 101		C 35 245 C 35 245	Key for pin Key for pin 180 351 00 74 oder 1803510074		€13.98 €13.98
Image number 103		G 72 159 G 82 081	Hex nut Hex nut 000 934 008 000 oder 000934008000		on request €2.17
	G 82 081	Replacement: Hex nut		€2.17
Image number 104		C 35 246 C 35 246	Lock Lock 180 994 03 41 oder 1809940341		€0.98 €0.98
Image number 105		E 41 005 E 41 005	Expansion plug 20 DIN 443 Expansion plug 20 DIN 443 000 000 004 125 oder 000000004125		€1.00 €1.00
Image number 107		C 35 249 C 35 249	Hex screw Hex screw 180 997 04 30 oder 1809970430		€10.80 €10.80
Image number 108		C 35 248 C 35 248	Lock Lock 180 994 01 12 oder 1809940112		€2.30 €2.30
Image number 109		C 41 021 C 41 021	Grease nipple Grease nipple 071 412 006 100 oder 071412006100		€0.80 €0.80
Image number 110		C 35 250 C 35 250	Grease nipple B 6 DIN 71412 Grease nipple B 6 DIN 71412 000 997 11 88 oder 0009971188		€0.42 €0.42
Image number 111		D 35 309	Rubber mounting 110 350 13 75 oder 1103501375		€107.00	Choose the suitable product variant
Image number 111	Image number 111		D 35 309	Rubber mounting 110 350 13 75 oder 1103501375		Choose the suitable product variant	€107.00
Image number 112		D 35 310 D 35 310	Supporters Supporters 109 350 00 32 oder 1093500032		€300.00 €300.00
Image number 113		D 35 312 D 35 312	Grooved pin Grooved pin 001 473 003 001 oder 001473003001		€2.25 €2.25
Image number 119		D 35 313	Push rod left 110 350 10 29 oder 1103501029		€770.00	Choose the suitable product variant
Image number 119	Image number 119		D 35 317	Push rod right 110 350 11 29 oder 1103501129		Choose the suitable product variant	€770.00
Image number 120		D 35 323 D 35 323	Rubber mounting Rubber mounting 110 352 18 65 oder 1103521865		€3.35 €3.35
Image number 121		D 35 325 D 35 325	Pivot pin Pivot pin 111 352 05 09 oder 1113520509		€11.20 €11.20
Image number 122		D 35 327 D 35 327	Washer Washer 111 352 12 76 oder 1113521276		€7.55 €7.55
Image number 123		D 35 321 D 35 321	Swing arm repair kit Swing arm repair kit 110 350 14 75 oder 1103501475		€125.00 €125.00
Image number 124		C 08 248 C 08 248	Snap ring Snap ring 009 045 032 000 oder 009045032000		€0.95 €0.95
Image number 125		D 35 329 D 35 329	Spacer ring Spacer ring 110 352 01 51 oder 1103520151		€1.83 €1.83
Image number 126		D 35 330 D 35 330	Heax head screw Heax head screw 111 352 01 71 oder 1113520171		€19.50 €19.50
Image number 127		D 35 331 D 35 331	Lock plate Lock plate 111 352 01 73 oder 1113520173		€2.80 €2.80
Image number 130		D 35 332 D 35 332	Rubber mounting rear axle Rubber mounting rear axle 110 350 06 75 oder 1103500675		€321.52 €321.52
Image number 131		D 35 334 D 35 334	Clamping disc top Clamping disc top 110 351 00 45 oder 1103510045		€68.55 €68.55
Image number 132		D 35 334a D 35 334a	Screw for D 35 334a Screw for D 35 334a 000 961 016 142 oder 000961016142		€10.65 €10.65
Image number 140		D 35 349 D 35 349	Cross strut Cross strut 110 350 04 93 oder 1103500493		€70.00 €70.00
Image number 142		C 35 286 C 35 286	Bracket Bracket 111 351 03 40 oder 1113510340		€161.70 €161.70
Image number 143		D 35 353 D 35 353	Rubber mounting Rubber mounting 111 351 04 48 oder 1113510448		€22.50 €22.50
Image number 144		C 35 290 C 35 290	Bracket Bracket 111 351 02 40 oder 1113510240		€130.65 €130.65
Image number 146		B 22 006 B 22 006	Spring washer Spring washer 000 137 010 201 oder 000137010201		€0.84 €0.84
Image number 148		G 22 070 G 22 070	Spring washer Spring washer 000 137 012 201 oder 000137012201		€0.75 €0.75
Image number 150		D 35 358 D 35 358	Cup inside Cup inside 110 351 07 43 oder 1103510743		€18.18 €18.18
Image number 151		D 35 360 D 35 360	Rubber buffer Rubber buffer 111 351 04 44 oder 1113510444		€5.25 €5.25
Image number 152		D 35 361 D 35 361	Cup outside Cup outside 110 351 06 43 oder 1103510643		€21.63 €21.63
Image number 159		D 35 363 D 35 363	Rubber mounting Rubber mounting 110 352 10 65 oder 1103521065		€7.35 €7.35
Image number 160		D 35 365 D 35 365	Mounting plate with plate Mounting plate with plate 110 352 00 42 oder 1103520042		€76.31 €76.31
Image number 0		G 88 080 G 49 060	Screw Hex. head screw 000 933 008 108 oder 000933008108		on request €1.54
	G 49 060	Replacement: Hex. head screw		€1.54
Image number 0		D 29 082 D 29 082	Disc, push rod on clutch pedal Disc, push rod on clutch pedal 000 125 008 407 oder 000125008407		on request on request
Image number 161		D 33 142 D 33 142	Washer, rubber bearing on body-floor Washer, rubber bearing on body-floor 111 990 03 40 oder 1119900340		€7.59 €7.59
Image number 166		G 29 021 C 32 027	Hex nut Hex. nut M 8 000 934 008 013 oder 000934008013		on request €0.54
	C 32 027	Replacement: Hex. nut M 8		€0.54

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

D 35 217

D 35 229

D 35 236 €196.04

D 35 238 €250.00

C 35 126 €24.90

D 35 240 €77.16

From chassis 087685

D 35 242

C 35 196 €24.50

C 35 196o €72.64

Please order as well:
Clamp D 35 197 x9
Clamps C 35 197a x1 + C 35 197b x1.

C 35 197 €24.50

C 35 197a €2.00

C 35 197b €2.00

D 35 267 €1.05

D 35 291 €39.50

D 35 303 €85.00

C 35 226 €40.00

C 35 228 €99.88

C 35 229 €99.88

D 35 305

C 35 230 €108.55

C 35 225 €22.00

D 35 306 €77.35

C 35 232 €72.10

C 35 233 €68.09

C 35 234 €66.16

C 35 235 €48.00

C 35 236

C 35 238

C 35 239

D 35 307 €85.28

C 35 240 €77.90

C 35 237

C 35 241

C 35 242

C 35 243 €15.50

C 35 244 €3.46

C 35 245 €13.98

C 35 246 €0.98

E 41 005 €1.00

C 35 249 €10.80

C 35 248 €2.30

C 41 021 €0.80

C 35 250 €0.42

D 35 309 €107.00

D 35 310 €300.00

D 35 312 €2.25

D 35 313 €770.00

D 35 317 €770.00

Repair kit thrust strut see:
D 35 321

D 35 323 €3.35

D 35 325 €11.20

D 35 327 €7.55

The set consists of:
Rep. set consisting of:
2x D 35 325 sleeve (No.122
4x D 35 323 rubber bearing
4x C 08 248 circlip
4x D 35 327 Washer
4x D 35 329 plastic washer
4x D 35 331 Si sheet
4x D 35 330 Screw

D 35 321 €125.00

C 08 248 €0.95

D 35 329 €1.83

D 35 330 €19.50

D 35 331 €2.80

D 35 332 €321.52

D 35 334 €68.55

D 35 334a €10.65

D 35 349 €70.00

C 35 286 €161.70

D 35 353 €22.50

C 35 290 €130.65

B 22 006 €0.84

G 22 070 €0.75

D 35 358 €18.18

D 35 360 €5.25

D 35 361 €21.63

D 35 363 €7.35

D 35 365 €76.31

D 29 082

D 33 142 €7.59
