280SL Mercedes-Benz w113 Pagode

Chosen model:

Chassis: 113.044
Engine: 130.983
Choose different model

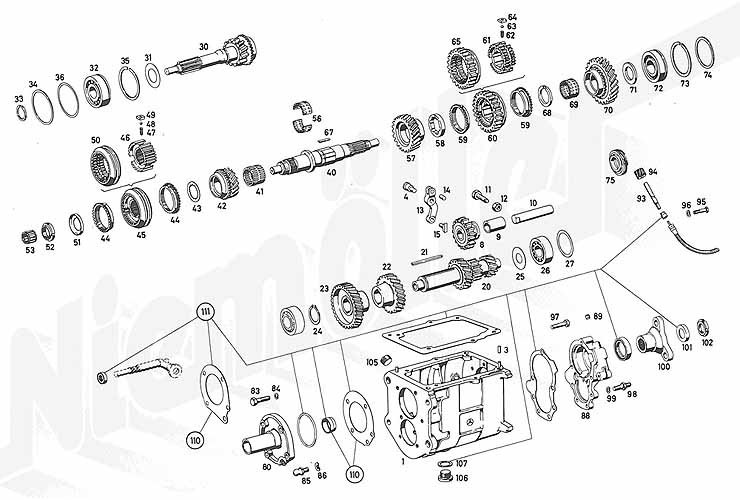

Current unit you are viewing: 26 Transmission

[{"type":"poly","coords":[382,376,380,422,400,466,422,460,515,430,515,375,500,360,467,348,396,365],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26041-transmission-housings","cssSelector":".product-group-1","info":"{\"ids\":\"D 26 041\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[399,177,400,199,411,206,420,187,409,178],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26043-clevis-pin","cssSelector":".product-group-4","info":"{\"ids\":\"D 26 043\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[451,217,451,246,461,252,485,248,477,220,463,214],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26005-return-wheel-17-teeth","cssSelector":".product-group-8","info":"{\"ids\":\"C 26 005\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[480,219,487,242,504,240,508,226,503,215],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26006-bushing","cssSelector":".product-group-9","info":"{\"ids\":\"C 26 006\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[508,214,513,228,559,214,555,199,526,196],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26007-reverse-idler-shaft","cssSelector":".product-group-10","info":"{\"ids\":\"C 26 007\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[468,184,468,201,488,205,491,197,491,180],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26044-screw","cssSelector":".product-group-11","info":"{\"ids\":\"D 26 044\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[425,183,414,211,433,227,437,202,434,181],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/a26089-intermediate-lever-for-reverse-gear","cssSelector":".product-group-13","info":"{\"ids\":\"A 26 089\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[438,184,437,201,451,205,454,183],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26045-dowel-pin","cssSelector":".product-group-14","info":"{\"ids\":\"D 26 045\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[439,220,429,234,443,242,449,234,446,220],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/a26090-sliding-block-in-intermediate-lever","cssSelector":".product-group-15","info":"{\"ids\":\"A 26 090\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[450,256,444,265,412,276,410,289,426,296,491,291,501,268,499,256,490,252],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26047-countershaft","cssSelector":".product-group-20","info":"{\"ids\":\"D 26 047\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[416,247,409,265,410,268,446,259,441,253,428,246],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26012-key","cssSelector":".product-group-21","info":"{\"ids\":\"C 26 012\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[377,258,380,272,368,286,373,310,407,315,406,289,392,261],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26051-layshaft-wheel-for-3rd-gear-38-teeth","cssSelector":".product-group-22","info":"{\"ids\":\"D 26 051\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[317,282,317,295,326,299,339,331,366,329,371,310,365,288,347,278],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26054-countershaft-wheel-for-4th-gear-43-teeth","cssSelector":".product-group-23","info":"{\"ids\":\"D 26 054\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[303,301,311,337,326,333,319,301],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26017-snap-ring","cssSelector":".product-group-24","info":"{\"ids\":\"C 26 017\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[507,246,514,283,528,282,528,263,521,243],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26023-shim-countershaft-to-bearing","cssSelector":".product-group-25","info":"{\"ids\":\"C 26 023\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[524,238,539,276,555,276,556,257,545,232],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26018-ball-bearring","cssSelector":".product-group-26","info":"{\"ids\":\"C 26 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[551,229,564,268,581,265,569,226],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26022-shim-1-0-mm-thick","cssSelector":".product-group-27","info":"{\"ids\":\"C 26 022\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[195,36,163,65,165,78,253,67,265,50,250,30],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26060-drive-shaft-with-synchronous-cone","cssSelector":".product-group-30","info":"{\"ids\":\"D 26 060\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[137,51,151,95,167,89,154,50],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26027-oil-slinger-ring","cssSelector":".product-group-31","info":"{\"ids\":\"C 26 027\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[76,65,88,115,118,110,103,62],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26028-ring-bearring","cssSelector":".product-group-32","info":"{\"ids\":\"C 26 028\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[11,92,17,128,33,123,26,93],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26029-spring-ring","cssSelector":".product-group-33","info":"{\"ids\":\"C 26 029\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[23,75,37,134,61,126,44,78],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26031-spacer-ring","cssSelector":".product-group-34","info":"{\"ids\":\"C 26 031\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[113,56,125,107,147,99,134,53],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26033-spring-ring-1-9mm","cssSelector":".product-group-35","info":"{\"ids\":\"C 26 033\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[50,72,66,124,84,120,68,71],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26035-space-washer-0-1mm","cssSelector":".product-group-36","info":"{\"ids\":\"C 26 035\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[269,162,268,173,276,180,336,177,383,145,379,135,316,147,300,152],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26038-main-shaft-from-gearbox-no-75-02182","cssSelector":".product-group-40","info":"{\"ids\":\"C 26 038\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[239,163,251,200,273,192,263,159],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26041-needle-bearring","cssSelector":".product-group-41","info":"{\"ids\":\"C 26 041\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[204,170,217,214,246,203,230,162],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26040a-helical-gear-31-teeth-for-3rd-gear","cssSelector":".product-group-42","info":"{\"ids\":\"C 26 040a\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[183,181,192,222,207,213,196,173],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26043-thrust-washer","cssSelector":".product-group-43","info":"{\"ids\":\"C 26 043\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[86,203,110,277,197,249,176,177,155,185,168,228,188,221,197,249,110,277,102,248,122,239,110,197],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26042-synchronizer-ring-compare-with-old-ring-besfore-instalation-width-of-the-noses","cssSelector":".product-group-44","info":"{\"ids\":\"C 26 042\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[117,191,132,243,159,237,149,182,129,182],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26044-synchronizer-body-3rd-and-4th-gear","cssSelector":".product-group-45","info":"{\"ids\":\"C 26 044\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[132,130,116,131,131,177,160,171,157,141,134,141],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26064-synchronizer","cssSelector":".product-group-46","info":"{\"ids\":\"D 26 064\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[134,128,137,137,158,139,159,129],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26045-compressing-spring","cssSelector":".product-group-47","info":"{\"ids\":\"C 26 045\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[133,122,134,126,161,128,158,119],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/a26046-steel-ball-d-6-5-mm","cssSelector":".product-group-48","info":"{\"ids\":\"A 26 046\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[133,111,133,121,159,117,157,110],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26047-towing-arm","cssSelector":".product-group-49","info":"{\"ids\":\"C 26 047\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[86,134,92,190,125,185,126,176,112,139,98,134],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/b26084-sliding-sleeve-for-3-and-4-speed","cssSelector":".product-group-50","info":"{\"ids\":\"B 26 084\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[63,212,71,249,87,245,83,210],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26048-lock-plate","cssSelector":".product-group-51","info":"{\"ids\":\"C 26 048\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[37,219,45,252,59,249,56,213],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26049-grooved-nut","cssSelector":".product-group-52","info":"{\"ids\":\"C 26 049\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[14,228,23,260,41,254,32,221],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26050-needle-cage","cssSelector":".product-group-53","info":"{\"ids\":\"C 26 050\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[291,98,289,132,315,135,323,117,310,96],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26051-needle-cage","cssSelector":".product-group-56","info":"{\"ids\":\"C 26 051\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[386,117,395,153,407,168,421,163,429,137,421,113,401,110],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26069-helical-gear-for-2nd-gear-35-teeth","cssSelector":".product-group-57","info":"{\"ids\":\"D 26 069\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[425,111,435,150,448,154,449,129,442,111],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26055-thrust-ring-7-9-mm-thick","cssSelector":".product-group-58","info":"{\"ids\":\"C 26 055\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[445,104,467,168,548,137,527,83,505,90,521,132,542,121,548,136,468,168,461,150,474,133,465,99],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26042-synchronizer-ring-compare-with-old-ring-besfore-instalation-width-of-the-noses~2","cssSelector":".product-group-59","info":"{\"ids\":\"C 26 042\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[468,96,482,147,507,144,512,123,500,87,485,87],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26087-synchronizer-for-1st-and-2nd-gear","cssSelector":".product-group-60","info":"{\"ids\":\"D 26 087\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[479,33,491,79,519,72,514,43,495,41,489,33],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26089-synchronizer","cssSelector":".product-group-61","info":"{\"ids\":\"D 26 089\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[496,29,497,40,516,41,517,30],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/a26028-pressure-spring-for-synchronizer","cssSelector":".product-group-62","info":"{\"ids\":\"A 26 028\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[497,24,498,28,520,29,520,20],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/a26046-steel-ball-d-6-5-mm~2","cssSelector":".product-group-63","info":"{\"ids\":\"A 26 046\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[494,10,495,24,519,20,517,12],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26047-towing-arm~2","cssSelector":".product-group-64","info":"{\"ids\":\"C 26 047\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[441,36,452,97,485,81,467,32],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26091-sliding-sleeve","cssSelector":".product-group-65","info":"{\"ids\":\"D 26 091\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[313,138,322,134,323,126,333,125,334,141,316,145],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26061-sunk-key-for-main-shaft","cssSelector":".product-group-67","info":"{\"ids\":\"C 26 061\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[532,81,545,117,555,117,554,89,544,79],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26062-thrust-washer-4-4-mm-thick","cssSelector":".product-group-68","info":"{\"ids\":\"C 26 062\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[556,76,562,112,584,113,584,95,574,76],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26065-needle-bearring-1st-gear","cssSelector":".product-group-69","info":"{\"ids\":\"C 26 065\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[575,61,596,121,621,116,623,85,605,51],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26092-helical-gear-for-1st-gear-33-teeth-230sl-from-012576","cssSelector":".product-group-70","info":"{\"ids\":\"D 26 092\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[616,59,628,96,644,96,633,55],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26068-thrust-washer-3-8-mm-thick","cssSelector":".product-group-71","info":"{\"ids\":\"C 26 068\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[635,48,651,97,669,91,670,72,660,45],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/a26024-deep-groove-ball-bearing-on-the-main-shaft","cssSelector":".product-group-72","info":"{\"ids\":\"A 26 024\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[665,40,680,92,696,82,693,57,683,37],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26094-snap-ring","cssSelector":".product-group-73","info":"{\"ids\":\"D 26 094\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[692,36,702,82,717,82,715,34],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26077-spacer-shim-0-1mm-thick","cssSelector":".product-group-74","info":"{\"ids\":\"C 26 077\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[604,145,604,184,616,184,630,171,625,145],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26081-screw-wheel-for-speedometer-drive","cssSelector":".product-group-75","info":"{\"ids\":\"C 26 081\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[263,411,237,442,245,459,270,473,294,456,292,427,281,413],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26099-front-transmission-housing-cover","cssSelector":".product-group-80","info":"{\"ids\":\"D 26 099\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[269,381,270,392,277,404,284,402,281,381],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/b03018-spring-washer","cssSelector":".product-group-84","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[291,467,298,487,311,484,310,465],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26077-ball-pin-for-release-fork","cssSelector":".product-group-85","info":"{\"ids\":\"D 26 077\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[311,463,316,481,329,481,322,458],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/b22006-spring-washer","cssSelector":".product-group-86","info":"{\"ids\":\"B 22 006\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[568,339,562,376,581,421,593,424,600,394,600,382,613,376,607,344,593,334],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26079-gearbox-housing-cover-rear","cssSelector":".product-group-88","info":"{\"ids\":\"D 26 079\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[581,310,582,321,605,322,602,310],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26092-plug","cssSelector":".product-group-89","info":"{\"ids\":\"C 26 092\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[632,190,637,202,658,211,664,205,653,179,640,185],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26108-shaft","cssSelector":".product-group-93","info":"{\"ids\":\"D 26 108\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[632,169,632,185,660,174,649,163],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26100-drive-pinion-for-tachometer-drive","cssSelector":".product-group-94","info":"{\"ids\":\"C 26 100\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[613,382,612,392,623,391,626,401,642,399,635,376],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26109-collar-screw","cssSelector":".product-group-98","info":"{\"ids\":\"D 26 109\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[602,384,605,405,618,403,617,393,612,394,612,383],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/b03018-spring-washer~2","cssSelector":".product-group-99","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[632,334,639,358,661,375,676,377,677,357,662,312],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26105-three-arm-flange-on-the-main-shaft","cssSelector":".product-group-100","info":"{\"ids\":\"C 26 105\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[674,322,681,353,695,353,691,331,685,319],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26106-locking-plate","cssSelector":".product-group-101","info":"{\"ids\":\"C 26 106\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[693,319,702,351,716,346,707,313],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c26108-nut-m-24x1-5","cssSelector":".product-group-102","info":"{\"ids\":\"C 26 108\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[364,354,362,371,384,368,393,360,386,351],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/c14055-screw-plug-24x1-5","cssSelector":".product-group-105","info":"{\"ids\":\"C 14 055\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[431,469,433,484,472,484,470,469],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26111-plug","cssSelector":".product-group-106","info":"{\"ids\":\"D 26 111\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[183,429,205,429,208,493,361,491,365,465,344,466,345,481,361,483,361,491,208,492,206,449,182,449],"href":"\/en\/W113\/w113\/B044\/260\/110","cssSelector":".product-group-110","info":"{\"ids\":\"D 26 113, D 26 115\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[194,300,195,321,216,321,215,302],"href":"https:\/\/www.niemoeller.de\/en\/W113\/w113\/B044\/260\/d26116b-gear-box-gasket-kit","cssSelector":".product-group-111","info":"{\"ids\":\"D 26 116b\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"}]

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		D 26 041 D 26 041	Transmission housings Transmission housings 111 260 02 11 oder 1112600211		on request on request
Image number 4		D 26 043 D 26 043	Clevis pin Clevis pin 111 262 00 74 oder 1112620074		€10.56 €10.56
Image number 8		C 26 005 C 26 005	Return wheel 17 teeth Return wheel 17 teeth 120 260 03 25 oder 1202600325		€675.70 €675.70
Image number 9		C 26 006 C 26 006	Bushing Bushing 120 263 03 50 oder 1202630350		€86.11 €86.11
Image number 10		C 26 007 C 26 007	Reverse idler shaft Reverse idler shaft 186 263 00 30 oder 1862630030		€152.07 €152.07
Image number 11		D 26 044 D 26 044	Screw Screw 000 417 010 006 oder 000417010006		€2.25 €2.25
Image number 13		A 26 089 A 26 089	Intermediate lever for reverse gear Intermediate lever for reverse gear 136 260 00 37 oder 1362600037		€157.59 €157.59
Image number 14		D 26 045 D 26 045	Dowel pin Dowel pin 900 037 008 104 oder 900037008104		on request on request
Image number 15		A 26 090 A 26 090	Sliding block in intermediate lever Sliding block in intermediate lever 121 263 01 23 oder 1212630123		€12.10 €12.10
Image number 20		D 26 047 D 26 047	Countershaft Countershaft 110 263 09 02 oder 1102630902		on request on request
Image number 21		C 26 012 C 26 012	Key Key 186 991 03 68 oder 1869910368		€1.85 €1.85
Image number 22		D 26 051 D 26 051	Layshaft wheel for 3rd gear, 38 teeth Layshaft wheel for 3rd gear, 38 teeth 111 263 00 13 oder 1112630013		€380.12 €380.12
Image number 23		D 26 054 D 26 054	Countershaft wheel for 4th gear 43 teeth Countershaft wheel for 4th gear 43 teeth 111 263 00 10 oder 1112630010		€523.00 €523.00
Image number 24		C 26 017 C 26 017	Snap ring Snap ring 900 055 035 300 oder 900055035300		€0.93 €0.93
Image number 25		C 26 023 C 26 023	Shim countershaft to bearing Shim countershaft to bearing 186 990 18 40 oder 1869901840		€34.34 €34.34
Image number 26		C 26 018 C 26 018	Ball bearring Ball bearring 000 625 036 305 oder 000625036305		€18.50 €18.50
Image number 27		C 26 022 C 26 022	Shim 1.0 mm thick Shim 1.0 mm thick 120 263 08 52 oder 1202630852		on request on request
Image number 30		D 26 060 D 26 060	Drive shaft with synchronous cone Drive shaft with synchronous cone 111 260 13 20 oder 1112601320		€1,708.42 €1,708.42
Image number 31		C 26 027 C 26 027	Oil slinger ring Oil slinger ring 186 262 00 66 oder 1862620066		€9.80 €9.80
Image number 32		C 26 028 C 26 028	Ring bearring Ring bearring 000 625 606 306 oder 000625606306		€56.00 €56.00
Image number 33		C 26 029 C 26 029	Spring ring Spring ring 123 262 04 94 oder 1232620494		on request on request
Image number 34		C 26 031 C 26 031	Spacer ring Spacer ring 186 262 04 51 oder 1862620451		€6.99 €6.99
Image number 35		C 26 033 C 26 033	Spring ring 1,9mm Spring ring 1,9mm 136 994 06 35 oder 1369940635		€4.65 €4.65
Image number 36		C 26 035 C 26 035	Space washer 0,1mm Space washer 0,1mm 136 262 06 52 oder 1362620652		on request on request
Image number 40		C 26 038 C 26 038	Main shaft from gearbox no.75 02182 Main shaft from gearbox no.75 02182 180 262 00 05 oder 1802620005		€1,310.76 €1,310.76
Image number 41		C 26 041 C 26 041	Needle bearring Needle bearring 000 981 29 12 oder 0009812912		€197.41 €197.41
Image number 42		C 26 040a C 26 040a	Helical gear, 31 teeth, for 3rd gear Helical gear, 31 teeth, for 3rd gear 111 260 03 44 oder 1112600344		€1,366.73 €1,366.73
Image number 43		C 26 043 C 26 043	Thrust washer Thrust washer 120 262 23 62 oder 1202622362		€97.89 €97.89
Image number 44		C 26 042 C 26 042	Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) 113 262 00 34 oder 1132620034		€32.00 €32.00
Image number 45		C 26 044 C 26 044	Synchronizer body 3rd and 4th gear Synchronizer body 3rd and 4th gear 111 260 06 45 oder 1112600645		on request on request
Image number 46		D 26 064 D 26 064	Synchronizer Synchronizer 111 262 04 35 oder 1112620435		€170.00 €170.00
Image number 47		C 26 045 C 26 045	Compressing spring Compressing spring 180 993 38 01 oder 1809933801		€2.25 €2.25
Image number 48		A 26 046 A 26 046	Steel ball D: 6.5 mm Steel ball D: 6.5 mm 000 981 46 85 oder 0009814685		€1.00 €1.00
Image number 49		C 26 047 C 26 047	Towing arm Towing arm 121 262 00 40 oder 1212620040		€36.24 €36.24
Image number 50		B 26 084 B 26 084	Sliding sleeve for 3 and 4 speed Sliding sleeve for 3 and 4 speed 111 262 04 23 oder 1112620423		on request on request
Image number 51		C 26 048 C 26 048	Lock plate Lock plate 120 994 01 15 oder 1209940115		€2.73 €2.73
Image number 52		C 26 049 C 26 049	Grooved nut Grooved nut 120 262 03 26 oder 1202620326		€24.83 €24.83
Image number 53		C 26 050 C 26 050	Needle cage Needle cage 000 981 08 12 oder 0009810812		€19.65 €19.65
Image number 56		C 26 051 C 26 051	Needle cage Needle cage 120 981 03 12 oder 1209810312		€303.26 €303.26
Image number 57		D 26 069 D 26 069	Helical gear for 2nd gear 35 teeth Helical gear for 2nd gear 35 teeth 110 260 01 19 oder 1102600119		€132.70 €132.70
Image number 58		C 26 055 C 26 055	Thrust ring 7.9 mm thick Thrust ring 7.9 mm thick 120 262 16 62 oder 1202621662		€130.40 €130.40
Image number 59		C 26 042 C 26 042	Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) 113 262 00 34 oder 1132620034		€32.00 €32.00
Image number 60		D 26 087 D 26 087	Synchronizer for 1st and 2nd gear Synchronizer for 1st and 2nd gear 111 260 09 45 oder 1112600945		€1,126.24 €1,126.24
Image number 61		D 26 089 D 26 089	Synchronizer Synchronizer 111 262 06 35 oder 1112620635		on request on request
Image number 62		A 26 028 A 26 028	Pressure spring for synchronizer Pressure spring for synchronizer 183 993 05 01 oder 1839930501		€9.78 €9.78
Image number 63		A 26 046 A 26 046	Steel ball D: 6.5 mm Steel ball D: 6.5 mm 000 981 46 85 oder 0009814685		€1.00 €1.00
Image number 64		C 26 047 C 26 047	Towing arm Towing arm 121 262 00 40 oder 1212620040		€36.24 €36.24
Image number 65		D 26 091 D 26 091	Sliding sleeve Sliding sleeve 111 262 06 23 oder 1112620623		on request on request
Image number 67		C 26 061 C 26 061	Sunk key for main shaft Sunk key for main shaft 120 262 00 81 oder 1202620081		€25.17 €25.17
Image number 68		C 26 062 C 26 062	Thrust washer 4.4 mm thick Thrust washer 4.4 mm thick 120 262 11 62 oder 1202621162		€110.00 €110.00
Image number 69		C 26 065 C 26 065	Needle bearring 1st gear Needle bearring 1st gear 001 981 69 10 oder 0019816910		€139.80 €139.80
Image number 70		D 26 092 D 26 092	Helical gear for 1st gear 33 teeth 230SL from 012576 Helical gear for 1st gear 33 teeth 230SL from 012576 110 260 00 19 oder 1102600019		€251.99 €251.99
Image number 71		C 26 068 C 26 068	Thrust washer 3.8 mm thick Thrust washer 3.8 mm thick 186 262 01 62 oder 1862620162		on request on request
Image number 72		A 26 024 A 26 024	Deep groove ball bearing on the main shaft Deep groove ball bearing on the main shaft 001 981 32 25 oder 0019813225		€38.00 €38.00
Image number 73		D 26 094 D 26 094	Snap ring Snap ring 005 417 072 000 oder 005417072000		€3.00 €3.00
Image number 74		C 26 077 C 26 077	Spacer shim 0,1mm thick Spacer shim 0,1mm thick 136 262 04 52 oder 1362620452		€6.50 €6.50
Image number 75		C 26 081 C 26 081	Screw wheel for speedometer drive Screw wheel for speedometer drive 110 264 00 30 oder 1102640030		€156.00 €156.00
Image number 80		D 26 099 D 26 099	Front transmission housing cover Front transmission housing cover 108 260 00 21 oder 1082600021		€775.39 €775.39
Image number 81		C 26 088 C 26 088	Sealing ring Sealing ring 186 261 00 60 oder 1862610060		€3.29 €3.29

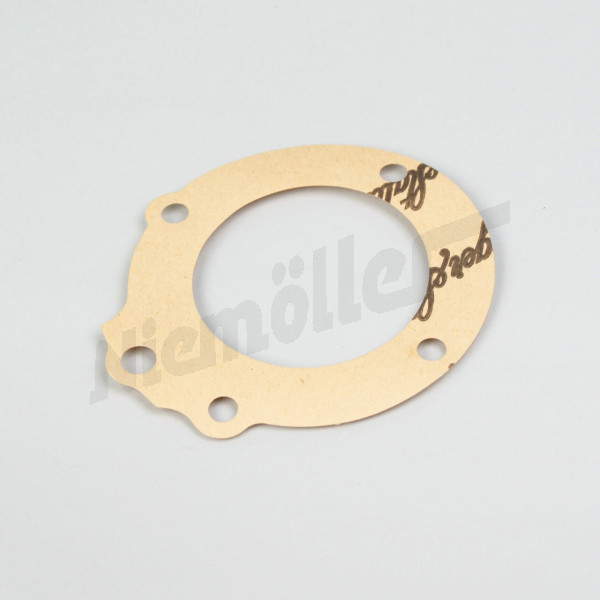

Image number 82		D 26 075 D 26 075	Gasket Gasket 111 261 03 79 oder 1112610379		€9.55 €9.55
Image number 84		B 03 018 B 03 018	Spring washer Spring washer 000 137 008 202 oder 000137008202		€0.30 €0.30
Image number 85		D 26 077 D 26 077	Ball pin for release fork Ball pin for release fork 111 991 00 15 oder 1119910015		€68.86 €68.86
Image number 86		B 22 006 B 22 006	Spring washer Spring washer 000 137 010 201 oder 000137010201		€0.84 €0.84
Image number 88		D 26 079 D 26 079	Gearbox housing cover rear Gearbox housing cover rear 111 260 04 16 oder 1112600416		on request on request
Image number 89		C 26 092 C 26 092	Plug Plug 153 264 00 55 oder 1532640055		€4.74 €4.74
Image number 90		D 26 081 D 26 081	Gasket Gasket 111 261 00 79 oder 1112610079		€9.03 €9.03
Image number 91		C 26 095 C 26 095	Sealing ring rear Sealing ring rear 000 997 17 46 oder 0009971746		€7.20 €7.20
Image number 92		D 26 107 D 26 107	Sealing ring Sealing ring 007 997 73 46 oder 0079977346		€4.00 €4.00
Image number 93		D 26 108 D 26 108	Shaft Shaft 111 264 00 32 oder 1112640032		€2.25 €2.25
Image number 94		C 26 100 C 26 100	Drive pinion for tachometer drive Drive pinion for tachometer drive 120 264 02 31 oder 1202640231		on request on request
Image number 98		D 26 109 D 26 109	Collar screw Collar screw 110 990 00 10 oder 1109900010		on request on request
Image number 99		B 03 018 B 03 018	Spring washer Spring washer 000 137 008 202 oder 000137008202		€0.30 €0.30
Image number 100		C 26 105 C 26 105	Three-arm flange on the main shaft Three-arm flange on the main shaft 111 262 00 45 oder 1112620045		on request on request
Image number 101		C 26 106 C 26 106	Locking plate Locking plate 186 262 01 73 oder 1862620173		€3.99 €3.99
Image number 102		C 26 108 C 26 108	Nut M 24x1,5 Nut M 24x1,5 186 262 02 26 oder 1862620226		€18.00 €18.00
Image number 105		C 14 055 C 14 055	Screw plug 24x1,5 Screw plug 24x1,5 000 997 62 32 oder 0009976232		€2.73 €2.73
Image number 106		D 26 111 D 26 111	Plug Plug 115 997 00 32 oder 1159970032		€2.50 €2.50
Image number 110		D 26 113	Gasket kit for gearbox 111 586 01 26 oder 1115860126		€23.55	Choose the suitable product variant
Image number 110	Image number 110		D 26 115	Gasket set 108 586 02 26 oder 1085860226		Choose the suitable product variant	on request
Image number 111		D 26 116b D 26 116b	Gear box gasket kit Gear box gasket kit 113 586 01 26 oder 1135860126		€47.41 €47.41

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

D 26 041

D 26 043 €10.56

C 26 005 €675.70

C 26 006 €86.11

C 26 007 €152.07

D 26 044 €2.25

A 26 089 €157.59

D 26 045

A 26 090 €12.10

For W113 230SL as of 012576

D 26 047

C 26 012 €1.85

D 26 051 €380.12

D 26 054 €523.00

C 26 017 €0.93

C 26 023 €34.34

C 26 018 €18.50

C 26 022

D 26 060 €1,708.42

C 26 027 €9.80

C 26 028 €56.00

C 26 029

C 26 031 €6.99

C 26 033 €4.65

C 26 035

C 26 038 €1,310.76

C 26 041 €197.41

C 26 040a €1,366.73

C 26 043 €97.89

C 26 042 €32.00

C 26 044

D 26 064 €170.00

C 26 045 €2.25

A 26 046 €1.00

C 26 047 €36.24

B 26 084

C 26 048 €2.73

C 26 049 €24.83

C 26 050 €19.65

C 26 051 €303.26

D 26 069 €132.70

C 26 055 €130.40

C 26 042 €32.00

D 26 087 €1,126.24

D 26 089

A 26 028 €9.78

A 26 046 €1.00

C 26 047 €36.24

D 26 091

C 26 061 €25.17

C 26 062 €110.00

C 26 065 €139.80

For the W113 230SL as of 012576

D 26 092 €251.99

C 26 068

A 26 024 €38.00

D 26 094 €3.00

C 26 077 €6.50

C 26 081 €156.00

D 26 099 €775.39

C 26 088 €3.29

D 26 075 €9.55

B 03 018 €0.30

D 26 077 €68.86

B 22 006 €0.84

D 26 079

C 26 092 €4.74

D 26 081 €9.03

C 26 095 €7.20

D 26 107 €4.00

D 26 108 €2.25

C 26 100

D 26 109

B 03 018 €0.30

C 26 105

C 26 106 €3.99

C 26 108 €18.00

C 14 055 €2.73

D 26 111 €2.50

This sentence consists of:
C 26 088 Sealing ring for drive shaft on front gearbox housing cover 1 piece
D 26 074 Seal insert 1 piece
D 26 075 Gasket 1 piece

D 26 113 €23.55

D 26 115

This sentence consists of:
C 26 095 Sealing ring for main shaft 1 piece
C 26 106 Fuse for three-arm flange on main shaft 1 piece
C 26 177 Sealing shim for gear box enclosure d. top 1 piece
D 26 071 sealing ring 30x47x8 1 piece
D 26 075 Gasket 1 piece
D 26 081 Seal insert 1 piece
D 26 107 Sealing ring 1 piece
D 26 245 Radial sealing ring for selector shaft A14x26 DIN 6503 1 piece
G 35 013 sealing ring A24x29 DIN 7603 AI 1 piece

D 26 116b €47.41
