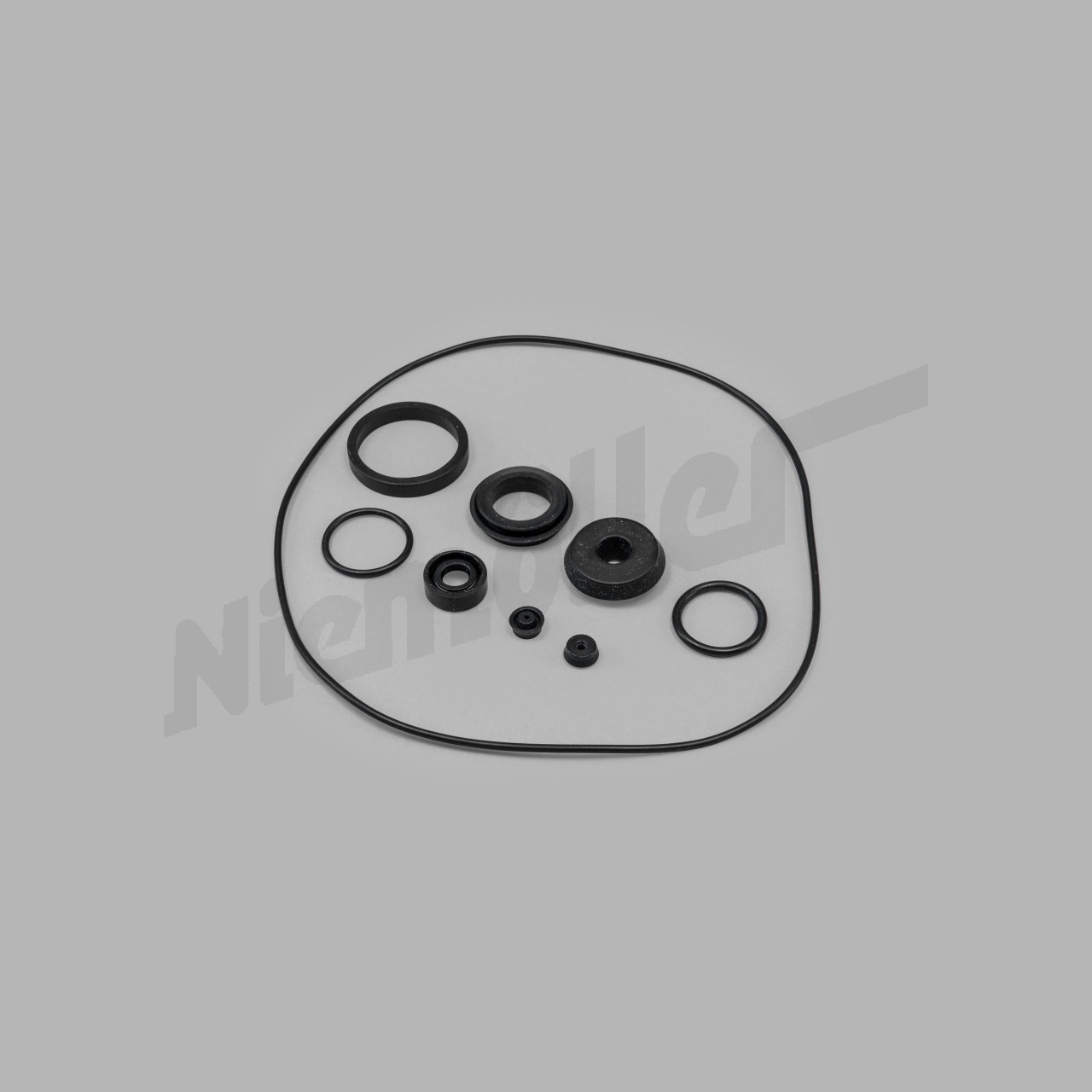

Rep. kit, brake booster T50 ( small ) for 220SAC Mercedes-Benz w180
Chosen model:
- Chassis: 180.030
- Engine: 180.924
- Choose different model
| Niemöller part-no. | C 42 346 | |
| Designation: | Rep. kit, brake booster T50 ( small ) | |
| Required pieces: | 1 | |
| availability: |
in stock
|
|
| Delivery time: | expected in 5 - 10 days | |
| Original part number: |
|
|
| Mercedes Car: | 220SAC Mercedes-Benz w180 | |
| Used in: | Brakes, Master Cylinder | |
| Chassis: | W 180.030 | |
| Engine: | 180.924 | |
C 42 353 x1 round ring (No.17)
C 42 357 x1 grooved collar (No.35)
C 42 356 x1 O-ring (No.23)
C 42 452 x1 Maschette (No.25)
C 42 362 x1 Sealing ring (No.47)
B 42 316a x2 Boot (No.58a)
D 08 175 x1 Radial seal ring (No. 2)
C 42 365 x1 Sealing ring (No. 65)
We offer Rep. kit, brake booster T50 ( small ) for your Mercedes W180 as a spare part for sale. The part is installed in the chassis 180.030 with engine 180.924 and used in unit Brakes, Master Cylinder. It is listed under the original spare part number 0005862543 at Mercedes. Vehicle 220SAC Mercedes-Benz w180 was manufactured in the years 4156 to 7/59 in a quantity of 2178.
Product variants
C 42 344
B 42 251 Bleeder screw x2
B 42 307 Diaphragm x1
B 42 310 Spring ring (external) x1
C 42 346 Repair kit small Brake unit T50 x1
C 42 352 Diaphragm plate Brake unit T50/12 x1
C 42 367 Gasket x1
C 42 368 Filter packing x1
C 42 370 Snap ring inside x1
C 42 371 Connecting hose with clamps x1
D 42 597 Check valve x1
C 42 346a
The brake unit is completely disassembled and cleaned.
All parts that were originally galvanized will be re-galvanized.
Parts such as the aluminum plate are glass bead blasted.
The cylinder tracks are newly honed (finely ground).
The outer shell is painted in the original color.
A new gasket set is installed,
the unit is assembled and the function is tested.
If other parts are defective, they will be repaired or replaced for an additional charge, if possible.
We will gladly provide you with a cost estimate. If you should decide against a repair after the cost estimate or if your old part should not be repairable, a service lump sum of 40.00 euro (inclusive VAT) results for the cost estimate. Address: Fa.Niemöller, Markircher Str. 6, 68229 Mannheim, Germany
