220SCp Mercedes-Benz w180

Chosen model:

Chassis: 180.037
Engine: 180.924
Choose different model

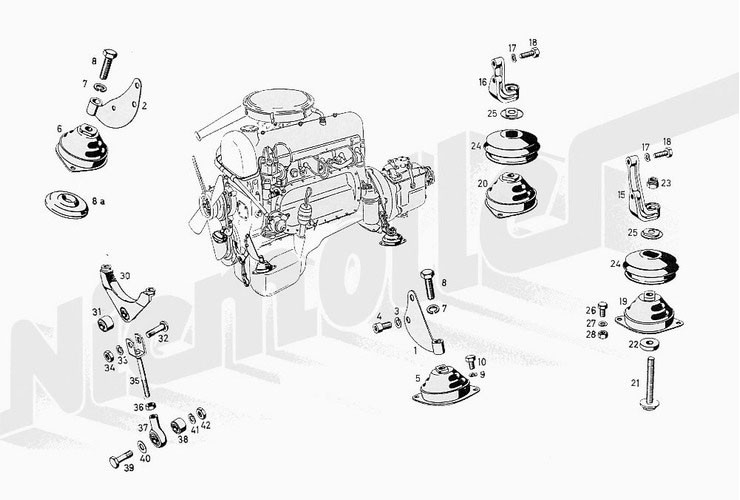

Current unit you are viewing: 22 Engine Suspension

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.

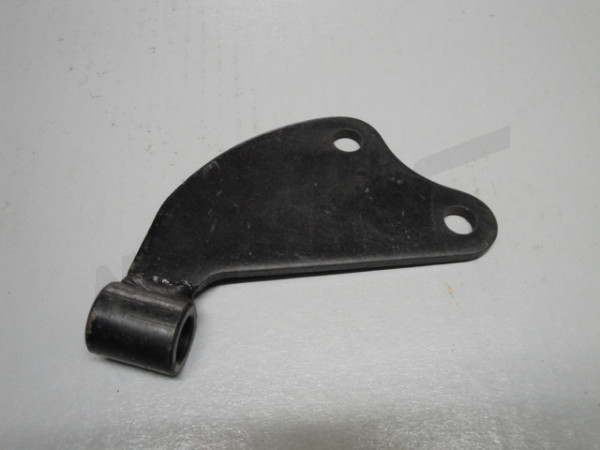

Image number 1		C 22 006 C 22 006	Engine mount, front left Engine mount, front left 180 220 00 16 oder 1802200016		on request on request
Image number 2		C 22 012 C 22 012	Engine mount, front right Engine mount, front right 180 220 01 16 oder 1802200116		on request on request
Image number 3		G 49 063 G 49 063	Spring ring B10 Spring ring B10 B 10 DIN 127 oder B10DIN127		€0.50 €0.50

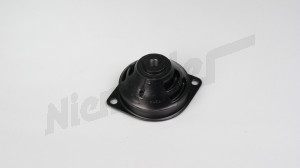

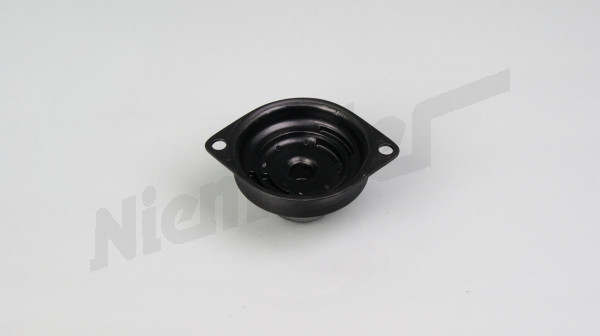

Image number 5		C 22 015a C 22 015a	Engine mount front LHS - 6 cylinder Engine mount front LHS - 6 cylinder 120 223 04 12 oder 1202230412		€59.50 €59.50

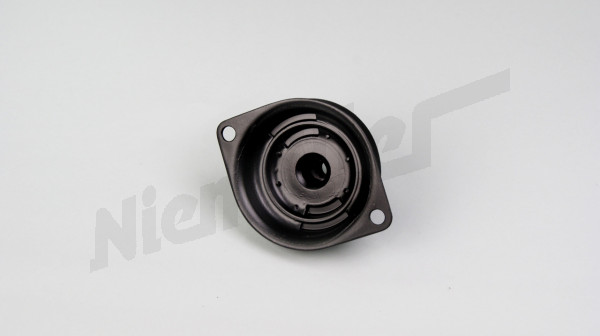

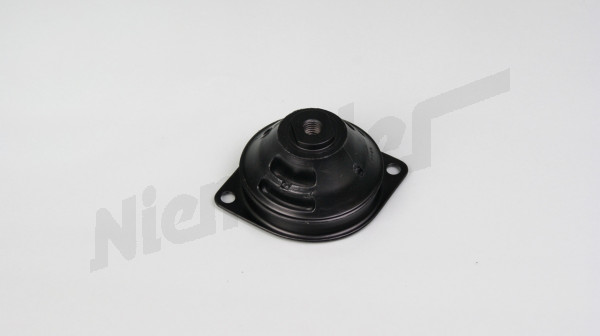

Image number 6		C 22 018a C 22 018a	Engine mount front RHS - 6 cylinder Engine mount front RHS - 6 cylinder 120 223 05 12 oder 1202230512		€59.50 €59.50
Image number 0		A 41 029 A 41 029	Washer for gel.sch. and centering star Washer for gel.sch. and centering star 13 DIN 125 oder 13DIN125		on request on request

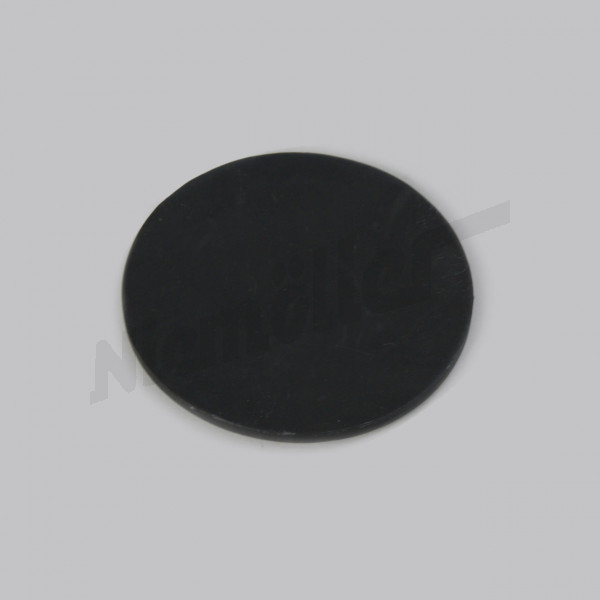

Image number 8		C 22 024 C 22 024	Buffer plate Buffer plate 621 223 00 65 oder 6212230065		€6.10 €6.10
Image number 9		A 41 043 A 41 043	Lock washer Lock washer B 8 DIN 127 oder B8DIN127		€0.40 €0.40
Image number 10		G 29 036 G 29 036	Hex. socket screw M8x16 Hex. socket screw M8x16 M 8x15 DIN 933-8 G oder M8x15DIN933-8G		€0.46 €0.46

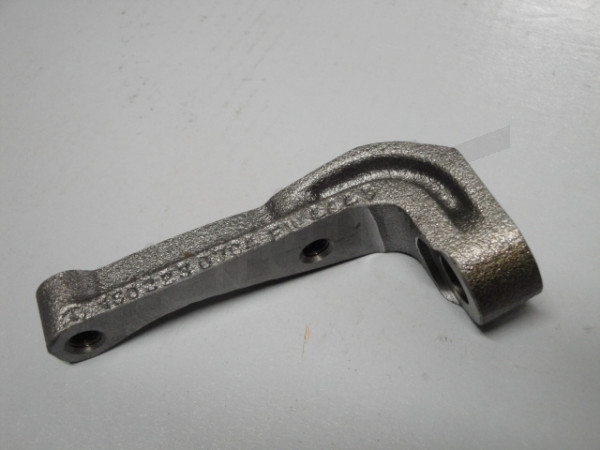

Image number 15		C 22 053 C 22 053	Motor mount left rear Motor mount left rear 180 223 07 04 oder 1802230704		€194.70 €194.70
Image number 16		C 22 058 C 22 058	Motor mount right rear Motor mount right rear 180 223 08 04 oder 1802230804		€166.10 €166.10
Image number 17		B 03 018 B 03 018	Spring washer Spring washer B 8 DIN 137 oder B8DIN137		€0.30 €0.30
Image number 19		C 22 016 C 22 016	Engine mount rear LHS Engine mount rear LHS 121 223 00 12 oder 1212230012		€63.00 €63.00

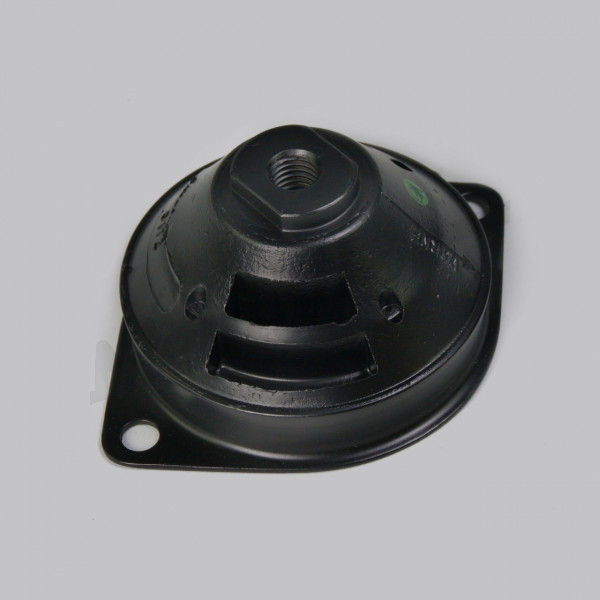

Image number 20		C 22 019 C 22 019	Engine mount rear RHS Engine mount rear RHS 121 223 01 12 oder 1212230112		€63.00 €63.00

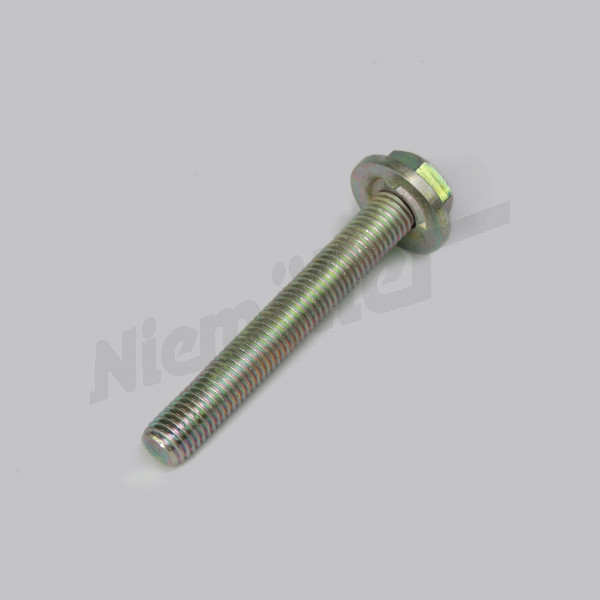

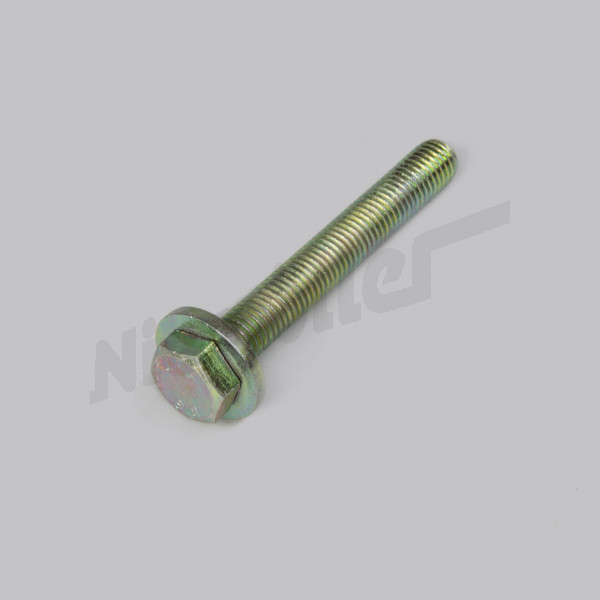

Image number 21		C 22 064 C 22 064	Screw 12x85 Screw 12x85 121 220 02 71 oder 1212200271		€9.82 €9.82
Image number 22		D 22 092 D 22 092	Rubber washer Rubber washer 116 987 06 41 oder 1169870641		€3.50 €3.50

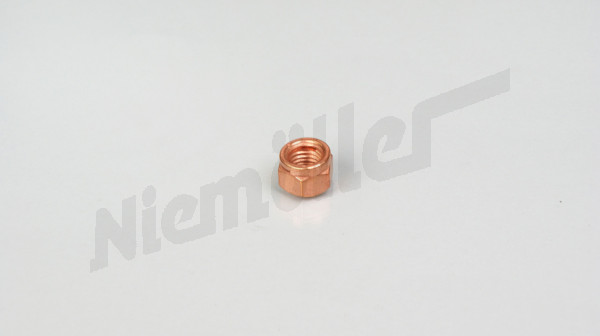

Image number 23		C 22 066 C 22 066	Nut self-locking M12 Nut self-locking M12 999 901 012 000 oder 999901012000		€4.54 €4.54
Image number 24		C 22 027 D 22 126	Bellow Bellow for engine mounts 121 224 00 82 oder 1212240082		on request €10.29
	D 22 126	Replacement: Bellow for engine mounts		€10.29
Image number 25		C 22 028 C 22 028	Washer Washer 121 224 00 84 oder 1212240084		€4.95 €4.95
Image number 26		G 29 036 G 29 036	Hex. socket screw M8x16 Hex. socket screw M8x16 M 8x15 DIN 933-8 G oder M8x15DIN933-8G		€0.46 €0.46
Image number 27		A 41 043 A 41 043	Lock washer Lock washer B 8 DIN 127 oder B8DIN127		€0.40 €0.40
Image number 28		C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8 304 032 008 006 oder 304032008006		€0.54 €0.54
Image number 30		C 22 029	Front motor support 180 220 02 09 oder 1802200209		€164.00	Choose the suitable product variant
Image number 30	Image number 30		C 22 029	Front motor support 180 220 02 09 oder 1802200209		Choose the suitable product variant	€164.00
Image number 31		C 22 031	Rubber mount 001 988 25 10 oder 0019882510		€19.60	Choose the suitable product variant
Image number 31	Image number 31		C 22 031	Rubber mount 001 988 25 10 oder 0019882510		Choose the suitable product variant	€19.60
Image number 32		C 22 032 C 22 032	Collar screw Collar screw 180 223 01 71 oder 1802230171		on request on request
Image number 34		C 05 110 C 05 110	Hex nut for ball stud Hex nut for ball stud M 10x1 DIN 936-5 S oder M10x1DIN936-5S		€0.80 €0.80

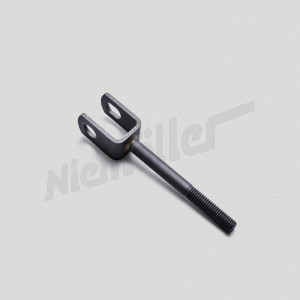

Image number 35		C 22 033 C 22 033	Connecting rod Connecting rod 180 220 00 83 oder 1802200083		€99.00 €99.00
Image number 36		C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8 304 032 008 006 oder 304032008006		€0.54 €0.54

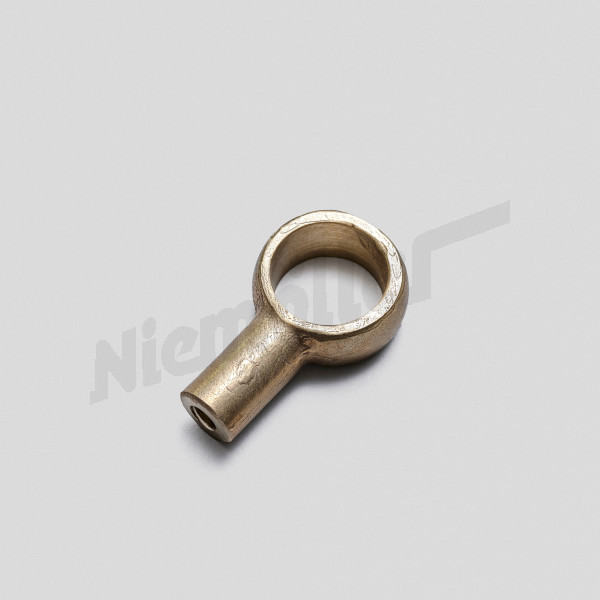

Image number 37		C 22 035 C 22 035	Rod head Rod head 180 220 01 84 oder 1802200184		€163.00 €163.00
Image number 38		C 22 031 C 22 031	Rubber mount Rubber mount 001 988 25 10 oder 0019882510		€19.60 €19.60

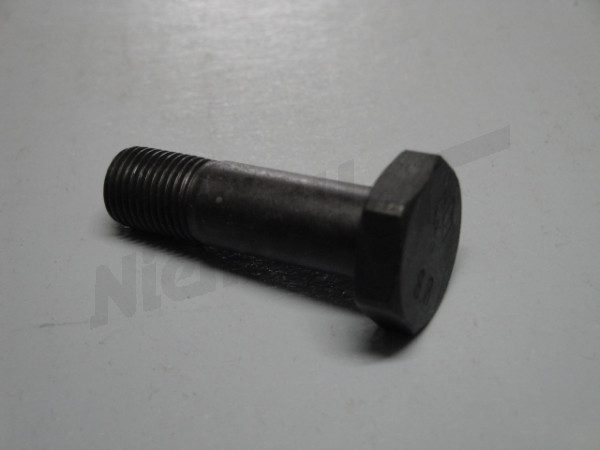

Image number 39		C 22 032a C 22 032a	Bolt for engine support Bolt for engine support 180 223 00 71 oder 1802230071		€30.00 €30.00
Image number 41		G 49 063 G 49 063	Spring ring B10 Spring ring B10 B 10 DIN 127 oder B10DIN127		€0.50 €0.50
Image number 42		C 05 110 C 05 110	Hex nut for ball stud Hex nut for ball stud M 10x1 DIN 936-5 S oder M10x1DIN936-5S		€0.80 €0.80

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

C 22 006

Left-hand-drive

C 22 012

G 49 063 €0.50

C 22 015a €59.50

C 22 018a €59.50

A 41 029

C 22 024 €6.10

A 41 043 €0.40

G 29 036 €0.46

C 22 053 €194.70

C 22 058 €166.10

B 03 018 €0.30

C 22 016 €63.00

C 22 019 €63.00

C 22 064 €9.82

D 22 092 €3.50

C 22 066 €4.54

C 22 028 €4.95

G 29 036 €0.46

A 41 043 €0.40

C 32 027 €0.54

automatic transmission

C 22 029 €164.00

automatic transmission

C 22 031 €19.60

C 22 032

C 05 110 €0.80

C 22 033 €99.00

C 32 027 €0.54

C 22 035 €163.00

C 22 031 €19.60

C 22 032a €30.00

G 49 063 €0.50

C 05 110 €0.80
