29 Pedal Assembly 2 for Ponton 180 Mercedes-Benz w120 Mercedes-Benz
180 W120.010

Chosen model:

Chassis: 120.010
Engine: 136.925
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

in stock
low stock level
currently not in stock, but available for order
no longer available

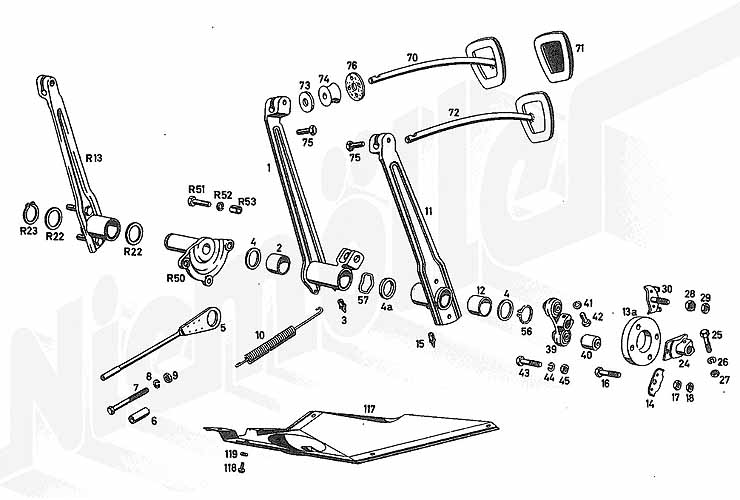

Pic.	Designation		Price/unit excl. tax.
Image number 71	C 29 004 C 29 004	Rubber cover Rubber cover 153 292 00 82 or 1532920082		€3.00 €3.00
Image number 1	C 29 001a	Brake pedal with bushing 180 290 01 18 or 1802900118	on request		Select variant	on request
Image number 1	C 29 002	Brake foot lever with bushing R. L. 121 290 01 18 or 1212900118	€230.00		Select variant	€230.00
Image number 4a	C 29 008 C 29 008	Disc 3,0mm thick for brake lever Disc 3,0mm thick for brake lever 120 990 37 40 or 1209903740		€7.00 €7.00
Image number 5	C 29 012a C 29 012a	Support rod Support rod 180 290 00 21 or 1802900021		on request on request
Image number 6	C 29 013 C 29 013	Spacer sleeve for support rod Spacer sleeve for support rod 180 292 00 53 or 1802920053		on request on request
Image number 10	C 29 015	Return spring for brake foot lever 120 993 00 10 or 1209930010	on request		Select variant	on request
Image number 10	C 29 016	Release spring 120 993 12 10 or 1209931210	€37.91		Select variant	€37.91
Image number	C 29 019 C 29 019	Washer f. support rod Washer f. support rod 120 990 03 40 or 1209900340		on request on request
Image number 11	C 29 022 C 29 022	Clutch foot lever with hub and bushing Clutch foot lever with hub and bushing 120 290 25 16 or 1202902516		on request on request
Image number 13a	C 29 028 C 29 028	Flexible joint disc Flexible joint disc 121 462 00 46 or 1214620046		€41.48 €41.48
Image number 14	C 29 029 C 29 029	Pressure sheet Pressure sheet 120 291 01 76 or 1202910176		on request on request
Image number	C 29 030 C 29 030	Foot lever shaft for clutch actuation Foot lever shaft for clutch actuation 120 291 01 10 or 1202910110		on request on request
Image number	C 29 031 C 29 031	Foot lever shaft for clutch actuation Foot lever shaft for clutch actuation 120 293 04 06 or 1202930406		on request on request
Image number 24	C 29 040 C 29 040	Flange Flange 120 291 01 46 or 1202910146		on request on request
Image number 30	C 29 041 C 29 041	Pressure plate with screw Pressure plate with screw 120 290 00 67 or 1202900067		on request on request
Image number 39	C 29 059 C 29 059	Flange with silent block Flange with silent block 120 290 03 46 or 1202900346		€283.80 €283.80
Image number 50	C 29 062 C 29 062	Bearing body for brake pedal Bearing body for brake pedal 120 292 02 04 or 1202920204		€100.00 €100.00
Image number 53	C 29 119 C 29 119	Lightweight sleeve Lightweight sleeve 120 991 03 41 or 1209910341		on request on request
Image number	C 29 067 C 29 067	Spring washer 0.4 mm thick Spring washer 0.4 mm thick 120 990 02 48 or 1209900248		on request on request
Image number 70	C 29 077a C 29 077a	Bracket for brake foot lever Bracket for brake foot lever 120 290 10 23 or 1202901023		on request on request
Image number 72	C 29 079 C 29 079	Bracket for clutch foot lever Bracket for clutch foot lever 120 290 12 22 or 1202901222		on request on request
Image number 74	C 29 082 C 29 082	Seal washer Seal washer 120 291 03 97 or 1202910397		€4.20 €4.20
Image number 76	A 29 028 A 29 028	Sealing washer in pedal base, rubber Sealing washer in pedal base, rubber 136 290 00 67 or 1362900067		€15.23 €15.23

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Rubber cover

C 29 004 €3.00

Brake pedal with bushing

C 29 001a

Brake foot lever with bushing R. L.

C 29 002 €230.00

Disc 3,0mm thick for brake lever

C 29 008 €7.00

Support rod

C 29 012a

Spacer sleeve for support rod

C 29 013

Return spring for brake foot lever

C 29 015

Release spring

C 29 016 €37.91

Washer f. support rod

C 29 019

Clutch foot lever with hub and bushing

C 29 022

Flexible joint disc

C 29 028 €41.48

Pressure sheet

C 29 029

Foot lever shaft for clutch actuation

C 29 030

Foot lever shaft for clutch actuation

C 29 031

Flange

C 29 040

Pressure plate with screw

C 29 041

Flange with silent block

C 29 059 €283.80

Bearing body for brake pedal

C 29 062 €100.00

Lightweight sleeve

C 29 119

Spring washer 0.4 mm thick

C 29 067

Bracket for brake foot lever

C 29 077a

Bracket for clutch foot lever

C 29 079

Seal washer

C 29 082 €4.20

Sealing washer in pedal base, rubber

A 29 028 €15.23

Left-hand-drive

Brake pedal with bushing

C 29 001a

Right-hand-drive

Brake foot lever with bushing R. L.

C 29 002 €230.00

Left-hand-drive

Support rod

C 29 012a

Left-hand-drive

Return spring for brake foot lever

C 29 015

Right-hand-drive

Release spring

C 29 016 €37.91

Left-hand-drive

Clutch foot lever with hub and bushing

C 29 022

Left-hand-drive

Flexible joint disc

C 29 028 €41.48

Left-hand-drive

Pressure sheet

C 29 029

Left-hand-drive

Foot lever shaft for clutch actuation

C 29 030

Left-hand-drive

Foot lever shaft for clutch actuation

C 29 031

Left-hand-drive

Flange

C 29 040

Left-hand-drive

Pressure plate with screw

C 29 041

Left-hand-drive

Flange with silent block

C 29 059 €283.80

Right-hand-drive

Bearing body for brake pedal

C 29 062 €100.00

Right-hand-drive

Lightweight sleeve

C 29 119

Left-hand-drive

Spring washer 0.4 mm thick

C 29 067

Rubber cover

C 29 004 €3.00

Disc 3,0mm thick for brake lever

C 29 008 €7.00

Spacer sleeve for support rod

C 29 013

Washer f. support rod

C 29 019

Bracket for brake foot lever

C 29 077a

Bracket for clutch foot lever

C 29 079

Seal washer

C 29 082 €4.20

Sealing washer in pedal base, rubber

A 29 028 €15.23
