Ponton 180b Mercedes-Benz w120

Chosen model:

Chassis: 120.010
Engine: 121.923
Choose different model

Current unit you are viewing: 26 Transmission

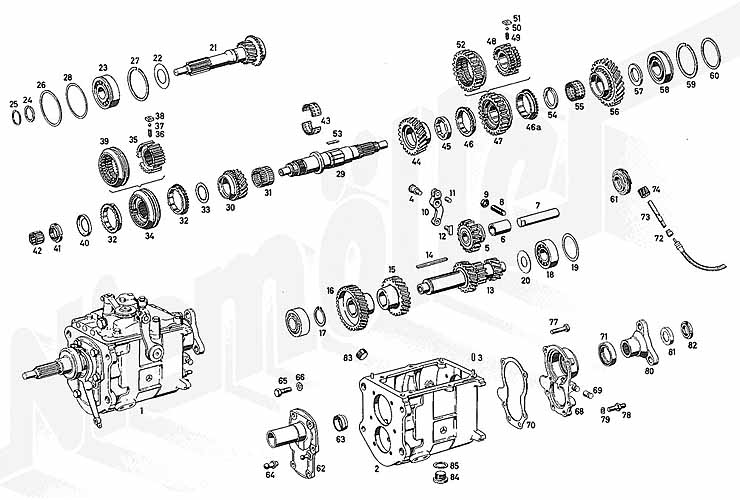

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1a		C 26 177a C 26 177a	Gasket kit gearbox Gasket kit gearbox 120 586 02 26. 120 586 01 26 oder 1205860226.1205860126		€48.22 €48.22
Image number 1		C 26 002 C 26 002	Gearbox complete Gearbox complete 120 260 29 01 oder 1202602901		on request on request
Image number 2		C 26 003 C 26 003	Transmission housings Transmission housings 186 260 00 11 oder 1862600011		on request on request
Image number 3		C 26 004a C 26 004a	Cylindrical pin Cylindrical pin 000 007 006 103 oder 000007006103		on request on request
Image number 4		D 26 043 D 26 043	Clevis pin Clevis pin 111 262 00 74 oder 1112620074		€10.56 €10.56
Image number 5		C 26 005 C 26 005	Return wheel 17 teeth Return wheel 17 teeth 120 260 03 25 oder 1202600325		€675.70 €675.70
Image number 6		C 26 006 C 26 006	Bushing Bushing 120 263 03 50 oder 1202630350		€86.11 €86.11
Image number 7		C 26 007 C 26 007	Reverse idler shaft Reverse idler shaft 186 263 00 30 oder 1862630030		€152.07 €152.07
Image number 8		C 26 126 C 26 126	Guide bolt Guide bolt 136 265 02 47 oder 1362650247		€43.66 €43.66
Image number 9		A 32 040b C 32 032a	Nut M10 DIN 934-5S Hexagon nut M10x1 DIN 934		on request €1.60
	C 32 032a	Replacement: Hexagon nut M10x1 DIN 934		€1.60
Image number 10		C 26 008 A 26 089	Intermediate lever for reverse gear Intermediate lever for reverse gear 136 260 00 37 oder 1362600037		on request €157.59
	A 26 089	Replacement: Intermediate lever for reverse gear		€157.59
Image number 11		D 26 045 D 26 045	Dowel pin Dowel pin 900 037 008 104 oder 900037008104		on request on request
Image number 12		C 26 009 A 26 090	Shift claw to intermediate lever Sliding block in intermediate lever 121 263 01 23 oder 1212630123		on request €12.10
	A 26 090	Replacement: Sliding block in intermediate lever		€12.10
Image number 13		C 26 011 C 26 011	Layshaft Layshaft 110 260 02 24 oder 1102600224		€598.86 €598.86
Image number 14		C 26 012 C 26 012	Key Key 186 991 03 68 oder 1869910368		€1.85 €1.85
Image number 15		C 26 013 C 26 013	Front wheel 27 teeth for 3.gear Front wheel 27 teeth for 3.gear 120 263 03 13 oder 1202630313		€500.00 €500.00
Image number 16		C 26 015 C 26 015	Layshaft wheel, 32 teeth, for 4th gear Layshaft wheel, 32 teeth, for 4th gear 120 263 09 10 oder 1202630910		€700.00 €700.00
Image number 17		C 26 017 C 26 017	Snap ring Snap ring 900 055 035 300 oder 900055035300		€0.93 €0.93
Image number 18		C 26 018 C 26 018	Ball bearring Ball bearring 000 625 036 305 oder 000625036305		€18.50 €18.50
Image number 19		C 26 019	Space washer 0,1mm 120 263 14 52 oder 1202631452		€4.50	Choose the suitable product variant
Image number 19	Image number 19		C 26 020	Space washer 0,25mm 120 263 15 52 oder 1202631552		Choose the suitable product variant	€10.05
Image number 20		C 26 023 C 26 023	Shim countershaft to bearing Shim countershaft to bearing 186 990 18 40 oder 1869901840		€34.34 €34.34
Image number 21		C 26 025	Drive shaft with synchronous cone 121 260 10 20 oder 1212601020		on request	Choose the suitable product variant
Image number 21	Image number 21		C 26 025	Drive shaft with synchronous cone 121 260 10 20 oder 1212601020		Choose the suitable product variant	on request
Image number 22		C 26 027 C 26 027	Oil slinger ring Oil slinger ring 186 262 00 66 oder 1862620066		€9.80 €9.80
Image number 23		C 26 028 C 26 028	Ring bearring Ring bearring 000 625 606 306 oder 000625606306		€56.00 €56.00
Image number 26		C 26 031 C 26 031	Spacer ring Spacer ring 186 262 04 51 oder 1862620451		€6.99 €6.99
Image number 27		C 26 032	Spring ring 2,0mm 136 994 09 35 oder 1369940935		€5.24	Choose the suitable product variant
	Image number 27		C 26 033	Spring ring 1,9mm 136 994 06 35 oder 1369940635			€4.65
	Image number 27		C 26 034	Spring ring 2,05mm 115 994 22 35 oder 1159942235			€5.24
Image number 29		C 26 038	Main shaft from gearbox no.75 02182 180 262 00 05 oder 1802620005		€1,310.76	Choose the suitable product variant
Image number 29	Image number 29		C 26 154	Shift fork for 1st and 2nd gear 186 265 00 01 oder 1862650001		Choose the suitable product variant	€705.68
Image number 28		C 26 035	Space washer 0,1mm 136 262 06 52 oder 1362620652		on request	Choose the suitable product variant
	Image number 28		C 26 036	Space washer 0,2mm 136 262 07 52 oder 1362620752			€3.97
	Image number 28		C 26 037	Shim 0.3 mm thick 136 262 08 52 oder 1362620852			on request
Image number 30		C 26 039 C 26 039	Helical gear for 3rd gear 22 teeth, needle bearing Helical gear for 3rd gear 22 teeth, needle bearing 121 260 02 44 oder 1212600244		€395.00 €395.00
Image number 31		C 26 041 C 26 041	Needle bearring Needle bearring 000 981 29 12 oder 0009812912		€197.41 €197.41
Image number 32		C 26 059 C 26 042	Synchronizer ring for 2nd gear Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) 111 262 01 34 oder 1112620134		on request €32.00
	C 26 042	Replacement: Synchronizer ring ( compare with old ring besfore instalation - width of the noses )		€32.00
Image number 33		C 26 043 C 26 043	Thrust washer Thrust washer 120 262 23 62 oder 1202622362		€97.89 €97.89
Image number 34		C 26 044 C 26 044	Synchronizer body 3rd and 4th gear Synchronizer body 3rd and 4th gear 111 260 06 45 oder 1112600645		on request on request
Image number 35		D 26 064 D 26 064	Synchronizer Synchronizer 111 262 04 35 oder 1112620435		€170.00 €170.00
Image number 36		C 26 045 C 26 045	Compressing spring Compressing spring 180 993 38 01 oder 1809933801		€2.25 €2.25
Image number 37		C 26 046 A 26 046	Steel ball 6.5 mm III DIN 5401 Steel ball D: 6.5 mm 005 401 306 500 oder 005401306500		on request €1.00
	A 26 046	Replacement: Steel ball D: 6.5 mm		€1.00
Image number 38		C 26 047 C 26 047	Towing arm Towing arm 121 262 00 40 oder 1212620040		€36.24 €36.24
Image number 39		B 26 084 B 26 084	Sliding sleeve for 3 and 4 speed Sliding sleeve for 3 and 4 speed 111 262 04 23 oder 1112620423		on request on request
Image number 40		C 26 048 C 26 048	Lock plate Lock plate 120 994 01 15 oder 1209940115		€2.73 €2.73
Image number 41		C 26 049 C 26 049	Grooved nut Grooved nut 120 262 03 26 oder 1202620326		€24.83 €24.83
Image number 42		C 26 050 C 26 050	Needle cage Needle cage 000 981 08 12 oder 0009810812		€19.65 €19.65
Image number 43		C 26 051 C 26 051	Needle cage Needle cage 120 981 03 12 oder 1209810312		€303.26 €303.26

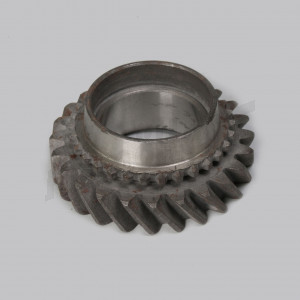

Image number 44		C 26 052	Helical gear, 24 teeth, for 2nd gear 110 262 00 12 oder 1102620012		€607.04	Choose the suitable product variant
Image number 44	Image number 44		C 26 053	Helical gear, 34 teeth, 2nd gear 111 262 04 12 oder 1112620412		Choose the suitable product variant	on request
Image number 45		C 26 055	Thrust ring 7.9 mm thick 120 262 16 62 oder 1202621662		€130.40	Choose the suitable product variant
	Image number 45		C 26 056	Thrust ring 7.95 mm thick 120 262 17 62 oder 1202621762			on request
	Image number 45		D 26 084	Thrust ring 8,05mm thick 120 262 19 62 oder 1202621962			on request
	Image number 45		C 26 058	Thrust ring 8.1 mm thick 120 262 20 62 oder 1202622062			€95.68
Image number 46		C 26 059 C 26 042	Synchronizer ring for 2nd gear Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) 111 262 01 34 oder 1112620134		on request €32.00
	C 26 042	Replacement: Synchronizer ring ( compare with old ring besfore instalation - width of the noses )		€32.00
Image number 46a		D 26 085 C 26 042	Synchronizer ring for 1st gear Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) 186 262 01 36 oder 1862620136		on request €32.00
	C 26 042	Replacement: Synchronizer ring ( compare with old ring besfore instalation - width of the noses )		€32.00
Image number 47		D 26 086 C 26 060	Synchronizer for 1st and 2nd gear Synchronizer for 1st and 2nd gear 111 260 07 45 oder 1112600745		on request €1,373.89
	C 26 060	Replacement: Synchronizer for 1st and 2nd gear		€1,373.89
Image number 48		D 26 088 D 26 088	Synchronizer for 1st and 2nd gear Synchronizer for 1st and 2nd gear 111 262 03 35 oder 1112620335		€500.00 €500.00
Image number 49		C 26 045 C 26 045	Compressing spring Compressing spring 180 993 38 01 oder 1809933801		€2.25 €2.25
Image number 50		C 26 046 A 26 046	Steel ball 6.5 mm III DIN 5401 Steel ball D: 6.5 mm 005 401 306 500 oder 005401306500		on request €1.00
	A 26 046	Replacement: Steel ball D: 6.5 mm		€1.00
Image number 51		C 26 047 C 26 047	Towing arm Towing arm 121 262 00 40 oder 1212620040		€36.24 €36.24
Image number 52		D 26 090 D 26 090	Sliding sleeve for 1st and 2nd gear Sliding sleeve for 1st and 2nd gear 111 262 03 23 oder 1112620323		on request on request
Image number 53		C 26 061	Sunk key for main shaft 120 262 00 81 oder 1202620081		€25.17	Choose the suitable product variant
Image number 53	Image number 53		C 49 068	Hexagon head screw M8x50 DIN 931-8G 000 931 008 085 oder 000931008085		Choose the suitable product variant	on request
Image number 54		C 26 062	Thrust washer 4.4 mm thick 120 262 11 62 oder 1202621162		€110.00	Choose the suitable product variant
	Image number 54		C 26 063	Thrust washer 4.5 mm thick 120 262 13 62 oder 1202621362			€66.53

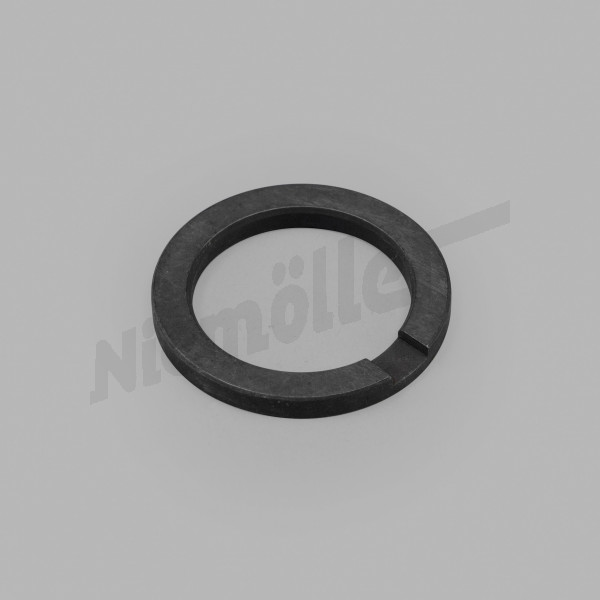

	Image number 54		C 26 064	Thrust washer 4.6 mm thick 120 262 15 62 oder 1202621562			€110.34
Image number 55		C 26 065 C 26 065	Needle bearring 1st gear Needle bearring 1st gear 001 981 69 10 oder 0019816910		€139.80 €139.80
Image number 56		C 26 066	Helical gear, 28 teeth for 1st gear 120 262 10 11 oder 1202621011		€550.00	Choose the suitable product variant
Image number 56	Image number 56		C 26 066	Helical gear, 28 teeth for 1st gear 120 262 10 11 oder 1202621011		Choose the suitable product variant	€550.00
Image number 57		C 26 068	Thrust washer 3.8 mm thick 186 262 01 62 oder 1862620162		on request	Choose the suitable product variant
	Image number 57		C 26 069	Thrust washer 3.9 mm thick 186 262 02 62 oder 1862620262			on request
	Image number 57		C 26 070	Thrust washer 4.0 mm thick 186 262 03 62 oder 1862620362			on request
	Image number 57		C 26 071	Thrust washer 4.1 mm thick 186 262 04 62 oder 1862620462			on request
	Image number 57		C 26 072	Thrust washer 4.2 mm thick 186 262 05 62 oder 1862620562			on request
	Image number 57		C 26 073	Thrust washer 4.3 mm thick 186 262 06 62 oder 1862620662			on request
	Image number 57		C 26 074	Thrust washer 4.4, mm thick 186 262 07 62 oder 1862620762			on request
	Image number 57		C 26 075	Thrust washer 4.5 mm thick 186 262 08 62 oder 1862620862			on request
Image number 58		C 26 076 A 26 024	Ring groove bearing on the main shaft Deep groove ball bearing on the main shaft 136 981 02 25 oder 1369810225		on request €38.00
	A 26 024	Replacement: Deep groove ball bearing on the main shaft		€38.00
Image number 59		D 26 094 D 26 094	Snap ring Snap ring 005 417 072 000 oder 005417072000		on request on request
Image number 61		C 26 081 C 26 081	Screw wheel for speedometer drive Screw wheel for speedometer drive 110 264 00 30 oder 1102640030		€156.00 €156.00
Image number 62		C 26 085 C 26 085	Front transmission housing cover Front transmission housing cover 121 260 00 21 oder 1212600021		€414.05 €414.05
Image number 63		C 26 088 C 26 088	Sealing ring Sealing ring 186 261 00 60 oder 1862610060		€3.29 €3.29
Image number 64		C 26 089 C 26 089	Bolt for clutch release fork Bolt for clutch release fork 120 991 03 15 oder 1209910315		€72.50 €72.50
Image number 65		C 26 199 C 26 199	Switching tube Switching tube 180 260 17 82 oder 1802601782		on request on request
Image number 66		C 26 203 C 26 203	Guide pin in top switching tube Guide pin in top switching tube 180 268 01 39 oder 1802680139		€99.00 €99.00
Image number 67		C 26 204 C 26 204	Guide ring Guide ring 111 997 05 40 oder 1119970540		€5.50 €5.50
Image number 68		C 26 090	Gearbox housing cover rear 120 260 20 16 oder 1202602016		€685.95	Choose the suitable product variant
Image number 68	Image number 68		C 26 207	Shim for guide pin 183 990 35 40 oder 1839903540		Choose the suitable product variant	on request
Image number 69		C 26 206 C 26 206	Locking ring Locking ring 186 268 02 73 oder 1862680273		€13.65 €13.65
Image number 70		C 26 093 C 26 093	Gasket for rear gearbox cover Gasket for rear gearbox cover 186 261 04 79 oder 1862610479		€2.47 €2.47
Image number 71		C 26 095 C 26 095	Sealing ring rear Sealing ring rear 000 997 17 46 oder 0009971746		€7.20 €7.20
Image number 72		C 26 096 D 26 107	Sealing ring for speedometer drive shaft Sealing ring 120 261 00 80 oder 1202610080		on request €4.00
	D 26 107	Replacement: Sealing ring		€4.00
Image number 73		C 26 097 C 26 097	Shaft for speedometer drive Shaft for speedometer drive 120 264 04 32 oder 1202640432		€90.00 €90.00
Image number 74		C 26 100 C 26 100	Drive pinion for tachometer drive Drive pinion for tachometer drive 120 264 02 31 oder 1202640231		on request on request
Image number 75		C 26 225 C 26 225	Chrome cap Chrome cap 180 268 00 57 oder 1802680057		€65.00 €65.00

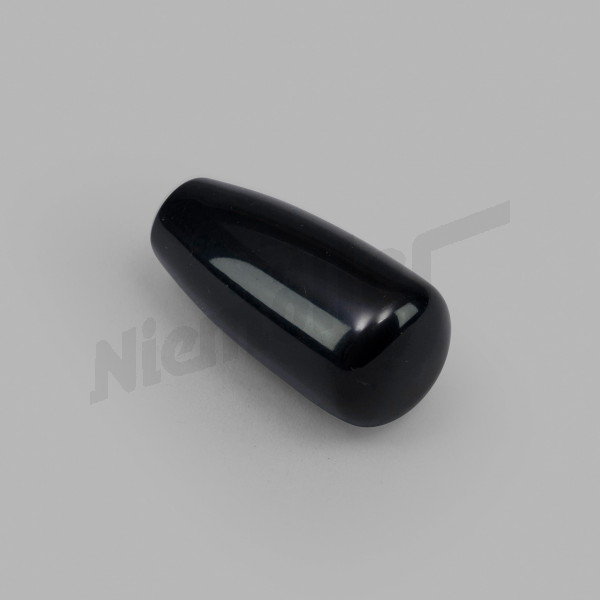

Image number 76		B 26 156 C 26 228	Gearshift knob Shifter knob black, push on 180 268 02 40 oder 1802680240		on request €29.00
	C 26 228	Replacement: Shifter knob black, push on		€29.00
Image number 77		C 26 234 C 26 234	Bearing body with sleeve Bearing body with sleeve 120 260 21 94 oder 1202602194		€202.50 €202.50
Image number 78		C 26 102 C 26 102	Collar screw for rear gearbox cover Collar screw for rear gearbox cover 120 990 00 10 oder 1209900010		€34.05 €34.05
Image number 80		C 26 105 C 26 105	Three-arm flange on the main shaft Three-arm flange on the main shaft 111 262 00 45 oder 1112620045		on request on request
Image number 81		C 26 106 C 26 106	Locking plate Locking plate 186 262 01 73 oder 1862620173		€3.99 €3.99
Image number 82		C 26 108 C 26 108	Nut M 24x1,5 Nut M 24x1,5 186 262 02 26 oder 1862620226		€18.00 €18.00
Image number 83		C 26 109 C 14 055	Screw plug for oil filling Screw plug 24x1,5 186 997 00 32 oder 1869970032		on request €2.73
	C 14 055	Replacement: Screw plug 24x1,5		€2.73
Image number 84		D 26 111 D 26 111	Plug Plug 115 997 00 32 oder 1159970032		€2.50 €2.50
Image number 85		G 35 013 G 35 013	Sealing ring A24x29 DIN 7603 Al Sealing ring A24x29 DIN 7603 Al 007 603 024 100 oder 007603024100		€1.56 €1.56

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

This sentence consists of:
C 01 195a Sealing ring A 24x30 AI, 1 piece
C 26 088 Sealing ring for drive shaft on front gearbox housing cover, 1 piece
C 26 093 Gasket shim for rear transmission housing cover, 1 piece
C 26 095 Sealing ring for main shaft, 1 piece
C 26 106 Fuse for three-arm flange on main shaft, 1 piece
C 26 177 Sealing shim for top gear housing, 1 piece
D 26 081 Seal insert, 1 piece
D 26 107 Sealing ring, 1 piece
D 26 245 Radial sealing ring for selector shaft A 14x26 DIN 6503, 1 piece
C 26 176 Gasket shim for gearbox housing cover top, 1 piece

C 26 177a €48.22

Left-hand-drive

C 26 002

C 26 003

C 26 004a

D 26 043 €10.56

C 26 005 €675.70

C 26 006 €86.11

C 26 007 €152.07

C 26 126 €43.66

D 26 045

FROM GEAR 151532 FOR TYPE 180 C/180 DC

C 26 011 €598.86

C 26 012 €1.85

C 26 013 €500.00

C 26 015 €700.00

C 26 017 €0.93

C 26 018 €18.50

C 26 019 €4.50

C 26 020 €10.05

C 26 023 €34.34

FROM GEAR 040848 FOR TYPE 180 B

C 26 025

C 26 027 €9.80

C 26 028 €56.00

C 26 031 €6.99

C 26 032 €5.24

C 26 033 €4.65

C 26 034 €5.24

C 26 038 €1,310.76

C 26 154 €705.68

C 26 035

C 26 036 €3.97

C 26 037

C 26 039 €395.00

C 26 041 €197.41

C 26 043 €97.89

C 26 044

D 26 064 €170.00

C 26 045 €2.25

C 26 047 €36.24

B 26 084

C 26 048 €2.73

C 26 049 €24.83

C 26 050 €19.65

C 26 051 €303.26

FROM GEAR 047841 FOR TYPE 180 B

C 26 052 €607.04

FROM GEAR 151532 FOR TYPE 180 C/180 DC

C 26 053

C 26 055 €130.40

C 26 056

D 26 084

C 26 058 €95.68

FROM GEAR 047841 FOR TYPE 180 B

D 26 088 €500.00

C 26 045 €2.25

C 26 047 €36.24

FROM GEAR 047841 FOR TYPE 180 B

D 26 090

C 26 061 €25.17

TO GEAR COVER 111 260 23 14/24 14/25 14

C 26 062 €110.00

C 26 063 €66.53

C 26 064 €110.34

C 26 065 €139.80

FROM GEAR 047841 FOR TYPE 180 B

C 26 066 €550.00

C 26 068

C 26 069

C 26 070

C 26 071

C 26 072

C 26 073

C 26 074

C 26 075

D 26 094

C 26 081 €156.00

Left-hand-drive;

FROM GEAR 047841 FOR TYPE 180 B
SPARE PART SIMPLIFICATION

C 26 085 €414.05

FROM GEAR 047841 FOR TYPE 180 B
SPARE PART SIMPLIFICATION

C 26 088 €3.29

C 26 089 €72.50

Left-hand-drive

C 26 199

C 26 203 €99.00

C 26 204 €5.50

C 26 090 €685.95

C 26 206 €13.65

C 26 093 €2.47

C 26 095 €7.20

C 26 097 €90.00

C 26 100

C 26 225 €65.00

Left-hand-drive

C 26 234 €202.50

C 26 102 €34.05

C 26 105

C 26 106 €3.99

C 26 108 €18.00

D 26 111 €2.50

G 35 013 €1.56

in stock
low stock level
currently not in stock, but available for order
no longer available

C 26 177a €48.22

C 26 002

C 26 003

C 26 004a

D 26 043 €10.56

C 26 005 €675.70

C 26 006 €86.11

C 26 007 €152.07

C 26 126 €43.66

D 26 045

C 26 011 €598.86

C 26 012 €1.85

C 26 013 €500.00

C 26 015 €700.00

C 26 017 €0.93

C 26 018 €18.50

C 26 019 €4.50

C 26 020 €10.05

C 26 023 €34.34

C 26 025

C 26 027 €9.80

C 26 028 €56.00

C 26 031 €6.99

C 26 032 €5.24

C 26 033 €4.65

C 26 034 €5.24

C 26 038 €1,310.76

C 26 154 €705.68

C 26 035

C 26 036 €3.97

C 26 037

C 26 039 €395.00

C 26 041 €197.41

C 26 043 €97.89

C 26 044

D 26 064 €170.00

C 26 045 €2.25

C 26 047 €36.24

B 26 084

C 26 048 €2.73

C 26 049 €24.83

C 26 050 €19.65

C 26 051 €303.26

C 26 052 €607.04

C 26 053

C 26 055 €130.40

C 26 056

D 26 084

C 26 058 €95.68

D 26 088 €500.00

C 26 045 €2.25

C 26 047 €36.24

D 26 090

C 26 061 €25.17

C 26 062 €110.00

C 26 063 €66.53

C 26 064 €110.34

C 26 065 €139.80

C 26 066 €550.00

C 26 068

C 26 069

C 26 070

C 26 071

C 26 072

C 26 073

C 26 074

C 26 075

D 26 094

C 26 081 €156.00

C 26 085 €414.05

C 26 088 €3.29

C 26 089 €72.50

C 26 199

C 26 203 €99.00

C 26 204 €5.50

C 26 090 €685.95

C 26 206 €13.65

C 26 093 €2.47

C 26 095 €7.20

C 26 097 €90.00

C 26 100

C 26 225 €65.00

C 26 234 €202.50

C 26 102 €34.05

C 26 105

C 26 106 €3.99

C 26 108 €18.00

D 26 111 €2.50

G 35 013 €1.56

in stock
low stock level
currently not in stock, but available for order
no longer available
