Ponton 190 Mercedes-Benz w121

Chosen model:

Chassis: 121.010
Engine: 121.920
Choose different model

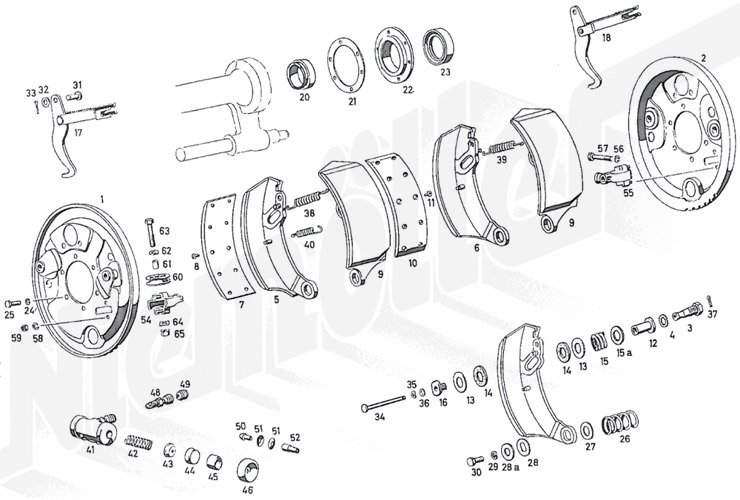

Current unit you are viewing: 42 Brakes rear

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		C 42 121 C 42 121	Brake support plate rear left Brake support plate rear left 180 420 12 17 oder 1804201217		€245.00 €245.00
Image number 2		C 42 123 C 42 123	Brake support plate rear right Brake support plate rear right 180 420 13 17 oder 1804201317		on request on request
Image number 3		C 42 016 C 42 016	Pin for automatic brake adjustment Pin for automatic brake adjustment 180 421 06 71 oder 1804210671		€28.00 €28.00
Image number 4		G 35 042 G 35 042	Lock washer Lock washer B14DIN127 oder B14DIN127		€0.50 €0.50
Image number 5		C 42 137a C 42 137a	Rear brake shoe kit - 65mm 5,7mm thickness of the linings Rear brake shoe kit - 65mm 5,7mm thickness of the linings 98101 0212 00 0 oder 981010212000		€205.00 €205.00
Image number 6		C 42 137a C 42 137a	Rear brake shoe kit - 65mm 5,7mm thickness of the linings Rear brake shoe kit - 65mm 5,7mm thickness of the linings 98101 0212 00 0 oder 981010212000		€205.00 €205.00
Image number 7		C 42 026	Brake lining 180 421 07 10 oder 1804210710		€29.00	Choose the suitable product variant
Image number 7	Image number 7		C 42 140	Brake pad with wire insert to rivet on 180 421 07 10 oder 1804210710		Choose the suitable product variant	on request
Image number 8		C 42 028 C 42 028	Rivet Rivet 183 990 02 95 oder 1839900295		€0.15 €0.15
Image number 9		C 42 137a C 42 137a	Rear brake shoe kit - 65mm 5,7mm thickness of the linings Rear brake shoe kit - 65mm 5,7mm thickness of the linings 98101 0212 00 0 oder 981010212000		€205.00 €205.00
Image number 10		C 42 140	Brake pad with wire insert to rivet on 180 421 07 10 oder 1804210710		on request	Choose the suitable product variant
Image number 10	Image number 10		C 42 026	Brake lining 180 421 07 10 oder 1804210710		Choose the suitable product variant	€29.00
Image number 11		C 42 028 C 42 028	Rivet Rivet 183 990 02 95 oder 1839900295		€0.15 €0.15
Image number 12		C 42 146 C 42 146	Adjusting sleeve Adjusting sleeve 180 423 05 50 oder 1804230550		€16.76 €16.76
Image number 13		C 42 032 C 42 032	Pressure washer Pressure washer 180 990 24 40 oder 1809902440		€4.73 €4.73
Image number 14		C 42 034 C 42 034	Friction disc Friction disc 180 421 01 32 oder 1804210132		€5.25 €5.25
Image number 15		C 42 035 C 42 035	Spring for automatic brake adjustment Spring for automatic brake adjustment 194 993 00 01 oder 1949930001		€6.01 €6.01
Image number 16		C 42 039 C 42 039	Srew for brake adjustment Srew for brake adjustment 180 421 03 71 oder 1804210371		€7.96 €7.96
Image number 17		D 42 179 D 42 179	Brake lever LHS Brake lever LHS 180 420 00 42 oder 1804200042		€207.79 €207.79
Image number 18		D 42 176 D 42 176	Brake lever RHS Brake lever RHS 180 420 01 42 oder 1804200142		€207.79 €207.79
Image number 20		C 42 193 C 42 193	Sealing ring Sealing ring 000 997 81 47 oder 0009978147		€4.16 €4.16
Image number 21		C 42 195 C 42 195	Gasket Gasket 120 357 01 79 oder 1203570179		€6.80 €6.80
Image number 22		C 42 196 C 42 196	Seal holder for brake carrier plate Seal holder for brake carrier plate 120 357 00 58 oder 1203570058		€170.17 €170.17
Image number 23		C 42 198 C 42 198	Sealing ring Sealing ring 50x68x14 oder 50x68x14		€9.00 €9.00
Image number 24		C 42 219b C 42 219b	Lock washer B7 DIN 127 Lock washer B7 DIN 127 000 127 007 203 oder 000127007203		€0.70 €0.70
Image number 26		C 42 199 C 42 199	Pressure spring for brake shoe on support tube Pressure spring for brake shoe on support tube 120 993 07 01 oder 1209930701		€27.11 €27.11
Image number 27		C 42 201 C 42 201	Washer Washer 120 990 06 40 oder 1209900640		€2.65 €2.65
Image number 28		C 42 203 C 42 203	Washer Washer 120 423 01 56 oder 1204230156		€12.51 €12.51
Image number 28A		C 42 115 C 42 115	Washer Washer 120 990 07 40 oder 1209900740		€12.99 €12.99
Image number 29		A 41 043 A 41 043	Lock washer Lock washer B8DIN127 oder B8DIN127		€0.40 €0.40
Image number 30		G 29 036 G 29 036	Hex. socket screw M8x16 Hex. socket screw M8x16 M8X15DIN933-8G oder M8X15DIN933-8G		€0.46 €0.46
Image number 31		C 42 207 C 42 207	Pin Pin 183 423 06 74 oder 1834230674		€5.72 €5.72
Image number 34		C 42 210 C 42 210	Guide pin rear brake Guide pin rear brake 180 423 02 74 oder 1804230274		€7.04 €7.04
Image number 36		C 88 251d C 88 251d	Washer Washer 5,3DIN125 oder 5,3DIN125		€0.20 €0.20
Image number 38		C 42 212 C 42 212	Release spring Release spring 180 993 23 10 oder 1809932310		€16.28 €16.28
Image number 39		C 42 159 C 42 159	Release spring Release spring 1809932410 oder 1809932410		€16.28 €16.28
Image number 40		C 42 161 C 42 161	Spring Spring 136 423 00 92 oder 1364230092		€3.57 €3.57
Image number 41		C 42 163 C 42 163	Rear brake cylinder 23,81mm Rear brake cylinder 23,81mm 000 420 93 18 oder 0004209318		€104.00 €104.00
Image number 42		C 42 168	Compressing spring 000 421 09 90 oder 0004210990		on request	Choose the suitable product variant
Image number 42	Image number 42		C 42 170	Compressing spring 000 421 11 90 oder 0004211190		Choose the suitable product variant	on request
Image number 43		C 42 070	Filler 25,4mm D 000 421 19 89 oder 0004211989		on request	Choose the suitable product variant
Image number 43	Image number 43		C 42 172	Filler 23.81 mm D 000 423 09 89 oder 0004230989		Choose the suitable product variant	on request
Image number 44		C 42 076	Rubber sleeve 25,4mm 000 421 00 86 oder 0004210086		€7.50	Choose the suitable product variant
Image number 44	Image number 44		C 42 177	Rubber sleeve for 22,81mm brake cylinder 000 423 09 86 oder 0004230986		Choose the suitable product variant	€6.70
Image number		A 42 089 A 42 089	Piston for brake cylinder 25,4mm Piston for brake cylinder 25,4mm 000 421 00 83 oder 0004210083		€24.52 €24.52
Image number 45		C 42 179 C 42 179	Brake cylinder piston 23,81mm Brake cylinder piston 23,81mm 000 421 21 83 oder 0004212183		on request on request
Image number 46		C 42 082 C 42 082	Rubber protection cap 25,4mm Rubber protection cap 25,4mm 000 421 00 87 oder 0004210087		€7.95 €7.95
Image number 48		C 42 087 C 42 087	Bleeder screw M10x1 Bleeder screw M10x1 000 420 08 55 oder 0004200855		€4.40 €4.40
Image number 49		C 42 088 C 42 088	Rubber cap for bleeder nipple Rubber cap for bleeder nipple 000 421 08 87 oder 0004210887		€1.20 €1.20
Image number 50		A 42 092	Pressure pin for brake cylinder 000 421 04 88 oder 0004210488		€9.00	Choose the suitable product variant
Image number 50	Image number 50		A 42 092	Pressure pin for brake cylinder 000 421 04 88 oder 0004210488		Choose the suitable product variant	€9.00
Image number 51		C 42 097 C 42 097	Plate spring Plate spring 000 993 07 26 oder 0009930726		€2.25 €2.25
Image number 52		A 42 092 A 42 092	Pressure pin for brake cylinder Pressure pin for brake cylinder 000 421 04 88 oder 0004210488		€9.00 €9.00
Image number		C 42 107 C 42 107	Seal ring Seal ring A10x14 DIN 7603Cu oder A10x14DIN7603Cu		€0.55 €0.55
Image number		A 42 133 A 42 133	Hollow screw M10x1 Hollow screw M10x1 000 428 04 26 oder 0004280426		€7.14 €7.14
Image number 54		C 42 216 C 42 216	Roller cage complete for brake cable LHS repro Roller cage complete for brake cable LHS repro 180 420 03 90 oder 1804200390		€255.00 €255.00
Image number 55		C 42 218 C 42 218	Roller cage complete for brake cable RHS repro Roller cage complete for brake cable RHS repro 180 420 04 90 oder 1804200490		€255.00 €255.00
Image number 56		C 42 219b C 42 219b	Lock washer B7 DIN 127 Lock washer B7 DIN 127 000 127 007 203 oder 000127007203		€0.70 €0.70
Image number 57		C 42 218a C 42 218a	Hexagon bolt M7x55 DIN 931 Hexagon bolt M7x55 DIN 931 M7X55DIN931-8G oder M7X55DIN931-8G		€15.77 €15.77
Image number 58		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 oder 912004006102		€0.30 €0.30
Image number 59		C 07 425 C 07 425	Hex. nut Hex. nut M6DIN934-5S oder M6DIN934-5S		€0.40 €0.40
Image number 60		C 42 220 C 42 220	Rope pulley Rope pulley 110 427 02 42 oder 1104270242		€80.50 €80.50
Image number 61		A 42 208 A 42 208	Spacer sleeve Spacer sleeve 187 427 01 53 oder 1874270153		€6.49 €6.49
Image number 62		A 42 030	Shim 1,0mm 183 990 35 40 oder 1839903540		€34.19	Choose the suitable product variant
Image number 62	Image number 62		A 42 201	Disc to middle brake cable 187 427 00 52 oder 1874270052		Choose the suitable product variant	on request
Image number 63		C 49 067 C 49 067	Hex. head screw M8x45 Hex. head screw M8x45 M8X45DIN931-8G oder M8X45DIN931-8G		€0.80 €0.80
Image number 64		C 42 225 C 42 225	Locking plate Locking plate 120 994 00 01 oder 1209940001		€1.70 €1.70
Image number 65		C 32 027 C 32 027	Hex. nut M 8 Hex. nut M 8 M8DIN934-5S oder M8DIN934-5S		€0.54 €0.54

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

C 42 121 €245.00

C 42 123

C 42 016 €28.00

G 35 042 €0.50

This is the late version from approx. 03/1962 with
hole for the attachment of the retraction fender.
If you have the early version until 03/1962
with rivet mandrel for mounting the return spring,
please order the return spring D 42 158x2 as well.
Then you can use this version without any problems.

C 42 137a €205.00

C 42 026 €29.00

C 42 028 €0.15

C 42 137a €205.00

C 42 026 €29.00

C 42 028 €0.15

C 42 146 €16.76

C 42 032 €4.73

C 42 034 €5.25

C 42 035 €6.01

C 42 039 €7.96

D 42 179 €207.79

D 42 176 €207.79

C 42 193 €4.16

C 42 195 €6.80

C 42 196 €170.17

C 42 198 €9.00

C 42 219b €0.70

C 42 199 €27.11

C 42 201 €2.65

C 42 203 €12.51

C 42 115 €12.99

A 41 043 €0.40

G 29 036 €0.46

C 42 207 €5.72

C 42 210 €7.04

C 88 251d €0.20

C 42 212 €16.28

C 42 159 €16.28

C 42 161 €3.57

C 42 163 €104.00

C 42 168

C 42 170

C 42 070

C 42 172

C 42 076 €7.50

C 42 177 €6.70

A 42 089 €24.52

C 42 179

C 42 082 €7.95

C 42 087 €4.40

C 42 088 €1.20

A 42 092 €9.00

C 42 097 €2.25

A 42 092 €9.00

C 42 107 €0.55

A 42 133 €7.14

C 42 216 €255.00

C 42 218 €255.00

C 42 219b €0.70

C 42 218a €15.77

G 22 020 €0.30

C 07 425 €0.40

C 42 220 €80.50

A 42 208 €6.49

A 42 030 €34.19

C 49 067 €0.80

C 42 225 €1.70

C 32 027 €0.54
