75 Rear Lid for Ponton 180b Mercedes-Benz w120 Mercedes-Benz
180b W120.010

Chosen model:

Chassis: 120.010
Engine: 121.923
Change vehicle
Change module Select assembly group

Step 5:

Select spare part

Step 5:

Select spare part

[{"type":"poly","coords":[660,348,687,357,700,353,704,338,693,329,678,331,662,331],"href":"https:\/\/www.niemoeller.de\/en\/ponton\/w120-mercedes-180b\/B010\/756301\/c75015-lock-for-trunk-fuel-flap","cssSelector":".product-group-16","info":"{\"ids\":\"C 75 015\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 75 015b\",\"stock_info_replacement\":\" (low stock level)\",\"stock_light_replacement\":\"rgb(254, 204, 11)\"}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[617,290,597,315,597,354,629,350,629,330,638,291],"href":"https:\/\/www.niemoeller.de\/en\/ponton\/w120-mercedes-180b\/B010\/756301\/c88036-locking-plate-for-lock-on-flap","cssSelector":".product-group-17","info":"{\"ids\":\"C 88 036\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 75 017\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[644,306,632,321,631,341,649,335,662,318,663,306],"href":"https:\/\/www.niemoeller.de\/en\/ponton\/w120-mercedes-180b\/B010\/756301\/c75018-rubber-underlayer-for-trunk-lock","cssSelector":".product-group-18","info":"{\"ids\":\"C 75 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[294,189,366,217,397,281,450,263,506,142,463,119],"href":"https:\/\/www.niemoeller.de\/en\/ponton\/w120-mercedes-180b\/B010\/756301\/c75022-boot-gasket-complete-ponton","cssSelector":".product-group-35","info":"{\"ids\":\"C 75 022\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(254, 204, 11)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(254, 204, 11,0.3)","strokeStyle":"black"},{"type":"poly","coords":[411,285,411,305,447,308,449,283],"href":"https:\/\/www.niemoeller.de\/en\/ponton\/w120-mercedes-180b\/B010\/756301\/c75027-rubber-buffer","cssSelector":".product-group-36","info":"{\"ids\":\"C 75 027\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(100, 100, 100)\",\"replacement\":\"C 75 025\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(86, 203, 150)\"}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[599,284,571,289,542,303,544,319,576,314,598,307,608,291],"href":"https:\/\/www.niemoeller.de\/en\/ponton\/w120-mercedes-180b\/B010\/756301\/c75031-boot-lid-handle","cssSelector":".product-group-40","info":"{\"ids\":\"C 75 031\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"},{"type":"poly","coords":[577,270,520,284,520,301,583,286],"href":"https:\/\/www.niemoeller.de\/en\/ponton\/w120-mercedes-180b\/B010\/756301\/c75020-rubber-underlayer-trunk-handle","cssSelector":".product-group-41","info":"{\"ids\":\"C 75 020\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(86, 203, 150)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(86, 203, 150,.4)","strokeStyle":"black"}]

in stock
low stock level
currently not in stock, but available for order
no longer available

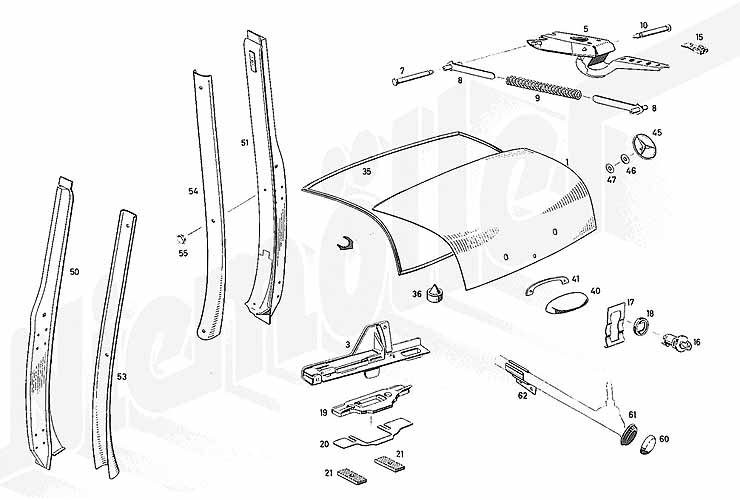

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		C 75 001 C 75 001	Trunk lid shell without fittings Trunk lid shell without fittings 120 750 00 75 or 1207500075		on request on request
Image number 3		C 75 002 C 75 002	Inner lock for trunk lid Inner lock for trunk lid 10 120 750 00 85 or 101207500085		€375.00 €375.00
Image number 5		C 75 005a C 75 005a	Trunk lid hinge left and right Trunk lid hinge left and right 10 120 750 04 87 or 101207500487		on request on request
Image number 7		C 75 006 C 75 006	Rear bearing pin Rear bearing pin 120 758 00 15 or 1207580015		on request on request
Image number		C 29 069b D 91 200	Lock ring Retaining ring 000 471 010 000 or 000471010000		on request €1.50
	D 91 200	Replacement: Lock ring		€1.50
Image number 8		B 75 012 B 75 012	Push rod for trunk lid hinge Push rod for trunk lid hinge 10 120 750 01 23 or 101207500123		on request on request
Image number 9		C 75 008 C 75 008	Compressing spring Compressing spring 10 120 758 01 27 or 101207580127		€17.00 €17.00
Image number 10		B 75 013 B 75 013	Bearing blocks for spring Bearing blocks for spring 120 758 01 15 or 1207580115		on request on request
Image number 15		C 30 013a C 30 013a	Cage nut M6 Cage nut M6 000 990 39 91 or 0009903991		€16.60 €16.60
Image number		C 07 108 G 22 020	Lock washer Spring ring for carburetor cover 000 127 006 203 or 000127006203		on request €0.30
	G 22 020	Replacement: Lock washer		€0.30
Image number 16		C 75 015 C 75 015b	Lock Reproduction Lock for trunk/fuel flap 10 120 750 00 84 or 101207500084		on request €75.00
	C 75 015b	Replacement: Lock Reproduction		€75.00
Image number 17		C 88 036 C 75 017	Locking plate Locking plate for lock on flap 000 994 01 21 or 0009940121		on request €12.00
	C 75 017	Replacement: Locking plate		€12.00
Image number 18		C 75 018 C 75 018	Rubber underlayer for trunk lock Rubber underlayer for trunk lock 000 987 19 41 or 0009871941		€3.68 €3.68
Image number		D 68 222 D 68 222	Key (with letter "K") Key (with letter "K") 000 766 10 06 or 0007661006		on request on request
Image number 19		C 75 019 C 75 019	Latch for bootlid Latch for bootlid 10 120 758 00 03 or 101207580003		€58.00 €58.00
Image number 21		B 75 034 B 75 034	Threaded plate for closing pl. and compensation plate Threaded plate for closing pl. and compensation plate 10 120 647 00 37 or 101206470037		on request on request
Image number 35		C 75 022 C 75 022	Boot gasket complete ponton Boot gasket complete ponton 10 120 750 00 77 or 101207500077		€71.40 €71.40
Image number 36		C 75 027 C 75 025	Rubber buffer 14mm Rubber buffer 120 987 00 40 or 1209870040		on request €4.83
	C 75 025	Replacement: Rubber buffer 14mm		€4.83
Image number 40		C 75 031 C 75 031	Boot lid handle Boot lid handle 10 120 758 00 02 or 101207580002		€91.00 €91.00
Image number 41		C 75 020 C 75 020	Rubber underlayer trunk handle Rubber underlayer trunk handle 10 120 758 00 90 or 101207580090		€9.83 €9.83
Image number		G 54 589 G 54 589	Lock washer Lock washer 912 004 005 103 or 912004005103		€1.02 €1.02
Image number		G 54 080 G 47 021	Lens head screw Screw, 5x10 DIN 7985 007 985 005 125 or 007985005125		on request €2.50
	G 47 021	Replacement: Lens head screw		€2.50
Image number 45		C 75 034 C 75 034	Boot lid star Boot lid star 10 120 750 00 79 or 101207500079		€325.00 €325.00
Image number 46		D 52 067 D 52 067	Rubber washer Mercedes star to rear lid Rubber washer Mercedes star to rear lid 110 987 07 41 or 1109870741		€0.22 €0.22
Image number 47		D 29 082 D 29 082	Disc, push rod on clutch pedal Disc, push rod on clutch pedal 000 125 008 407 or 000125008407		on request on request
Image number		G 75 029 C 32 027	Hex. nut M 8 Hex nut 000 934 008 008 or 000934008008		on request €0.54
	C 32 027	Replacement: Hex. nut M 8		€0.54
Image number 50		C 76 000a C 76 000a	Middle box column left Middle box column left 10 120 760 03 10 or 101207600310		on request on request
Image number 51		C 76 000b C 76 000b	Middle box column right Middle box column right 10 120 760 04 10 or 101207600410		on request on request
Image number 53		C 76 001a C 76 001a	Fairing rail left for lining Fairing rail left for lining 10 120 760 05 19 or 101207600519		on request on request
Image number 54		C 76 002a C 76 002a	Fairing rail right for lining Fairing rail right for lining 10 120 760 06 19 or 101207600619		on request on request
Image number		C 88 251e C 88 251e	Sheet-metal screw 3.9 x 13 Sheet-metal screw 3.9 x 13 007 983 003 216 or 007983003216		€4.81 €4.81

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Trunk lid shell without fittings

C 75 001

Inner lock for trunk lid

C 75 002 €375.00

Trunk lid hinge left and right

C 75 005a

Rear bearing pin

C 75 006

Retaining ring

C 29 069b

Replacement item available

Push rod for trunk lid hinge

B 75 012

Compressing spring

C 75 008 €17.00

Bearing blocks for spring

B 75 013

Cage nut M6

C 30 013a €16.60

Spring ring for carburetor cover

C 07 108

Replacement item available

Lock for trunk/fuel flap

C 75 015

Replacement item available

Locking plate for lock on flap

C 88 036

Replacement item available

Rubber underlayer for trunk lock

C 75 018 €3.68

Key (with letter "K")

D 68 222

Latch for bootlid

C 75 019 €58.00

Threaded plate for closing pl. and compensation plate

B 75 034

Boot gasket complete ponton

C 75 022 €71.40

Rubber buffer

C 75 027

Replacement item available

Boot lid handle

C 75 031 €91.00

Rubber underlayer trunk handle

C 75 020 €9.83

Lock washer

G 54 589 €1.02

Screw, 5x10 DIN 7985

G 54 080

Replacement item available

Boot lid star

C 75 034 €325.00

Rubber washer Mercedes star to rear lid

D 52 067 €0.22

Disc, push rod on clutch pedal

D 29 082

Hex nut

G 75 029

Replacement item available

Middle box column left

C 76 000a

Middle box column right

C 76 000b

Fairing rail left for lining

C 76 001a

Fairing rail right for lining

C 76 002a

Sheet-metal screw 3.9 x 13

C 88 251e €4.81

WITH MODEL 120.0 AS OF CHASSIS 014609
WITH MODEL 120.1 AS OF CHASSIS 012981

Rubber buffer

C 75 027

Replacement item available

Trunk lid shell without fittings

C 75 001

Inner lock for trunk lid

C 75 002 €375.00

Trunk lid hinge left and right

C 75 005a

Rear bearing pin

C 75 006

Retaining ring

C 29 069b

Replacement item available

Push rod for trunk lid hinge

B 75 012

Compressing spring

C 75 008 €17.00

Bearing blocks for spring

B 75 013

Cage nut M6

C 30 013a €16.60

Spring ring for carburetor cover

C 07 108

Replacement item available

Lock for trunk/fuel flap

C 75 015

Replacement item available

Locking plate for lock on flap

C 88 036

Replacement item available

Rubber underlayer for trunk lock

C 75 018 €3.68

Key (with letter "K")

D 68 222

Latch for bootlid

C 75 019 €58.00

Threaded plate for closing pl. and compensation plate

B 75 034

Boot gasket complete ponton

C 75 022 €71.40

Boot lid handle

C 75 031 €91.00

Rubber underlayer trunk handle

C 75 020 €9.83

Lock washer

G 54 589 €1.02

Screw, 5x10 DIN 7985

G 54 080

Replacement item available

Boot lid star

C 75 034 €325.00

Rubber washer Mercedes star to rear lid

D 52 067 €0.22

Disc, push rod on clutch pedal

D 29 082

Hex nut

G 75 029

Replacement item available

Middle box column left

C 76 000a

Middle box column right

C 76 000b

Fairing rail left for lining

C 76 001a

Fairing rail right for lining

C 76 002a

Sheet-metal screw 3.9 x 13

C 88 251e €4.81
