Ponton 190D Mercedes-Benz w121

Chosen model:

Chassis: 121.110
Engine: 621.910
Choose different model

Current unit you are viewing: 05 Timing

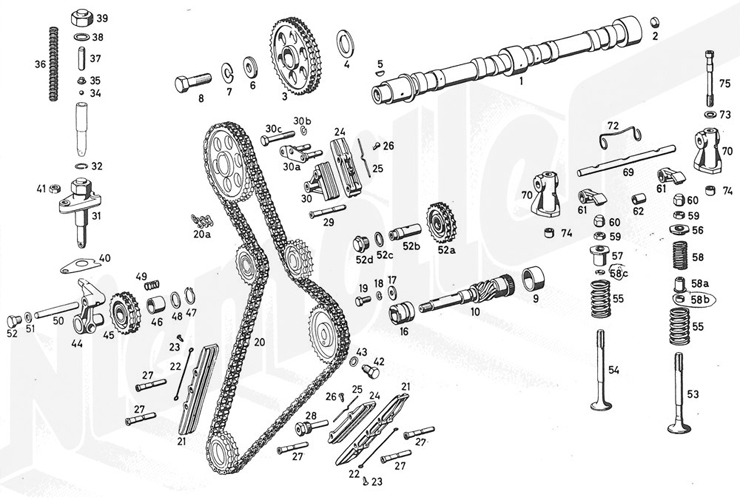

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		C 05 116 C 05 116	Cam carrier Cam carrier 621 050 01 01 oder 6210500101		on request on request
Image number 3		C 05 123 C 05 123	Camshaft gear Camshaft gear 121 052 00 01 oder 1210520001		€50.00 €50.00
Image number 4		D 05 034	Shim 2,4mm thick 186 052 04 52 oder 1860520452		€17.00	Choose the suitable product variant
	Image number 4		D 05 036	Shim 3.25 mm thick 186 052 02 52 oder 1860520252			on request
	Image number 4		D 05 037	Shim 3,50mm thick 186 052 03 52 oder 1860520352			on request
Image number		C 05 125 C 05 125	Shim 2.75 mm dick Shim 2.75 mm dick 186 052 01 52 oder 1860520152		€17.00 €17.00
Image number		C 05 126 C 05 126	Shim 3mm thick Shim 3mm thick 186 052 00 52 oder 1860520052		on request on request
Image number 6		C 05 131 C 05 131	Washer for camshaft gear Washer for camshaft gear 180 990 03 40 oder 1809900340		on request on request
Image number 9		C 01 272 C 01 272	Bushing Bushing 621 052 01 50 oder 6210520150		€15.13 €15.13
Image number 10		C 05 138 C 05 138	Intermediate shaft with thrust ring Intermediate shaft with thrust ring 621 050 02 06 oder 6210500206		on request on request
Image number 16		D 05 061 D 05 061	Bushing for intermediate spocket shaft front, W108, W110, W111, W113, W114, W123 Bushing for intermediate spocket shaft front, W108, W110, W111, W113, W114, W123 110 052 00 06 oder 1100520006		€45.00 €45.00
Image number 17		C 05 152 C 05 152	Washer f. bearing yoke Washer f. bearing yoke 180 990 01 40 oder 1809900140		on request on request
Image number 20		C 05 156 C 05 156	Double roller chain 138 links Double roller chain 138 links 000 997 02 94 oder 0009970294		€95.00 €95.00
Image number 21		C 05 160 C 05 160	Sliding rail with lock wire Sliding rail with lock wire 180 050 08 16 oder 1800500816		€156.00 €156.00
Image number 22		C 05 162 C 05 162	Lock wire (f. sliding rail) Lock wire (f. sliding rail) 180 052 00 76 oder 1800520076		€4.38 €4.38
Image number 24		C 05 165 C 05 165	Sliding rail ( plastic ) Sliding rail ( plastic ) 615 050 14 16 oder 6150501416		€11.00 €11.00
Image number 25		C 05 168 C 05 168	Safety wire for slide rail Safety wire for slide rail 621 052 00 76 oder 6210520076		on request on request
Image number 27		C 05 172 C 05 172	Pivot pin, 48.5mm for sliding rail Pivot pin, 48.5mm for sliding rail 621 052 00 74 oder 6210520074		€13.00 €13.00
Image number 28		C 05 174a C 05 174a	Pivot pin,48mm,f.sliding rail Pivot pin,48mm,f.sliding rail 110 052 09 74 oder 1100520974		€73.20 €73.20
Image number 29		C 05 177 C 05 177	Pivot pin 62mm Pivot pin 62mm 186 052 14 74 oder 1860521474		€59.11 €59.11
Image number 30		C 05 179 C 05 179	Slide rail with rubber insert Slide rail with rubber insert 615 050 14 16 oder 6150501416		€38.00 €38.00
Image number 30a		C 05 181 C 05 181	Holder for slide rail Holder for slide rail 621 050 00 41 oder 6210500041		€45.00 €45.00
Image number 31		C 05 187 C 05 187	Chain adjusters Chain adjusters 615 050 07 11 oder 6150500711		on request on request
Image number 35		C 05 200 C 05 200	Ball cage Ball cage 621 052 00 35 oder 6210520035		€3.60 €3.60
Image number 36		C 05 202 C 05 201	Compressing spring Pressure spring 621 993 02 01 oder 6219930201		on request €3.30
	C 05 201	Replacement: Pressure spring		€3.30
Image number 37		C 05 203 C 05 203	Pin Pin 000 007 008 217 oder 000007008217		on request on request
Image number 38b		C 05 252 C 00 022	Sealing ring inlet Set of valve seals (intake & exhaust) 621 053 00 60 oder 6210530060		on request €14.00
	C 00 022	Replacement: Set of valve seals (intake & exhaust)		€14.00
Image number 38c		C 05 252a C 05 253	Sealing ring outlet to engine 032715 Sealing ring for exhaust valve 621 053 01 60 oder 6210530160		on request €5.50
	C 05 253	Replacement: Sealing ring for exhaust valve		€5.50
Image number 39		C 05 198 C 05 198	Closing cap Closing cap 621 052 00 32 oder 6210520032		on request on request
Image number 40		C 05 205 C 05 205	Gasket f. chain thightener Gasket f. chain thightener 180 052 04 80 oder 1800520480		€9.66 €9.66
Image number 42		D 05 127 D 05 127	Lock screw Lock screw 186 052 02 71 oder 1860520271		€12.69 €12.69
Image number 44		C 05 208a D 05 174	Tension wheel bearing Idler sprocket bearing with pivot pin a. conical plug 121 050 09 10 oder 1210500910		on request €182.50
	D 05 174	Replacement: Idler sprocket bearing with pivot pin a. conical plug		€182.50
Image number 45		C 05 211 C 05 211	Idler sprocket with bushing Idler sprocket with bushing 180 050 01 09 oder 1800500109		€130.00 €130.00
Image number 46		C 05 213 C 05 213	Bushing Bushing 180 052 00 50 oder 1800520050		€76.38 €76.38
Image number 48		C 05 215 C 05 215	Washer f. idler sprocket Washer f. idler sprocket 180 990 02 40 oder 1809900240		€34.34 €34.34
Image number 49		C 05 216 C 05 216	Pressure spring Pressure spring 186 993 11 01 oder 1869931101		€13.20 €13.20
Image number 50		C 05 217 C 05 217	Pivot pin Pivot pin 121 052 02 74 oder 1210520274		€8.40 €8.40
Image number 52a		C 05 220 C 05 220	Idler wheel Idler wheel 126 050 01 09 oder 1260500109		on request on request
Image number		D 05 189 D 05 190	Bearing yoke Bushing 126 052 01 50 oder 1260520150		on request €14.29
	D 05 190	Replacement: Bushing		€14.29
Image number 52b		C 05 221 C 05 221	Bearing bolt for idler pulley Bearing bolt for idler pulley 621 052 04 05 oder 6210520405		€93.34 €93.34
Image number 53		C 05 225 C 05 225	Intake valve Intake valve 621 053 11 01 oder 6210531101		€29.00 €29.00
Image number 54		C 05 228 C 05 228	Exhaust valve Exhaust valve 621 053 09 05 oder 6210530905		€39.00 €39.00
Image number 55		C 05 232 C 05 232	Valve spring, outside Valve spring, outside 180 053 03 20 oder 1800530320		€36.75 €36.75
Image number 57		C 05 244 C 05 244	Valve spring retainer with sleeve, outlet Valve spring retainer with sleeve, outlet 621 050 07 23 oder 6210500723		€35.00 €35.00
Image number 58		C 05 248 C 05 248	Compression spring for valve sealing inlet Compression spring for valve sealing inlet 621 053 00 22 oder 6210530022		on request on request
Image number 58a		C 05 250 C 05 250	Sealing ring holder inlet Sealing ring holder inlet 621 053 01 58 oder 6210530158		€4.00 €4.00
Image number 58b, 58c		C 00 022 C 00 022	Set of valve seals (intake & exhaust) Set of valve seals (intake & exhaust) 621 053 00 60 oder 6210530060		€14.00 €14.00
Image number 59		C 05 260 C 05 047	Hexagon nut for valve adjustment Hex. nut 153 990 02 51 oder 1539900251		on request €3.50
	C 05 047	Replacement: Hex. nut		€3.50
Image number 60		C 05 261 C 05 261	Cap nut for valve adjustment Cap nut for valve adjustment 621 053 01 72 oder 6210530172		€4.90 €4.90
Image number 61		C 05 297a C 05 297a	Rocker arm intake/exhaust ( to be shortened at the side if needed ) Rocker arm intake/exhaust ( to be shortened at the side if needed ) 621 050 02 33 oder 6210500233		€15.00 €15.00
Image number 62		C 05 298 C 05 298	Bushing for rocker arm Bushing for rocker arm 621 055 00 50 oder 6210550050		€10.00 €10.00
Image number 69		C 05 299 C 05 299	Rocker arm axle Rocker arm axle 615 055 00 05 oder 6150550005		€56.55 €56.55
Image number 70		D 05 316 D 05 316	Rocker arm bracket Rocker arm bracket 621 055 05 10 oder 6210550510		on request on request
Image number 72		C 05 302 C 05 302	Clamping bracket for rocker arm axle Clamping bracket for rocker arm axle 621 055 00 93 oder 6210550093		€9.50 €9.50
Image number 74		C 05 303 C 05 285	Fitting sleeve for rocker arm bracket Adjusting sleeve 180 055 01 75 oder 1800550175		on request €5.21
	C 05 285	Replacement: Adjusting sleeve		€5.21

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

C 05 116

C 05 123 €50.00

D 05 034 €17.00

D 05 036

D 05 037

C 05 125 €17.00

C 05 126

C 05 131

C 01 272 €15.13

C 05 138

Suitable for engine:
108.920, 924
110.921, 922, 923, 924, 926, 931, 932
110.981, 982, 983, 984, 985, 986, 987
110.988, 989, 990, 991, 992, 994,
114.920, 923, 980, 981
115.938, 939, 951, 952, 954, 955, 958,
115.970, 971, 972, 973, 974
121.924
127.981, 982, 127.984
129.980, 981, 982
130.920, 921, 923, 924, 933

D 05 061 €45.00

C 05 152

C 05 156 €95.00

C 05 160 €156.00

C 05 162 €4.38

C 05 165 €11.00

C 05 168

C 05 172 €13.00

C 05 174a €73.20

C 05 177 €59.11

C 05 179 €38.00

C 05 181 €45.00

C 05 187

C 05 200 €3.60

C 05 203

C 05 198

C 05 205 €9.66

D 05 127 €12.69

C 05 211 €130.00

C 05 213 €76.38

C 05 215 €34.34

C 05 216 €13.20

C 05 217 €8.40

C 05 220

C 05 221 €93.34

C 05 225 €29.00

C 05 228 €39.00

C 05 232 €36.75

C 05 244 €35.00

C 05 248

C 05 250 €4.00

C 00 022 €14.00

C 05 261 €4.90

C 05 297a €15.00

C 05 298 €10.00

C 05 299 €56.55

D 05 316

C 05 302 €9.50
