Ponton 190b Mercedes-Benz w121

Chosen model:

Chassis: 121.010
Engine: 121.920
Choose different model

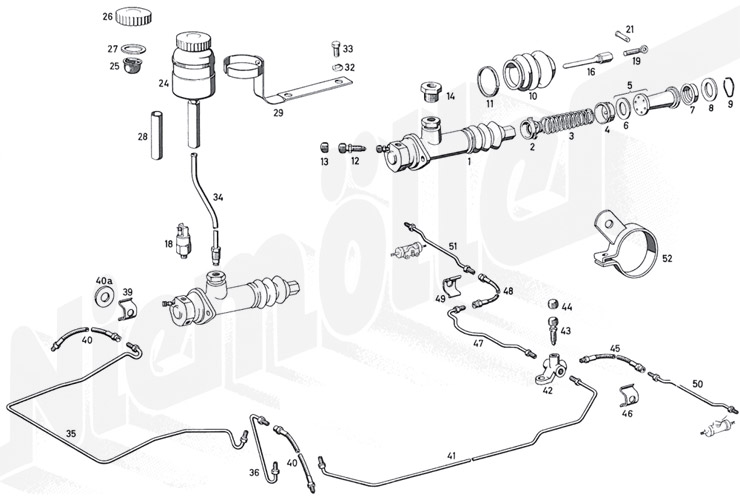

Current unit you are viewing: 42 Brakes 3

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		C 42 228	Master cylinder 25,4 mm for cars without brake booster 000 430 40 01 oder 0004304001		€225.00	Choose the suitable product variant
	Image number 1		C 42 230	Master brake cylinder 26,99mm without connection for brake light switch 000 430 72 01 oder 0004307201			€221.00
	Image number 1		C 42 230c	Master brake cylinder 26,99mm reproduction			€105.00
Image number 2		C 42 237 C 42 237	Bottom valve Bottom valve 000 430 03 81 oder 0004300381		on request on request
Image number 3		C 42 239 C 42 239	Pressure spring with spring plate Pressure spring with spring plate 000 431 31 93 oder 0004313193		on request on request
Image number 4		C 42 241 C 42 241	Cup seal 25,4 mm D Cup seal 25,4 mm D 000 431 15 86 oder 0004311586		€6.40 €6.40
Image number 5		C 42 244 C 42 244	Piston with filling disc 25,4mm D Piston with filling disc 25,4mm D 000 430 01 83 oder 0004300183		on request on request
Image number 6		C 42 247 C 42 247	Filling disc 25,4mm D Filling disc 25,4mm D 000 431 09 85 oder 0004310985		on request on request
Image number 7		C 42 250 C 42 233	Secondary sleeve 25,4mm D Rep. kit master brake cylinder 25,4mm 000 431 34 86 oder 0004313486		on request €43.20
	C 42 233	Replacement: Rep. kit master brake cylinder 25,4mm		€43.20
Image number 8		C 42 253 C 42 253	Guide washer Guide washer 000 431 17 76 oder 0004311776		€2.00 €2.00
Image number 9		C 42 255 C 42 255	Lock washer 27x1,2 DIN 472 Lock washer 27x1,2 DIN 472 000 472 027 000 oder 000472027000		€1.01 €1.01
Image number 10		C 42 257 C 42 257	Protection cap Protection cap 000 431 26 86 oder 0004312686		€24.66 €24.66
Image number 11		C 42 258 C 42 258	Tension ring Tension ring 000 431 05 91 oder 0004310591		€16.20 €16.20
Image number 12		C 42 259 C 42 259	Breather valve Breather valve 000 420 10 55 oder 0004201055		€8.09 €8.09
Image number 13		C 42 088 C 42 088	Rubber cap for bleeder nipple Rubber cap for bleeder nipple 000 421 08 87 oder 0004210887		€1.20 €1.20
Image number 14		C 42 263	Screw connection M 22x1.5 a. M 14x1.5 000 428 12 30 oder 0004281230		on request	Choose the suitable product variant
Image number 14	Image number 14		C 42 265	Sealing ring A 22x27 copper 007 603 022 102 oder 007603022102		Choose the suitable product variant	€0.85
Image number 16		C 42 419 C 42 267	Piston rod Piston rod 000 431 14 92 oder 0004311492		on request €43.01
	C 42 267	Replacement: Piston rod		€43.01
Image number 18		C 42 269 C 42 269	Brake light switch Brake light switch 000 545 22 09 oder 0005452209		€17.50 €17.50
Image number 19		C 42 271 C 42 271	Rod Rod 180 292 00 32 oder 1802920032		€34.21 €34.21
Image number 21		A 29 021 A 29 021	Collar bolt for pressure bar Collar bolt for pressure bar 186 991 02 05 oder 1869910205		€6.00 €6.00
Image number 24		C 42 276 C 42 276	Brake fluid reservoir, plastic Brake fluid reservoir, plastic 000 431 12 02 oder 0004311202		€211.97 €211.97
Image number 25		C 42 288 C 42 288	Mash Mash 000 431 00 34 oder 0004310034		€6.58 €6.58
Image number 26		F 42 125 F 42 125	Cap, including gasket Cap, including gasket 000 431 20 33 oder 0004312033		€10.63 €10.63
Image number 27		C 42 283 C 42 283	Sealing ring Sealing ring 000 997 29 40 oder 0009972940		€3.09 €3.09
Image number 28		C 42 294 C 42 294	Connecting hose / by the metre Connecting hose / by the metre 002 997 67 82 oder 0029976782		€38.70 €38.70
Image number 29		C 42 287a C 42 287a	Holder for brake fluid reservoir Holder for brake fluid reservoir 180 430 18 11 oder 1804301811		€104.72 €104.72
Image number 32		C 42 295 C 42 295	Spring washer Spring washer 000 990 01 48 oder 0009900148		€2.26 €2.26
Image number 33		G 22 073 G 22 073	Hex. head screw Hex. head screw M6X18DIN933-8G oder M6X18DIN933-8G		€0.32 €0.32
Image number 34		C 42 297 C 42 297	Brake line Brake line 180 420 12 28 oder 1804201228		€25.00 €25.00
Image number 35		C 42 303	Brake pipe 121 420 02 28 oder 1214200228		€21.50	Choose the suitable product variant
	Image number 35		D 68 565a	Chrome screw for cover plate side member 3,9x9,5 DIN 7981 B3,9X9,5DIN7981 oder B3,9X9,5DIN7981			€1.20
	Image number 35		C 42 302	Brake oil line to front wheel right 120 420 07 29 oder 1204200729			on request
Image number 36		C 42 307	Brake pipe 120 420 02 28 oder 1204200228		€7.00	Choose the suitable product variant
	Image number 36		C 42 312	Brake oil line right hand drive 120 420 01 32 oder 1204200132			on request
	Image number 36		C 42 320	Brake oil line, rear right hand side 120 420 04 32 oder 1204200432			on request
	Image number 36		C 42 000a	Brake line set Ponton 180-190 without brake booster			on request
Image number 39		C 42 316 C 42 316	Clamp Clamp 000 428 03 73 oder 0004280373		€1.70 €1.70
Image number 40		C 42 314 C 42 314	Brake hose front Brake hose front 000 428 29 35 oder 0004282935		€26.00 €26.00
Image number 40A		C 42 317 C 42 317	Washer Washer 120 990 18 40 oder 1209901840		€4.50 €4.50
Image number 41		C 42 318	Brake oil line from main cylinder to distributor rear left 330cm long 120 420 00 32 oder 1204200032		€21.50	Choose the suitable product variant
Image number 41	Image number 41		C 42 000a	Brake line set Ponton 180-190 without brake booster		Choose the suitable product variant	on request
Image number 42		C 42 327	Distributor brake fluid rear left 000 428 36 24 oder 0004283624		€414.70	Choose the suitable product variant
	Image number 42		G 49 060	Hex. head screw M8X20DIN933-8G oder M8X20DIN933-8G			€1.54
	Image number 42		A 41 043	Lock washer B8DIN127 oder B8DIN127			€0.40
	Image number 42		C 42 324	Distributor rear LHS 000 429 05 37 oder 0004290537			€14.50
Image number 43		B 42 251 B 42 251	Bleeder valve Bleeder valve 000 420 07 55 oder 0004200755		€7.50 €7.50
Image number 44		C 42 088 C 42 088	Rubber cap for bleeder nipple Rubber cap for bleeder nipple 000 421 08 87 oder 0004210887		€1.20 €1.20
Image number 45		C 42 331 C 42 331	Brake hose rear left Brake hose rear left 000 428 93 35 oder 0004289335		€16.28 €16.28
Image number 46		C 42 316 C 42 316	Clamp Clamp 000 428 03 73 oder 0004280373		€1.70 €1.70
Image number 47		C 42 335 C 42 335	Brake pipe Brake pipe 123 420 59 28 oder 1234205928		€12.00 €12.00
Image number 48		C 42 332 C 42 332	Brake hose rear right Brake hose rear right 000 428 31 35 oder 0004283135		€16.28 €16.28
Image number 49		C 42 316 C 42 316	Clamp Clamp 000 428 03 73 oder 0004280373		€1.70 €1.70
Image number 50		C 42 337	Brake pipe 123 420 57 28 oder 1234205728		€17.00	Choose the suitable product variant
Image number 50	Image number 50		C 42 000a	Brake line set Ponton 180-190 without brake booster		Choose the suitable product variant	on request
Image number 51		C 42 339	Brake pipe 123 420 58 28 oder 1234205828		€9.50	Choose the suitable product variant
Image number 51	Image number 51		C 42 000a	Brake line set Ponton 180-190 without brake booster		Choose the suitable product variant	on request
Image number 52		C 42 342	Pipe clamp with holder d=58 mm 180 420 01 86 oder 1804200186		€92.62	Choose the suitable product variant
	Image number 52		G 22 073	Hex. head screw M6X18DIN933-8G oder M6X18DIN933-8G			€0.32
	Image number 52		G 22 020	Lock washer 912 004 006 102 oder 912004006102			€0.30
	Image number 52		C 07 425	Hex. nut M6DIN934-5S oder M6DIN934-5S			€0.40

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Left-hand-drive;

For 180 Ponton W120.010
up to chassis number 120.010.4517418
for 180D Ponton
up to chassis number 120.010.4512617
please order also:
C 42 276a + C 42 296 + C 42 286a (235mm) or C 42 286b (260mm)
please measure the length of the holder on the vehicle
