MB 219 W105.010 with engine 180.921

Chosen model:

Chassis: 105.010
Engine: 180.921
Choose different model

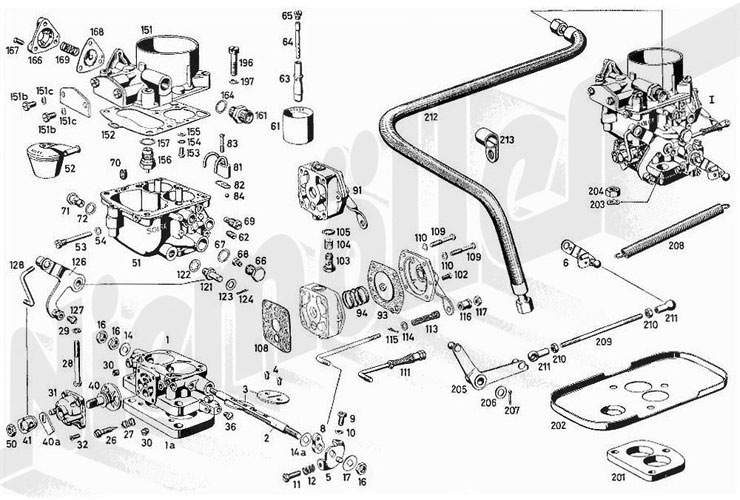

Current unit you are viewing: 7 Carburetor

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.

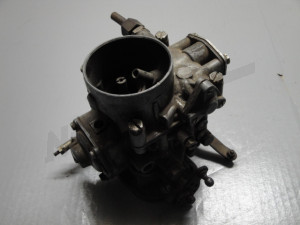

Image number 1		C 07 584	Repair carburator 32PAATI - old part first needed - 000 071 48 01 oder 0000714801		€965.00	Choose the suitable product variant

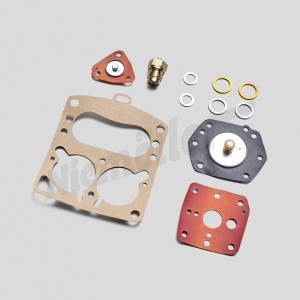

Image number 1	Image number 1		C 07 584b	Repair kit carburetor - 32 PAATI		Choose the suitable product variant	€132.30
Image number 1a		C 07 591 C 07 591	Cast iron flange with grub screw Cast iron flange with grub screw 000 071 00 81 oder 0000710081		on request on request
Image number		C 07 007 C 07 007	Grub screw f. test connection Grub screw f. test connection 000 071 04 70 oder 0000710470		on request on request
Image number		C 07 593 C 07 593	Gasket for cast iron flange Gasket for cast iron flange 000 071 31 80 oder 0000713180		€5.67 €5.67
Image number 2		C 07 594 C 07 594	Throttle shaft Throttle shaft 000 071 06 11 oder 0000710611		on request on request
Image number 3		C 07 595 C 07 595	Throttle 8 degrees - 1,5 mm bent Throttle 8 degrees - 1,5 mm bent 000 071 13 10 oder 0000711310		on request on request
Image number 4		C 07 206 C 07 388	Raised countersunk head screw for throttle valve 1. pcs. Lens head countersunk screw 000 071 36 71 oder 0000713671		on request €2.31
	C 07 388	Replacement: Lens head countersunk screw		€2.31

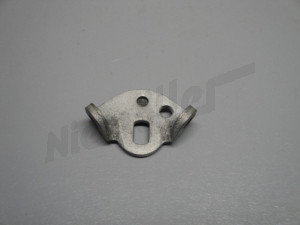

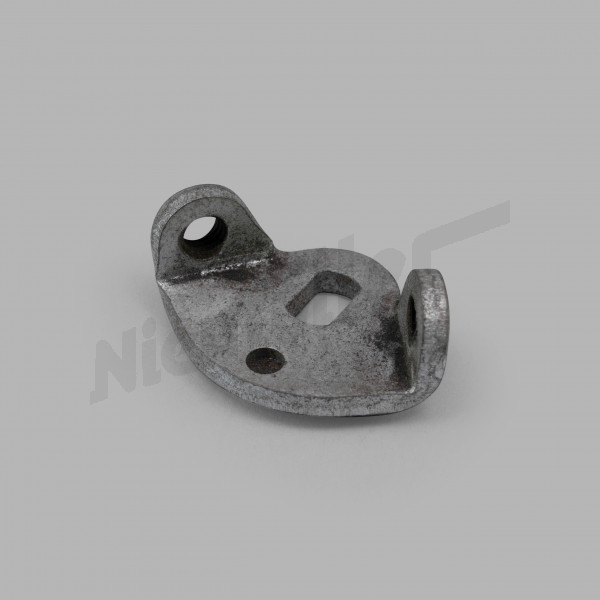

Image number 5		C 07 597	Abutment without pin M5 x 0,75 000 071 09 12 oder 0000710912		€35.00	Choose the suitable product variant
Image number 5	Image number 5		C 07 597	Abutment without pin M5 x 0,75 000 071 08 12 oder 0000710812		Choose the suitable product variant	€35.00
Image number 8		C 07 211 C 07 211	Transmission lever for mechanical pump Transmission lever for mechanical pump 000 071 04 22 oder 0000710422		€48.51 €48.51
Image number 9		C 07 600 C 07 600	Opening limit screw M5x 7.5 Opening limit screw M5x 7.5 000 071 47 71 oder 0000714771		€0.80 €0.80
Image number 11		C 07 241 C 07 241	Hex. head screw Hex. head screw 000 071 54 71 oder 0000715471		€2.40 €2.40
Image number 12		C 07 022 C 07 022	Pressure spring (f. idling adjust. screw Pressure spring (f. idling adjust. screw 000 071 12 16 oder 0000711216		€4.35 €4.35
Image number 14		C 07 025 C 07 025	Washer Washer 000 071 00 62 oder 0000710062		on request on request
Image number 14a		C 07 212 C 07 212	Spacer Spacer 000 071 01 76 oder 0000710176		€2.30 €2.30
Image number 16		C 07 023 C 07 023	Hex. nut Hex. nut 000 071 04 72 oder 0000710472		€0.90 €0.90
Image number 17		C 07 024 C 07 024	Lock plate Lock plate 000 994 02 10 oder 0009940210		on request on request
Image number 26		C 07 026 C 07 026	Idle mixture adjusting screw Idle mixture adjusting screw 000 071 42 71 oder 0000714271		€4.54 €4.54
Image number 27		C 07 022 C 07 022	Pressure spring (f. idling adjust. screw Pressure spring (f. idling adjust. screw 000 071 01 16 oder 0000710116		€4.35 €4.35
Image number 28		C 07 610 C 07 610	Cylinder head screw M 5 x 0,75x 43 Cylinder head screw M 5 x 0,75x 43 000 071 53 71 oder 0000715371		on request on request
Image number 30		C 07 089 C 07 089	Grub screw Grub screw 000 071 00 70 oder 0000710070		on request on request
Image number 31		C 07 614 C 07 614	Starter bodies Starter bodies 000 071 07 28 oder 0000710728		on request on request
Image number 32		C 07 234 C 07 234	Raised countersunk head screw M 4 x 0.75 x 12 Raised countersunk head screw M 4 x 0.75 x 12 000 071 35 71 oder 0000713571		on request on request
Image number 36		C 07 616 C 07 616	Clamping screw M 5 x 0,75 Clamping screw M 5 x 0,75 000 072 01 74 oder 0000720174		on request on request
Image number 40		C 07 617 C 07 617	Starter rotary slide cpl. Starter rotary slide cpl. 000 071 12 30 oder 0000711230		on request on request
Image number 40a		C 07 618 C 07 618	Stop piece for starter rotary valve Stop piece for starter rotary valve 000 071 07 22 oder 0000710722		on request on request
Image number 41		C 07 619 C 07 619	Starter lever cpl. M 4 x 0,75 Starter lever cpl. M 4 x 0,75 000 071 09 31 oder 0000710931		on request on request
Image number 50		C 07 023 C 07 023	Hex. nut Hex. nut 000 071 04 72 oder 0000710472		€0.90 €0.90
Image number 52		C 07 624 C 07 624	Float 7.2 g Ponton 219, 200a W105.010, 180.010 Float 7.2 g Ponton 219, 200a W105.010, 180.010 000 071 09 43 oder 0000710943		on request on request
Image number 53		C 07 625 C 07 625	Float mounting screw M 5x0,75 Float mounting screw M 5x0,75 000 071 49 71 oder 0000714971		on request on request
Image number 54		C 07 626 C 07 626	Sealing ring 5x8x1 Sealing ring 5x8x1 000 071 09 80 oder 0000710980		€1.40 €1.40

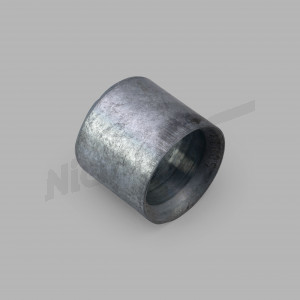

Image number 61		C 07 030 C 07 030	Air funnel size: 25 Air funnel size: 25 000 071 14 42 oder 0000711442		on request on request
Image number 62		C 07 032 C 07 032	Screw for venturi Screw for venturi 000 071 32 71 oder 0000713271		€2.46 €2.46
Image number 63		C 07 629 C 07 629	Mixing tube support reserve 4.8 Mixing tube support reserve 4.8 000 071 05 83 oder 0000710583		on request on request
Image number 64		C 07 259 C 07 259	Mixing tube No. 44 Mixing tube No. 44 000 071 01 49 oder 0000710149		on request on request
Image number 66		C 07 142 C 07 429	Main nozzle carrier Main nozzle holder 000 071 05 41 oder 0000710541		on request €26.00
	C 07 429	Replacement: Main nozzle holder		€26.00
Image number 67		C 07 039 C 07 039	Seal ring f. main nozzle holder Seal ring f. main nozzle holder 000 071 04 80 oder 0000710480		€1.70 €1.70
Image number		C 07 264 C 07 264	Main nozzle (Gg) 1st stage, size 125 Main nozzle (Gg) 1st stage, size 125 000 071 31 35 oder 0000713135		€18.00 €18.00
Image number		C 07 267 C 07 267	Main nozzle, size 115, primary barrel Main nozzle, size 115, primary barrel 000 071 32 35 oder 0000713235		€12.00 €12.00
Image number 69		C 07 048 C 07 048	Idling nozzle, size 55 Idling nozzle, size 55 000 071 19 36 oder 0000711936		€12.60 €12.60

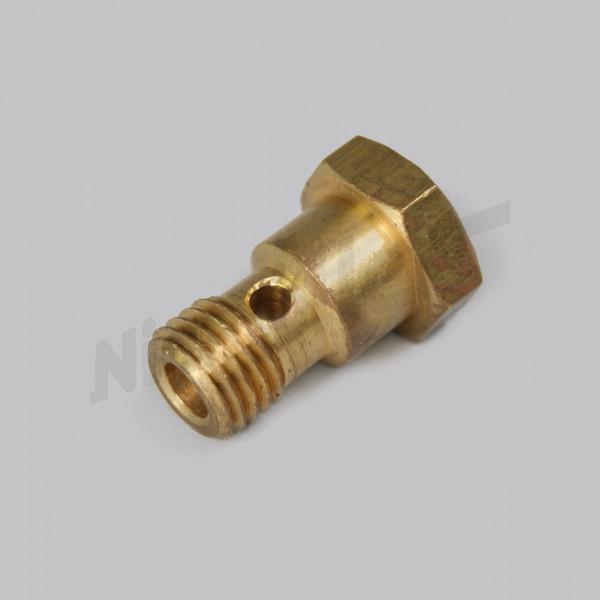

Image number 71		C 07 051 C 07 051	Starter fuel nozzle "GS" 150 Starter fuel nozzle "GS" 150 000 071 09 37 oder 0000710937		€15.50 €15.50
Image number 72		C 07 053 C 07 053	Sealing ring Sealing ring 000 071 05 60 oder 0000710560		€3.00 €3.00

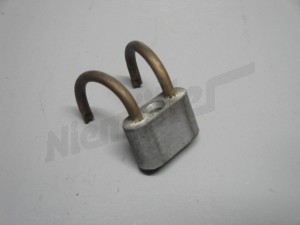

Image number 81		C 07 641 C 07 641	Injection pipe complete 0.5 mm Injection pipe complete 0.5 mm 000 070 05 73 oder 0000700573		€99.00 €99.00
Image number 82		C 07 642 C 07 642	Gasket for injection pipe Gasket for injection pipe 000 071 11 80 oder 0000711180		€3.95 €3.95

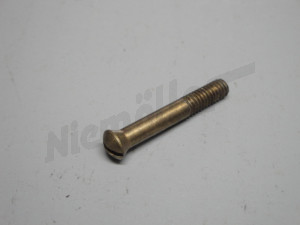

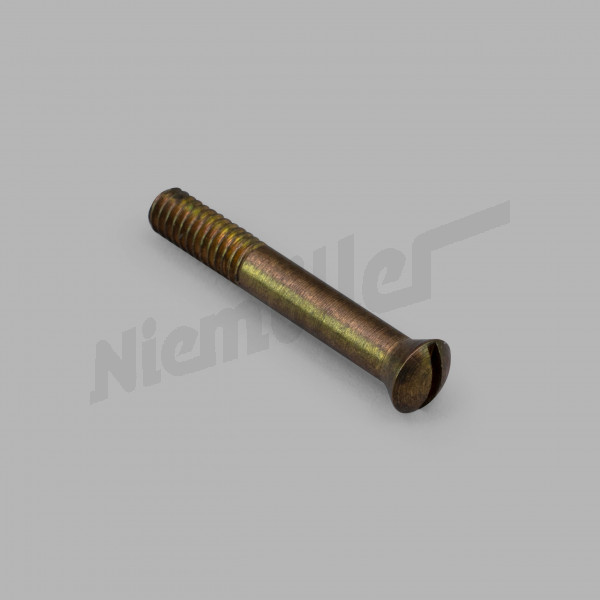

Image number 83		C 07 643 C 07 643	Raised countersunk head screw M 4x0,75x19 Raised countersunk head screw M 4x0,75x19 000 071 51 71 oder 0000715171		€1.10 €1.10
Image number 84		C 07 644 C 07 644	Ball under injection tube Ball under injection tube 000 071 02 20 oder 0000710220		€4.60 €4.60
Image number 91		C 07 645 C 07 645	Diaphragm pump copmplete No.92 Diaphragm pump copmplete No.92 000 070 09 52 oder 0000700952		€280.00 €280.00
Image number 93		C 07 288 C 07 288	Diaphragm Diaphragm 000 073 02 05 oder 0000730205		€21.50 €21.50
Image number 94		C 07 071 C 07 071	Diaphragm spring Diaphragm spring 000 071 05 16 oder 0000710516		€7.49 €7.49
Image number 102		C 07 295 C 07 295	Lens head screw f. cover Lens head screw f. cover 000 071 40 71 oder 0000714071		€6.71 €6.71
Image number 103		C 07 057 C 07 057	Ball valve Ball valve 000 070 01 46 oder 0000700146		€52.20 €52.20
Image number 104		C 07 058 C 07 058	Sieve f. spherical valve Sieve f. spherical valve 000 071 01 09 oder 0000710109		on request on request
Image number 105		C 07 053 C 07 053	Sealing ring Sealing ring 000 071 05 60 oder 0000710560		€3.00 €3.00
Image number 108		C 07 296 C 07 296	Gasket for diaphragm pump Gasket for diaphragm pump 000 071 08 80 oder 0000710880		€6.50 €6.50
Image number 109		C 07 658 C 07 658	Socket head screw M 4x0,75x28 Socket head screw M 4x0,75x28 000 071 50 71 oder 0000715071		€1.10 €1.10
Image number 111		C 07 660 C 07 660	Connecting rod complete M 4x0,75 Connecting rod complete M 4x0,75 000 070 03 76 oder 0000700376		on request on request
Image number 113		C 07 081 C 07 081	Pressure spring Pressure spring 000 071 06 15 oder 0000710615		€15.60 €15.60
Image number 116		C 07 304 C 07 304	Spring seat nut Spring seat nut 000 071 06 72 oder 0000710672		€6.20 €6.20
Image number 117		C 07 305 C 07 305	Hex. nut Hex. nut 000 071 07 72 oder 0000710772		€4.50 €4.50
Image number 121		C 07 479 C 07 479	Pivot pin f .follower lever Pivot pin f .follower lever 000 071 02 74 oder 0000710274		on request on request
Image number 127		C 07 616 C 07 616	Clamping screw M 5 x 0,75 Clamping screw M 5 x 0,75 000 072 01 74 oder 0000720174		on request on request
Image number 128		C 07 674 C 07 674	Connecting rod M 4 x 0,75 Connecting rod M 4 x 0,75 000 071 06 24 oder 0000710624		€13.70 €13.70
Image number 151		C 07 675 C 07 675	Carburetor cover with cover plate Carburetor cover with cover plate 000 071 11 04 oder 0000711104		on request on request
Image number 151b		C 07 312 C 07 312	Hex. head screw Hex. head screw 000 071 44 71 oder 0000714471		on request on request
Image number 152		C 07 679 C 07 679	Gasket, crburator cover Gasket, crburator cover 000 071 23 80 oder 0000712380		€8.51 €8.51
Image number 153		C 07 680 C 07 680	Button head screw M 4x0,75x8 Button head screw M 4x0,75x8 000 071 52 71 oder 0000715271		on request on request
Image number 154		C 07 681 C 07 681	Toothed washer for half round screw Toothed washer for half round screw 000 990 01 46 oder 0009900146		on request on request
Image number 156		C 07 103 C 07 103	Float needle valve 2mm Float needle valve 2mm 000 071 01 44 oder 0000710144		€20.48 €20.48
Image number 166		C 07 084 C 07 084	Valve cover for starter air valve Valve cover for starter air valve 000 073 03 02 oder 0000730302		€16.00 €16.00
Image number 167		C 07 234 C 07 234	Raised countersunk head screw M 4 x 0.75 x 12 Raised countersunk head screw M 4 x 0.75 x 12 000 071 35 71 oder 0000713571		on request on request
Image number 168		C 07 086 C 07 086	Diaphragm Diaphragm 000 070 07 52 oder 0000700752		€39.75 €39.75
Image number 169		C 07 339 C 07 339	Valve spring for starter air valve Valve spring for starter air valve 000 071 14 16 oder 0000711416		on request on request
Image number 201		C 07 693 C 07 693	Flange Flange 180 071 04 81 oder 1800710481		€39.90 €39.90

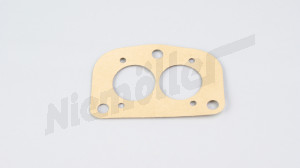

Image number		C 07 693a C 07 593	Seal insert for C 07 693 Gasket for cast iron flange 180 071 00 80 oder 1800710080		on request €5.67
	C 07 593	Replacement: Gasket for cast iron flange		€5.67
Image number 202		C 07 694 C 07 694	Shielding plate for carburettor on intake manifold Shielding plate for carburettor on intake manifold 180 071 01 55 oder 1800710155		on request on request
Image number 204		C 07 349 C 07 349	Nut Nut 000 990 08 51 oder 0009900851		€1.60 €1.60
Image number 208		A 30 052 A 30 052	Gas return spring for lever carburetor actuation Gas return spring for lever carburetor actuation 181 993 03 10 oder 1819930310		€46.89 €46.89
Image number 211		C 07 356 C 07 356	Ball socket Ball socket 000 991 02 20 oder 0009910220		€3.57 €3.57

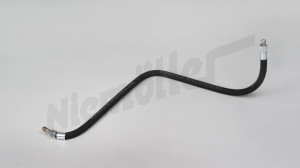

Image number 212		C 07 703 C 07 703	Fuel line comparison 220a, 219 Fuel line comparison 220a, 219 180 070 03 32 oder 1800700332		on request on request
Image number 213		A 09 047 A 09 047	Pipe clamp f. fuel line with 12mm hole Pipe clamp f. fuel line with 12mm hole 186 995 01 01 oder 1869950101		€36.50 €36.50

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

For this spare part we offer a repair/overhaul of your old part. To what extent your old part is repairable, we can only judge after the view. Please send us your old part, stating the article number, your name with complete address, telephone number and an e-mail address. The price always refers to a standard overhaul without additional work. We will be pleased to provide you with a cost estimate. Should you decide against a repair after the cost estimate or should your old part not be repairable, a service fee of 40.00 Euro (incl. VAT) will be charged for the cost estimate. address: Niemöller, Markircher Str. 6, 68229 Mannheim, Germany
