MB 500SL/C W107.026 with engine 117.960

Chosen model:

Chassis: 107.026
Engine: 117.960
Choose different model

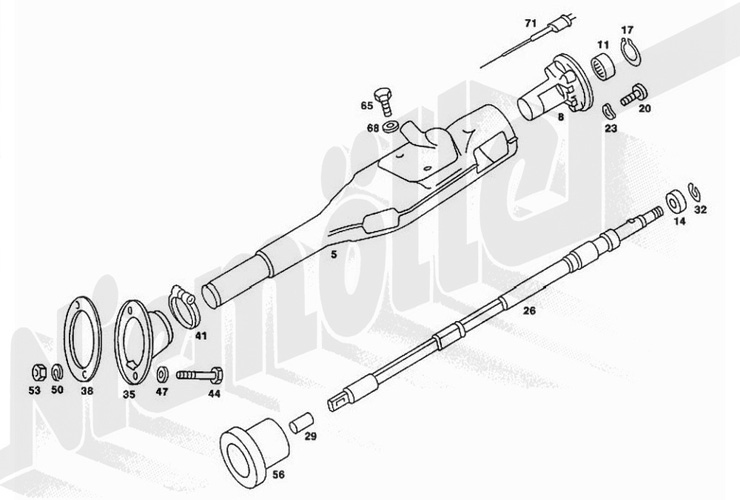

Current unit you are viewing: 46 Steering

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 5		F 46 305	Outer steering column 107 460 24 16 oder 1074602416		on request	Choose the suitable product variant
Image number 5	Image number 5		F 46 307	Jacket tube right hand drive 107 460 25 16 oder 1074602516		Choose the suitable product variant	€128.44
Image number 8		D 46 125 D 46 125	Pedestal body Pedestal body 115 462 18 35 oder 1154621835		on request on request
Image number 11		D 46 127 D 46 127	Needle roller bearings Needle roller bearings 018 981 61 10 oder 0189816110		€11.46 €11.46
Image number 14		F 46 183 F 46 183	Ball bearings Ball bearings 002 981 86 25 oder 0029818625		on request on request
Image number 17		C 46 100 C 46 100	Circlip 42 x 175 DIN 472 Circlip 42 x 175 DIN 472 000 472 042 001 oder 000472042001		€3.09 €3.09
Image number 20		C 01 258a C 01 258a	Hexagon socket screw 6x18 Hexagon socket screw 6x18 000 912 006 064 oder 000912006064		€4.37 €4.37
Image number 23		G 30 102 G 30 102	Spring washer Spring washer 000 137 006 204 oder 000137006204		€0.72 €0.72
Image number 26		F 46 310	Steering shaft 107 460 18 09 oder 1074601809		€250.12	Choose the suitable product variant
Image number 26	Image number 26		F 46 312	Steering shaft 107 460 26 09 oder 1074602609		Choose the suitable product variant	€691.79
Image number 29		D 46 132 D 46 132	Sealing ring Sealing ring 116 462 00 60 oder 1164620060		on request on request
Image number 32		G 46 052 G 46 052	Circlip Circlip 000 471 025 002 oder 000471025002		€2.39 €2.39
Image number 35		F 46 314	Shroud 107 462 04 95 oder 1074620495		€35.00	Choose the suitable product variant
Image number 35	Image number 35		F 46 316	Cover R.L. 107 462 05 95 oder 1074620595		Choose the suitable product variant	on request
Image number 38		F 46 344 F 46 344	Gasket Gasket 107 462 02 80 oder 1074620280		on request on request
Image number 41		F 46 317 F 46 317	Clamp Clamp 107 995 01 35 oder 1079950135		€15.00 €15.00
Image number 47		C 07 321 C 07 321	Washer Washer 000 125 006 449 oder 000125006449		€0.72 €0.72
Image number 50		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 oder 912004006102		€0.30 €0.30
Image number 53		G 42 104 G 42 104	Nut, hydraulic unit on holder Nut, hydraulic unit on holder 304 032 006 008 oder 304032006008		€14.34 €14.34
Image number 56		D 46 124 D 46 124	Boot Boot 116 462 00 96 oder 1164620096		€14.28 €14.28
Image number 65		C 49 060 C 49 060	Hex. head screw M8x40 Hex. head screw M8x40 000 931 008 266 oder 000931008266		€0.80 €0.80
Image number 71		D 46 217 D 46 217	Twin contact carbon Twin contact carbon 107 464 01 43 oder 1074640143		on request on request

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Left-hand-drive;

As of ident. no.
022 10/50,12/52 004498

F 46 305

Right-hand-drive;

As of ident. no.
022 10/50,12/52 004498

F 46 307 €128.44

D 46 125

D 46 127 €11.46

As of ident. no.
022 10/50,12/52 004498

F 46 183

C 46 100 €3.09

C 01 258a €4.37

G 30 102 €0.72

As of ident. no.
022 10/50,12/52 004498

F 46 310 €250.12

NEW EQUIPMENT 9/79 FROM CHASSIS,SEE FOOTN.105

F 46 312 €691.79

D 46 132

As of ident. no.
022 10/50,12/52 004498

G 46 052 €2.39

Left-hand-drive;

As of ident. no.
022 001595
023 010766
042 001289
043 012186
044 030207

F 46 314 €35.00

Right-hand-drive;

As of ident. no.
022 001595
023 010766
042 001289
043 012186
044 030207

F 46 316

F 46 344

As of ident. no.
022 001595
023 010766
042 001289
043 012186
044 030207

F 46 317 €15.00

C 07 321 €0.72

G 22 020 €0.30

G 42 104 €14.34

D 46 124 €14.28

C 49 060 €0.80

D 46 217
