MB 280SL W107.042 with engine 110.992

Chosen model:

Chassis: 107.042
Engine: 110.992
Choose different model

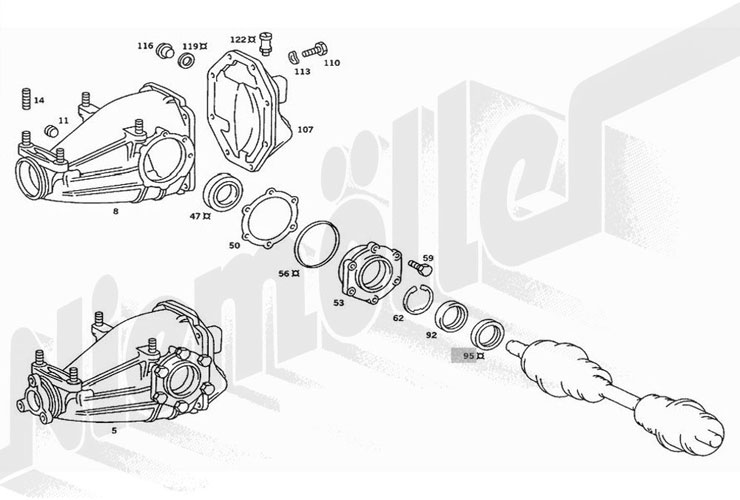

Current unit you are viewing: 35 Rear Axle

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 5		F 35 005	Axle housing 1:3.69 123 350 40 20 oder 1233504020		on request	Choose the suitable product variant
Image number 5	Image number 5		F 35 007	Axle housing 1:3.58 123 350 39 20 oder 1233503920		Choose the suitable product variant	on request
Image number 8		F 35 015	Axle box 115 350 14 20 oder 1153501420		on request	Choose the suitable product variant
Image number 8	Image number 8		F 35 039	Axle box 123 350 22 20 oder 1233502220		Choose the suitable product variant	on request
Image number 11		C 14 055 C 14 055	Screw plug 24x1,5 Screw plug 24x1,5 186 997 00 32 oder 1869970032		€2.73 €2.73
Image number 14		F 35 043 F 35 043	Screw Screw 115 351 02 70 oder 1153510270		€8.14 €8.14
Image number 17		F 35 044 F 35 044	Differential gear Differential gear 115 350 10 23 oder 1153501023		on request on request
Image number 50		F 35 104	Spacer 1,00mm n.B. 115 353 00 54 oder 1153530054		€111.15	Choose the suitable product variant
	Image number 50		F 35 105	Spacer 1,10mm n.B. 115 353 98 52 oder 1153539852			on request
	Image number 50		F 35 106	Spacer 1,20mm 115 353 96 52 oder 1153539652			€2.94
	Image number 50		F 35 107	Spacer 1,30mm n.B. 115 353 09 54 oder 1153530954			€2.85
	Image number 50		F 35 108	Spacer 1,40mm n.B. 115 353 11 54 oder 1153531154			on request
	Image number 50		F 35 109	Spacer 1,50mm n.B. 115 353 13 54 oder 1153531354			on request
	Image number 50		F 35 110	Spacer 1,60mm n.B. 115 353 35 54 oder 1153533554			€7.95
	Image number 50		F 35 111	Spacer 1,70mm n.B. 115 353 37 54 oder 1153533754			on request
	Image number 50		F 35 112	Spacer 1,80mm n.B. 115 353 39 54 oder 1153533954			on request
	Image number 50		F 35 113	Spacer 1,90mm n.B. 115 353 41 54 oder 1153534154			on request
Image number 47		F 35 098	Tapered roller bearings, crown wheel bearing 000 981 82 02 oder 0009818202		€75.31	Choose the suitable product variant
Image number 47	Image number 47		F 35 099	Bevel gear bearing, ring gear bearing 001 980 21 02 oder 0019802102		Choose the suitable product variant	on request
Image number 53		F 35 125 F 35 125	Top Top 123 353 00 06 oder 1233530006		on request on request
Image number 56		F 35 127 F 35 127	Sealing ring Sealing ring 003 997 24 48 oder 0039972448		€0.90 €0.90
Image number 59		G 49 060 G 49 060	Hex. head screw Hex. head screw 304 017 008 021 oder 304017008021		€1.54 €1.54
Image number 62		F 35 141	Fuse n.B. 4,4mmm 123 994 13 41 oder 1239941341		€7.85	Choose the suitable product variant
	Image number 62		F 35 140	Fuse n.B. 4,3mm 123 994 12 41 oder 1239941241			€7.85
	Image number 62		F 35 139	Fuse n.B. 4,2mm 123 994 11 41 oder 1239941141			€8.19
	Image number 62		F 35 138	Fuse n.B. 4,15mm 123 994 10 41 oder 1239941041			€7.85
	Image number 62		F 35 137	Fuse n.B. 4,1mm 123 994 09 41 oder 1239940941			€7.57
	Image number 62		F 35 136	Fuse n.B. 4,05mm 123 994 08 41 oder 1239940841			€7.57
	Image number 62		F 35 135	Fuse n.B. 4,0mm 123 994 07 41 oder 1239940741			€7.85
	Image number 62		F 35 134	Fuse n.B. 3,95mm 123 994 06 41 oder 1239940641			€8.60
	Image number 62		F 35 133	Fuse n.B. 3,9mm 123 994 05 41 oder 1239940541			€7.57
	Image number 62		F 35 132	Fuse n.B. 3,85mm 123 994 04 41 oder 1239940441			€7.06
	Image number 62		F 35 131	Fuse n.B. 3,8mm 123 994 03 41 oder 1239940341			€7.85
	Image number 62		F 35 130	Fuse n. B. 3,7mm 123 994 02 41 oder 1239940241			€8.60
	Image number 62		F 35 129	Fuse n.B. 3,6mm 123 994 01 41 oder 1239940141			€8.89
Image number 92		F 35 160	Sealing ring, shaft 45x65x10 020 997 25 47 oder 0209972547		€7.65	Choose the suitable product variant
Image number 92	Image number 92		G 35 014	Sealing ring 45x85, 3x9,5 003 997 83 47 oder 0039978347		Choose the suitable product variant	€6.72
Image number 107		F 35 164 F 35 164	Top Top 115 351 32 08 oder 1153513208		on request on request

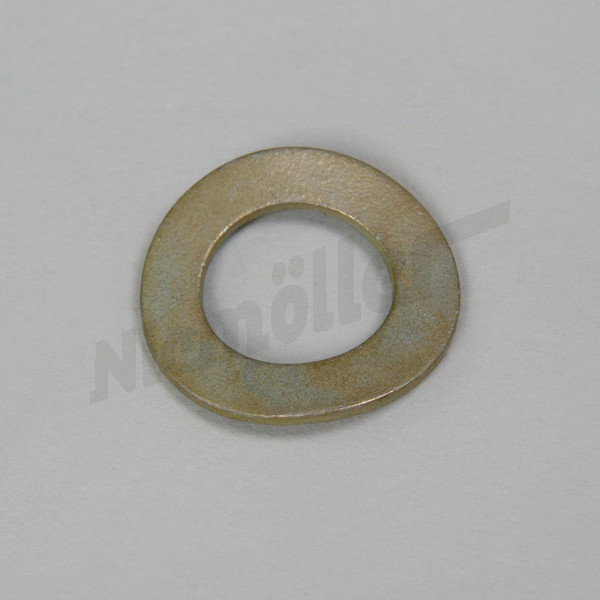

Image number 113		G 35 012 G 35 012	Spring washer B 10x18 Spring washer B 10x18 000 137 010 205 oder 000137010205		€0.85 €0.85
Image number 116		D 26 111 D 26 111	Plug Plug 210 997 01 32 oder 2109970132		€2.50 €2.50
Image number 119		G 35 013 G 35 013	Sealing ring A24x29 DIN 7603 Al Sealing ring A24x29 DIN 7603 Al 007 603 024 105 oder 007603024105		€1.56 €1.56
Image number 122		D 35 240 D 35 240	Vent (for left support tube) Vent (for left support tube) 115 350 02 90 oder 1153500290		€77.16 €77.16

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 005

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 007

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 015

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 039

C 14 055 €2.73

F 35 043 €8.14

As of rear axle
022,042 797781 EXCEPT FOR 812525-818131
Up to ident. no.:
022 008365 EXCEPT FOR

F 35 044

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 104 €111.15

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 105

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 106 €2.94

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 107 €2.85

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 108

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 109

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 110 €7.95

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 111

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 112

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 113

Up to chassis:
042 007869 except for 007854, 007856, 007858, 007861-007866, 007868

F 35 098 €75.31

From chassis no:
042 007870

F 35 099

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 125

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 127 €0.90

Up to ident. no.:
022 008365 EXCEPT FOR

G 49 060 €1.54

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 141 €7.85

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 140 €7.85

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 139 €8.19

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 138 €7.85

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 137 €7.57

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 136 €7.57

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 135 €7.85

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 134 €8.60

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 133 €7.57

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 132 €7.06

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 131 €7.85

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 130 €8.60

As of ident. no.
022 008366 ALSO INSTALLED ON

F 35 129 €8.89

Up to ident. no.:
022 008365 EXCEPT FOR

F 35 160 €7.65

As of ident. no.
022 008366 ALSO INSTALLED ON

G 35 014 €6.72

F 35 164

G 35 012 €0.85

D 26 111 €2.50

G 35 013 €1.56

D 35 240 €77.16
