26 Steering Column Shift Used with Mechanical Transmission 2 for 280S Mercedes-Benz w108 Mercedes-Benz
280S W108.016

Chosen model:
Step 5:
Select spare part
.product-group-1 .product-group-3 .product-group-5 .product-group-6 .product-group-7 .product-group-9 .product-group-10 .product-group-21 .product-group-22 .product-group-23 .product-group-24 .product-group-25 .product-group-26 .product-group-30 .product-group-31 .product-group-32 .product-group-33 .product-group-34 .product-group-35 .product-group-36 .product-group-37 .product-group-40 .product-group-41 .product-group-42 .product-group-43 .product-group-44 .product-group-45 .product-group-46 .product-group-47 .product-group-49 .product-group-50 .product-group-51 .product-group-52 .product-group-54 .product-group-55 .product-group-60 .product-group-62 .product-group-63 .product-group-64 .product-group-65 .product-group-67 .product-group-71 .product-group-72 .product-group-73 .product-group-75 .product-group-77 .product-group-78 Panel
  • in stock
  • low stock level
  • currently not in stock, but available for order
  • no longer available
Pic. Niemöller
part-no.
Designation   Price/unit excl. tax.

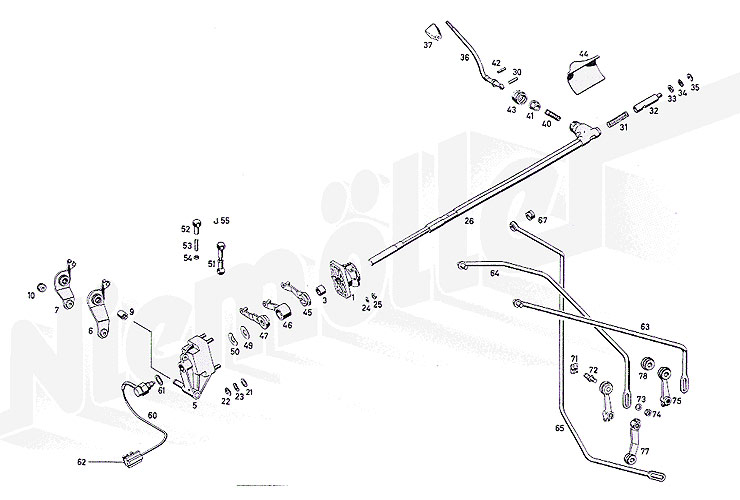

Image number 1
D 26 422 D 26 422 Rear bearing block Rear bearing block
108 260 08 94 or 1082600894
on request on request
Image number 3
D 26 424 D 26 424 Needle roller bearings Needle roller bearings
001 981 84 10 or 0019818410
€7.62 €7.62
Image number 0 B 03 018 B 03 018 Spring washer Spring washer
000 137 008 202 or 000137008202
€0.30 €0.30
Image number 0 G 75 029 C 32 027 Hex. nut M 8 Hex nut
000 934 008 008 or 000934008008
on request €0.54
C 32 027 Replacement: Hex. nut M 8 €0.54
Image number 0 G 30 102 G 30 102 Spring washer Spring washer
000 137 006 203 or 000137006203
€0.72 €0.72
Image number 5
D 26 425 D 26 425 Clevis foot, front Clevis foot, front
108 260 07 94 or 1082600794
on request on request
Image number 6
D 26 431 Intermediate lever (1st and 2nd gear)
108 260 11 37 or 1082601137
on request on request
Image number 6
D 26 435 Intermediate lever R.L. (1.and 2.speed)
108 260 14 37 or 1082601437
on request on request
Image number 7
D 26 433 Intermediate lever (3rd and 4th gear)
108 260 12 37 or 1082601237
on request on request
Image number 7
D 26 436 Intermediate lever R.L. (3rd and 4th gear)
108 260 16 37 or 1082601637
on request on request
Image number 9
D 26 437 D 26 437 Needle roller bearings Needle roller bearings
002 981 02 10 or 0029810210
€234.96 €234.96
Image number 10
D 26 438 D 26 438 Bushing Bushing
115 992 02 10 or 1159920210
€8.14 €8.14
Image number 21
C 26 252 C 26 252 Washer on bearing body Washer on bearing body
312 990 03 40 or 3129900340
€7.54 €7.54
Image number 22
D 26 234 D 26 234 Locking washer Locking washer
006 799 010 001 or 006799010001
€1.48 €1.48
Image number 23
G 88 109 G 88 109 Spring washer Spring washer
900 055 012 001 or 900055012001
€0.82 €0.82
Image number 24
B 03 018 B 03 018 Spring washer Spring washer
000 137 008 202 or 000137008202
€0.30 €0.30
Image number 25
G 75 029 C 32 027 Hex. nut M 8 Hex nut
000 934 008 008 or 000934008008
on request €0.54
C 32 027 Replacement: Hex. nut M 8 €0.54
Image number 26
D 26 439 Switching tube
108 260 20 82 or 1082602082
on request on request
Image number 26
D 26 441 Switch tube R.L.
108 260 21 82 or 1082602182
on request on request
Image number 30
D 26 442 D 26 442 Bolt Bolt
115 991 03 01 or 1159910301
€3.68 €3.68
Image number 31
D 26 443 D 26 443 Compressing spring Compressing spring
120 993 21 01 or 1209932101
€5.38 €5.38
Image number 32
D 26 444 D 26 444 Pilot pin Pilot pin
115 268 04 39 or 1152680439
on request on request
Image number 33
C 26 204 C 26 204 Guide ring Guide ring
111 997 05 40 or 1119970540
€5.50 €5.50
Image number 34
D 26 316 D 26 316 Washer Washer
186 990 69 40 or 1869906940
€4.63 €4.63
Image number 35
C 26 206 C 26 206 Locking ring Locking ring
186 268 02 73 or 1862680273
€13.65 €13.65
Image number 36
D 26 445 D 26 445 Gearshift Gearshift
115 260 06 39 or 1152600639
€85.00 €85.00
Image number 37
D 26 447 Gearshift knob
115 268 09 42 or 1152680942
on request on request
Image number 37
D 26 448 Gearshift knob
115 268 10 42 or 1152681042
€59.62 €59.62
Image number 40
D 26 449 D 26 449 Spring Spring
115 993 99 02 or 1159939902
€9.40 €9.40
Image number 41
D 26 450 D 26 450 Bushing Bushing
115 268 05 50 or 1152680550
on request on request
Image number 42
D 26 451 D 26 451 Clamping sleeve Clamping sleeve
007 346 004 010 or 007346004010
on request on request
Image number 43
D 26 452 G 26 007 Cap Closing cap
115 268 02 57 or 1152680257
on request €4.81
G 26 007 Replacement: Cap €4.81
Image number 44
D 26 454 Rubber sleeve
116 268 03 97 or 1162680397
€55.00 €55.00
Image number 44
D 26 455 Boot
115 268 03 97 or 1152680397
on request on request
Image number 45
D 26 456 D 26 456 Intermediate lever (reverse gear) Intermediate lever (reverse gear)
115 260 78 37 or 1152607837
€176.64 €176.64
Image number 46
D 26 459 D 26 459 Intermediate lever (1st and 2nd gear) Intermediate lever (1st and 2nd gear)
115 260 80 37 or 1152608037
on request on request
Image number 47
D 26 461 Lever (3rd and 4th gear)
115 260 94 37 or 1152609437
on request on request
Image number 47
D 26 463 Lever R.L. (3rd and 4th gear)
108 260 20 37 or 1082602037
on request on request
Image number 49
D 26 464 D 26 464 Washer Washer
115 268 02 76 or 1152680276
€9.55 €9.55
Image number 50
D 26 465 D 26 465 Spring plate Spring plate
900 055 016 000 or 900055016000
on request on request
Image number 51
D 26 466 Pull rod
108 260 04 89 or 1082600489
on request on request
Image number 51
D 26 468 Tie rod (for 1st and 2nd gear) R.L.
108 260 06 89 or 1082600689
on request on request
Image number 51

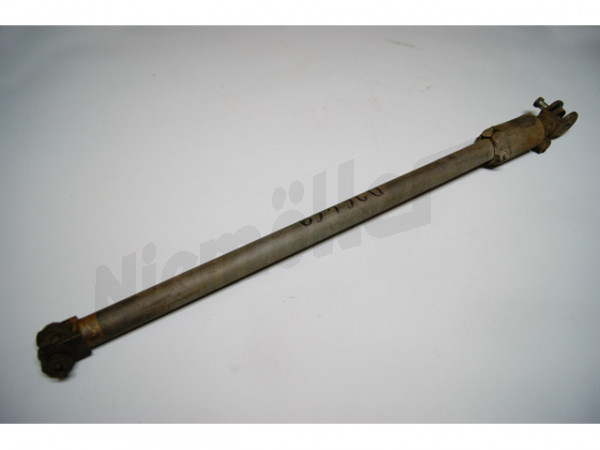

D 26 469 Pull rod (for 1st and 2nd gear) R. L.
108 260 07 89 or 1082600789
on request on request
Image number 52
D 26 361 D 26 361 Ball socket Ball socket
071 805 010 200 or 071805010200
on request on request
Image number 54
G 97 106 G 97 106 Nut Holder on fairing Wheel mounting Nut Holder on fairing Wheel mounting
000 439 006 203 or 000439006203
on request on request
Image number 55
D 26 362 G 42 204 Safety catch Safety catches
071 805 010 400 or 071805010400
on request €1.65
G 42 204 Replacement: Safety catch €1.65
Image number 60
D 26 470 Reversing light switch with break contact
000 545 31 06 or 0005453106
on request on request
Image number 60
D 26 474 Reversing light switch with normally closed contact
000 545 25 06 or 0005452506
€165.91 €165.91
Image number 62
D 26 475 D 26 475 Male Male
003 545 70 28 or 0035457028
on request on request
Image number 63
D 26 476 Selector rod
108 260 20 33 or 1082602033
on request on request
Image number 63
D 26 478 Shift rod R.L. (for 1.and 2.speed)
108 260 21 33 or 1082602133
on request on request
Image number 64
D 26 479 D 26 479 Shift rod (for 3rd and 4th gear) Shift rod (for 3rd and 4th gear)
108 260 22 33 or 1082602233
on request on request
Image number 65
D 26 482 Shift rod (reverse gear)
108 260 13 33 or 1082601333
on request on request
Image number 65
D 26 484 Shift rod R.L. (reverse gear)
108 260 14 33 or 1082601433
on request on request
Image number 67
D 26 485 D 26 485 Plastic bushing Plastic bushing
108 268 00 66 or 1082680066
€6.83 €6.83
Image number 71
D 26 486 Locking ring
000 994 41 60 or 0009944160
€1.77 €1.77
Image number 71
D 26 486 Locking ring
000 994 41 60 or 0009944160
€1.77 €1.77
Image number 72
D 26 487 D 26 487 Bearing pin (switch rod on lever) Bearing pin (switch rod on lever)
108 268 00 14 or 1082680014
on request on request
Image number 73
G 68 263 G 68 263 Shim 8,3 DIN 125 Shim 8,3 DIN 125
000 125 008 417 or 000125008417
€0.80 €0.80
Image number 0 D 26 488 D 26 488 Lock nut (switching/lever) Lock nut (switching/lever)
001 990 33 51 or 0019903351
on request on request
Image number 75
D 26 489 D 26 489 Shift lever on gearbox (1.-4.speed) Shift lever on gearbox (1.-4.speed)
115 268 25 30 or 1152682530
on request on request
Image number 77
D 26 491 D 26 491 Shift lever on the gearbox (reverse gear) Shift lever on the gearbox (reverse gear)
115 260 77 37 or 1152607737
on request on request
Image number 78
D 26 493 F 26 208 Bushing Insulating bush
115 268 06 50 or 1152680650
on request €1.30
F 26 208 Replacement: Bushing €1.30
Image number 0 C 07 108 G 22 020 Lock washer Spring ring for carburetor cover
000 127 006 203 or 000127006203
on request €0.30
G 22 020 Replacement: Lock washer €0.30
Please note that the product names may be an automatic translation for which no guarantee can be given.
