Rep. kit, pivot pin upper for MB 300SEL6,3 W109.018 engine 100.981
Chosen model:
- Chassis: 109.018
- Engine: 100.981
- Choose different model
| Niemöller part-no. | D 33 111 | |
| Designation: | Rep. kit, pivot pin upper | |
| Required pieces: | 1 | |
| availability: |
currently not in stock, but available for order
|
|
| Original part number: |
|
|
| Mercedes Car: | MB 300SEL6,3 W109.018 engine 100.981 | |
| Used in: | Front Axle | |
| Chassis: | W 109.018 | |
| Engine: | 100.981 | |

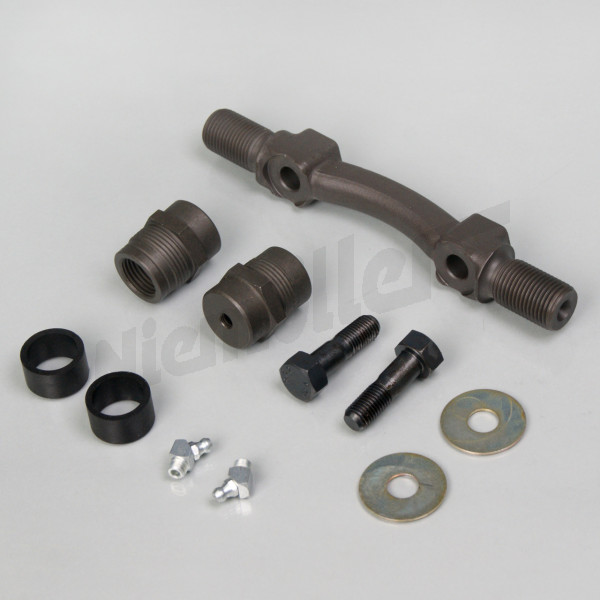

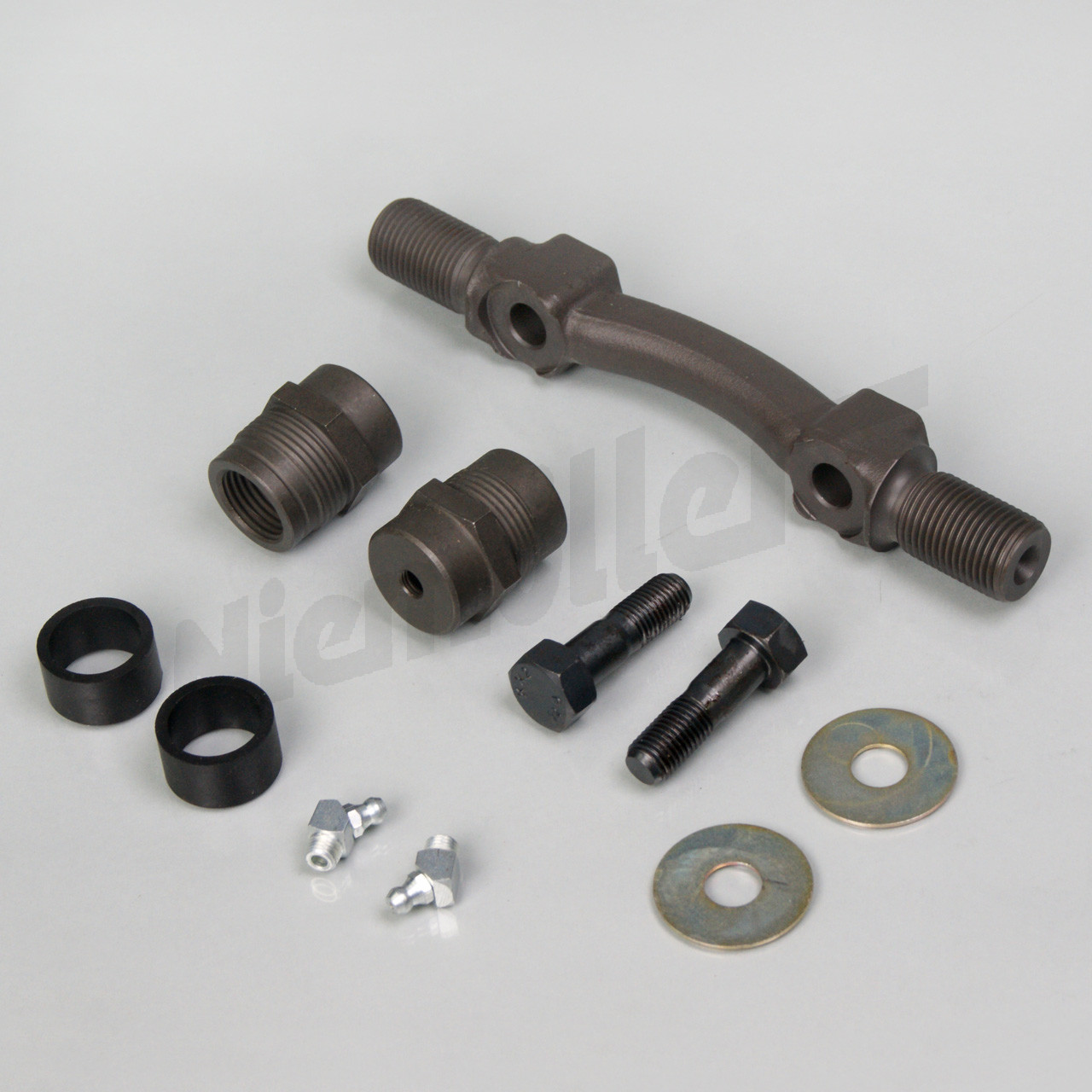

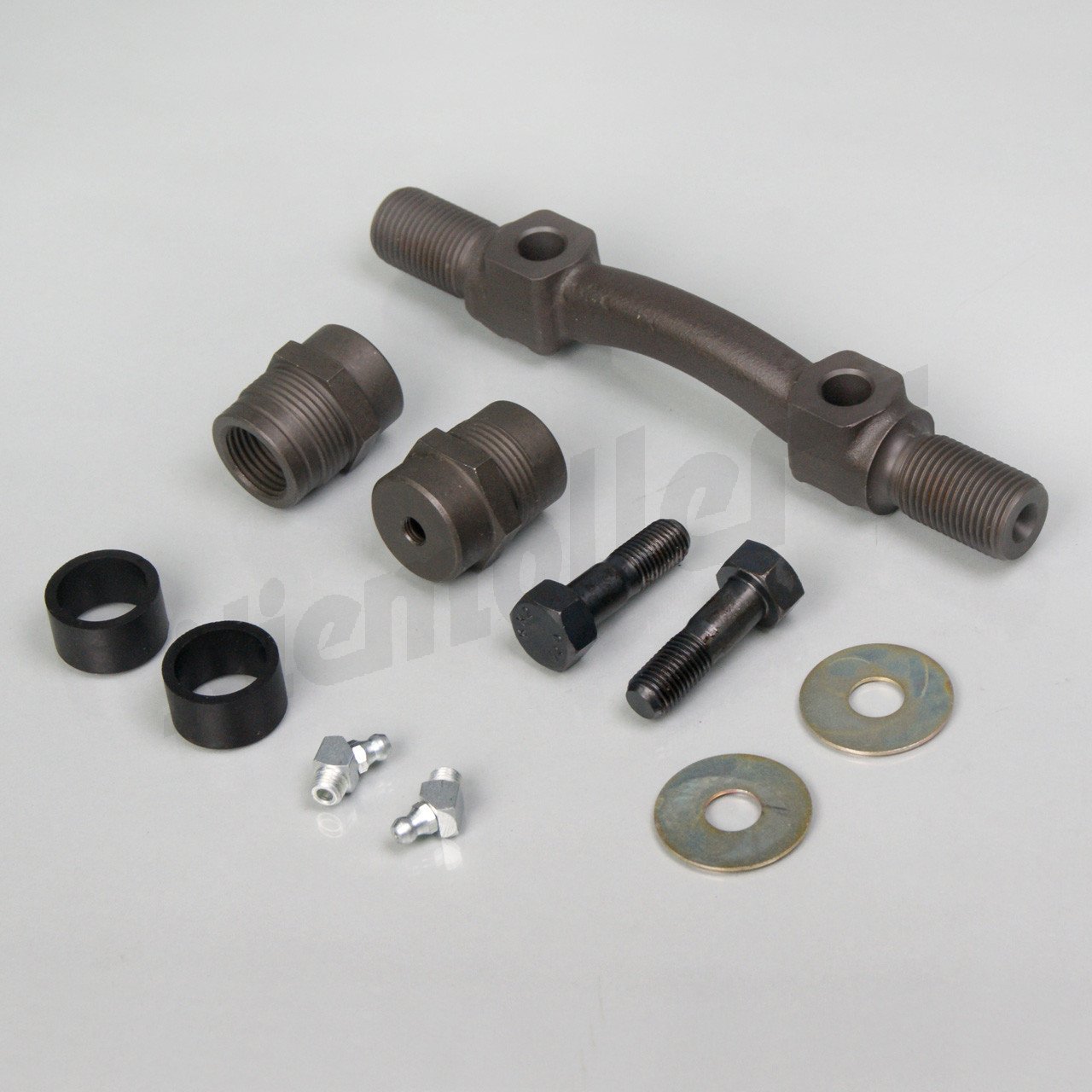

D 33 108 Bearing bolt 1 piece
C 33 082a Cap for grease nipple 2 pieces
D 33 102 Hexagon head screw, bearing bolt 2 pieces
D 33 110 Locking plate 2 pieces
C 01 365a Washer 13 DIN 433 2 pieces
C 33 077 Gasket for inner wishbone 2 pieces
C 33 078 Threaded bush Special thread D: 29.9 1 piece
C 33 079 Threaded bush Special thread D: 30.9 1 piece
C 33 100 taper bead lubrication head B 8 DIN 71412 2 pieces
We offer Rep. kit, pivot pin upper for your Mercedes W109 as a spare part for sale. The part is installed in the chassis 109.018 with engine 100.981 and used in unit Front Axle. It is listed under the original spare part number 1103300018 at Mercedes. Vehicle MB 300SEL6,3 W109.018 engine 100.981 was manufactured in the years 12/67 to 9/72 in a quantity of 6526.
