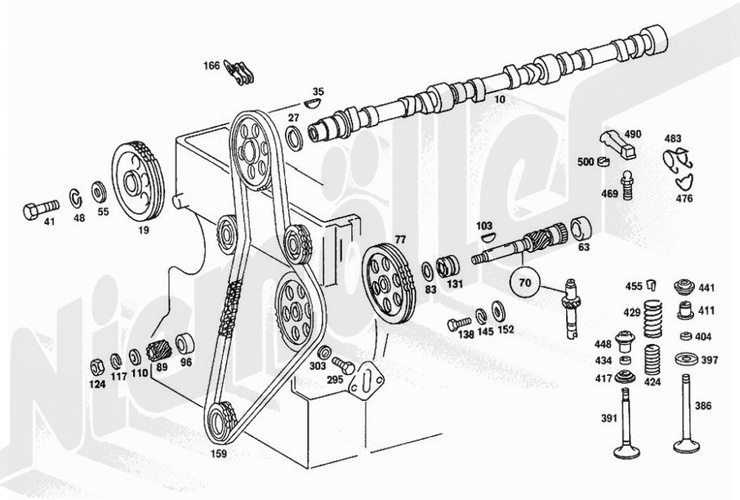

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 10		D 05 006 D 05 006	Cam carrier Cam carrier 180 051 82 01 or 1800518201		on request on request
Image number		C 05 122 C 05 122	Sealing cover Sealing cover 000 443 016 000 or 000443016000		on request on request
Image number 19		C 05 123 C 05 123	Camshaft gear Camshaft gear 121 052 03 01 or 1210520301		€50.00 €50.00
Image number 27		A 05 014 A 05 014	Shim 2.75mm thick Shim 2.75mm thick 186 052 01 52 or 1860520152		on request on request
Image number 35		C 05 127 C 05 127	Woodruff key Woodruff key 006 888 004 002 or 006888004002		€1.46 €1.46
Image number 41		D 05 043 D 05 043	Hexagon head screw f. Camshaft sprocket 14x1,5x40 8,8 Hexagon head screw f. Camshaft sprocket 14x1,5x40 8,8 000 961 014 012 or 000961014012		on request on request
Image number 48		G 35 039 G 35 042	Lock washer Spring washer 912 004 014 100 or 912004014100		on request €0.50
	G 35 042	Replacement: Lock washer		€0.50
Image number 55		C 05 131 C 05 131	Washer for camshaft gear Washer for camshaft gear 180 990 03 40 or 1809900340		€6.27 €6.27
Image number 63		C 01 272 C 01 272	Bushing Bushing 615 052 01 50 or 6150520150		€6.64 €6.64
Image number 70		D 05 045 D 05 045	Intermediate gear shaft with screw wheel for vehicles without tachometer Intermediate gear shaft with screw wheel for vehicles without tachometer 130 050 03 06 or 1300500306		€549.00 €549.00
Image number 77		C 05 141 C 05 141	Idle gear Idle gear 127 052 03 02 or 1270520302		€140.00 €140.00
Image number 83		C 05 142 C 05 142	Thrust ring Thrust ring 127 052 00 53 or 1270520053		€73.26 €73.26
Image number 89		C 05 150 C 05 150	Drive sleeve for ignition distributor Drive sleeve for ignition distributor 126 158 02 07 or 1261580207		€216.89 €216.89
Image number 96		C 05 151 C 05 151	Distance sleeve Distance sleeve 126 158 00 53 or 1261580053		€43.95 €43.95
Image number 103		C 05 144 C 05 144	Woodruff key for intermediate wheel Woodruff key for intermediate wheel 006 888 003 001 or 006888003001		€1.41 €1.41
Image number 110		C 05 146 C 05 146	Washer for idle gear Washer for idle gear 136 990 23 40 or 1369902340		on request on request
Image number 117		G 97 046 G 97 084	Spring ring M12 Spring ring 912 004 012 100 or 912004012100		on request €1.20
	G 97 084	Replacement: Spring ring M12		€1.20
Image number 124		D 33 103 D 33 103	Nut M16x1,5 DIN 934 Nut M16x1,5 DIN 934 308 673 012 002 or 308673012002		€1.89 €1.89
Image number 131		D 05 061 D 05 061	Bushing for intermediate spocket shaft front, W108, W110, W111, W113, W114, W123 Bushing for intermediate spocket shaft front, W108, W110, W111, W113, W114, W123 110 052 00 06 or 1100520006		€45.00 €45.00
Image number 138		G 26 005 G 26 005	Hex. head screw Hex. head screw 304 017 006 018 or 304017006018		€2.19 €2.19
Image number 145		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 or 912004006102		€0.30 €0.30
Image number 152		C 05 152 C 05 152	Washer f. bearing yoke Washer f. bearing yoke 180 990 01 40 or 1809900140		€69.00 €69.00
Image number 159		C 05 159 C 05 159	Roller chain, 134 chains Roller chain, 134 chains 000 997 46 94 or 0009974694		€67.00 €67.00
Image number 166		C 05 159a C 05 159a	Link for double roller chain Link for double roller chain 000 997 05 98 or 0009970598		€4.20 €4.20
Image number 295		D 05 127 D 05 127	Lock screw Lock screw 615 052 01 71 or 6150520171		€13.39 €13.39
Image number 303		A 09 017 A 09 017	Sealing ring A 12x16 Cu - DIN 7603 Sealing ring A 12x16 Cu - DIN 7603 007 603 012 100 or 007603012100		€0.60 €0.60
Image number 386		C 05 226 C 05 226	Intale valve Intale valve 180 053 04 01 or 1800530401		€23.00 €23.00
Image number 391		C 05 230	Exhaust valve 180 053 11 05 or 1800531105	€22.50		Select variant	€22.50
Image number 391		C 05 230o	Exhaust valve, Original 180 053 11 05 or 1800531105	€116.13		Select variant	€116.13
Image number 397		C 05 264 C 05 264	Inlet valve disc Inlet valve disc 127 053 00 53 or 1270530053		€11.96 €11.96
Image number 404		C 05 253 C 05 253	Sealing ring for inlet valve Sealing ring for inlet valve 186 053 06 60 or 1860530660		€5.50 €5.50
Image number		D 00 010 D 00 010	Kit of valve seals (intake & exhaust) Kit of valve seals (intake & exhaust) 127 050 00 67 or 1270500067		€58.20 €58.20
Image number 411		C 05 263 C 05 263	Sealing ring holder for inlet valve Sealing ring holder for inlet valve 127 053 00 58 or 1270530058		on request on request
Image number 417		C 05 255 C 05 255	Thrust ring Thrust ring 121 053 02 62 or 1210530262		€15.72 €15.72
Image number 424		C 05 234 C 05 234	Valve spring, inside Valve spring, inside 180 053 06 22 or 1800530622		€10.02 €10.02
Image number 429		C 05 232 C 05 232	Valve spring, outside Valve spring, outside 180 053 06 20 or 1800530620		€36.75 €36.75
Image number 434		A 05 026 A 05 026	Sealing ring for outlet valve Sealing ring for outlet valve 180 053 06 60 or 1800530660		€4.20 €4.20
Image number 441		C 05 247 C 05 247	Valve spring retainer for intake valve Valve spring retainer for intake valve 180 053 11 25 or 1800531125		€72.12 €72.12
Image number 448		C 05 239	Valve spring retainer 180 050 22 23 or 1800502223	€29.25		Select variant	€29.25
Image number 448		C 05 241	Valve spring retainer 1mm higher 180 050 13 23 or 1800501323	on request		Select variant	on request
Image number 455		A 05 024	Valve plug half 180 053 01 27 or 1800530127	on request		Select variant	on request
Image number 455		C 05 254	Valve cone half 180 053 06 27 or 1800530627	€5.70		Select variant	€5.70
Image number 469		C 05 292a C 05 292a	Ball studs for rocker arm mounting Ball studs for rocker arm mounting 180 050 05 74 or 1800500574		€85.35 €85.35
Image number 476		C 05 294 C 05 294	Annular spring Annular spring 180 993 09 25 or 1809930925		€14.96 €14.96
Image number 483		C 05 296 C 05 296	Tension spring for swing lever bearing Tension spring for swing lever bearing 180 993 08 25 or 1809930825		on request on request
Image number 490		D 05 287 D 05 287	Rocker arm Rocker arm 114 055 00 01 or 1140550001		€32.00 €32.00
Image number 500		C 05 257	Thrust fitting, 9mm high, std. 180 053 19 52 or 1800531952	€44.62		Select variant	€44.62
Image number 500		C 05 258	Thrust fitting, 7mm high, rep. size1 180 053 20 52 or 1800532052	€44.62			€44.62
Image number 500		C 05 259	Thrust fitting, 5mm high, rep. size 2 180 053 21 52 or 1800532152	€44.62			€44.62

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Cam carrier

D 05 006

Sealing cover

C 05 122

Camshaft gear

C 05 123 €50.00

Shim 2.75mm thick

A 05 014

Woodruff key

C 05 127 €1.46

Hexagon head screw f. Camshaft sprocket 14x1,5x40 8,8

D 05 043

Spring washer

G 35 039

Replacement item available

Washer for camshaft gear

C 05 131 €6.27

Bushing

C 01 272 €6.64

Intermediate gear shaft with screw wheel for vehicles without tachometer

D 05 045 €549.00

Idle gear

C 05 141 €140.00

Thrust ring

C 05 142 €73.26

Drive sleeve for ignition distributor

C 05 150 €216.89

Distance sleeve

C 05 151 €43.95

Woodruff key for intermediate wheel

C 05 144 €1.41

Washer for idle gear

C 05 146

Spring ring

G 97 046

Replacement item available

Nut M16x1,5 DIN 934

D 33 103 €1.89

Bushing for intermediate spocket shaft front, W108, W110, W111, W113, W114, W123

D 05 061 €45.00

Hex. head screw

G 26 005 €2.19

Lock washer

G 22 020 €0.30

Washer f. bearing yoke

C 05 152 €69.00

Roller chain, 134 chains

C 05 159 €67.00

Link for double roller chain

C 05 159a €4.20

Lock screw

D 05 127 €13.39

Sealing ring A 12x16 Cu - DIN 7603

A 09 017 €0.60

Intale valve

C 05 226 €23.00

Exhaust valve

C 05 230 €22.50

Exhaust valve, Original

C 05 230o €116.13

Inlet valve disc

C 05 264 €11.96

Sealing ring for inlet valve

C 05 253 €5.50

Kit of valve seals (intake & exhaust)

D 00 010 €58.20

Sealing ring holder for inlet valve

C 05 263

Thrust ring

C 05 255 €15.72

Valve spring, inside

C 05 234 €10.02

Valve spring, outside

C 05 232 €36.75

Sealing ring for outlet valve

A 05 026 €4.20

Valve spring retainer for intake valve

C 05 247 €72.12

Valve spring retainer

C 05 239 €29.25

Valve spring retainer 1mm higher

C 05 241

Valve plug half

A 05 024

Valve cone half

C 05 254 €5.70

Ball studs for rocker arm mounting

C 05 292a €85.35

Annular spring

C 05 294 €14.96

Tension spring for swing lever bearing

C 05 296

Rocker arm

D 05 287 €32.00

Thrust fitting, 9mm high, std.

C 05 257 €44.62

Thrust fitting, 7mm high, rep. size1

C 05 258 €44.62

Thrust fitting, 5mm high, rep. size 2

C 05 259 €44.62

As of engine:
982

Cam carrier

D 05 006

As of engine: 982 10/50 20/60 000279

Idle gear

C 05 141 €140.00

As of engine: 982 10/50 20/60 000279

Thrust ring

C 05 142 €73.26

Suitable for engine:
108.920, 924
110.921, 922, 923, 924, 926, 931, 932
110.981, 982, 983, 984, 985, 986, 987
110.988, 989, 990, 991, 992, 994,
114.920, 923, 980, 981
115.938, 939, 951, 952, 954, 955, 958,
115.970, 971, 972, 973, 974
121.924
127.981, 982, 127.984
129.980, 981, 982
130.920, 921, 923, 924, 933

Bushing for intermediate spocket shaft front, W108, W110, W111, W113, W114, W123

D 05 061 €45.00

This sentence consists of:
A 05 026 Sealing ring for inlet valve, 6 pieces
C 05 253 Sealing ring for valve, 6 pieces

Kit of valve seals (intake & exhaust)

D 00 010 €58.20

Up to engine:
981

Tension spring for swing lever bearing

C 05 296

Sealing cover

C 05 122

Camshaft gear

C 05 123 €50.00

Shim 2.75mm thick

A 05 014

Woodruff key

C 05 127 €1.46

Hexagon head screw f. Camshaft sprocket 14x1,5x40 8,8

D 05 043

Spring washer

G 35 039

Replacement item available

Washer for camshaft gear

C 05 131 €6.27

Bushing

C 01 272 €6.64

Intermediate gear shaft with screw wheel for vehicles without tachometer

D 05 045 €549.00

Drive sleeve for ignition distributor

C 05 150 €216.89

Distance sleeve

C 05 151 €43.95

Woodruff key for intermediate wheel

C 05 144 €1.41

Washer for idle gear

C 05 146

Spring ring

G 97 046

Replacement item available

Nut M16x1,5 DIN 934

D 33 103 €1.89

Hex. head screw

G 26 005 €2.19

Lock washer

G 22 020 €0.30

Washer f. bearing yoke

C 05 152 €69.00

Roller chain, 134 chains

C 05 159 €67.00

Link for double roller chain

C 05 159a €4.20

Lock screw

D 05 127 €13.39

Sealing ring A 12x16 Cu - DIN 7603

A 09 017 €0.60

Intale valve

C 05 226 €23.00

Exhaust valve

C 05 230 €22.50

Exhaust valve, Original

C 05 230o €116.13

Inlet valve disc

C 05 264 €11.96

Sealing ring for inlet valve

C 05 253 €5.50

Sealing ring holder for inlet valve

C 05 263

Thrust ring

C 05 255 €15.72

Valve spring, inside

C 05 234 €10.02

Valve spring, outside

C 05 232 €36.75

Sealing ring for outlet valve

A 05 026 €4.20

Valve spring retainer for intake valve

C 05 247 €72.12

Valve spring retainer

C 05 239 €29.25

Valve spring retainer 1mm higher

C 05 241

Valve plug half

A 05 024

Valve cone half

C 05 254 €5.70

Ball studs for rocker arm mounting

C 05 292a €85.35

Annular spring

C 05 294 €14.96

Rocker arm

D 05 287 €32.00

Thrust fitting, 9mm high, std.

C 05 257 €44.62

Thrust fitting, 7mm high, rep. size1

C 05 258 €44.62

Thrust fitting, 5mm high, rep. size 2

C 05 259 €44.62
