450SEL/6.9 Mercedes-Benz w116.036

Chosen model:

Chassis: 116.036
Engine: 100.985
Choose different model

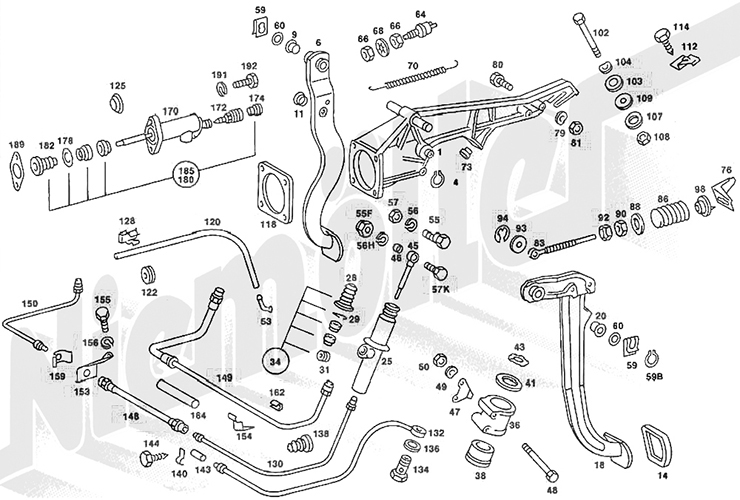

Current unit you are viewing: 29 Pedal Assembly

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 4		A 42 029 A 42 029	Seegering ring for brake shoe a. Aufh.bolz. Seegering ring for brake shoe a. Aufh.bolz. 007 994 20 41 oder 0079942041		€1.60 €1.60
Image number 6		F 29 018	Brake pedal 107 290 04 18 oder 1072900418		on request	Choose the suitable product variant
Image number 6	Image number 6		F 29 021	Brake pedal R.L. 116 290 03 18 oder 1162900318		Choose the suitable product variant	on request
Image number 9		D 29 041 D 29 041	Bushing Bushing 124 292 00 50 oder 1242920050		€1.59 €1.59
Image number 11		D 29 053	Bushing 110 292 01 50 oder 1102920150		€3.87	Choose the suitable product variant
Image number 11	Image number 11		F 29 023	Bushing 126 292 00 50 oder 1262920050		Choose the suitable product variant	€2.25
Image number 14		F 29 024 F 29 024	Pedal cover Pedal cover 100 292 02 82 oder 1002920282		€5.50 €5.50
Image number 59		F 29 043 F 29 043	Safety catch Safety catch 000 994 11 51 oder 0009941151		€3.33 €3.33
Image number 59B		A 42 029 A 42 029	Seegering ring for brake shoe a. Aufh.bolz. Seegering ring for brake shoe a. Aufh.bolz. 007 994 20 41 oder 0079942041		€1.60 €1.60
Image number 64		D 54 798 D 54 798	Brake light switch Brake light switch 000 545 35 09 oder 0005453509		€28.00 €28.00
Image number 60		F 29 047 F 29 047	Washer Washer 115 291 00 76 oder 1152910076		€1.64 €1.64
Image number 68		G 29 012 G 29 012	Toothed lock washer Toothed lock washer 006 797 012 250 oder 006797012250		on request on request
Image number 66		D 54 802 D 54 802	Nut, brake light switch on pedal system Nut, brake light switch on pedal system 000 990 92 51 oder 0009909251		€43.45 €43.45
Image number 112		F 29 056 F 29 056	Mounting support Mounting support 116 291 00 40 oder 1162910040		on request on request
Image number 70		C 29 114 C 29 114	Spring Spring 180 993 15 10 oder 1809931510		€46.31 €46.31
Image number 114		G 30 032 G 30 032	Sheet metal screw 4,8x13 Sheet metal screw 4,8x13 007 976 004 205 oder 007976004205		€1.86 €1.86

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

A 42 029 €1.60

Left-hand-drive;

FROM CHASSIS:
020     10/50,12/52 120335
020     20/60,22/62 120384
024,025 10/50,12/52 150723
024,025 20/60,22/62 150857
028,029 10/50,12/52 054426
028,029 20/60,22/62 054431
032,033 10/50,12/52 096456
032,033 20/60,22/62 096482
036     006885

F 29 018

Right-hand-drive;

F 29 021

D 29 041 €1.59

UP TO CHASSIS:
020     10/50,12/52 120334
020     20/60,22/62 120383
024,025 10/50,12/52 150722
024,025 20/60,22/62 150856
028,029 10/50,12/52 054425
028,029 20/60,22/62 054430
032,033 10/50,12/52 096455
032,033 20/60,22/62 096481
036     006884

D 29 053 €3.87

F 29 023 €2.25

F 29 024 €5.50

UP TO CHASSIS:
020 114551
024,025 136351
028,029 051400
032,033 090505
036 005862

F 29 043 €3.33

FROM CHASSIS:
020

A 42 029 €1.60

D 54 798 €28.00

F 29 047 €1.64

G 29 012

D 54 802 €43.45

F 29 056

C 29 114 €46.31

G 30 032 €1.86
