240TD Mercedes-Benz w123 Estate

Chosen model:

Chassis: 123.183
Engine: 616.912
Choose different model

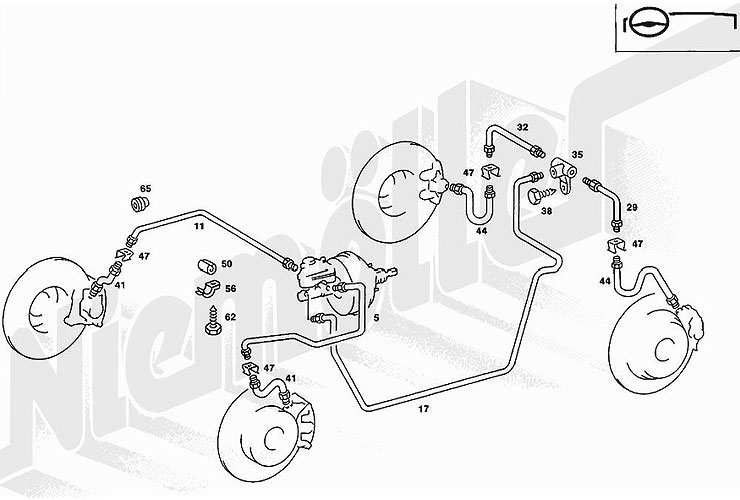

Current unit you are viewing: 42 Brake System - Brake Lines

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.

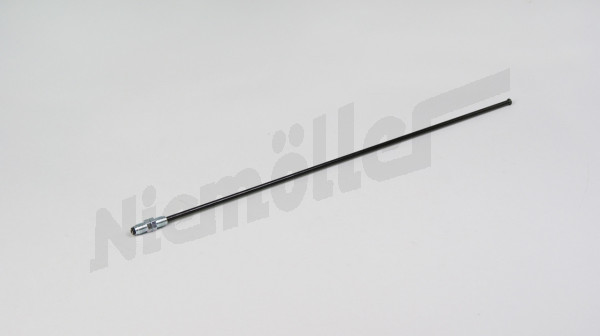

Image number 5		C 42 337 C 42 337	Brake pipe Brake pipe 123 420 57 28 oder 1234205728		€17.00 €17.00
Image number 11		F 42 229 F 42 229	Brake line Brake line 116 420 32 28 oder 1164203228		€14.20 €14.20

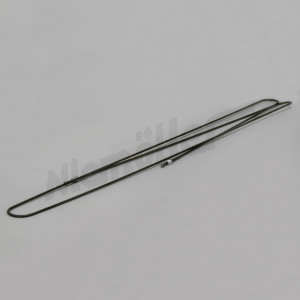

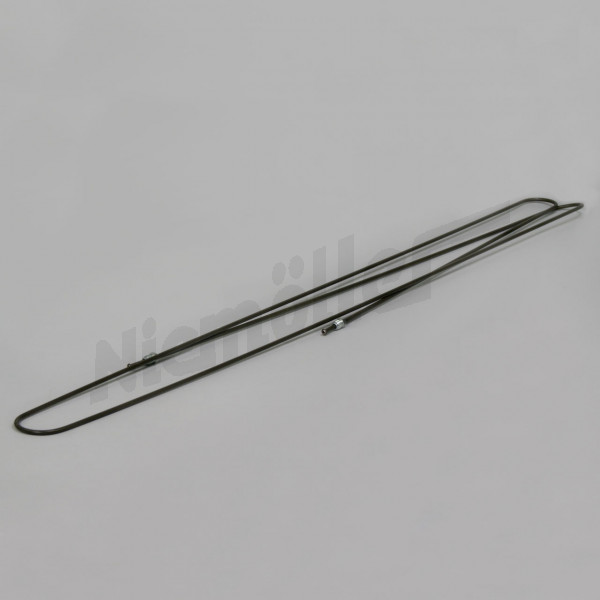

Image number 17		F 42 221 F 42 221	Line, front brake master cylinder to distributor Line, front brake master cylinder to distributor 115 420 07 28 oder 1154200728		€20.00 €20.00
Image number 26		G 42 170 E 42 061	Line from transition piece to manifold Brake line from clutch to distributor 123 420 08 28 oder 1234200828		on request €26.00
	E 42 061	Replacement: Brake line from clutch to distributor		€26.00
Image number 29		C 42 307 C 42 307	Brake pipe Brake pipe 120 420 02 28 oder 1204200228		€7.00 €7.00
Image number 32		F 42 251 F 42 251	Brake pipe Brake pipe 115 420 25 28 oder 1154202528		€13.00 €13.00
Image number 35		D 42 698 D 42 698	Rear distributor Rear distributor 000 428 42 24 oder 0004284224		€75.79 €75.79
Image number 38		G 42 105 G 42 105	Sheet-metal screw Sheet-metal screw 007 976 006 204 oder 007976006204		on request on request
Image number 41		G 42 106	Brake hose front 123 428 02 35 oder 1234280235		€17.65	Choose the suitable product variant
Image number 41	Image number 41		G 42 107	Brake hose front 129 428 00 35 oder 1294280035		Choose the suitable product variant	€11.76
Image number 44		F 42 108 F 42 108	brake hose brake hose 000 428 35 35 oder 0004283535		€8.90 €8.90
Image number 47		F 42 259 F 42 259	Lock Lock 000 428 06 73 oder 0004280673		€0.89 €0.89
Image number 50		D 42 272 D 42 272	Rubber sleeve Rubber sleeve 110 428 00 81 oder 1104280081		€5.91 €5.91
Image number 56		D 42 718 D 42 718	Clamp Clamp 108 995 00 20 oder 1089950020		€3.21 €3.21
Image number 65		D 42 709 D 42 709	Grommet Grommet 001 997 14 81 oder 0019971481		€5.80 €5.80

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Left-hand-drive;

INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)

C 42 337 €17.00

Left-hand-drive;

INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)

F 42 229 €14.20

Left-hand-drive;

INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)

F 42 221 €20.00

Right-hand-drive

C 42 307 €7.00

F 42 251 €13.00

D 42 698 €75.79

G 42 105

Up to ident. no.:
000     158335
003     079228
007     064176
083     004326
086     003285
093 004195 EXCEPT FOR
002924, 002958, 002959, 002981, 003004, 003013, 003017, 003025, 003114, 003171, 003282- 003298, 003300- 003332.
102,103 150314
105     165147
183 007370 EXCEPT FOR
003196, 003355, 003552, 003818, 003865, 004180, 004186- 004202, 004204, 004207- 004220, 004222- 004375.
190 011092 EXCEPT FOR
006378, 006494, 006605, 006668, 006953, 007353- 007383, 007386- 007421.

G 42 106 €17.65

As of ident. no.
000     158336
003     079229
007     064177
083     004327
086     003286
093 004196 ALSO INSTALLED ON
002924, 002958, 002959, 002981, 003004, 003013, 003017, 003025, 003114, 003171, 003282- 003298, 003300- 003332.
102,103 150315
105     165148
183 007371 ALSO INSTALLED ON
003196, 003355, 003552, 003818, 003865, 004180, 004186- 004202, 004204, 004207- 004220, 004222- 004375.
190 011093 ALSO INSTALLED ON
006378, 006494, 006605, 006668, 006953, 007353- 007383, 007386- 007421.

G 42 107 €11.76

For 114.015 from chassis number 143558
for 114.017 from chassis number 143895
for 114.060 from chassis number 013211
for 115.010 from chassis number 121920

F 42 108 €8.90

F 42 259 €0.89

Left-hand-drive

D 42 272 €5.91

Left-hand-drive

D 42 718 €3.21

D 42 709 €5.80
