MB 220SEAC W128.030 with engine 127.983

Chosen model:

Chassis: 128.030
Engine: 127.983
Choose different model

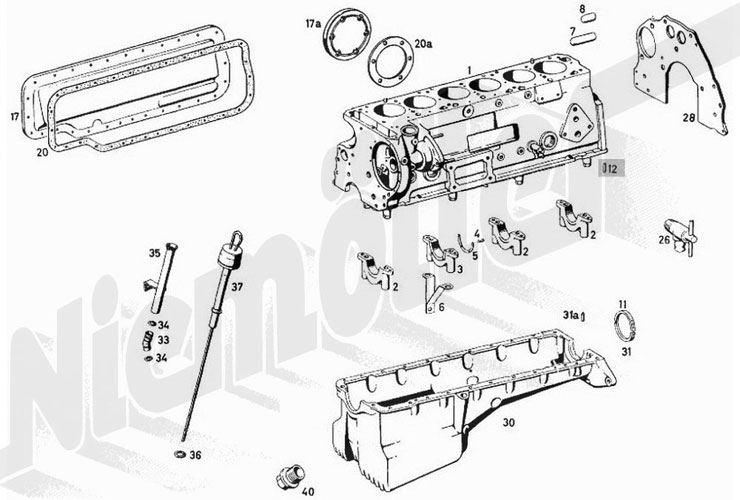

Current unit you are viewing: 1 Crankcase, oil pan

Pic.	Designation
Image number 1	C 01 213 C 01 213	Cylinder crankcases Cylinder crankcases 127 010 20 08 oder 1270102008	on request on request
Image number 2	A 01 010 A 01 010	Crankshaft bearing cap 1,2,4 cylinder Crankshaft bearing cap 1,2,4 cylinder 180 011 00 11 oder 1800110011	on request on request
Image number 3	C 01 217 C 01 217	Crankshaft bearing cap with dowel pin Crankshaft bearing cap with dowel pin 180 010 01 23 oder 1800100123	€150.00 €150.00
Image number 4	C 01 177 C 01 177	Dowel pin Dowel pin 121 991 00 41 oder 1219910041	€8.80 €8.80
Image number 6	C 01 225 C 01 225	Holder for suction pipe oil pump Holder for suction pipe oil pump 180 186 02 40 oder 1801860240	on request on request
Image number 7	C 01 185 C 01 185	Dowel pin 12x34 Dowel pin 12x34 180 991 00 60 oder 1809910060	on request on request
Image number 8	C 01 186 C 01 186	Dowel pin 12x20 Dowel pin 12x20 180 991 01 60 oder 1809910160	€3.44 €3.44
Image number 12	C 01 237 C 01 237	Lock pin Lock pin 186 991 00 55 oder 1869910055	€9.46 €9.46
Image number 17	C 01 245 C 01 245	Engine side cover / starter side Engine side cover / starter side 180 015 05 05 oder 1800150505	€200.55 €200.55
Image number 17a	C 01 247 C 01 247	Cylinder side cover Cylinder side cover 180 015 07 05 oder 1800150705	€9.80 €9.80
Image number 20	C 01 253 C 01 253	Gasket, side engine cover, RHS Gasket, side engine cover, RHS 180 015 05 21 oder 1800150521	€14.00 €14.00
Image number 20a	C 01 256 C 01 256	Gasket Gasket 180 015 08 21 oder 1800150821	€1.99 €1.99
Image number	C 01 257 C 01 257	Washer Washer 180 990 10 40 oder 1809901040	€0.24 €0.24
Image number	C 01 272 C 01 272	Bushing Bushing 621 052 01 50 oder 6210520150	€15.13 €15.13
Image number 28	C 01 278 C 01 278	Intermediate plate 12mm fitting hole Intermediate plate 12mm fitting hole 180 011 11 05 oder 1800111105	€150.00 €150.00
Image number 30	C 01 286 C 01 286	Oil pan with half sealing ring holder Oil pan with half sealing ring holder 180 010 31 13 oder 1800103113	on request on request
Image number 31	C 01 236 C 01 236	Holder, ctankshaft seal Holder, ctankshaft seal 180 031 00 58 oder 1800310058	€88.00 €88.00
Image number 31a	C 01 237 C 01 237	Lock pin Lock pin 186 991 00 55 oder 1869910055	€9.46 €9.46

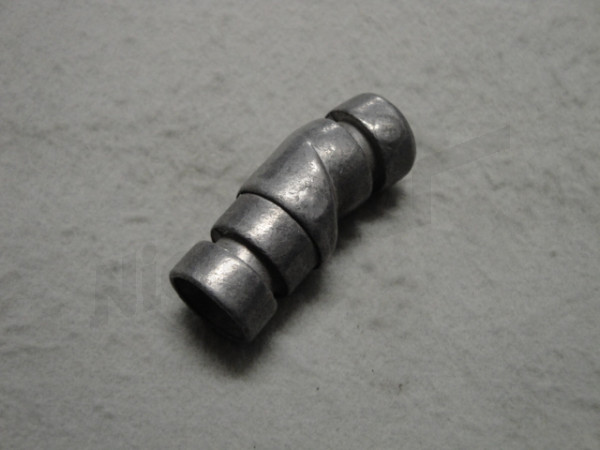

Image number 33	C 01 297 C 01 297	Elbow for oil dipstick Elbow for oil dipstick 621 018 01 28 oder 6210180128	on request on request
Image number 34	C 01 298 C 01 298	Sealing ring Sealing ring 621 997 01 40 oder 6219970140	€0.99 €0.99
Image number 36	C 01 299 C 01 299	Seal ring Seal ring 198 997 00 40 oder 1989970040	€0.58 €0.58
Image number 40	C 01 085 C 01 085	Screw plug (oil pan) M26 Screw plug (oil pan) M26 136 997 12 30 oder 1369971230	€4.95 €4.95

Please note that the product names may be an automatic translation for which no guarantee can be given.
