220SCp Mercedes-Benz w180

Chosen model:

Chassis: 180.037
Engine: 180.924
Choose different model

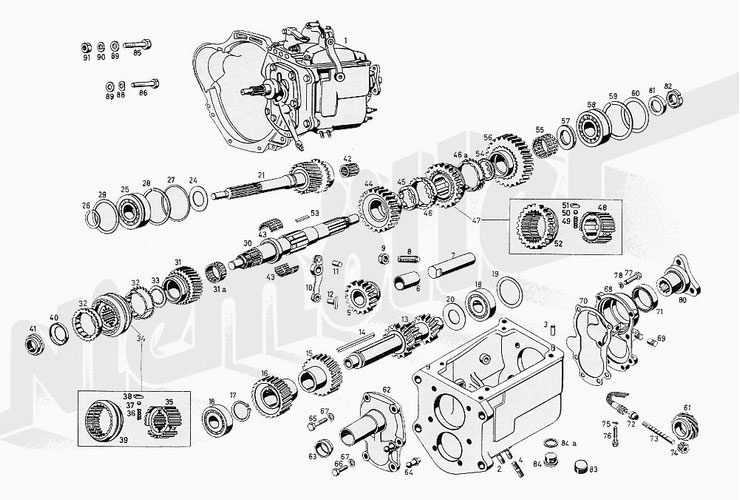

Current unit you are viewing: 26 Transmission

[{"id":789,"type":"text","coords":[420,35],"text":"gear seal set","bold":false,"italic":false,"underline":false,"color":"#000000","fontSize":16,"doHighlight":false},{"type":"rect","coords":[418,27,570,69],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26177a-gasket-kit-gearbox","cssSelector":".product-group-1","info":"{\"ids\":\"C 26 177a\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[418,364,500,313,508,311,541,336,559,346,567,352,563,420,549,429,512,447,513,458,505,465,504,479,464,479,443,478,418,444,411,429,411,377],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26003-transmission-housings","cssSelector":".product-group-2","info":"{\"ids\":\"C 26 003\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[343,278,371,275,386,284,385,303,365,318,345,318,342,304],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26005-return-wheel-17-teeth","cssSelector":".product-group-5","info":"{\"ids\":\"C 26 005\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[391,271,392,296,425,295,423,269],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26006-bushing","cssSelector":".product-group-6","info":"{\"ids\":\"C 26 006\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[434,250,474,244,483,261,431,281,426,273],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26007-reverse-idler-shaft","cssSelector":".product-group-7","info":"{\"ids\":\"C 26 007\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[371,240,371,262,392,267,396,240],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/a32040b-nut-m10-din-934-5s","cssSelector":".product-group-9","info":"{\"ids\":\"A 32 040b\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":\"C 32 032a\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(106, 165, 109)\"}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[309,250,298,304,323,309,323,293,329,251],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/a26089-intermediate-lever-for-reverse-gear","cssSelector":".product-group-10","info":"{\"ids\":\"A 26 089\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[330,254,345,259,341,275,328,275],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/d26045-dowel-pin","cssSelector":".product-group-11","info":"{\"ids\":\"D 26 045\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[324,287,339,290,340,308,326,309],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/a26090-sliding-block-in-intermediate-lever","cssSelector":".product-group-12","info":"{\"ids\":\"A 26 090\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[373,323,335,332,332,345,338,355,380,337],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26012-key","cssSelector":".product-group-14","info":"{\"ids\":\"C 26 012\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[295,348,322,343,338,359,347,384,343,394,316,398,302,390,299,383],"href":"\/en\/w180\/w180\/B037\/17\/15","cssSelector":".product-group-15","info":"{\"ids\":\"C 26 014, C 26 014a\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[221,391,241,385,255,418,243,427,236,423],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26017-snap-ring","cssSelector":".product-group-17","info":"{\"ids\":\"C 26 017\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[480,270,508,266,529,283,533,305,519,310,501,308,497,291],"href":"\/en\/w180\/w180\/B037\/17\/19","cssSelector":".product-group-19","info":"{\"ids\":\"C 26 019, C 26 020\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[442,292,458,291,476,323,451,334,446,325,444,318],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26023-shim-countershaft-to-bearing","cssSelector":".product-group-20","info":"{\"ids\":\"C 26 023\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[186,174,187,196,196,219,212,210,207,197,204,166],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26027-oil-slinger-ring","cssSelector":".product-group-24","info":"{\"ids\":\"C 26 027\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[78,195,77,230,95,231,102,225,101,212,92,208,90,198],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26029-spring-ring","cssSelector":".product-group-26","info":"{\"ids\":\"C 26 029\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[163,173,163,189,171,199,173,211,170,223,183,222,191,214,187,192,177,167],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26031-spacer-ring","cssSelector":".product-group-27","info":"{\"ids\":\"C 26 031\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[139,177,141,193,147,196,154,211,149,225,160,228,167,224,172,213,170,198,160,186,151,172],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26032-spring-ring-2-0mm","cssSelector":".product-group-28","info":"{\"ids\":\"C 26 032\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[91,189,108,186,117,202,120,224,115,236,98,233,105,227,102,212,92,207],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26035-space-washer-0-1mm","cssSelector":".product-group-29","info":"{\"ids\":\"C 26 035\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[221,254,228,278,249,269,283,261,317,244,361,228,356,207,336,213,289,232,259,240,247,238],"href":"\/en\/w180\/w180\/B037\/17\/30","cssSelector":".product-group-30","info":"{\"ids\":\"B 26 059, C 26 038\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[168,256,191,255,203,275,204,299,190,308,167,304,164,294,160,285],"href":"\/en\/w180\/w180\/B037\/17\/31","cssSelector":".product-group-31","info":"{\"ids\":\"C 26 040, C 26 041\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[75,333,79,340,86,345,97,341,102,336,103,324,97,312,91,308,90,301,94,292,108,287,119,287,125,296,130,307,132,318,142,319,151,316,153,304,153,296,145,288,140,277,128,277,129,287,124,294,118,287,107,288,94,293,89,299,77,299,75,306,69,314,70,323],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26042-synchronizer-ring-compare-with-old-ring-besfore-instalation-width-of-the-noses","cssSelector":".product-group-32","info":"{\"ids\":\"C 26 042\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[149,275,161,274,159,284,162,288,165,301,166,308,158,309,149,289],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26043-thrust-washer","cssSelector":".product-group-33","info":"{\"ids\":\"C 26 043\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[140,388,138,347,134,340,133,333,129,330,119,338,110,338,105,334,105,323,102,316,93,308,92,300,97,294,109,293,114,293,121,295,126,300,129,309,132,324,147,331,147,342,144,348,144,386],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26044-synchronizer-body-3rd-and-4th-gear","cssSelector":".product-group-34","info":"{\"ids\":\"C 26 044\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[161,395,178,396,184,430,179,442,143,438,141,423,145,409],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26044a-synchronizer-body","cssSelector":".product-group-35","info":"{\"ids\":\"C 26 044a\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[127,408,138,407,140,417,136,424,126,417],"href":"\/en\/w180\/w180\/B037\/17\/36","cssSelector":".product-group-36","info":"{\"ids\":\"C 26 045, C 26 045\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[125,402,141,400,142,404,128,409],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26046-steel-ball-6-5-mm-iii-din-5401","cssSelector":".product-group-37","info":"{\"ids\":\"C 26 046\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":\"A 26 046\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(106, 165, 109)\"}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[120,391,120,400,146,400,147,392],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26047-towing-arm","cssSelector":".product-group-38","info":"{\"ids\":\"C 26 047\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[83,397,81,442,130,447,131,427,125,421,119,403,116,398],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/b26085-sliding-sleeve","cssSelector":".product-group-39","info":"{\"ids\":\"B 26 085\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[47,311,46,337,51,352,71,345,71,327,60,309],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26048-lock-plate","cssSelector":".product-group-40","info":"{\"ids\":\"C 26 048\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[16,322,42,322,50,352,22,359],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26049-grooved-nut","cssSelector":".product-group-41","info":"{\"ids\":\"C 26 049\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[337,158,338,181,367,178,361,147],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26050-needle-cage","cssSelector":".product-group-42","info":"{\"ids\":\"C 26 050\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[253,222,255,238,267,238,288,224,279,214],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26051-needle-cage","cssSelector":".product-group-43","info":"{\"ids\":\"C 26 051\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[265,270,291,260,300,263,302,271,291,277,271,282,260,280],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26051-needle-cage","cssSelector":".product-group-43","info":"{\"ids\":\"C 26 051\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[356,181,387,173,400,193,404,215,405,230,380,236,361,227],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26054-helical-gear-25-teeth-f-2-speed","cssSelector":".product-group-44","info":"{\"ids\":\"C 26 054\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[390,177,406,175,413,186,421,196,419,209,406,215,402,199],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26055-thrust-ring-7-9-mm-thick","cssSelector":".product-group-45","info":"{\"ids\":\"C 26 055\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[414,177,426,176,434,182,438,191,436,222,420,221,421,209,421,195,412,186],"href":"\/en\/w180\/w180\/B037\/17\/46","cssSelector":".product-group-46","info":"{\"ids\":\"C 26 042, D 26 085\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[462,203,454,223,504,232,504,216],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/d26086-synchronizer-for-1st-and-2nd-gear","cssSelector":".product-group-47","info":"{\"ids\":\"D 26 086\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":\"C 26 060\",\"stock_info_replacement\":\" (low stock level)\",\"stock_light_replacement\":\"rgb(201, 171, 80)\"}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[591,204,611,202,619,228,609,246,583,247,581,231,580,218],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/d26088-synchronizer-for-1st-and-2nd-gear","cssSelector":".product-group-48","info":"{\"ids\":\"D 26 088\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[561,218,567,226,575,231,581,227,580,216],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26045-compressing-spring~3","cssSelector":".product-group-49","info":"{\"ids\":\"C 26 045\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[562,209,581,210,581,214,563,215],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26046-steel-ball-6-5-mm-iii-din-5401~2","cssSelector":".product-group-50","info":"{\"ids\":\"C 26 046\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":\"A 26 046\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(106, 165, 109)\"}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[560,200,559,208,583,208,583,201],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26047-towing-arm~2","cssSelector":".product-group-51","info":"{\"ids\":\"C 26 047\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[515,201,558,201,560,215,561,228,570,246,555,252,523,249,514,237],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/d26090-sliding-sleeve-for-1st-and-2nd-gear","cssSelector":".product-group-52","info":"{\"ids\":\"D 26 090\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[292,208,320,206,321,214,295,226],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26061-sunk-key-for-main-shaft","cssSelector":".product-group-53","info":"{\"ids\":\"C 26 061\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[472,149,482,146,486,158,491,160,497,169,493,179,488,181,487,171,480,163,476,159],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26062-thrust-washer-4-4-mm-thick","cssSelector":".product-group-54","info":"{\"ids\":\"C 26 062\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[530,123,529,141,533,153,539,163,559,159,562,152,559,140,544,116],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26065-needle-bearring-1st-gear","cssSelector":".product-group-55","info":"{\"ids\":\"C 26 065\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[475,131,522,123,528,139,534,161,534,180,512,190,492,181,498,171,494,159,487,156,484,145],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26067-helical-wheel-29-teeth-for-1st-gear","cssSelector":".product-group-56","info":"{\"ids\":\"C 26 067\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[554,115,572,112,576,134,578,147,569,155,564,150,557,135],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26068-thrust-washer-3-8-mm-thick","cssSelector":".product-group-57","info":"{\"ids\":\"C 26 068\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[577,101,575,123,580,148,590,149,607,149,612,138,614,128,608,110,595,99],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/a26024-deep-groove-ball-bearing-on-the-main-shaft","cssSelector":".product-group-58","info":"{\"ids\":\"A 26 024\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[609,90,606,103,612,116,613,130,620,140,627,142,633,136,634,123,635,114,627,105,619,92],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/a26055-snap-ring-f-ring-groove-bearing","cssSelector":".product-group-59","info":"{\"ids\":\"A 26 055\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[620,89,641,84,643,96,650,114,650,130,634,133,637,117,623,100],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26077-spacer-shim-0-1mm-thick","cssSelector":".product-group-60","info":"{\"ids\":\"C 26 077\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[667,397,698,397,703,442,691,441,671,434],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26082-helical-gear-f-speedometer-drive","cssSelector":".product-group-61","info":"{\"ids\":\"C 26 082\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[368,382,398,382,404,398,407,418,409,440,406,456,401,471,378,474,355,453,343,447,336,431],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26085-front-transmission-housing-cover","cssSelector":".product-group-62","info":"{\"ids\":\"C 26 085\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[303,437,302,458,308,465,324,465,335,452,330,434],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26088-sealing-ring","cssSelector":".product-group-63","info":"{\"ids\":\"C 26 088\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[427,467,417,476,400,478,406,463,415,450],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26089-bolt-for-clutch-release-fork","cssSelector":".product-group-64","info":"{\"ids\":\"C 26 089\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[599,282,611,282,617,290,623,292,634,297,641,314,642,328,645,339,641,373,625,373,609,367,611,348,614,337,615,326,596,306,595,296],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26090-gearbox-housing-cover-rear","cssSelector":".product-group-68","info":"{\"ids\":\"C 26 090\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[645,330,647,349,669,347,663,332],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26092-plug","cssSelector":".product-group-69","info":"{\"ids\":\"C 26 092\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[575,291,569,331,565,337,565,348,572,360,581,397,608,389,617,372,609,369,609,353,613,326,610,318,589,303,585,288],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26093-gasket-for-rear-gearbox-cover","cssSelector":".product-group-70","info":"{\"ids\":\"C 26 093\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[629,287,647,278,658,293,666,306,666,317,657,317,646,315,641,302,633,294],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26095-sealing-ring-rear","cssSelector":".product-group-71","info":"{\"ids\":\"C 26 095\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[630,406,624,419,627,429,638,429,643,411],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26096-sealing-ring-for-speedometer-drive-shaft","cssSelector":".product-group-72","info":"{\"ids\":\"C 26 096\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":\"D 26 107\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(106, 165, 109)\"}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[645,416,640,426,648,443,661,445,674,445,678,439],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26098-shaft-for-speedometer-drive","cssSelector":".product-group-73","info":"{\"ids\":\"C 26 098\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[680,440,695,444,690,462,664,452],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26101-drive-small-wheel-for-tachometer","cssSelector":".product-group-74","info":"{\"ids\":\"C 26 101\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[645,260,685,244,710,290,697,307,679,305,662,292,656,285],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26105-three-arm-flange-on-the-main-shaft","cssSelector":".product-group-80","info":"{\"ids\":\"C 26 105\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[642,83,659,85,666,100,672,117,657,119,649,108],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26106-locking-plate","cssSelector":".product-group-81","info":"{\"ids\":\"C 26 106\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[658,78,689,72,688,111,674,114],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/c26108-nut-m-24x1-5","cssSelector":".product-group-82","info":"{\"ids\":\"C 26 108\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[566,454,574,477,602,478,602,460],"href":"\/en\/w180\/w180\/B037\/17\/83","cssSelector":".product-group-83","info":"{\"ids\":\"C 14 055, C 14 055\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"poly","coords":[533,452,533,471,553,471,563,464,561,450],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/d26111-plug","cssSelector":".product-group-84","info":"{\"ids\":\"D 26 111\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[77,32,77,64,94,64,97,36],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/a32040b-nut-m10-din-934-5s~2","cssSelector":".product-group-91","info":"{\"ids\":\"A 32 040b\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":\"C 32 032a\",\"stock_info_replacement\":\" (in stock)\",\"stock_light_replacement\":\"rgb(106, 165, 109)\"}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[332,460,341,460,349,462,348,472,342,479,335,480,330,474],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/g35010-hexagon-head-screw-m8x22-din-933-8g","cssSelector":".product-group-66","info":"{\"ids\":\"G 35 010\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[319,405,319,412,325,417,330,423,336,419,336,410,334,404],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/b03018-spring-washer","cssSelector":".product-group-67","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[336,452,337,458,344,462,348,469,357,470,357,464,353,456,349,452],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/b03018-spring-washer","cssSelector":".product-group-67","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[600,418,602,428,619,426,621,420],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/g42085-spring-washer","cssSelector":".product-group-75","info":"{\"ids\":\"G 42 085\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[626,268,626,283,634,284,643,276,645,271],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/g35010-hexagon-head-screw-m8x22-din-933-8g~2","cssSelector":".product-group-77","info":"{\"ids\":\"G 35 010\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[614,274,615,288,622,292,624,289,625,278,623,271],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/b03018-spring-washer~2","cssSelector":".product-group-78","info":"{\"ids\":\"B 03 018\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[121,36,122,55,136,60,148,58,154,34],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/g25028-hexagon-head-screw-m10x40-din-931-8g","cssSelector":".product-group-85","info":"{\"ids\":\"G 25 028\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[106,35,112,65,122,64,121,40],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/g49063a-washer-10-5-din-125","cssSelector":".product-group-89","info":"{\"ids\":\"G 49 063a\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[101,75,101,104,115,104,114,78],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/g49063a-washer-10-5-din-125","cssSelector":".product-group-89","info":"{\"ids\":\"G 49 063a\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[98,35,95,61,104,62,106,39],"href":"https:\/\/www.niemoeller.de\/en\/w180\/w180\/B037\/17\/g49063-spring-ring-b10","cssSelector":".product-group-90","info":"{\"ids\":\"G 49 063\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"}]

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.

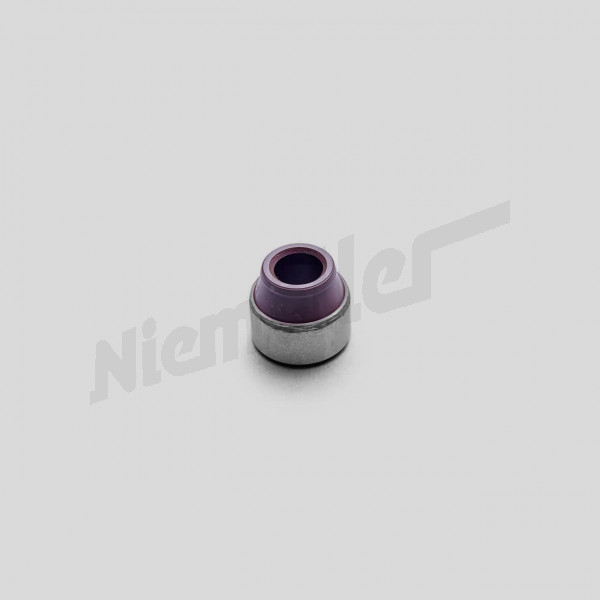

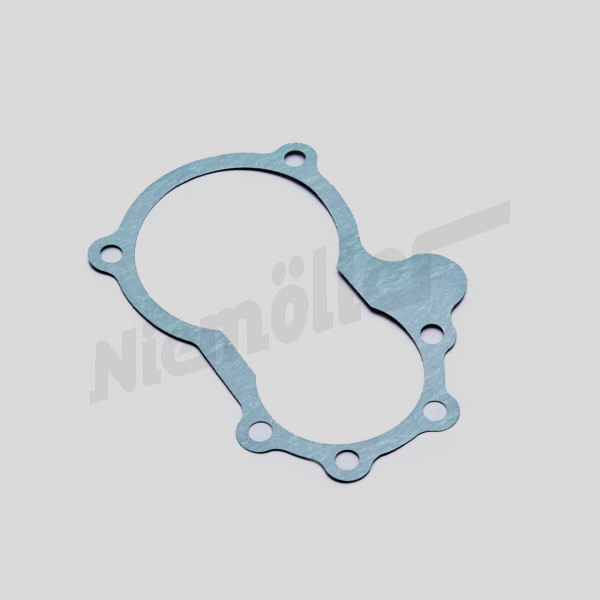

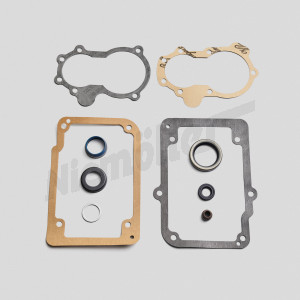

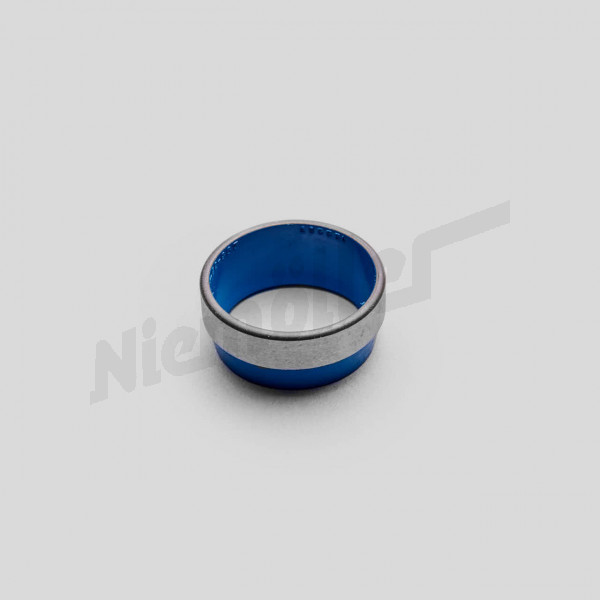

Image number 1		C 26 177a C 26 177a	Gasket kit gearbox Gasket kit gearbox 120 586 02 26. 120 586 01 26 oder 1205860226.1205860126		€48.22 €48.22
Image number 2		C 26 003 C 26 003	Transmission housings Transmission housings 186 260 00 11 oder 1862600011		on request on request
Image number 5		C 26 005 C 26 005	Return wheel 17 teeth Return wheel 17 teeth 120 260 03 25 oder 1202600325		€675.70 €675.70

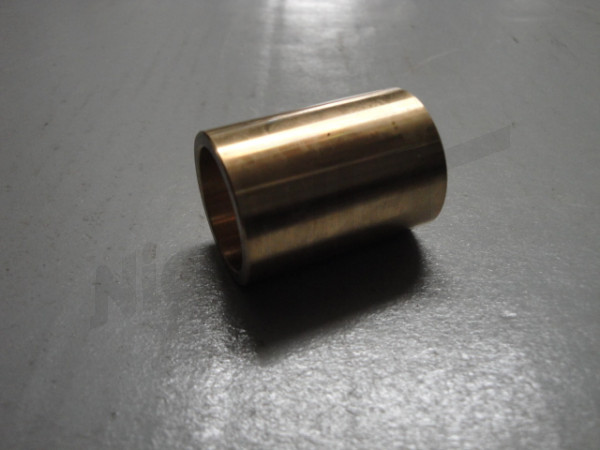

Image number 6		C 26 006 C 26 006	Bushing Bushing 120 263 03 50 oder 1202630350		€86.11 €86.11

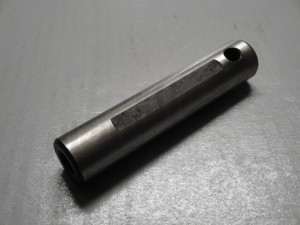

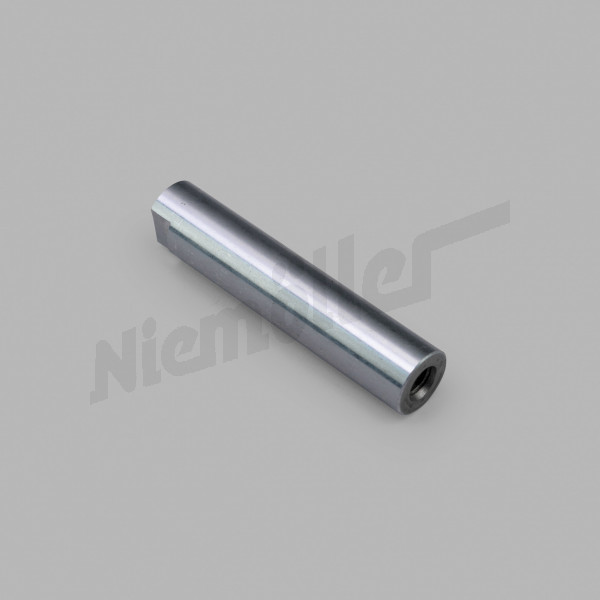

Image number 7		C 26 007 C 26 007	Reverse idler shaft Reverse idler shaft 186 263 00 30 oder 1862630030		€152.07 €152.07
Image number 9		A 32 040b C 32 032a	Nut M10 DIN 934-5S Hexagon nut M10x1 DIN 934 M10 DIN 934-5S oder M10DIN934-5S		on request €1.60
	C 32 032a	Replacement: Hexagon nut M10x1 DIN 934		€1.60
Image number 10		A 26 089 A 26 089	Intermediate lever for reverse gear Intermediate lever for reverse gear 136 260 00 37 oder 1362600037		€157.59 €157.59
Image number 11		D 26 045 D 26 045	Dowel pin Dowel pin 900 037 008 104 oder 900037008104		on request on request
Image number 12		A 26 090 A 26 090	Sliding block in intermediate lever Sliding block in intermediate lever 121 263 01 23 oder 1212630123		€12.10 €12.10
Image number 14		C 26 012 C 26 012	Key Key 186 991 03 68 oder 1869910368		€1.85 €1.85
Image number 15		C 26 014	Front wheel 25 teeth f.3. gear 180 263 04 13 oder 1802630413		on request	Choose the suitable product variant
Image number 15	Image number 15		C 26 014a	38 teeth, for 3rd gear 180 263 03 13 oder 1802630313		Choose the suitable product variant	on request
Image number		C 26 016 C 26 016	30 teeth for gear 30 teeth for gear 180 263 05 10 oder 1802630510		on request on request

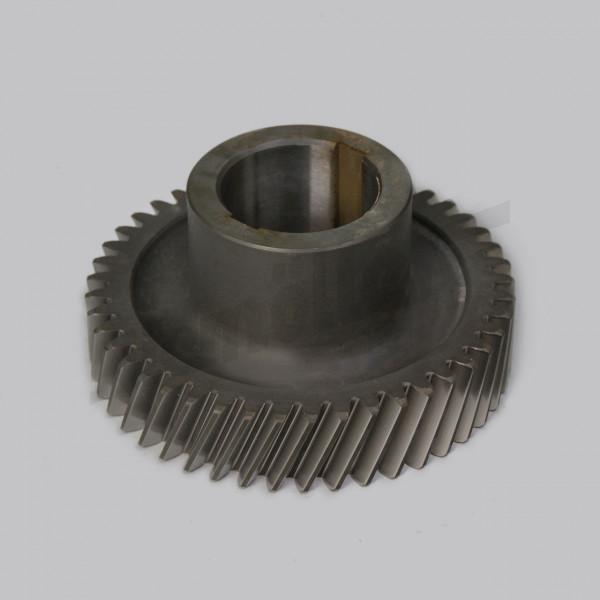

Image number 0		C 26 016a C 26 016a	Front wheel, 45 teeth, for 4th gear Front wheel, 45 teeth, for 4th gear 180 263 04 10 oder 1802630410		on request on request
Image number 17		C 26 017 C 26 017	Snap ring Snap ring 900 055 035 300 oder 900055035300		€0.93 €0.93

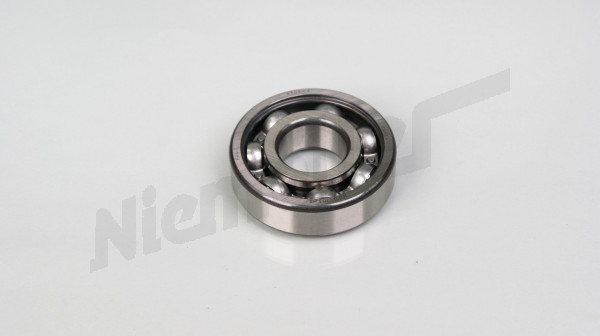

Image number 18		C 26 018 C 26 018	Ball bearring Ball bearring 000 625 036 305 oder 000625036305		€18.50 €18.50
Image number 19		C 26 019	Space washer 0,1mm 120 263 14 52 oder 1202631452		€4.50	Choose the suitable product variant
Image number 19	Image number 19		C 26 020	Space washer 0,25mm 120 263 15 52 oder 1202631552		Choose the suitable product variant	€10.05
Image number 0		C 26 021 C 26 021	Shim 0.5 mm thick Shim 0.5 mm thick 120 263 16 52 oder 1202631652		on request on request
Image number 0		C 26 022 C 26 022	Shim 1.0 mm thick Shim 1.0 mm thick 120 263 08 52 oder 1202630852		on request on request

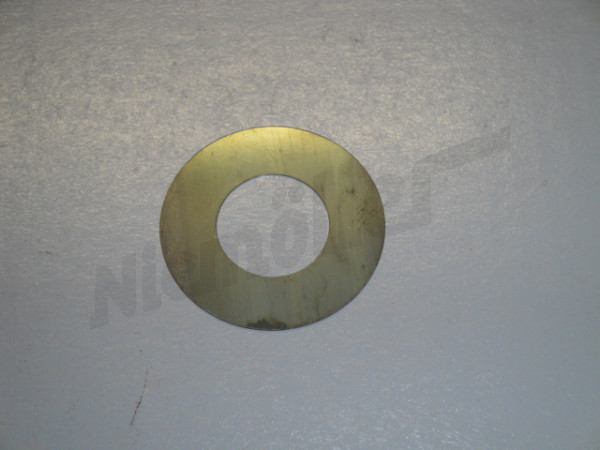

Image number 20		C 26 023 C 26 023	Shim countershaft to bearing Shim countershaft to bearing 186 990 18 40 oder 1869901840		€34.34 €34.34
Image number 24		C 26 027 C 26 027	Oil slinger ring Oil slinger ring 186 262 00 66 oder 1862620066		€9.80 €9.80

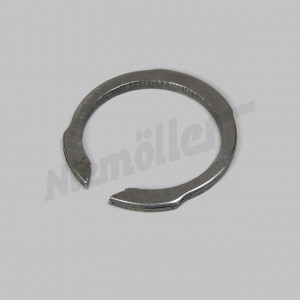

Image number 26		C 26 029 C 26 029	Spring ring Spring ring 123 262 04 94 oder 1232620494		on request on request
Image number 27		C 26 031 C 26 031	Spacer ring Spacer ring 186 262 04 51 oder 1862620451		€6.99 €6.99
Image number 0		C 26 033 C 26 033	Spring ring 1,9mm Spring ring 1,9mm 136 994 06 35 oder 1369940635		€4.65 €4.65
Image number 28		C 26 032 C 26 032	Spring ring 2,0mm Spring ring 2,0mm 136 994 09 35 oder 1369940935		€5.24 €5.24
Image number 0		C 26 034 C 26 034	Spring ring 2,05mm Spring ring 2,05mm 115 994 22 35 oder 1159942235		€5.24 €5.24

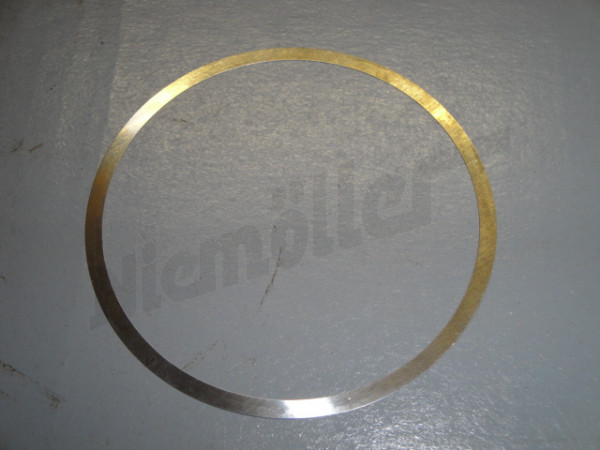

Image number 29		C 26 035 C 26 035	Space washer 0,1mm Space washer 0,1mm 136 262 06 52 oder 1362620652		on request on request
Image number 0		C 26 036 C 26 036	Space washer 0,2mm Space washer 0,2mm 136 262 07 52 oder 1362620752		€3.97 €3.97

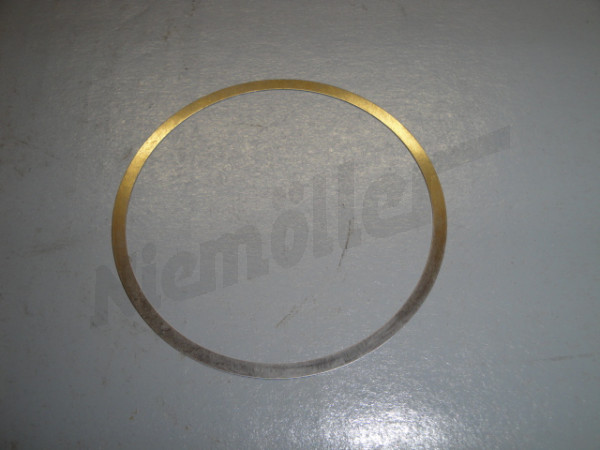

Image number 0		C 26 037 C 26 037	Shim 0.3 mm thick Shim 0.3 mm thick 136 262 08 52 oder 1362620852		on request on request
Image number 30		B 26 059	Main shaft 186 262 15 05 oder 1862621505		€397.00	Choose the suitable product variant
Image number 30	Image number 30		C 26 038	Main shaft from gearbox no.75 02182 180 262 00 05 oder 1802620005		Choose the suitable product variant	€1,310.76
Image number 0		B 26 071 B 26 071	Helical gear 24 teeth for 3 speed Helical gear 24 teeth for 3 speed 180 260 04 44 oder 1802600444		€377.00 €377.00
Image number 31		C 26 040	Helical gear for 3rd gear, needle bearing mounted 180 260 08 44 oder 1802600844		€450.00	Choose the suitable product variant

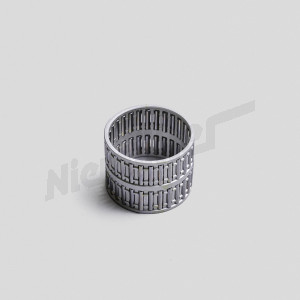

Image number 31	Image number 31		C 26 041	Needle bearring 000 981 29 12 oder 0009812912		Choose the suitable product variant	€197.41
Image number 0		C 26 040a C 26 040a	Helical gear, 31 teeth, for 3rd gear Helical gear, 31 teeth, for 3rd gear 111 260 03 44 oder 1112600344		€1,366.73 €1,366.73

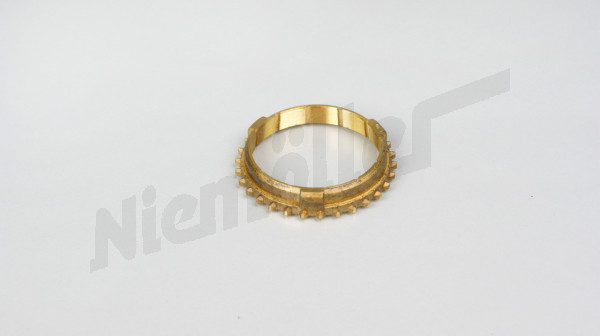

Image number 32		C 26 042 C 26 042	Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) 113 262 00 34 oder 1132620034		€32.00 €32.00

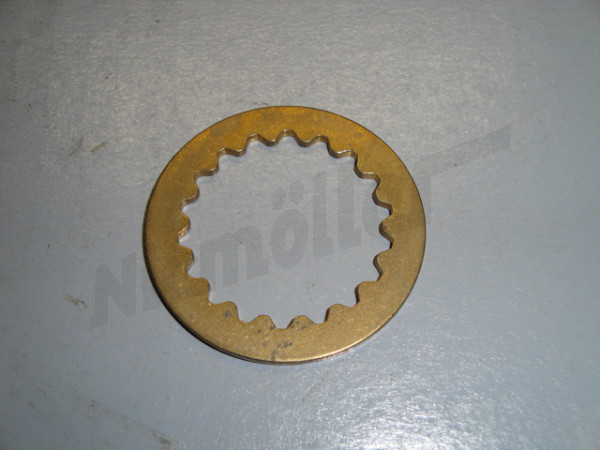

Image number 33		C 26 043 C 26 043	Thrust washer Thrust washer 120 262 23 62 oder 1202622362		€97.89 €97.89

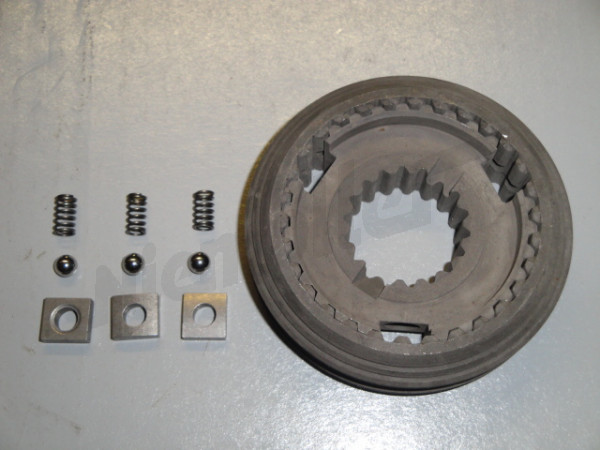

Image number 34		C 26 044 C 26 044	Synchronizer body 3rd and 4th gear Synchronizer body 3rd and 4th gear 111 260 06 45 oder 1112600645		on request on request
Image number 35		C 26 044a C 26 044a	Synchronizer body Synchronizer body 120 262 08 35 oder 1202620835		€520.00 €520.00
Image number 36		C 26 045	Compressing spring 180 993 38 01 oder 1809933801		€2.25	Choose the suitable product variant
Image number 36	Image number 36		C 26 045	Compressing spring 180 993 38 01 oder 1809933801		Choose the suitable product variant	€2.25

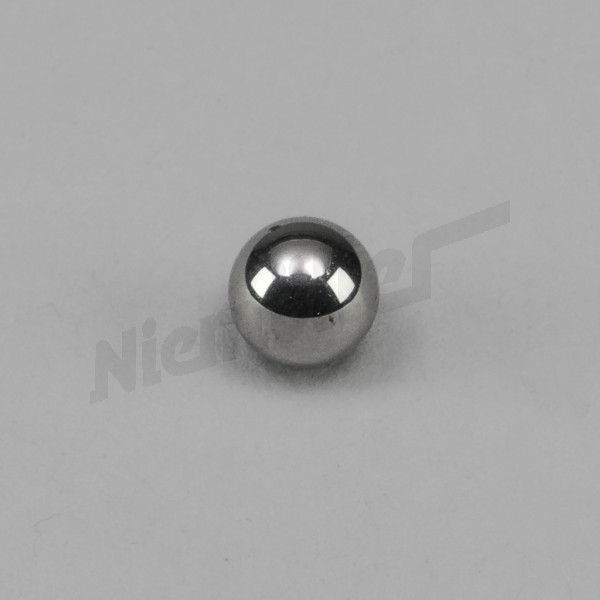

Image number 37		C 26 046 A 26 046	Steel ball 6.5 mm III DIN 5401 Steel ball D: 6.5 mm 005 401 306 500 oder 005401306500		on request €1.00
	A 26 046	Replacement: Steel ball D: 6.5 mm		€1.00
Image number 38		C 26 047 C 26 047	Towing arm Towing arm 121 262 00 40 oder 1212620040		€36.24 €36.24

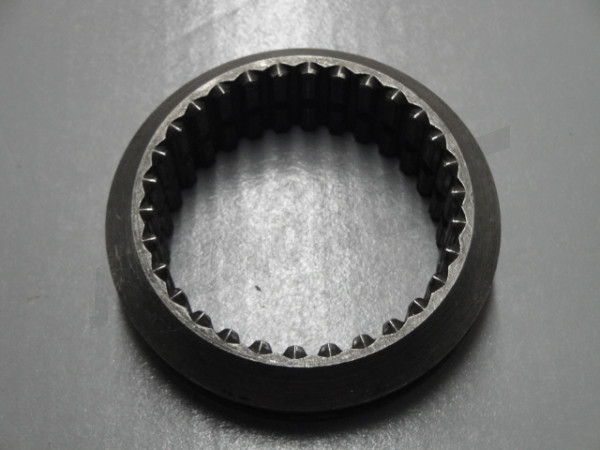

Image number 39		B 26 085 B 26 085	Sliding sleeve Sliding sleeve 319 260 07 45 oder 3192600745		on request on request

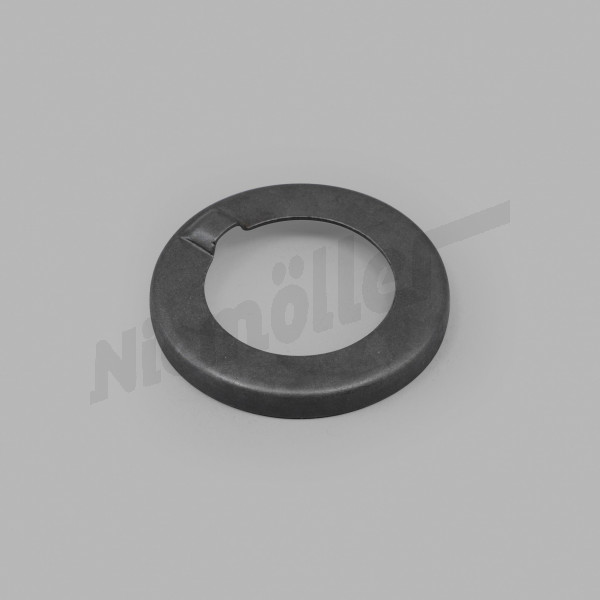

Image number 40		C 26 048 C 26 048	Lock plate Lock plate 120 994 01 15 oder 1209940115		€2.73 €2.73
Image number 41		C 26 049 C 26 049	Grooved nut Grooved nut 120 262 03 26 oder 1202620326		€24.83 €24.83
Image number 42		C 26 050 C 26 050	Needle cage Needle cage 000 981 08 12 oder 0009810812		€19.65 €19.65
Image number 43		C 26 051 C 26 051	Needle cage Needle cage 120 981 03 12 oder 1209810312		€303.26 €303.26
Image number 44		C 26 054 C 26 054	Helical gear, 25. teeth, f.2.speed Helical gear, 25. teeth, f.2.speed 180 262 07 12 oder 1802620712		on request on request
Image number 0		D 26 070 D 26 070	Helical gear 34 teeth Helical gear 34 teeth 180 262 06 12 oder 1802620612		on request on request
Image number 45		C 26 055 C 26 055	Thrust ring 7.9 mm thick Thrust ring 7.9 mm thick 120 262 16 62 oder 1202621662		€130.40 €130.40

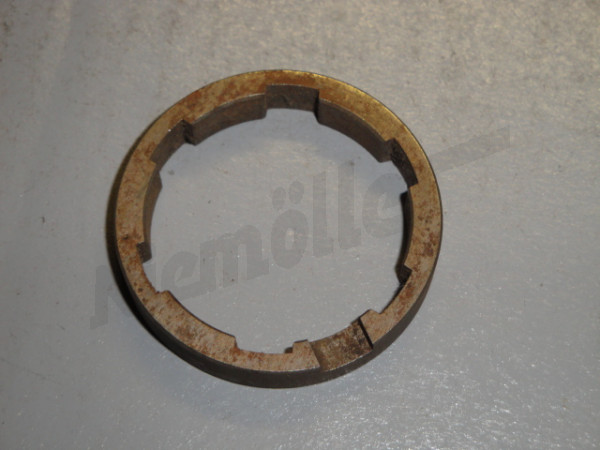

Image number 0		C 26 056 C 26 056	Thrust ring 7.95 mm thick Thrust ring 7.95 mm thick 120 262 17 62 oder 1202621762		on request on request
Image number 0		C 26 056 C 26 056	Thrust ring 7.95 mm thick Thrust ring 7.95 mm thick 120 262 17 62 oder 1202621762		on request on request
Image number 0		D 26 084 D 26 084	Thrust ring 8,05mm thick Thrust ring 8,05mm thick 120 262 19 62 oder 1202621962		on request on request
Image number 0		C 26 058 C 26 058	Thrust ring 8.1 mm thick Thrust ring 8.1 mm thick 120 262 20 62 oder 1202622062		€95.68 €95.68
Image number 46		C 26 042	Synchronizer ring ( compare with old ring besfore instalation - width of the noses ) 113 262 00 34 oder 1132620034		€32.00	Choose the suitable product variant

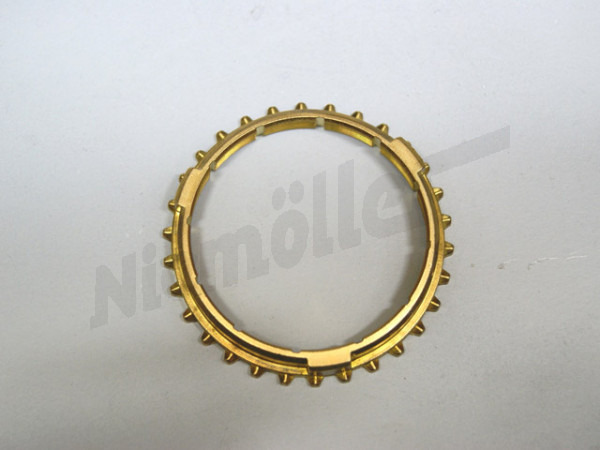

Image number 46	Image number 46		D 26 085	Synchronizer ring for 1st gear 186 262 01 36 oder 1862620136		Choose the suitable product variant	on request
Image number 47		D 26 086 C 26 060	Synchronizer for 1st and 2nd gear Synchronizer for 1st and 2nd gear 111 260 07 45 oder 1112600745		on request €1,373.89
	C 26 060	Replacement: Synchronizer for 1st and 2nd gear		€1,373.89

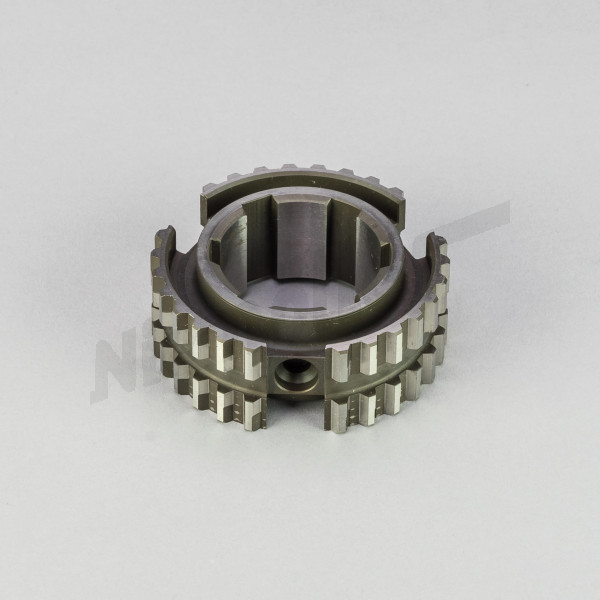

Image number 48		D 26 088 D 26 088	Synchronizer for 1st and 2nd gear Synchronizer for 1st and 2nd gear 111 262 03 35 oder 1112620335		€500.00 €500.00
Image number 49		C 26 045 C 26 045	Compressing spring Compressing spring 180 993 38 01 oder 1809933801		€2.25 €2.25
Image number 50		C 26 046 A 26 046	Steel ball 6.5 mm III DIN 5401 Steel ball D: 6.5 mm 005 401 306 500 oder 005401306500		on request €1.00
	A 26 046	Replacement: Steel ball D: 6.5 mm		€1.00
Image number 51		C 26 047 C 26 047	Towing arm Towing arm 121 262 00 40 oder 1212620040		€36.24 €36.24
Image number 52		D 26 090 D 26 090	Sliding sleeve for 1st and 2nd gear Sliding sleeve for 1st and 2nd gear 111 262 03 23 oder 1112620323		on request on request
Image number 53		C 26 061 C 26 061	Sunk key for main shaft Sunk key for main shaft 120 262 00 81 oder 1202620081		€25.17 €25.17

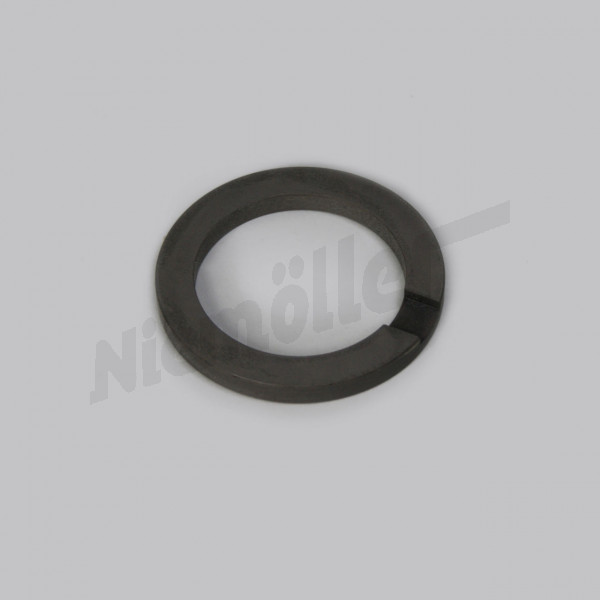

Image number 54		C 26 062 C 26 062	Thrust washer 4.4 mm thick Thrust washer 4.4 mm thick 120 262 11 62 oder 1202621162		€110.00 €110.00

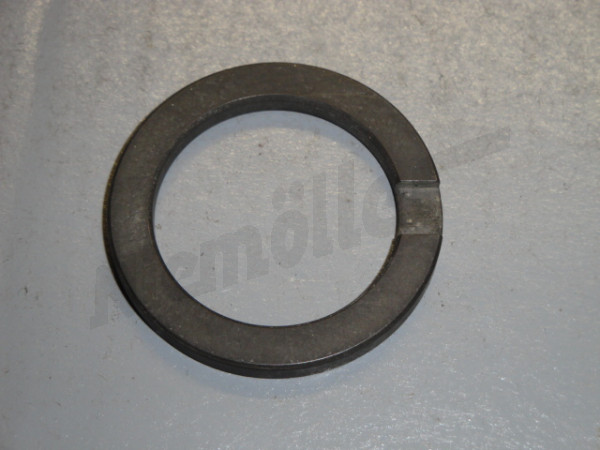

Image number 0		C 26 063 C 26 063	Thrust washer 4.5 mm thick Thrust washer 4.5 mm thick 120 262 13 62 oder 1202621362		€66.53 €66.53
Image number 0		C 26 063 C 26 063	Thrust washer 4.5 mm thick Thrust washer 4.5 mm thick 120 262 13 62 oder 1202621362		€66.53 €66.53

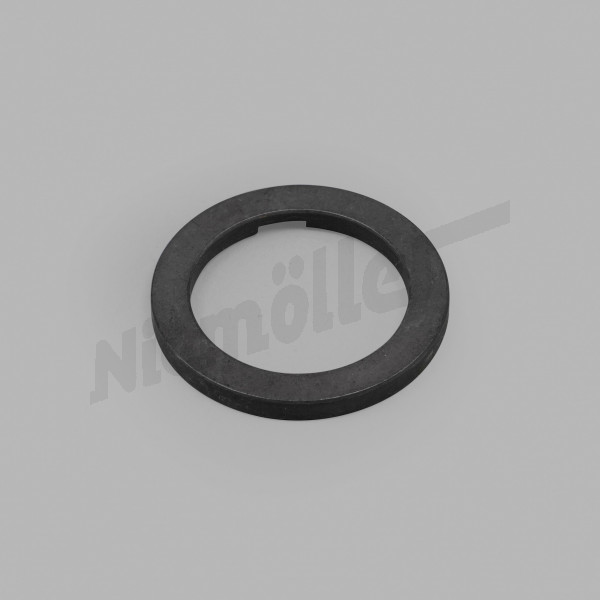

Image number 0		C 26 064 C 26 064	Thrust washer 4.6 mm thick Thrust washer 4.6 mm thick 120 262 15 62 oder 1202621562		€110.34 €110.34

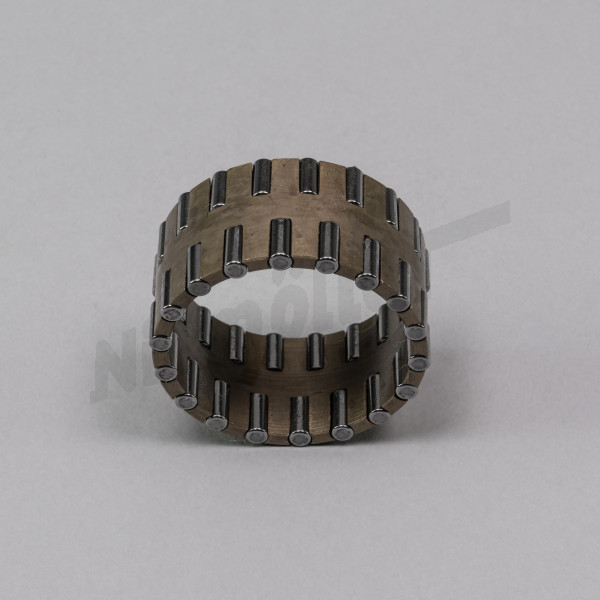

Image number 55		C 26 065 C 26 065	Needle bearring 1st gear Needle bearring 1st gear 001 981 69 10 oder 0019816910		€139.80 €139.80
Image number 56		C 26 067 C 26 067	Helical wheel, 29 teeth, for 1st gear Helical wheel, 29 teeth, for 1st gear 180 262 08 11 oder 1802620811		on request on request

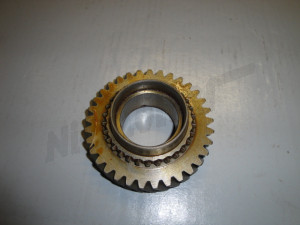

Image number 0		C 26 067a C 26 067a	Helical gear, 33 teeth with high serration Helical gear, 33 teeth with high serration 180 262 07 11 oder 1802620711		€300.00 €300.00
Image number 57		C 26 068 C 26 068	Thrust washer 3.8 mm thick Thrust washer 3.8 mm thick 186 262 01 62 oder 1862620162		on request on request

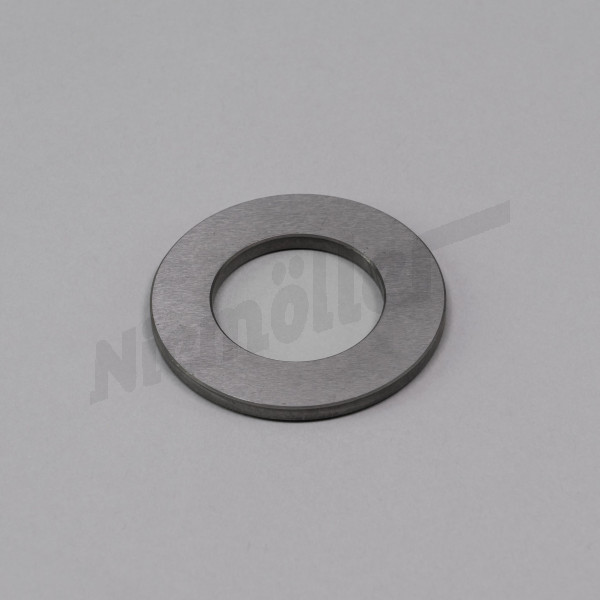

Image number 0		C 26 069 C 26 069	Thrust washer 3.9 mm thick Thrust washer 3.9 mm thick 186 262 02 62 oder 1862620262		on request on request
Image number 0		C 26 070 C 26 070	Thrust washer 4.0 mm thick Thrust washer 4.0 mm thick 186 262 03 62 oder 1862620362		on request on request
Image number 0		C 26 071 C 26 071	Thrust washer 4.1 mm thick Thrust washer 4.1 mm thick 186 262 04 62 oder 1862620462		on request on request
Image number 0		C 26 072 C 26 072	Thrust washer 4.2 mm thick Thrust washer 4.2 mm thick 186 262 05 62 oder 1862620562		on request on request
Image number 0		C 26 073 C 26 073	Thrust washer 4.3 mm thick Thrust washer 4.3 mm thick 186 262 06 62 oder 1862620662		on request on request
Image number 0		C 26 074 C 26 074	Thrust washer 4.4, mm thick Thrust washer 4.4, mm thick 186 262 07 62 oder 1862620762		on request on request

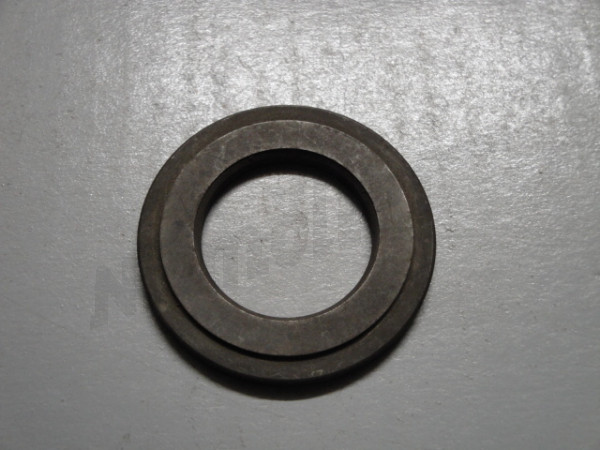

Image number 0		C 26 075 C 26 075	Thrust washer 4.5 mm thick Thrust washer 4.5 mm thick 186 262 08 62 oder 1862620862		on request on request
Image number 58		A 26 024 A 26 024	Deep groove ball bearing on the main shaft Deep groove ball bearing on the main shaft 001 981 32 25 oder 0019813225		€38.00 €38.00

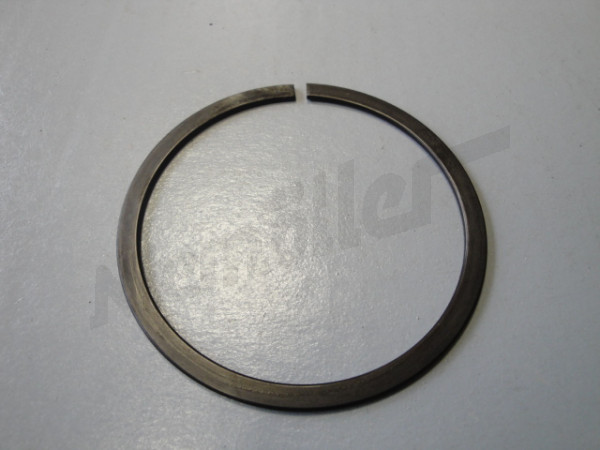

Image number 59		A 26 055 A 26 055	Snap ring f. ring groove bearing Snap ring f. ring groove bearing 005 417 072 001 oder 005417072001		on request on request
Image number 60		C 26 077 C 26 077	Spacer shim 0,1mm thick Spacer shim 0,1mm thick 136 262 04 52 oder 1362620452		€6.50 €6.50

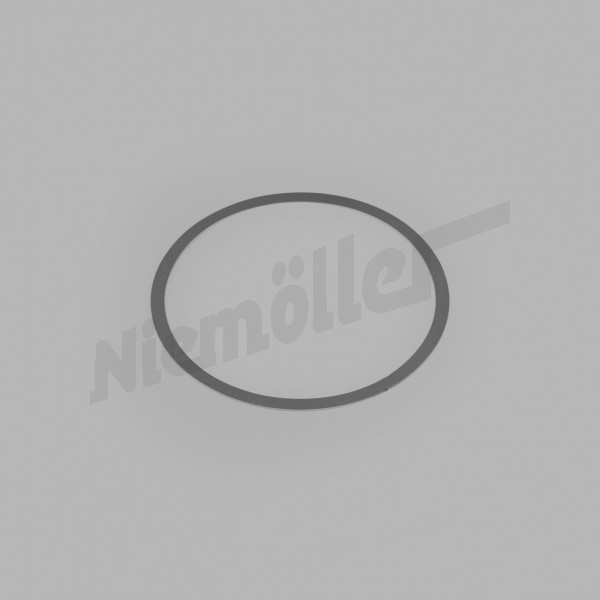

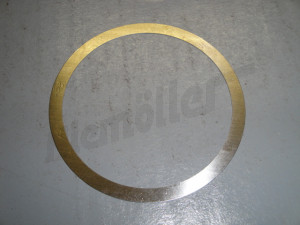

Image number 0		C 26 078 C 26 078	Spacer shim 0,2mm thick Spacer shim 0,2mm thick 136 262 05 52 oder 1362620552		€9.00 €9.00

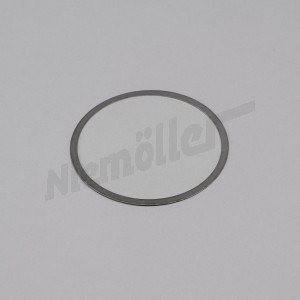

Image number 0		C 26 079 C 26 079	Spacer shim 0,3mm thick Spacer shim 0,3mm thick 136 262 09 52 oder 1362620952		€12.00 €12.00
Image number 61		C 26 082 C 26 082	Helical gear f. speedometer drive Helical gear f. speedometer drive 180 264 02 30 oder 1802640230		on request on request
Image number 62		C 26 085 C 26 085	Front transmission housing cover Front transmission housing cover 121 260 00 21 oder 1212600021		€414.05 €414.05
Image number 63		C 26 088 C 26 088	Sealing ring Sealing ring 186 261 00 60 oder 1862610060		€3.29 €3.29

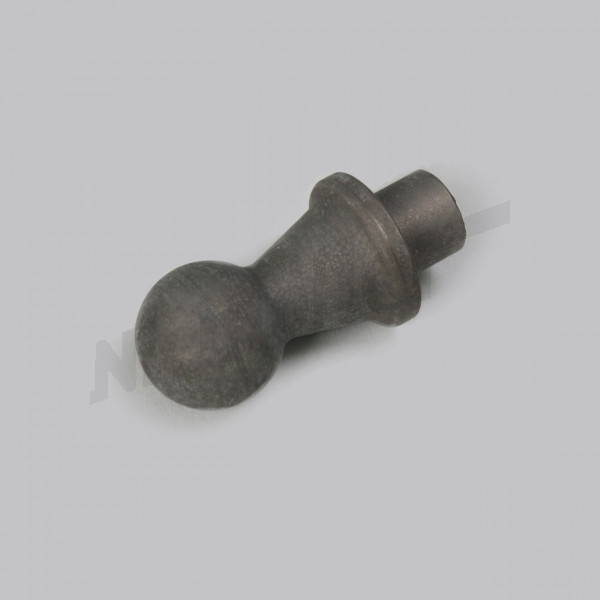

Image number 64		C 26 089 C 26 089	Bolt for clutch release fork Bolt for clutch release fork 120 991 03 15 oder 1209910315		€72.50 €72.50
Image number 0		C 26 089a C 26 089a	Round section seal Round section seal 000 987 38 46 oder 0009873846		on request on request
Image number 68		C 26 090 C 26 090	Gearbox housing cover rear Gearbox housing cover rear 120 260 20 16 oder 1202602016		€685.95 €685.95

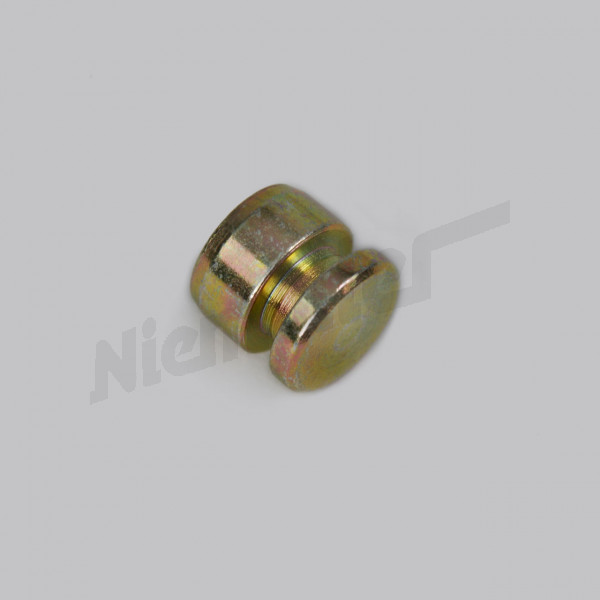

Image number 69		C 26 092 C 26 092	Plug Plug 153 264 00 55 oder 1532640055		€4.74 €4.74
Image number 70		C 26 093 C 26 093	Gasket for rear gearbox cover Gasket for rear gearbox cover 186 261 04 79 oder 1862610479		€2.47 €2.47
Image number 71		C 26 095 C 26 095	Sealing ring rear Sealing ring rear 000 997 17 46 oder 0009971746		€7.20 €7.20

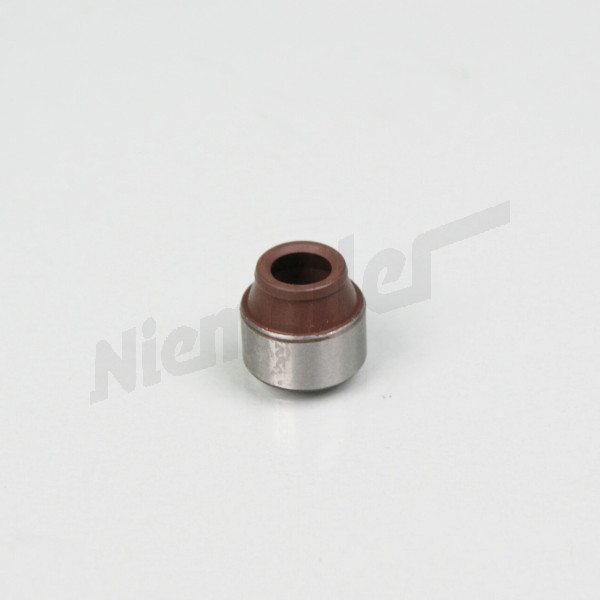

Image number 72		C 26 096 D 26 107	Sealing ring for speedometer drive shaft Sealing ring 120 261 00 80 oder 1202610080		on request €4.00
	D 26 107	Replacement: Sealing ring		€4.00
Image number 73		C 26 098 C 26 098	Shaft for speedometer drive Shaft for speedometer drive 180 264 01 32 oder 1802640132		€119.05 €119.05

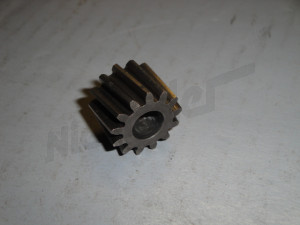

Image number 74		C 26 101 C 26 101	Drive small wheel for tachometer Drive small wheel for tachometer 180 264 00 31 oder 1802640031		on request on request

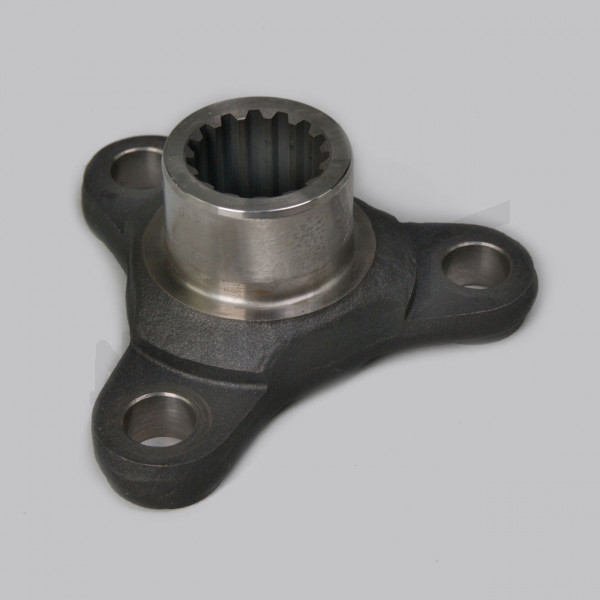

Image number 80		C 26 105 C 26 105	Three-arm flange on the main shaft Three-arm flange on the main shaft 111 262 00 45 oder 1112620045		€415.61 €415.61

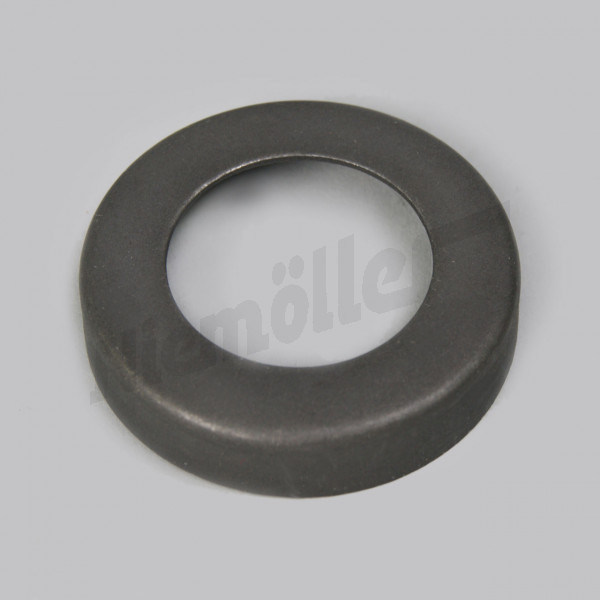

Image number 81		C 26 106 C 26 106	Locking plate Locking plate 186 262 01 73 oder 1862620173		€3.99 €3.99

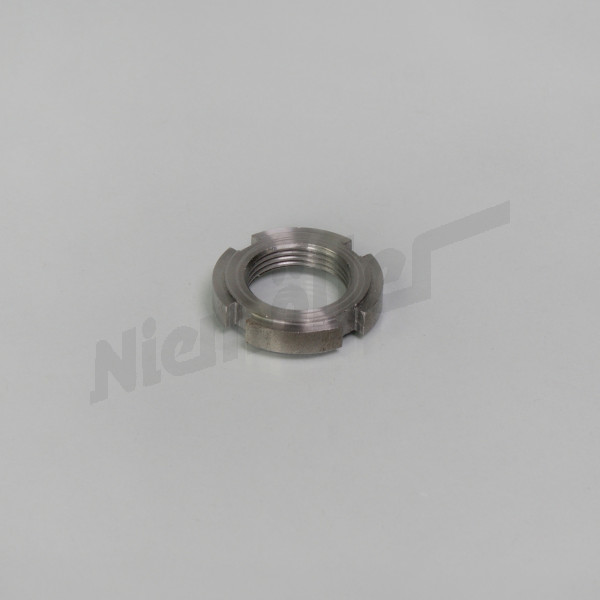

Image number 82		C 26 108 C 26 108	Nut M 24x1,5 Nut M 24x1,5 186 262 02 26 oder 1862620226		€18.00 €18.00
Image number 83		C 14 055	Screw plug 24x1,5 000 997 62 32 oder 0009976232		€2.73	Choose the suitable product variant
Image number 83	Image number 83		C 14 055	Screw plug 24x1,5 000 997 62 32 oder 0009976232		Choose the suitable product variant	€2.73
Image number 84		D 26 111 D 26 111	Plug Plug 115 997 00 32 oder 1159970032		€2.50 €2.50
Image number 91		A 32 040b C 32 032a	Nut M10 DIN 934-5S Hexagon nut M10x1 DIN 934 M10 DIN 934-5S oder M10DIN934-5S		on request €1.60
	C 32 032a	Replacement: Hexagon nut M10x1 DIN 934		€1.60

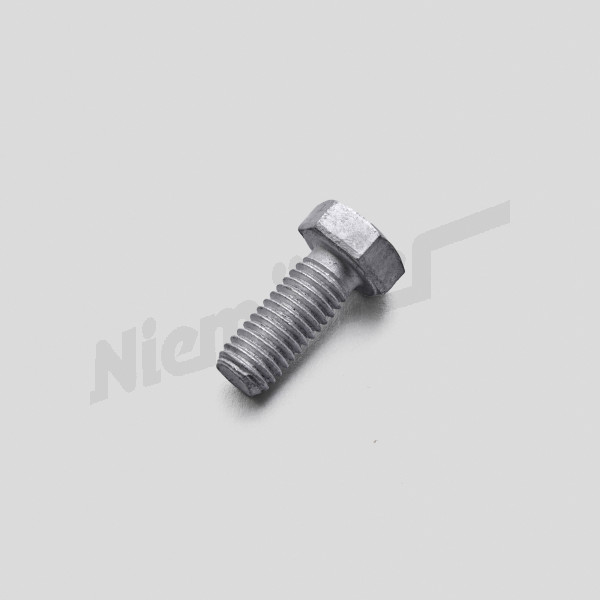

Image number 66		G 35 010 G 35 010	Hexagon head screw M8x22 DIN 933-8G Hexagon head screw M8x22 DIN 933-8G M 8x22 DIN 933-8 G oder M8x22DIN933-8G		€2.20 €2.20
Image number 67		B 03 018 B 03 018	Spring washer Spring washer B 8 DIN 137 oder B8DIN137		€0.30 €0.30
Image number 75		G 42 085 G 42 085	Spring washer Spring washer B 6 DIN 137 oder B6DIN137		€0.30 €0.30
Image number 77		G 35 010 G 35 010	Hexagon head screw M8x22 DIN 933-8G Hexagon head screw M8x22 DIN 933-8G M 8x22 DIN 933-8G oder M8x22DIN933-8G		€2.20 €2.20
Image number 78		B 03 018 B 03 018	Spring washer Spring washer B 8 DIN 137 oder B8DIN137		€0.30 €0.30
Image number 85		G 25 028 G 25 028	Hexagon head screw M10x40 DIN 931-8G Hexagon head screw M10x40 DIN 931-8G M 10x40 DIN 931-8G oder M10x40DIN931-8G		€7.50 €7.50
Image number 89		G 49 063a G 49 063a	Washer 10,5 DIN 125 Washer 10,5 DIN 125 10,5 DIN 125 oder 10,5DIN125		€0.70 €0.70
Image number 90		G 49 063 G 49 063	Spring ring B10 Spring ring B10 B 10 DIN 127 oder B10DIN127		€0.50 €0.50

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

This sentence consists of:

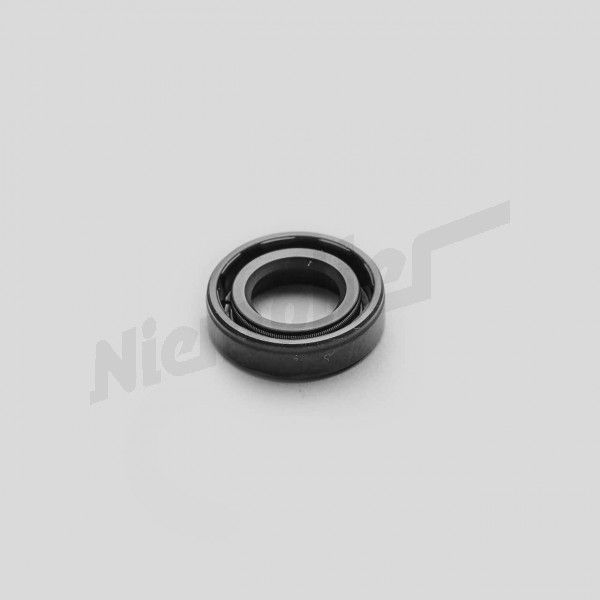

C 01 195a Sealing ring A 24x30 AI, 1 piece

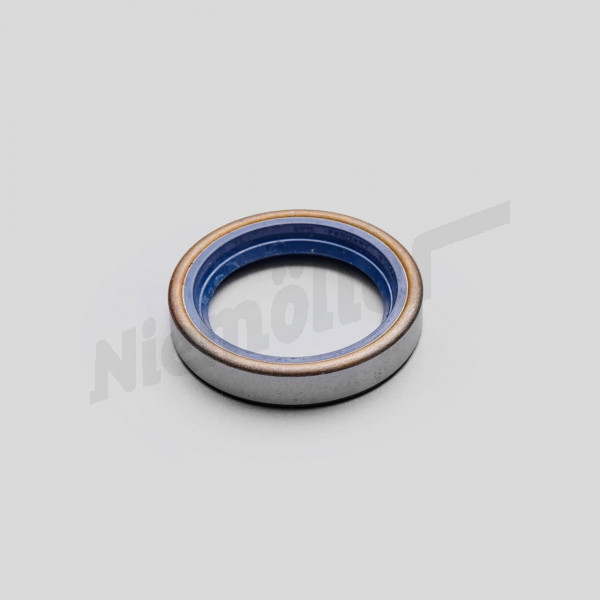

C 26 088 Sealing ring for drive shaft on front gearbox housing cover, 1 piece
C 26 093 Gasket shim for rear transmission housing cover, 1 piece
C 26 095 Sealing ring for main shaft, 1 piece
C 26 106 Fuse for three-arm flange on main shaft, 1 piece
C 26 177 Sealing shim for top gear housing, 1 piece
D 26 081 Seal insert, 1 piece
D 26 107 Sealing ring, 1 piece
D 26 245 Radial sealing ring for selector shaft A 14x26 DIN 6503, 1 piece
C 26 176 Gasket shim for gearbox housing cover top, 1 piece

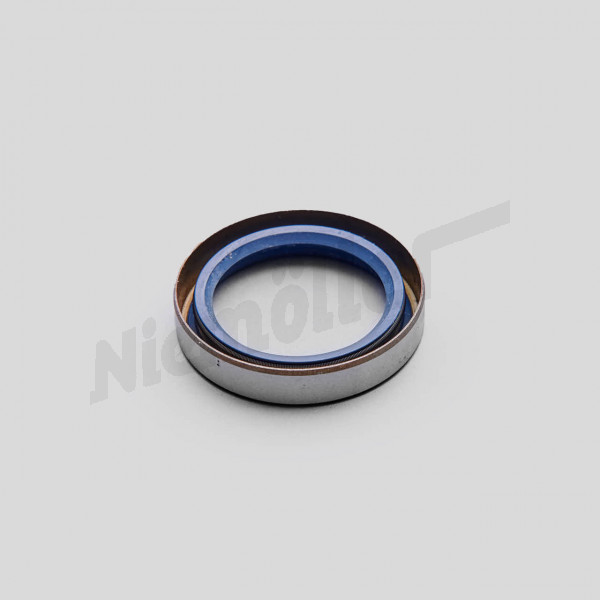

C 26 177a €48.22

C 26 003

C 26 005 €675.70

C 26 006 €86.11

C 26 007 €152.07

A 26 089 €157.59

D 26 045

A 26 090 €12.10

C 26 012 €1.85

No longer available individually, but only in repair kit
up to chassis 003878

C 26 014

Used with DB five-speed transmission
up to chassis 009013

C 26 014a

No longer available individually, but only in repair kit
up to chassis 003878

C 26 016

gearshift transmission;

Used with DB five-speed transmission
up to chassis 009013

C 26 016a

C 26 017 €0.93

C 26 018 €18.50

C 26 019 €4.50

C 26 020 €10.05

C 26 021

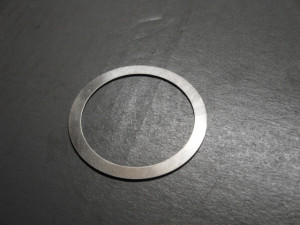

C 26 022

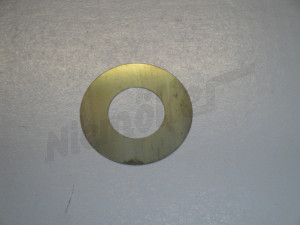

C 26 023 €34.34

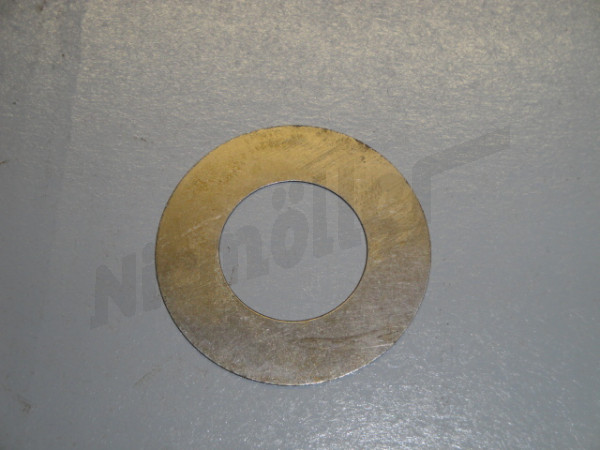

C 26 027 €9.80

C 26 029

C 26 031 €6.99

C 26 033 €4.65

C 26 032 €5.24

C 26 034 €5.24

C 26 035

C 26 036 €3.97

C 26 037

B 26 059 €397.00

C 26 038 €1,310.76

B 26 071 €377.00

No longer available individually, but only in repair kit
up to chassis 003878

C 26 040 €450.00

C 26 041 €197.41

gearshift transmission;

No longer available individually, but only in repair kit
up to chassis 003878

C 26 040a €1,366.73

C 26 042 €32.00

C 26 043 €97.89

C 26 044

C 26 044a €520.00

automatic transmission

C 26 045 €2.25

C 26 047 €36.24

B 26 085

C 26 048 €2.73

C 26 049 €24.83

C 26 050 €19.65

C 26 051 €303.26

No longer available individually, but only in repair kit
up to chassis 003878

C 26 054

gearshift transmission;

Used with DB five-speed transmission
up to chassis 009013

D 26 070

C 26 055 €130.40

C 26 056

D 26 084

C 26 058 €95.68

C 26 042 €32.00

D 26 088 €500.00

C 26 045 €2.25

C 26 047 €36.24

D 26 090

C 26 061 €25.17

C 26 062 €110.00

C 26 063 €66.53

C 26 064 €110.34

C 26 065 €139.80

No longer available individually, but only in repair kit
up to chassis 003878

C 26 067

gearshift transmission;

Used with DB five-speed transmission
up to chassis 009013

C 26 067a €300.00

C 26 068

C 26 069

C 26 070

C 26 071

C 26 072

C 26 073

C 26 074

C 26 075

A 26 024 €38.00

A 26 055

C 26 077 €6.50

C 26 078 €9.00

C 26 079 €12.00

C 26 082

Left-hand-drive, gearshift transmission

C 26 085 €414.05

C 26 088 €3.29

gearshift transmission

C 26 089 €72.50

automatic transmission

C 26 089a

C 26 090 €685.95

C 26 092 €4.74

C 26 093 €2.47

C 26 095 €7.20

C 26 098 €119.05

C 26 101

C 26 105 €415.61

C 26 106 €3.99

C 26 108 €18.00

C 14 055 €2.73

D 26 111 €2.50

gearshift transmission

G 35 010 €2.20

B 03 018 €0.30

G 42 085 €0.30

G 35 010 €2.20

B 03 018 €0.30

gearshift transmission

G 25 028 €7.50

G 49 063a €0.70

G 49 063 €0.50

in stock
low stock level
currently not in stock, but available for order
no longer available

C 26 177a €48.22

C 26 003

C 26 005 €675.70

C 26 006 €86.11

C 26 007 €152.07

A 26 089 €157.59

D 26 045

A 26 090 €12.10

C 26 012 €1.85

C 26 014

C 26 014a

C 26 016

C 26 016a

C 26 017 €0.93

C 26 018 €18.50

C 26 019 €4.50

C 26 020 €10.05

C 26 021

C 26 022

C 26 023 €34.34

C 26 027 €9.80

C 26 029

C 26 031 €6.99

C 26 033 €4.65

C 26 032 €5.24

C 26 034 €5.24

C 26 035

C 26 036 €3.97

C 26 037

B 26 059 €397.00

C 26 038 €1,310.76

B 26 071 €377.00

C 26 040 €450.00

C 26 041 €197.41

C 26 040a €1,366.73

C 26 042 €32.00

C 26 043 €97.89

C 26 044

C 26 044a €520.00

C 26 045 €2.25

C 26 047 €36.24

B 26 085

C 26 048 €2.73

C 26 049 €24.83

C 26 050 €19.65

C 26 051 €303.26

C 26 054

D 26 070

C 26 055 €130.40

C 26 056

D 26 084

C 26 058 €95.68

C 26 042 €32.00

D 26 088 €500.00

C 26 045 €2.25

C 26 047 €36.24

D 26 090

C 26 061 €25.17

C 26 062 €110.00

C 26 063 €66.53

C 26 064 €110.34

C 26 065 €139.80

C 26 067

C 26 067a €300.00

C 26 068

C 26 069

C 26 070

C 26 071

C 26 072

C 26 073

C 26 074

C 26 075

A 26 024 €38.00

A 26 055

C 26 077 €6.50

C 26 078 €9.00

C 26 079 €12.00

C 26 082

C 26 085 €414.05

C 26 088 €3.29

C 26 089 €72.50

C 26 089a

C 26 090 €685.95

C 26 092 €4.74

C 26 093 €2.47

C 26 095 €7.20

C 26 098 €119.05

C 26 101

C 26 105 €415.61

C 26 106 €3.99

C 26 108 €18.00

C 14 055 €2.73

D 26 111 €2.50

G 35 010 €2.20

B 03 018 €0.30

G 42 085 €0.30

G 35 010 €2.20

B 03 018 €0.30

G 25 028 €7.50

G 49 063a €0.70

G 49 063 €0.50

in stock
low stock level
currently not in stock, but available for order
no longer available
