Mercedes-Benz 300cCD, w186

Chosen model:

Chassis: 186.033
Engine: 186.920, 921
Choose different model

Current unit you are viewing: 42 Pistol-Grip Hand Brake

[{"type":"poly","coords":[373,159,382,168,394,165,416,100,425,103,434,92,427,82,432,58,440,75,448,69,452,57,442,23,434,16,423,17],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/a42154-handle-bar-polished-for-handbrake","cssSelector":".product-group-1","info":"{\"ids\":\"A 42 154\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[390,172,385,178,390,186,402,195,411,198,420,194,418,177],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/a42156-rubber-ring","cssSelector":".product-group-3","info":"{\"ids\":\"A 42 156\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[362,165,356,178,349,195,306,310,311,321,319,327,326,325,351,264,372,261,370,236,382,192,374,164],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/b42358-bearing-block-for-stick-hand-brake","cssSelector":".product-group-4","info":"{\"ids\":\"B 42 358\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[344,162,334,168,332,176,338,184,351,188,356,181,356,169],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/a42160-pawl-for-pawl-bar","cssSelector":".product-group-6","info":"{\"ids\":\"A 42 160\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[332,138,318,148,322,158,329,165,339,163,343,153,342,143],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/a42161-pressure-spring-for-pawl","cssSelector":".product-group-7","info":"{\"ids\":\"A 42 161\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[410,210,400,225,404,235,414,237,420,231,422,216],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/a42163-hexagon-head-screw-w-spigot","cssSelector":".product-group-10","info":"{\"ids\":\"A 42 163\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[317,182,303,191,305,204,315,207,325,205,333,196],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/a42165-hexagonal-screw-for-bearing-bracket-on-stem","cssSelector":".product-group-11","info":"{\"ids\":\"A 42 165\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[358,292,345,302,338,311,340,321,352,331,369,335,380,331,382,315,370,289],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/b42360-rubber-grommet-for-guide-tube","cssSelector":".product-group-15","info":"{\"ids\":\"B 42 360\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[308,327,233,507,234,513,241,513,273,428,287,430,290,412,317,331],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/b42362-front-brake-cable-300b-c-d","cssSelector":".product-group-16","info":"{\"ids\":\"B 42 362\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[280,316,268,334,266,344,276,349,288,350,291,339,292,321],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/b42364-spring-for-pawl-bar-in-guide-tube","cssSelector":".product-group-17","info":"{\"ids\":\"B 42 364\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[211,515,222,515,233,516,248,535,256,545,268,562,280,573,285,583,289,612,307,637,314,649,314,663,300,673,287,673,274,662,278,648],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/b42372-handbrake-lever-with-bushing","cssSelector":".product-group-43","info":"{\"ids\":\"B 42 372\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[244,632,243,645,257,649,268,650,277,644,268,635],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/b42375-bushing-for-handbrake-lever","cssSelector":".product-group-44","info":"{\"ids\":\"B 42 375\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[166,619,178,618,211,692,233,716,260,714,277,697,301,686,333,658,348,649,358,637,428,457,437,455,439,461,372,637,407,639,428,649,438,663,441,674,440,690,428,703,414,707,388,707,371,700,350,665,316,698,282,717,251,725,220,723,196,710],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/b42382-medium-brake-cable-300c-d","cssSelector":".product-group-52","info":"{\"ids\":\"B 42 382\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[344,569,346,598,354,604,364,598,366,582,364,575],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/b42383-grommet-hand-brake","cssSelector":".product-group-53","info":"{\"ids\":\"B 42 383\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"poly","coords":[429,405,428,418,437,433,446,437,454,433,462,407,462,397,454,393],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/b42384-clevis-for-tie-rod-rope-pull-and-pulley","cssSelector":".product-group-54","info":"{\"ids\":\"B 42 384\",\"stock_info\":\" (currently not in stock, but available for order)\",\"stock_light\":\"rgb(224, 151, 78)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(224, 151, 78,0.4)","strokeStyle":"black"},{"type":"poly","coords":[261,497,253,516,258,526,267,530,284,530,285,521,284,503,276,495],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/a42181-winged-nut","cssSelector":".product-group-62","info":"{\"ids\":\"A 42 181\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[220,488,212,495,198,501,198,509,205,513,216,510,222,509,228,511,232,504,229,494],"href":"https:\/\/www.niemoeller.de\/en\/w186\/w186\/BCD\/42\/a42185-bracket-for-brake-cable-guide-front","cssSelector":".product-group-63","info":"{\"ids\":\"A 42 185\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"}]

Pic.	Designation
Image number 1	A 42 154 A 42 154	Handle bar polished for handbrake Handle bar polished for handbrake 181 420 01 88 oder 1814200188	€75.00 €75.00
Image number R2	B 42 357 B 42 357	R.L. handle bar R.L. handle bar 186 420 00 88 oder 1864200088	on request on request
Image number 3	A 42 156 A 42 156	Rubber ring Rubber ring 136 997 05 82 oder 1369970582	€8.00 €8.00

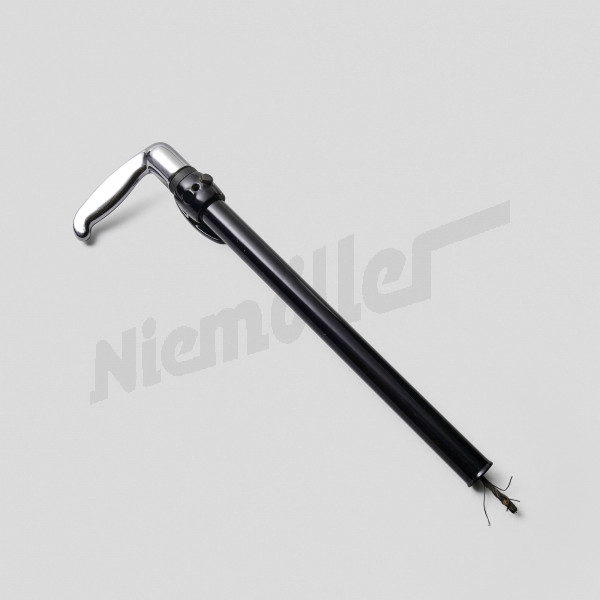

Image number 4	B 42 358 B 42 358	Bearing block (for stick hand brake) Bearing block (for stick hand brake) 186 420 00 78 oder 1864200078	on request on request
Image number R5	B 42 359 B 42 359	Clevis foot for manual brake R.L. Clevis foot for manual brake R.L. 186 420 02 78 oder 1864200278	on request on request
Image number 6	A 42 160 A 42 160	Pawl for pawl bar Pawl for pawl bar 319 427 01 15 oder 3194270115	€4.60 €4.60
Image number 7	A 42 161 A 42 161	Pressure spring for pawl Pressure spring for pawl 153 993 07 01 oder 1539930701	€3.51 €3.51
Image number 10	A 42 163 A 42 163	Hexagon head screw w.spigot Hexagon head screw w.spigot 136 990 00 15 oder 1369900015	on request on request
Image number 11	A 42 165 A 42 165	Hexagonal screw for bearing bracket on stem Hexagonal screw for bearing bracket on stem 000 990 60 01 oder 0009906001	on request on request

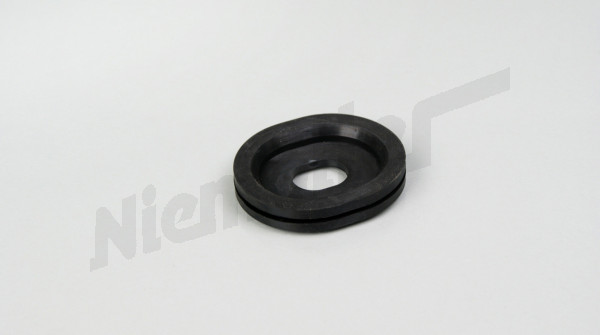

Image number 15	B 42 360 B 42 360	Rubber grommet (for guide tube) Rubber grommet (for guide tube) 186 427 02 91 oder 1864270291	€20.37 €20.37

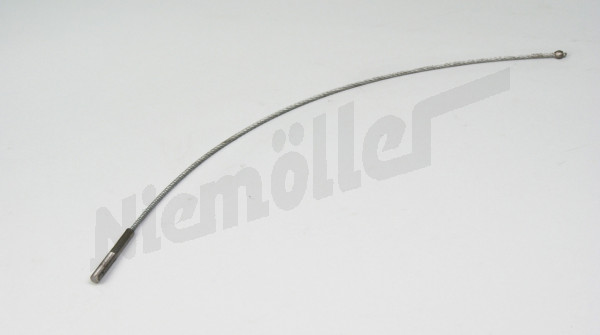

Image number 16	B 42 362 B 42 362	Front brake cable 300b, c, d Front brake cable 300b, c, d 186 420 16 85 oder 1864201685	€80.00 €80.00
Image number 17	B 42 364 B 42 364	Spring (for pawl bar in guide tube) Spring (for pawl bar in guide tube) 186 427 00 21 oder 1864270021	on request on request
Image number R19	B 42 365 B 42 365	Front brake cable R.L. Front brake cable R.L. 186 420 17 85 oder 1864201785	on request on request
Image number R20	B 42 366 B 42 366	Rod clevis R.L. Rod clevis R.L. 183 427 01 89 oder 1834270189	on request on request
Image number R24	A 42 207 A 42 207	Cable pulley Cable pulley 187 427 01 42 oder 1874270142	€122.20 €122.20
Image number R25	A 42 208 A 42 208	Spacer sleeve Spacer sleeve 187 427 01 53 oder 1874270153	€6.49 €6.49
Image number R26	A 42 030 A 42 030	Shim 1,0mm Shim 1,0mm 187 427 00 52 oder 1874270052	€34.19 €34.19
Image number R27	B 42 367 B 42 367	Bolt (for Sr.s.Srl.r.u.l.) R.L. Bolt (for Sr.s.Srl.r.u.l.) R.L. 183 427 03 74 oder 1834270374	on request on request
Image number R31	B 42 368 B 42 368	Rope roller bearing left R.L. Rope roller bearing left R.L. 186 427 00 46 oder 1864270046	on request on request
Image number R31	B 42 369 B 42 369	Rope roller bearing left R.L. Rope roller bearing left R.L. 186 427 02 46 oder 1864270246	on request on request
Image number R34	B 42 370 B 42 370	Front holder (for guide tube) R.L. Front holder (for guide tube) R.L. 186 420 03 86 oder 1864200386	on request on request
Image number 43	B 42 372 B 42 372	Handbrake lever with bushing Handbrake lever with bushing 186 420 02 12 oder 1864200212	on request on request
Image number 44	B 42 375 B 42 375	Bushing (for handbrake lever) Bushing (for handbrake lever) 191 427 00 50 oder 1914270050	on request on request

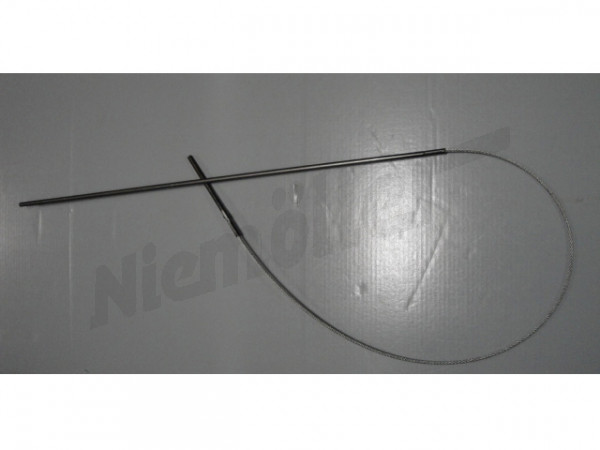

Image number 52	B 42 382 B 42 382	Medium brake cable 300c, d Medium brake cable 300c, d 186 420 20 85 oder 1864202085	on request on request
Image number 53	B 42 383 B 42 383	Grommet, hand brake Grommet, hand brake 186 427 00 91 oder 1864270091	€15.00 €15.00
Image number 54	B 42 384 B 42 384	Clevis for tie rod rope pull and pulley Clevis for tie rod rope pull and pulley 186 427 02 39 oder 1864270239	€70.80 €70.80
Image number 62	A 42 181 A 42 181	Winged nut Winged nut 187 427 00 19 oder 1874270019	€117.70 €117.70
Image number 63	A 42 185 A 42 185	Bracket for brake cable guide front Bracket for brake cable guide front 186 420 00 86 oder 1864200086	on request on request

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

Left-hand drive

A 42 154 €75.00

Right-hand drive

B 42 357

A 42 156 €8.00

Left-hand drive

B 42 358

Right-hand drive

B 42 359

A 42 160 €4.60

A 42 161 €3.51

For thrust bearing in bearing block

A 42 163

For bearing block on girder stem

A 42 165

Left-hand drive

B 42 360 €20.37

Left-hand drive

B 42 362 €80.00

Left-hand drive

B 42 364

Right-hand drive

B 42 365

Right-hand drive

B 42 366

Right-hand drive

A 42 207 €122.20

Right-hand drive for rope pulley on rope pulley bearings on right and left side

A 42 208 €6.49

Right-hand drive for rope pulley on rope pulley bearings on right and left side

A 42 030 €34.19

Right-hand drive for rope pulley on rope pulley bearings on right and left side

B 42 367

Right-hand drive

B 42 368

Right-hand drive

B 42 369

Right-hand drive

B 42 370

B 42 372

B 42 375

B 42 382

B 42 383 €15.00

B 42 384 €70.80

A 42 181 €117.70

A 42 185

in stock
low stock level
currently not in stock, but available for order
no longer available

A 42 154 €75.00

B 42 357

A 42 156 €8.00

B 42 358

B 42 359

A 42 160 €4.60

A 42 161 €3.51

A 42 163

A 42 165

B 42 360 €20.37

B 42 362 €80.00

B 42 364

B 42 365

B 42 366

A 42 207 €122.20

A 42 208 €6.49

A 42 030 €34.19

B 42 367

B 42 368

B 42 369

B 42 370

B 42 372

B 42 375

B 42 382

B 42 383 €15.00

B 42 384 €70.80

A 42 181 €117.70

A 42 185
