MB 220SECp W128.037 engine 127.983

Chosen model:

Chassis: 128.037
Engine: 127.983
Choose different model

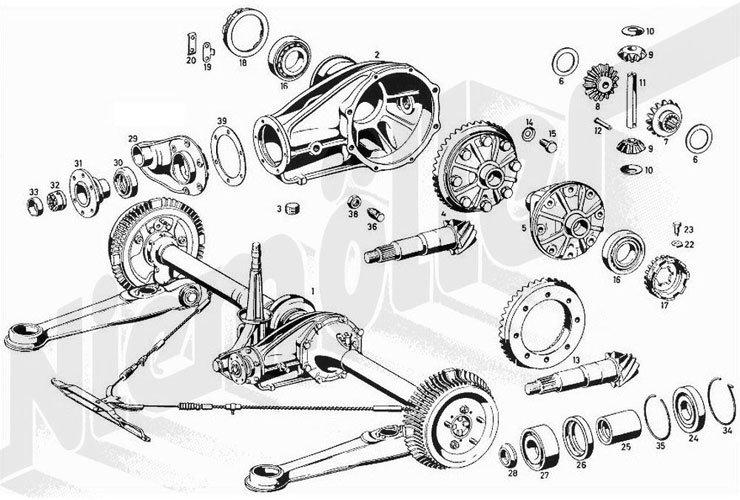

Current unit you are viewing: 35 Rear Axle

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		C 35 005	Rear axle complete 1:4,1 180 350 14 00 oder 1803501400		on request	Choose the suitable product variant
Image number 1	Image number 1		C 35 006	Rear axle complete 1:4,1 180 350 10 00 oder 1803501000		Choose the suitable product variant	on request
Image number 2		C 35 026 C 35 026	Rear axle cover Rear axle cover 180 350 01 20 oder 1803500120		on request on request
Image number 3		C 14 055 C 14 055	Screw plug 24x1,5 Screw plug 24x1,5 186 997 00 32 oder 1869970032		€2.73 €2.73
Image number 4		C 35 047 C 35 047	Differential gear 1:3,90 Differential gear 1:3,90 180 350 05 23 oder 1803500523		on request on request
Image number 5		C 35 302 C 35 302	Differential housing Differential housing 180 353 05 01 oder 1803530501		on request on request
Image number 6		D 35 118	Thrust washer 1.3 mm thick 180 353 10 62 oder 1803531062		on request	Choose the suitable product variant
	Image number 6		D 35 119	Thrust washer 1.4 mm thick 180 353 11 62 oder 1803531162			on request
	Image number 6		D 35 120	Thrust washer 1.5 mm thick 180 353 12 62 oder 1803531262			on request
	Image number 6		D 35 121	Thrust washer 1.6 mm thick 180 353 13 62 oder 1803531362			on request
	Image number 6		D 35 122	Thrust washer 1.7 mm thick 180 353 14 62 oder 1803531462			on request
Image number 7		C 35 052 C 35 052	Rear axle shaft wheel left 16 teeth Rear axle shaft wheel left 16 teeth 180 353 08 15 oder 1803530815		€176.40 €176.40
Image number 8		C 35 054 C 35 054	Rear axle shaft wheel right 16 teeth Rear axle shaft wheel right 16 teeth 180 350 03 40 oder 1803500340		€446.86 €446.86
Image number 9		A 35 057 A 35 057	Balancing bevel gear 10 teeth Balancing bevel gear 10 teeth 180 353 00 14 oder 1803530014		€347.65 €347.65
Image number 10		A 35 058 A 35 058	Spherical washer for differential bevel gear Spherical washer for differential bevel gear 180 353 00 24 oder 1803530024		€21.90 €21.90
Image number 11		C 35 058 C 35 058	Balance pin for balance bevel gear Balance pin for balance bevel gear 180 353 00 21 oder 1803530021		€125.20 €125.20
Image number 12		C 35 039 C 35 039	Locking pin for balancing bolt Locking pin for balancing bolt 136 353 02 74 oder 1363530274		€17.00 €17.00
Image number 13		C 35 062 C 35 062	Ring- and pinion gear 1:4,10 Ring- and pinion gear 1:4,10 180 350 02 39 oder 1803500239		on request on request
Image number 14		C 35 042 C 35 042	Washer Washer 120 994 00 10 oder 1209940010		€17.27 €17.27
Image number 15		C 35 043 C 35 043	Hexagon screw M10 fx20 Hexagon screw M10 fx20 183 990 01 01 oder 1839900101		€12.92 €12.92
Image number 16		C 35 065 C 35 065	Tapered roller bearing Tapered roller bearing 000 981 14 05 oder 0009811405		€29.90 €29.90
Image number 17		C 35 066 C 35 066	Threaded ring for rear axle housingf. all Ponton W105, W120,W121, W128, W180 Threaded ring for rear axle housingf. all Ponton W105, W120,W121, W128, W180 180 353 08 25 oder 1803530825		on request on request
Image number 18		C 35 067 C 35 067	Threaded ring for rear axle housing Threaded ring for rear axle housing 180 353 06 25 oder 1803530625		€187.85 €187.85
Image number 19		C 35 068	Fuse for differential 180 353 01 73 oder 1803530173		on request	Choose the suitable product variant
	Image number 19		C 35 069	Fuse for .differential gear 180 353 02 73 oder 1803530273			on request
	Image number 19		C 35 070	Locking plate 180 353 03 73 oder 1803530373			€11.00
	Image number 19		C 35 071	Fuse for differential gear 180 353 05 73 oder 1803530573			€45.90
	Image number 19		C 35 072	Fuse for differential 180 353 06 73 oder 1803530673			on request
Image number 20		C 35 073 C 35 073	Locking plate Locking plate 180 994 00 30 oder 1809940030		€2.25 €2.25
Image number 22		C 35 075 C 35 075	Locking plate Locking plate 180 994 01 10 oder 1809940110		€16.00 €16.00
Image number 23		C 35 074 C 35 074	Locking screw for threaded ring Locking screw for threaded ring 180 990 02 15 oder 1809900215		€13.44 €13.44
Image number 24		C 35 090 C 35 090	Ring cylinder bearing (loose outer ring) Ring cylinder bearing (loose outer ring) 000 981 16 01 oder 0009811601		€78.31 €78.31
Image number 25		C 35 091 C 35 091	Distance sleeve Distance sleeve 180 353 00 40 oder 1803530040		on request on request
Image number 26		C 35 077 C 35 077	Thrust collar Thrust collar 180 353 01 48 oder 1803530148		on request on request
Image number 27		C 35 093 C 35 093	Bearing Bearing 000 981 04 27 oder 0009810427		€165.00 €165.00
Image number 28		C 35 094 C 35 094	Shoulder ring Shoulder ring 180 353 00 63 oder 1803530063		€142.68 €142.68
Image number 29		C 35 095 C 35 095	Cover for rear axle housing front Cover for rear axle housing front 180 353 03 08 oder 1803530308		on request on request
Image number 30		C 35 079 C 35 079	Sealing ring 35x55x12/16 Sealing ring 35x55x12/16 000 997 13 46 oder 0009971346		€15.50 €15.50
Image number 31		C 35 100 C 35 100	Joint flange for drive pinion Joint flange for drive pinion 180 350 01 45 oder 1803500145		€406.08 €406.08
Image number 32		C 35 082 C 35 082	Grooved nut Grooved nut 120 350 00 66 oder 1203500066		€36.05 €36.05
Image number 33		C 35 083 C 35 083	Locking ring Locking ring 120 994 00 44 oder 1209940044		€2.52 €2.52
Image number 34		C 35 084 C 35 084	Rear snap ring Rear snap ring 120 994 02 35 oder 1209940235		€9.84 €9.84
Image number 36		A 35 124 A 35 124	Set screw for thrust collar in rear axle housing Set screw for thrust collar in rear axle housing 183 351 01 70 oder 1833510170		€35.00 €35.00
Image number 38		C 35 107 C 35 107	Hexagon nut for adjusting screw Hexagon nut for adjusting screw 180 990 01 50 oder 1809900150		on request on request
Image number 39		C 35 085	Spacer washer 1,00mm 120 353 24 52 oder 1203532452		€25.00	Choose the suitable product variant
	Image number 39		C 35 086	Spacer washer 1,10mm thick 120 353 26 52 oder 1203532652			€25.00
	Image number 39		C 35 087	Shim 1.20 mm thick 120 353 28 52 oder 1203532852			€25.00
	Image number 39		C 35 088	Shim 1.60 mm thick 120 353 36 52 oder 1203533652			€25.00
	Image number 39		C 35 088a	Shim 2.00 mm thick 120 353 44 52 oder 1203534452			on request
	Image number 39		C 35 089	Shim 2.05 mm thick 120 353 45 52 oder 1203534552			on request

Please note that the product names may be an automatic translation for which no guarantee can be given.
