Ponton 180b Mercedes-Benz w120

Chosen model:

Chassis: 120.010
Engine: 121.923
Choose different model

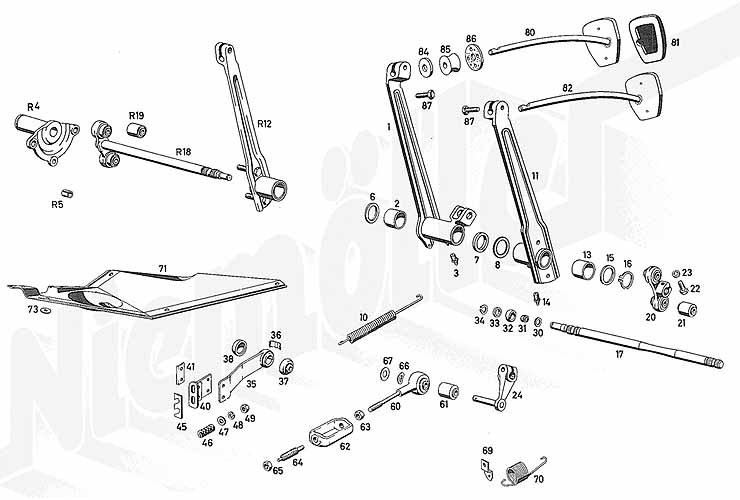

Current unit you are viewing: 29 Pedal Assembly

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 1		C 29 001a	Brake pedal with bushing 180 290 01 18 oder 1802900118		on request	Choose the suitable product variant
Image number 1	Image number 1		C 29 002	Brake foot lever with bushing R. L. 121 290 01 18 oder 1212900118		Choose the suitable product variant	€230.00
Image number 2		C 29 003 C 29 003	Bushing for brake pedal Bushing for brake pedal 120 292 05 50 oder 1202920550		€37.00 €37.00
Image number 3		A 41 015 A 41 015	Grease nipple Grease nipple 071 412 008 100 oder 071412008100		€1.25 €1.25
Image number 4		C 29 062 C 29 062	Bearing body for brake pedal Bearing body for brake pedal 120 292 02 04 oder 1202920204		€100.00 €100.00
Image number 5		C 29 119 C 29 119	Lightweight sleeve Lightweight sleeve 120 991 03 41 oder 1209910341		on request on request
Image number 6		C 29 038 C 29 038	Washer for clutch foot lever on tube right hand drive Washer for clutch foot lever on tube right hand drive 120 990 28 40 oder 1209902840		on request on request
Image number 7		C 29 008	Disc 3,0mm thick for brake lever 120 990 37 40 oder 1209903740		€7.00	Choose the suitable product variant
	Image number 7		C 29 010	Washer 0,88mm for brake pedal 120 990 40 40 oder 1209904040			€7.59
	Image number 7		C 29 011	Washer 1,00mm for brake pedal 120 990 41 40 oder 1209904140			€7.59
Image number		C 29 009a C 29 009a	Washer 0.75mm thick on clutch pedal Washer 0.75mm thick on clutch pedal 120 990 39 40 oder 1209903940		€7.59 €7.59
Image number		C 29 118 C 29 118	Sg. ring for clutch foot lever on tube Sg. ring for clutch foot lever on tube 000 471 026 000 oder 000471026000		on request on request
Image number 10		C 29 017 C 29 017	Release spring brake pedal Release spring brake pedal 107 993 04 10 oder 1079930410		€5.18 €5.18
Image number 11		C 29 022 C 29 022	Clutch foot lever with hub and bushing Clutch foot lever with hub and bushing 120 290 25 16 oder 1202902516		on request on request
Image number 12		C 29 026 C 29 026	Clutch foot with hub and bush R.L. Clutch foot with hub and bush R.L. 120 290 27 16 oder 1202902716		on request on request
Image number 13		C 29 003 C 29 003	Bushing for brake pedal Bushing for brake pedal 120 292 05 50 oder 1202920550		€37.00 €37.00
Image number 14		A 41 015 A 41 015	Grease nipple Grease nipple 071 412 008 100 oder 071412008100		€1.25 €1.25
Image number 15		C 29 038 C 29 038	Washer for clutch foot lever on tube right hand drive Washer for clutch foot lever on tube right hand drive 120 990 28 40 oder 1209902840		on request on request
Image number 16		C 29 118 C 29 118	Sg. ring for clutch foot lever on tube Sg. ring for clutch foot lever on tube 000 471 026 000 oder 000471026000		on request on request
Image number 17		C 29 032 C 29 032	Shaft for clutch operation Shaft for clutch operation 120 293 05 06 oder 1202930506		€279.69 €279.69
Image number 18		C 29 035 C 29 035	Shaft with flange for coupling operation R.L. Shaft with flange for coupling operation R.L. 120 290 02 30 oder 1202900230		on request on request
Image number 19		C 29 037 C 29 037	Silent block Silent block 120 988 00 10 oder 1209880010		€11.00 €11.00
Image number 20		C 29 059 C 29 059	Flange with silent block Flange with silent block 120 290 03 46 oder 1202900346		€283.80 €283.80
Image number 21		C 29 037 C 29 037	Silent block Silent block 120 988 00 10 oder 1209880010		€11.00 €11.00
Image number		G 72 159 G 82 081	Hex nut Hex nut 000 934 008 000 oder 000934008000		on request €2.17
	G 82 081	Replacement: Hex nut		€2.17
Image number 24		C 29 063 C 29 063	Lever with bolt Lever with bolt 120 290 07 34 oder 1202900734		€366.30 €366.30
Image number 30		C 29 069a C 29 069a	Washer 10x16x1 Washer 10x16x1 000 988 010 016 oder 000988010016		€1.30 €1.30
Image number 31		C 29 070 C 29 070	Needle cage Needle cage 000 981 18 10 oder 0009811810		€3.49 €3.49
Image number 32		C 29 072 C 29 072	Ball Ball 186 991 00 29 oder 1869910029		€37.00 €37.00
Image number 33		C 29 069	Spacer ring 120 291 00 51 oder 1202910051		€9.00	Choose the suitable product variant
Image number 33	Image number 33		C 29 069a	Washer 10x16x1 000 988 010 016 oder 000988010016		Choose the suitable product variant	€1.30
Image number 34		C 29 069b D 91 200	Retaining ring Lock ring 000 471 010 000 oder 000471010000		on request €1.02
	D 91 200	Replacement: Lock ring		€1.02
Image number 35		C 29 052	Pivoting support 180 290 04 21 oder 1802900421		on request	Choose the suitable product variant
Image number 35	Image number 35		C 29 056	Swivel support R.L. 180 290 05 21 oder 1802900521		Choose the suitable product variant	on request
Image number 36		C 29 073 C 29 073	Spring clip Spring clip 121 993 00 26 oder 1219930026		€18.81 €18.81
Image number 37		C 29 075 C 29 075	Rubber boot Rubber boot 120 291 03 88 oder 1202910388		€7.35 €7.35
Image number 38		C 29 076 C 29 076	Rubber cap Rubber cap 120 291 02 88 oder 1202910288		€10.50 €10.50
Image number 40		C 29 043	Holder for coupling housing 121 290 00 33 oder 1212900033		on request	Choose the suitable product variant
Image number 40	Image number 40		C 29 045	Holder for coupling housing R. L. 121 290 01 33 oder 1212900133		Choose the suitable product variant	€72.71
Image number 41		C 29 058 C 29 058	Supporting plate Supporting plate 120 293 01 43 oder 1202930143		€20.13 €20.13
Image number		C 07 197 G 22 020	Spring washer for dismantling screw Lock washer 000 127 006 200 oder 000127006200		on request €0.30
	G 22 020	Replacement: Lock washer		€0.30
Image number		C 29 058a C 29 058a	Hex. nut M6 for S.S.St.an H. Hex. nut M6 for S.S.St.an H. 000 990 54 51 oder 0009905451		on request on request
Image number 46		C 29 049 C 29 049	Pressure spring for holder a.Kuppl.Geh. Pressure spring for holder a.Kuppl.Geh. 312 993 53 01 oder 3129935301		on request on request
Image number 60		C 29 086 C 29 086	Tie rod for clutch actuation Tie rod for clutch actuation 121 290 08 39 oder 1212900839		on request on request
Image number 61		C 29 094 C 29 094	Silent block 24x10 L = 23mm Silent block 24x10 L = 23mm 186 988 00 10 oder 1869880010		€23.00 €23.00
Image number		C 29 088 C 29 088	Pull rod Pull rod 121 290 09 39 oder 1212900939		€280.50 €280.50
Image number 62		C 29 099 C 29 099	Shackle for clutch adjustmment Shackle for clutch adjustmment 120 993 02 32 oder 1209930232		€158.51 €158.51
Image number 64		C 29 100 C 29 095	Threaded bolt release fork Threaded pin 180 293 00 76 oder 1802930076		on request €30.47
	C 29 095	Replacement: Threaded pin		€30.47
Image number 66		G 35 012 G 35 012	Spring washer B 10x18 Spring washer B 10x18 000 137 010 205 oder 000137010205		€0.85 €0.85
Image number 67		C 29 095a C 29 095a	Washer Washer 120 990 45 40 oder 1209904540		on request on request
Image number 69		C 29 102 C 29 102	Bracket for release spring Bracket for release spring 121 293 08 40 oder 1212930840		€11.09 €11.09
Image number 70		C 29 106 C 29 106	Spring Spring 121 993 02 10 oder 1219930210		€12.00 €12.00
Image number 71		C 52 003 C 29 115	Bottom fender Bottom fender 180-190-SL 120 524 11 33 oder 1205241133		on request €109.50
	C 29 115	Replacement: Bottom fender 180-190-SL		€109.50
Image number 73		C 52 004 G 88 123	Washer for bottom guard Washer 5.3 DIN 9021 000 984 11 55 oder 0009841155		on request €0.99
	G 88 123	Replacement: Washer 5.3 DIN 9021		€0.99
Image number 80		C 29 021a C 29 021a	Bracket for brake foot lever Bracket for brake foot lever 120 290 11 23 oder 1202901123		on request on request
Image number 81		C 29 004 C 29 004	Rubber cover Rubber cover 319 292 00 82 oder 3192920082		€3.00 €3.00
Image number 82		C 29 079 C 29 079	Bracket for clutch foot lever Bracket for clutch foot lever 120 290 12 22 oder 1202901222		on request on request
Image number 84		A 42 191 A 22 022	Washer 1mm thick on side member Washer 1 mm thick 136 224 01 66 oder 1362240166		on request €9.06
	A 22 022	Replacement: Washer 1 mm thick		€9.06
Image number 85		C 29 082 C 29 082	Seal washer Seal washer 120 291 03 97 oder 1202910397		€4.20 €4.20
Image number 86		A 29 028 A 29 028	Sealing washer in pedal base, rubber Sealing washer in pedal base, rubber 136 290 00 67 oder 1362900067		€15.23 €15.23

Please note that the product names may be an automatic translation for which no guarantee can be given.
