MB 300SEL3,5 W109.056 engine 116.991

Chosen model:

Chassis: 109.056
Engine: 116.991
Choose different model

Current unit you are viewing: 81 Interior Appointments

[{"type":"poly","coords":[241,33,222,164,323,164,323,78,287,33],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/f81001-rear-view-mirror-inside-long-foot","cssSelector":".product-group-10","info":"{\"ids\":\"F 81 001\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"rect","coords":[42,328,133,415],"href":"\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/25","cssSelector":".product-group-25","info":"{\"ids\":\"D 81 019, D 81 019a\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"rect","coords":[123,344,194,431],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/d81026-mirror-head","cssSelector":".product-group-30","info":"{\"ids\":\"D 81 026\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"rect","coords":[253,382,320,467],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/d81028-mounting-ring","cssSelector":".product-group-35","info":"{\"ids\":\"D 81 028\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"rect","coords":[190,362,253,439],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/d81029-mirror-glass","cssSelector":".product-group-41","info":"{\"ids\":\"D 81 029\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"rect","coords":[125,455,188,498],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/d81031-rubber-underlayer-outside-mirror","cssSelector":".product-group-45","info":"{\"ids\":\"D 81 031\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"rect","coords":[156,437,217,486],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/d81035-counter-plate","cssSelector":".product-group-52","info":"{\"ids\":\"D 81 035\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"poly","coords":[3,191,3,323,193,253,193,101],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/d81045-sun-visor-left-without-mirror","cssSelector":".product-group-58","info":"{\"ids\":\"D 81 045\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"rect","coords":[13,131,61,171],"href":"\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/65","cssSelector":".product-group-65","info":"{\"ids\":\"D 81 119, D 81 127\",\"stock_info\":\" (Choose variant)\",\"stock_light\":\"rgb(60,99,172)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(60,99,172,0.5)","strokeStyle":"black"},{"type":"rect","coords":[104,90,152,117],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/d81129-sunvisor-clip","cssSelector":".product-group-72","info":"{\"ids\":\"D 81 129\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"rect","coords":[114,111,142,134],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/g83135a-lens-head-countersunk-screw-4-2x16","cssSelector":".product-group-75","info":"{\"ids\":\"G 83 135a\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"rect","coords":[314,204,433,295],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/d81156-ashtray","cssSelector":".product-group-90","info":"{\"ids\":\"D 81 156\",\"stock_info\":\" (no longer available)\",\"stock_light\":\"rgb(0, 0, 0)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(0, 0, 0,0.5)","strokeStyle":"black"},{"type":"poly","coords":[484,393,484,458,628,361,628,332],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/d81263-type-sign-300sel","cssSelector":".product-group-125","info":"{\"ids\":\"D 81 263\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"rect","coords":[658,282,734,340],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/d81264-type-sign-3-5","cssSelector":".product-group-128","info":"{\"ids\":\"D 81 264\",\"stock_info\":\" (low stock level)\",\"stock_light\":\"rgb(201, 171, 80)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(201, 171, 80,0.3)","strokeStyle":"black"},{"type":"rect","coords":[430,389,465,408],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/c81032-spring-nut-for-trim-on-the-rear-lid","cssSelector":".product-group-136","info":"{\"ids\":\"C 81 032\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"},{"type":"rect","coords":[458,396,481,420],"href":"https:\/\/www.niemoeller.de\/en\/w109\/mb-300sel-w109056-motor-w116991\/B056\/810101\/f81196-rubber-ring","cssSelector":".product-group-142","info":"{\"ids\":\"F 81 196\",\"stock_info\":\" (in stock)\",\"stock_light\":\"rgb(106, 165, 109)\",\"replacement\":null,\"stock_info_replacement\":\" ()\",\"stock_light_replacement\":null}","fillStyle":"rgba(106, 165, 109,0.5)","strokeStyle":"black"}]

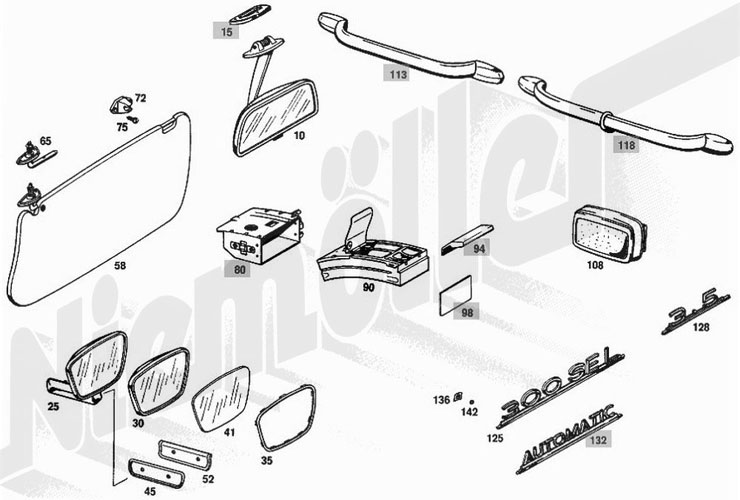

Pic.	Niemöller part-no.	Designation		Price/unit excl. tax.
Image number 10		F 81 001 F 81 001	Rear view mirror inside, long foot Rear view mirror inside, long foot 115 810 00 17 oder 1158100017		on request on request
Image number		D 81 005 D 81 005	Base plate 230SL late type, 250/280SL Base plate 230SL late type, 250/280SL 115 811 01 11 oder 1158110111		€36.57 €36.57
Image number 25		D 81 019	Rearview mirror outside left / original 108 810 17 16 oder 1088101716		€310.00	Choose the suitable product variant
Image number 25	Image number 25		D 81 019a	Rear view mirror right / original 108 810 18 16 oder 1088101816		Choose the suitable product variant	€538.33
Image number 30		D 81 026 D 81 026	Mirror head Mirror head 115 810 01 16 oder 1158100116		on request on request
Image number		E 81 007 E 81 007	Mirror head, RH Mirror head, RH 115 810 02 16 oder 1158100216		€175.00 €175.00
Image number 35		D 81 028 D 81 028	Mounting ring Mounting ring 108 811 00 65 oder 1088110065		€13.60 €13.60
Image number 41		D 81 029 D 81 029	Mirror glass Mirror glass 108 811 00 66 oder 1088110066		€21.00 €21.00
Image number 45		D 81 031 D 81 031	Rubber underlayer, outside mirror Rubber underlayer, outside mirror 108 811 01 96 oder 1088110196		€2.01 €2.01
Image number		C 07 425 C 07 425	Hex. nut Hex. nut 000 934 006 007 oder 000934006007		€0.40 €0.40
Image number		C 07 425 C 07 425	Hex. nut Hex. nut 000 934 006 007 oder 000934006007		€0.40 €0.40
Image number		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 oder 912004006102		€0.30 €0.30
Image number		G 22 020 G 22 020	Lock washer Lock washer 912 004 006 102 oder 912004006102		€0.30 €0.30
Image number 52		D 81 035 D 81 035	Counter plate Counter plate 108 811 01 11 oder 1088110111		€12.10 €12.10
Image number 58		D 81 045 D 81 045	Sun visor left without mirror Sun visor left without mirror 108 810 05 10 oder 1088100510		on request on request
Image number		D 81 057 D 81 045a	Sun visor right with mirror Set of sun visors, cream, with holder W108 / 109 / 114 / 115 108 810 06 10 oder 1088100610		on request €125.00
	D 81 045a	Replacement: Set of sun visors, cream, with holder W108 / 109 / 114 / 115		€125.00
Image number		D 81 081 D 81 081	Sun visor left with mirror Sun visor left with mirror 108 810 07 10 oder 1088100710		on request on request
Image number 65		D 81 119	Bearing left 108 810 01 12 oder 1088100112		on request	Choose the suitable product variant
Image number 65	Image number 65		D 81 127	Bearing right 2nd choice 108 810 02 12 oder 1088100212		Choose the suitable product variant	on request
Image number 72		D 81 129 D 81 129	Sunvisor clip Sunvisor clip 110 811 10 41 oder 1108111041		€32.54 €32.54
Image number 75		G 83 135a G 83 135a	Lens head countersunk screw 4,2x16 Lens head countersunk screw 4,2x16 007 983 004 205 oder 007983004205		€1.80 €1.80
Image number		C 68 089 C 67 031	Countersunk washer Sheet metal washer 3.9mm 000 985 06 62 oder 0009850662		on request €0.66
	C 67 031	Replacement: Sheet metal washer 3.9mm		€0.66
Image number		D 68 911 D 68 911	Clip Clip 140 994 10 45 oder 1409941045		€0.28 €0.28
Image number		G 68 252 G 68 252	Sheet-metal screw Sheet-metal screw 007 982 004 203 oder 007982004203		€8.19 €8.19
Image number		G 88 123 G 88 123	Washer 5.3 DIN 9021 Washer 5.3 DIN 9021 009 021 005 205 oder 009021005205		€0.99 €0.99
Image number 90		D 81 156 D 81 156	Ashtray Ashtray 108 810 25 30 oder 1088102530		on request on request
Image number		D 81 151 D 81 151	Ashtray housing Ashtray housing 108 813 07 02 oder 1088130702		on request on request

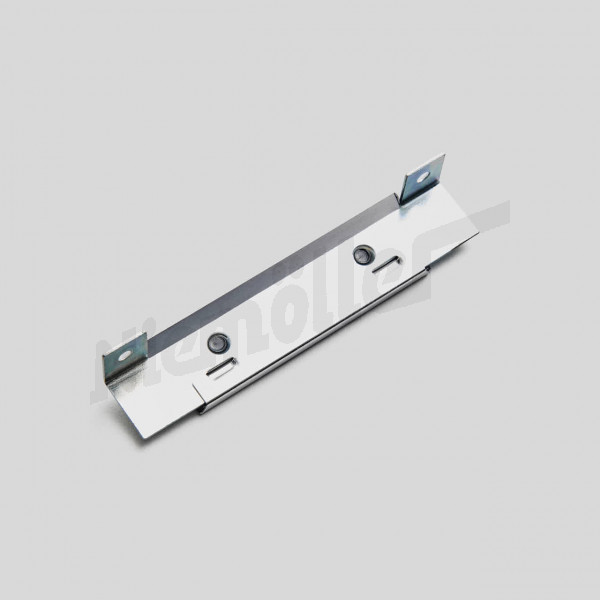

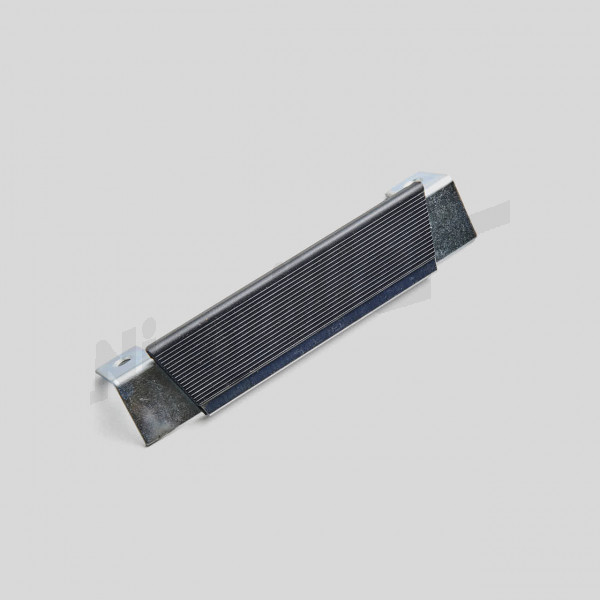

Image number		D 81 165 D 81 165	Handle plate Handle plate 108 813 03 54 oder 1088130354		on request on request

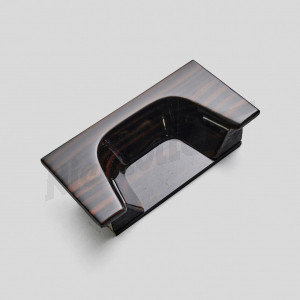

Image number		D 81 164 D 81 164	Cover plate Cover plate 109 810 05 29 oder 1098100529		€85.00 €85.00

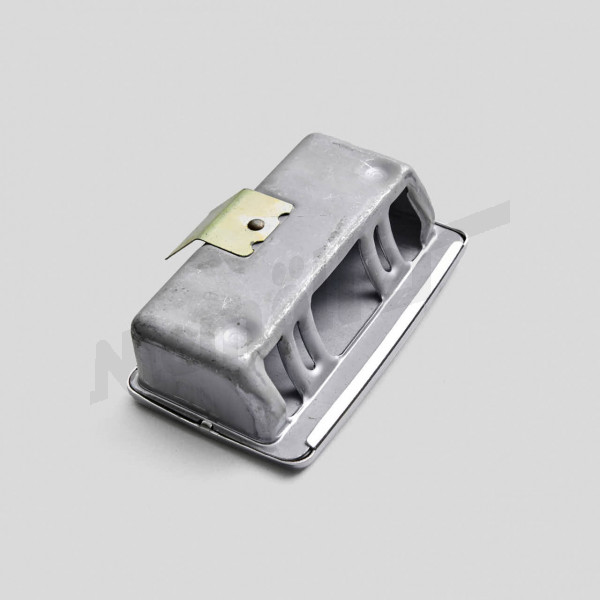

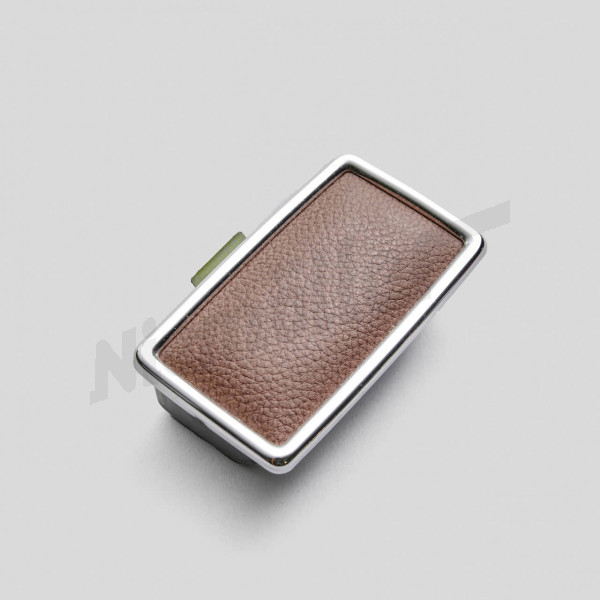

Image number		D 81 168 D 81 168	Ashtray (at the rear doors) Ashtray (at the rear doors) 116 810 00 33 oder 1168100033		€75.00 €75.00
Image number		G 54 427 G 54 427	Sheet metal screw 3,5x9,5 DIN 7981 Sheet metal screw 3,5x9,5 DIN 7981 007 981 003 214 oder 007981003214		€3.48 €3.48
Image number		F 81 035 F 81 035	Handrail Handrail 115 810 04 51 oder 1158100451		on request on request
Image number		C 81 017 C 81 017	Clip nut for retaining bar Clip nut for retaining bar 126 994 13 45 oder 1269941345		€0.46 €0.46
Image number		G 49 026 G 88 152	Sheet metal screw 4.8X16 DIN 7976 Sheet metal screw 4.8x19 DIN 7976 007 976 004 215 oder 007976004215		on request €2.03
	G 88 152	Replacement: Sheet metal screw 4.8x19 DIN 7976		€2.03
Image number		D 81 237 D 81 237	Luggage net (on driver's backrest) Luggage net (on driver's backrest) 109 814 02 07 oder 1098140207		on request on request
Image number		D 81 245 D 81 245	Rivet Rivet 007 331 004 212 oder 007331004212		on request on request
Image number 125		D 81 263 D 81 263	Type sign 300SEL Type sign 300SEL 109 817 00 15 oder 1098170015		€202.84 €202.84

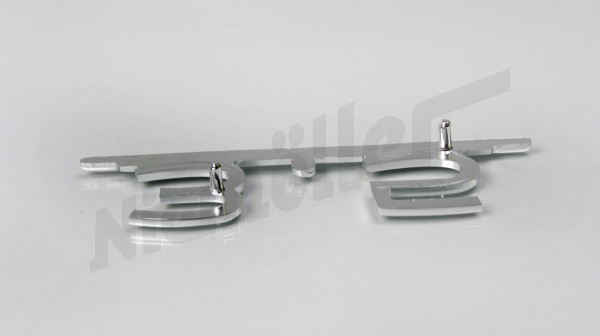

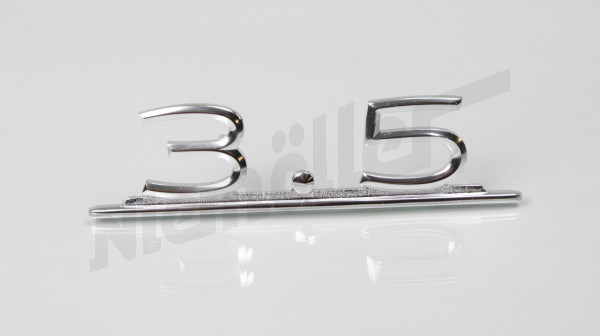

Image number 128		D 81 264 D 81 264	Type sign - 3,5 Type sign - 3,5 109 817 03 15 oder 1098170315		€145.00 €145.00
Image number 136		C 81 032 C 81 032	Spring nut for trim on the rear lid Spring nut for trim on the rear lid 000 994 01 45 oder 0009940145		€0.17 €0.17
Image number 142		F 81 196 F 81 196	Rubber ring Rubber ring 115 987 03 41 oder 1159870341		€1.50 €1.50
Image number		G 62 136 G 62 136	Mounting plate stiffening motorh. Mounting plate stiffening motorh. 110 817 06 26 oder 1108170626		on request on request
Image number		G 58 017 G 58 017	Sheet-metal screw Sheet-metal screw 007 981 002 218 oder 007981002218		€0.64 €0.64

Please note that the product names may be an automatic translation for which no guarantee can be given.

in stock
low stock level
currently not in stock, but available for order
no longer available

F 81 001

016 FROM CHASSIS 001248; 018 FROM CHASSIS 000846

D 81 005 €36.57

015 FROM CHASSIS 002131

D 81 019 €310.00

Right-hand-drive;

018 FROM CHASSIS 005903; 056 FROM CHASSIS 007274; UP TO CHASSIS, SEE SA 55911

D 81 019a €538.33

Left-hand-drive;

015 FROM CHASSIS 002131

D 81 026

Right-hand-drive;

018 FROM CHASSIS 005903; 056 FROM CHASSIS 007274; UP TO CHASSIS, SEE SA 55911

E 81 007 €175.00

Left-hand-drive;

015 FROM CHASSIS 002131

D 81 028 €13.60

Left-hand-drive;

015 FROM CHASSIS 002131

D 81 029 €21.00

Left-hand-drive;

015 FROM CHASSIS 002131

D 81 031 €2.01

Left-hand-drive;

015 FROM CHASSIS 002131

C 07 425 €0.40

Right-hand-drive;

018 FROM CHASSIS 005903; 056 FROM CHASSIS 007274; UP TO CHASSIS, SEE SA 55911

C 07 425 €0.40

Left-hand-drive;

015 FROM CHASSIS 002131

G 22 020 €0.30

Right-hand-drive;

018 FROM CHASSIS 005903; 056 FROM CHASSIS 007274; UP TO CHASSIS, SEE SA 55911

G 22 020 €0.30

Left-hand-drive;

015 FROM CHASSIS 002131

D 81 035 €12.10

Left-hand-drive;

STATE COLOR AND CHASSIS NO. WHEN ORDERING

D 81 045

Right-hand-drive;

STATE COLOR AND CHASSIS NO. WHEN ORDERING

Right-hand-drive;

STATE COLOR AND CHASSIS NO. WHEN ORDERING

D 81 081

D 81 119

D 81 127

D 81 129 €32.54

G 83 135a €1.80

D 68 911 €0.28

G 68 252 €8.19

015 FROM CHASSIS 002035

G 88 123 €0.99

015 FROM CHASSIS 002131
TO BE ADAPTED DURING ASSEMBLY

D 81 156

Left-hand-drive

D 81 151

D 81 165

ENCLOSE SAMPLE OF VENEER WHEN ORDERING

D 81 164 €85.00

STATE COLOR AND CHASSIS NO. WHEN ORDERING

D 81 168 €75.00

G 54 427 €3.48

016 FROM CHASSIS 001754; 018 FROM CHASSIS 001847

F 81 035

C 81 017 €0.46

STATE COLOR AND CHASSIS NO. WHEN ORDERING

D 81 237

D 81 245

D 81 263 €202.84

D 81 264 €145.00

TYPE DESIGNATION ON REAR LID

C 81 032 €0.17

TYPE DESIGNATION ON REAR LID

F 81 196 €1.50

NO LONGER AVAILABLE

G 62 136

G 58 017 €0.64
