Front and Rear End Sheet Metal | MB 300SEL3,5 W109.056 engine 116.991

MB 300SEL3,5 W109.056 engine 116.991

Chosen model:

Current unit you are viewing: 88 Front and Rear End Sheet Metal

86 Windshield Washer Unit overview 88 Front and Rear End Sheet Metal
.product-group-10 .product-group-15 .product-group-18 .product-group-22 .product-group-30 .product-group-35 .product-group-39 .product-group-45 .product-group-70 .product-group-73 .product-group-85 .product-group-92 .product-group-96 .product-group-100 .product-group-106 .product-group-123 .product-group-127 .product-group-134 .product-group-140 .product-group-144 .product-group-147 .product-group-154 .product-group-160 .product-group-165 .product-group-170 .product-group-178 .product-group-185 .product-group-199 .product-group-205 .product-group-215 .product-group-218 .product-group-230 .product-group-234 .product-group-238 .product-group-241 Panel
Views:
Draft & List Draft & Gallery Gallery

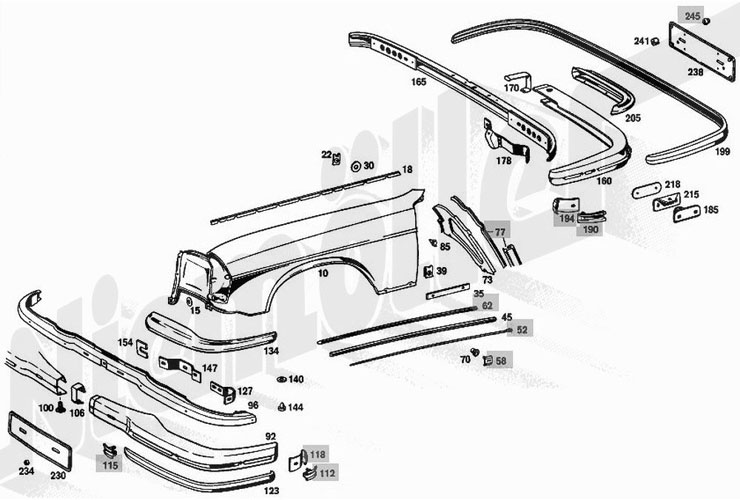

Pic. Niemöller
part-no.		 Designation   Price/unit
excl. tax.

Image number 10
D 88 017 -
D 88 017 Front fender left
108 880 05 18 oder 1088800518
no longer available on request Choose the suitable product variant
Image number 10
D 88 027 -
D 88 027 Front fender right
108 880 06 18 oder 1088800618
no longer available on request
Image number
G 42 088 - Hexagon head screw 6x15 DIN 933
G 42 088 G 42 088 Hexagon head screw 6x15 DIN 933 Hexagon head screw 6x15 DIN 933
304 017 006 016 oder 304017006016
in stock in stock €2.19 €2.19
Image number 15
F 88 015 - washer
F 88 015 F 88 015 Washer Washer
111 990 36 40 oder 1119903640
in stock in stock €7.30 €7.30
Image number 18
F 88 020 - Adhesive tape, foam 2000mm F 88 020 - Adhesive tape, foam 2000mm
F 88 020 F 88 020 Adhesive tape, foam 2000mm Adhesive tape, foam 2000mm
003 989 54 85 oder 0039895485
low stock level low stock level €10.74 €10.74
Image number 22
D 88 036 - flat clip nut D 88 036 - flat clip nut
D 88 036 D 88 036 Flat clip nut Flat clip nut
000 994 38 45 oder 0009943845
in stock in stock €0.60 €0.60
Image number 30
F 88 015 - washer
F 88 015 Washer
111 990 36 40 oder 1119903640
in stock €7.30 Choose the suitable product variant
Image number 30
F 88 015 - washer
F 88 015 Washer
111 990 36 40 oder 1119903640
in stock €7.30
Image number
G 42 088 - Hexagon head screw 6x15 DIN 933
G 42 088 G 42 088 Hexagon head screw 6x15 DIN 933 Hexagon head screw 6x15 DIN 933
304 017 006 016 oder 304017006016
in stock in stock €2.19 €2.19
Image number 35
F 88 017 - Underlay 2 mm F 88 017 - Underlay 2 mm
F 88 017 F 88 017 Underlay 2 mm Underlay 2 mm
115 881 09 97 oder 1158810997
low stock level low stock level €33.29 €33.29
Image number
G 81 187a - Panhead screw 5,5x19 DIN 7981
G 81 187a G 81 187a Panhead screw 5,5x19 DIN 7981 Panhead screw 5,5x19 DIN 7981
007 981 005 212 oder 007981005212
no longer available no longer available on request on request
Image number 39
D 88 040 - clip nut
D 88 040 D 88 040 Clip nut Clip nut
000 994 47 45 oder 0009944745
in stock in stock €2.33 €2.33
Image number 45
D 88 041 - garnish moulding front fender, LHS late version D 88 041 - garnish moulding front fender, LHS late version D 88 041 - garnish moulding front fender, LHS late version D 88 041 - garnish moulding front fender, LHS late version
D 88 041 Garnish moulding front fender, LHS late version
108 880 11 82 oder 1088801182
in stock €57.00 Choose the suitable product variant
Image number 45
D 88 043 - garnish moulding front fender, RHS late version D 88 043 - garnish moulding front fender, RHS late version D 88 043 - garnish moulding front fender, RHS late version D 88 043 - garnish moulding front fender, RHS late version
D 88 043 Garnish moulding front fender, RHS late version
108 880 12 82 oder 1088801282
in stock €57.00
Image number 45
D 88 041a -
D 88 041a Garnish moulding front fender, RHS early version
108 880 09 82 oder 1088800982
no longer available on request
Image number 45
D 88 043a -
D 88 043a Garnish moulding front fender, RHS early version
108 880 09 82 oder 1088800982
no longer available on request
Image number
D 88 049 -
D 88 049 D 88 049 Border left Border left
108 880 05 97 oder 1088800597
no longer available no longer available on request on request
Image number
D 88 050 -
D 88 050 D 88 050 Border right Border right
108 880 06 97 oder 1088800697
no longer available no longer available on request on request
Image number
D 69 293 - clip / upper part D 69 293 - clip / upper part
D 69 293 D 69 293 Clip / upper part Clip / upper part
000 988 60 81 oder 0009886081
no longer available no longer available on request on request
Image number 70
D 67 188 - fastener lower part D 67 188 - fastener lower part D 67 188 - fastener lower part
D 67 188 D 67 188 Fastener lower part Fastener lower part
001 988 76 81 oder 0019887681
low stock level low stock level €0.20 €0.20
Image number 73
D 88 075 - splash guard, LHS D 88 075 - splash guard, LHS
D 88 075 D 88 075 Splash guard, LHS Splash guard, LHS
108 884 01 35 oder 1088840135
low stock level low stock level €382.82 €382.82
Image number
D 88 087 - splash guard, RHS D 88 087 - splash guard, RHS
D 88 087 D 88 087 Splash guard, RHS Splash guard, RHS
108 884 02 35 oder 1088840235
low stock level low stock level €382.82 €382.82
Image number
C 88 078 - rubber profile f. splash guards 0,8m
C 88 078 C 88 078 Rubber profile f. splash guards 0,8m Rubber profile f. splash guards 0,8m
110 884 00 98 oder 1108840098
in stock in stock €5.70 €5.70
Image number
G 49 043 - Self-tapping screw / fixing mudguard 5.5x16 SW8 G 49 043 - Self-tapping screw / fixing mudguard 5.5x16 SW8
G 49 043 G 49 043 Self-tapping screw / fixing mudguard 5.5x16 SW8 Self-tapping screw / fixing mudguard 5.5x16 SW8
007 976 005 202 oder 007976005202
in stock in stock €0.50 €0.50
Image number
G 49 043 - Self-tapping screw / fixing mudguard 5.5x16 SW8 G 49 043 - Self-tapping screw / fixing mudguard 5.5x16 SW8
G 49 043 G 49 043 Self-tapping screw / fixing mudguard 5.5x16 SW8 Self-tapping screw / fixing mudguard 5.5x16 SW8
007 976 005 202 oder 007976005202
in stock in stock €0.50 €0.50
Image number
G 42 103 - Washer, hydraulic unit on holder
G 42 103 G 42 103 Washer, hydraulic unit on holder Washer, hydraulic unit on holder
009 021 006 208 oder 009021006208
in stock in stock €1.12 €1.12
Image number
G 42 103 - Washer, hydraulic unit on holder
G 42 103 G 42 103 Washer, hydraulic unit on holder Washer, hydraulic unit on holder
009 021 006 208 oder 009021006208
in stock in stock €1.12 €1.12
Image number 85
C 54 173 - spreader clip nut
C 54 173 C 54 173 Spreader clip nut Spreader clip nut
000 994 13 45 oder 0009941345
in stock in stock €0.65 €0.65
Image number
F 69 252 - seal strap / sold per meter
F 69 252 F 69 252 Seal strap / sold per meter Seal strap / sold per meter
001 987 56 46 oder 0019875646
in stock in stock €4.70 €4.70
Image number 92
D 88 102 - Bumper left D 88 102 - Bumper left D 88 102 - Bumper left
D 88 102 Bumper left
108 880 07 70 oder 1088800770
low stock level €602.67 Choose the suitable product variant
Image number 92
D 88 114 - Bumper right 2nd choice with scratches D 88 114 - Bumper right 2nd choice with scratches D 88 114 - Bumper right 2nd choice with scratches
D 88 114 Bumper right 2nd choice with scratches
108 880 08 70 oder 1088800870
in stock €495.00
Image number 96
D 88 116 -
D 88 116 D 88 116 Stiffing Stiffing
108 880 00 19 oder 1088800019
no longer available no longer available on request on request
Image number 100
D 88 130 - button head screw
D 88 130 D 88 130 Button head screw Button head screw
111 990 00 29 oder 1119900029
in stock in stock €1.01 €1.01
Image number
C 32 027 - Hex. nut M 8
C 32 027 C 32 027 Hex. nut M 8 Hex. nut M 8
304 032 008 006 oder 304032008006
in stock in stock €0.54 €0.54
Image number
G 29 036 - Hex. socket screw M8x16
G 29 036 G 29 036 Hex. socket screw M8x16 Hex. socket screw M8x16
304 017 008 016 oder 304017008016
in stock in stock €0.46 €0.46
Image number
B 03 018 - Spring washer
B 03 018 B 03 018 Spring washer Spring washer
000 137 008 212 oder 000137008212
in stock in stock €0.30 €0.30
Image number 106
D 88 128 -
D 88 128 D 88 128 Cover, bumper joint, front Cover, bumper joint, front
108 885 00 23 oder 1088850023
no longer available no longer available on request on request
Image number
D 88 130 - button head screw
D 88 130 D 88 130 Button head screw Button head screw
111 990 00 29 oder 1119900029
in stock in stock €1.01 €1.01
Image number
C 32 027 - Hex. nut M 8
C 32 027 C 32 027 Hex. nut M 8 Hex. nut M 8
304 032 008 006 oder 304032008006
in stock in stock €0.54 €0.54
Image number
G 42 103 - Washer, hydraulic unit on holder
G 42 103 G 42 103 Washer, hydraulic unit on holder Washer, hydraulic unit on holder
009 021 006 208 oder 009021006208
in stock in stock €1.12 €1.12
Image number
G 22 020 - Lock washer
G 22 020 G 22 020 Lock washer Lock washer
912 004 006 102 oder 912004006102
in stock in stock €0.30 €0.30
Image number 123
D 88 180a - set protection rails front, left + right D 88 180a - set protection rails front, left + right
D 88 180a Set protection rails front, left + right
108 885 03 21, 108 885 04 21, 108 885 09 21, 108 885 03 21 oder 1088850321,1088850421,1088850921,1088850321
no longer available on request Choose the suitable product variant
Image number 123
D 88 180b - Set of protection rails left/right front and rear W108/109 D 88 180b - Set of protection rails left/right front and rear W108/109
D 88 180b Set of protection rails left/right front and rear W108/109
108 885 09 21 oder 1088850921
low stock level €305.00
Image number
C 07 425 - Hex. nut
C 07 425 C 07 425 Hex. nut Hex. nut
000 934 006 007 oder 000934006007
in stock in stock €0.40 €0.40
Image number 127
D 88 182 - Holder left D 88 182 - Holder left
D 88 182 Holder left
108 885 01 40 oder 1088850140
in stock €84.56 Choose the suitable product variant
Image number 127
D 88 184 - Holder right D 88 184 - Holder right
D 88 184 Holder right
108 885 02 40 oder 1088850240
in stock €84.56
Image number
G 32 023 - screw
G 32 023 G 32 023 Screw Screw
000 933 010 105 oder 000933010105
in stock in stock €2.39 €2.39
Image number
G 49 063 - spring ring B10 G 49 063 - spring ring B10
G 49 063 G 49 063 Spring ring B10 Spring ring B10
912 004 010 102 oder 912004010102
in stock in stock €0.50 €0.50
Image number 134
D 88 137 - Bumper upper part left D 88 137 - Bumper upper part left
D 88 137 Bumper upper part left
108 885 01 01 oder 1088850101
no longer available on request Choose the suitable product variant
Image number 134
D 88 145 - Bumper top right D 88 145 - Bumper top right
D 88 145 Bumper top right
108 885 02 01 oder 1088850201
in stock €601.54
Image number
G 29 036 - Hex. socket screw M8x16
G 29 036 G 29 036 Hex. socket screw M8x16 Hex. socket screw M8x16
304 017 008 016 oder 304017008016
in stock in stock €0.46 €0.46
Image number 140
D 88 245 - Spacer for bumper tops
D 88 245 D 88 245 Spacer for bumper tops Spacer for bumper tops
112 990 06 40 oder 1129900640
in stock in stock €5.90 €5.90
Image number
B 03 018 - Spring washer
B 03 018 B 03 018 Spring washer Spring washer
000 137 008 212 oder 000137008212
in stock in stock €0.30 €0.30
Image number
C 32 027 - Hex. nut M 8
C 32 027 C 32 027 Hex. nut M 8 Hex. nut M 8
304 032 008 006 oder 304032008006
in stock in stock €0.54 €0.54
Image number 144
C 68 011 - rubber buffer
C 68 011 C 68 011 Rubber buffer Rubber buffer
000 987 18 40 oder 0009871840
in stock in stock €0.85 €0.85
Image number 147
D 88 153 - Holder inside left
D 88 153 Holder inside left
108 885 03 40 oder 1088850340
in stock €98.79 Choose the suitable product variant
Image number 147
D 88 155 - Holder inside right
D 88 155 Holder inside right
108 885 04 40 oder 1088850440
in stock €98.79
Image number
G 32 023 - screw
G 32 023 G 32 023 Screw Screw
000 933 010 105 oder 000933010105
in stock in stock €2.39 €2.39
Image number
G 49 063a - washer 10,5 DIN 125
G 49 063a G 49 063a Washer 10,5 DIN 125 Washer 10,5 DIN 125
000 125 010 532 oder 000125010532
in stock in stock €0.70 €0.70
Image number
G 49 063 - spring ring B10 G 49 063 - spring ring B10
G 49 063 G 49 063 Spring ring B10 Spring ring B10
912 004 010 102 oder 912004010102
in stock in stock €0.50 €0.50
Image number 154
D 88 186 -
D 88 186 D 88 186 Washer for bumper to cross member 5mm Washer for bumper to cross member 5mm
110 984 01 56 oder 1109840156
no longer available no longer available on request on request
Image number
G 32 023 - screw
G 32 023 G 32 023 Screw Screw
000 933 010 105 oder 000933010105
in stock in stock €2.39 €2.39
Image number
G 49 063a - washer 10,5 DIN 125
G 49 063a G 49 063a Washer 10,5 DIN 125 Washer 10,5 DIN 125
000 125 010 532 oder 000125010532
in stock in stock €0.70 €0.70
Image number
G 49 063 - spring ring B10 G 49 063 - spring ring B10
G 49 063 G 49 063 Spring ring B10 Spring ring B10
912 004 010 102 oder 912004010102
in stock in stock €0.50 €0.50
Image number 160
D 88 201 - Bumper, rear left D 88 201 - Bumper, rear left D 88 201 - Bumper, rear left
D 88 201 Bumper, rear left
108 880 17 71 oder 1088801771
no longer available on request Choose the suitable product variant
Image number 160
D 88 217 -
D 88 217 Bumper right rear
108 880 18 71 oder 1088801871
no longer available on request
Image number 165
D 88 219 - Stiffening Reproduction D 88 219 - Stiffening Reproduction
D 88 219 D 88 219 Stiffening Reproduction Stiffening Reproduction
108 880 01 19 oder 1088800119
in stock in stock €195.00 €195.00
Image number
D 88 130 - button head screw
D 88 130 D 88 130 Button head screw Button head screw
111 990 00 29 oder 1119900029
in stock in stock €1.01 €1.01
Image number
C 32 027 - Hex. nut M 8
C 32 027 C 32 027 Hex. nut M 8 Hex. nut M 8
304 032 008 006 oder 304032008006
in stock in stock €0.54 €0.54
Image number 170
D 88 229 -
D 88 229 D 88 229 Cover, tray lower part left / lower part right Cover, tray lower part left / lower part right
108 885 00 22 oder 1088850022
currently not in stock, but available for order currently not in stock, but available for order €65.84 €65.84
Image number
D 88 130 - button head screw
D 88 130 D 88 130 Button head screw Button head screw
111 990 00 29 oder 1119900029
in stock in stock €1.01 €1.01
Image number
C 32 027 - Hex. nut M 8
C 32 027 C 32 027 Hex. nut M 8 Hex. nut M 8
304 032 008 006 oder 304032008006
in stock in stock €0.54 €0.54
Image number 178
D 88 252 -
D 88 252 Holder left
108 880 01 14 oder 1088800114
currently not in stock, but available for order €256.37 Choose the suitable product variant
Image number 178
D 88 260 - Holder right D 88 260 - Holder right D 88 260 - Holder right D 88 260 - Holder right
D 88 260 Holder right
108 880 02 14 oder 1088800214
in stock €150.16
Image number
G 32 023 - screw
G 32 023 G 32 023 Screw Screw
000 933 010 105 oder 000933010105
in stock in stock €2.39 €2.39
Image number
G 49 063a - washer 10,5 DIN 125
G 49 063a G 49 063a Washer 10,5 DIN 125 Washer 10,5 DIN 125
000 125 010 532 oder 000125010532
in stock in stock €0.70 €0.70
Image number
G 49 063 - spring ring B10 G 49 063 - spring ring B10
G 49 063 G 49 063 Spring ring B10 Spring ring B10
912 004 010 102 oder 912004010102
in stock in stock €0.50 €0.50
Image number 185
D 88 264 - mounting bracket
D 88 264 D 88 264 Mounting bracket Mounting bracket
108 880 00 14 oder 1088800014
in stock in stock €39.50 €39.50
Image number
D 88 130 - button head screw
D 88 130 D 88 130 Button head screw Button head screw
111 990 00 29 oder 1119900029
in stock in stock €1.01 €1.01
Image number
C 32 027 - Hex. nut M 8
C 32 027 C 32 027 Hex. nut M 8 Hex. nut M 8
304 032 008 006 oder 304032008006
in stock in stock €0.54 €0.54
Image number 199
D 88 222 - protective rubber
D 88 222 Protective rubber
108 885 11 21 oder 1088851121
in stock €272.50 Choose the suitable product variant
Image number 199
D 88 180b - Set of protection rails left/right front and rear W108/109 D 88 180b - Set of protection rails left/right front and rear W108/109
D 88 180b Set of protection rails left/right front and rear W108/109
108 885 09 21 oder 1088850921
low stock level €305.00
Image number
G 42 103 - Washer, hydraulic unit on holder
G 42 103 G 42 103 Washer, hydraulic unit on holder Washer, hydraulic unit on holder
009 021 006 208 oder 009021006208
in stock in stock €1.12 €1.12
Image number
G 22 020 - Lock washer
G 22 020 G 22 020 Lock washer Lock washer
912 004 006 102 oder 912004006102
in stock in stock €0.30 €0.30
Image number 205
D 88 237 - Bumper upper part rear left D 88 237 - Bumper upper part rear left D 88 237 - Bumper upper part rear left
D 88 237 Bumper upper part rear left
108 885 03 05 oder 1088850305
no longer available on request Choose the suitable product variant
Image number 205
D 88 243 - Bumper upper part rear right D 88 243 - Bumper upper part rear right D 88 243 - Bumper upper part rear right
D 88 243 Bumper upper part rear right
108 885 04 05 oder 1088850405
no longer available on request
Image number
G 29 036 - Hex. socket screw M8x16
G 29 036 G 29 036 Hex. socket screw M8x16 Hex. socket screw M8x16
304 017 008 016 oder 304017008016
in stock in stock €0.46 €0.46
Image number
D 88 245 - Spacer for bumper tops
D 88 245 D 88 245 Spacer for bumper tops Spacer for bumper tops
112 990 06 40 oder 1129900640
in stock in stock €5.90 €5.90
Image number
B 03 018 - Spring washer
B 03 018 B 03 018 Spring washer Spring washer
000 137 008 212 oder 000137008212
in stock in stock €0.30 €0.30
Image number
C 32 027 - Hex. nut M 8
C 32 027 C 32 027 Hex. nut M 8 Hex. nut M 8
304 032 008 006 oder 304032008006
in stock in stock €0.54 €0.54
Image number
G 32 023 - screw
G 32 023 G 32 023 Screw Screw
000 933 010 105 oder 000933010105
in stock in stock €2.39 €2.39
Image number
G 49 063 - spring ring B10 G 49 063 - spring ring B10
G 49 063 G 49 063 Spring ring B10 Spring ring B10
912 004 010 102 oder 912004010102
in stock in stock €0.50 €0.50
Image number
G 49 063a - washer 10,5 DIN 125
G 49 063a G 49 063a Washer 10,5 DIN 125 Washer 10,5 DIN 125
000 125 010 532 oder 000125010532
in stock in stock €0.70 €0.70
Image number
C 72 149 - rubber washer
C 72 149 C 72 149 Rubber washer Rubber washer
115 997 09 40 oder 1159970940
in stock in stock €0.97 €0.97
Image number 215
D 88 272 -
D 88 272 D 88 272 Mounting bracket Mounting bracket
108 885 06 40 oder 1088850640
currently not in stock, but available for order currently not in stock, but available for order €94.87 €94.87
Image number 218
D 88 274 -
D 88 274 D 88 274 Intermediate layer, bracket/rear manure Intermediate layer, bracket/rear manure
108 885 00 95 oder 1088850095
no longer available no longer available on request on request
Image number
G 49 060 - Hex. head screw G 49 060 - Hex. head screw
G 49 060 G 49 060 Hex. head screw Hex. head screw
304 017 008 021 oder 304017008021
in stock in stock €1.54 €1.54
Image number
D 52 067 - Rubber washer Mercedes star to rear lid
D 52 067 D 52 067 Rubber washer Mercedes star to rear lid Rubber washer Mercedes star to rear lid
110 987 07 41 oder 1109870741
in stock in stock €0.40 €0.40
Image number
G 49 060 - Hex. head screw G 49 060 - Hex. head screw
G 49 060 G 49 060 Hex. head screw Hex. head screw
304 017 008 021 oder 304017008021
in stock in stock €1.54 €1.54
Image number 230
D 88 286 - license plate moulding, stainless steel
D 88 279 D 88 286 License plate moulding, front License plate moulding, stainless steel
110 885 00 81 oder 1108850081
no longer available in stock on request €25.62
D 88 286 Replacement: License plate moulding, stainless steel in stock €25.62
Image number
G 88 123 - washer 5.3 DIN 9021 G 88 123 - washer 5.3 DIN 9021
G 88 123 G 88 123 Washer 5.3 DIN 9021 Washer 5.3 DIN 9021
009 021 005 205 oder 009021005205
in stock in stock €0.99 €0.99
Image number 234
D 88 285 -
D 88 285 D 88 285 Ring for license plate cover Ring for license plate cover
108 991 00 35 oder 1089910035
no longer available no longer available on request on request
Image number
C 88 251g - Hex. nut
C 88 251g C 88 251g Hex. nut Hex. nut
000 934 005 008 oder 000934005008
in stock in stock €0.34 €0.34
Image number 238
D 88 286 - license plate moulding, stainless steel
D 88 286 D 88 286 License plate moulding, stainless steel License plate moulding, stainless steel
115 817 03 78 oder 1158170378
in stock in stock €25.62 €25.62
Image number 241
D 88 288 - Spacer roller for license plate cover
D 88 288 D 88 288 Spacer roller for license plate cover Spacer roller for license plate cover
108 987 00 42 oder 1089870042
in stock in stock €10.48 €10.48
Image number
D 88 289 - rubber buffer D 88 289 - rubber buffer
D 88 289 D 88 289 Rubber buffer Rubber buffer
108 987 05 40 oder 1089870540
in stock in stock €7.65 €7.65
Image number
G 81 062 - Panhead screw 5x18
G 81 062 G 81 062 Panhead screw 5x18 Panhead screw 5x18
000 085 005 151 oder 000085005151
in stock in stock €3.24 €3.24
Image number
C 88 251g - Hex. nut
C 88 251g C 88 251g Hex. nut Hex. nut
000 934 005 008 oder 000934005008
in stock in stock €0.34 €0.34
Image number
C 88 251d - Washer
C 88 251d C 88 251d Washer Washer
000 433 005 304 oder 000433005304
in stock in stock €0.20 €0.20
Please note that the product names may be an automatic translation for which no guarantee can be given.
  • in stock in stock
  • low stock level low stock level
  • currently not in stock, but available for order currently not in stock, but available for order
  • no longer available no longer available
Views:
Draft & List Draft & Gallery Gallery
86 Windshield Washer Unit overview 88 Front and Rear End Sheet Metal
Front fender left
no longer available D 88 017
Front fender right
no longer available D 88 027
Hexagon head screw 6x15 DIN 933
in stock G 42 088 €2.19
Washer
in stock F 88 015 €7.30
Adhesive tape, foam 2000mm
NOT INCLUDED IN RANGE OF DELIVERY OF FRONT FENDER MOUNTING MATERIAL
low stock level F 88 020 €10.74
Flat clip nut
in stock D 88 036 €0.60
Washer
in stock F 88 015 €7.30
Hexagon head screw 6x15 DIN 933
in stock G 42 088 €2.19
Underlay 2 mm
low stock level F 88 017 €33.29
Panhead screw 5,5x19 DIN 7981
no longer available G 81 187a
Clip nut
in stock D 88 040 €2.33
Garnish moulding front fender, LHS late version
Late version
W108:
012 from 072967
NOT - 014/015
016 from 011937
018 from 010467
019 from 010647
all 057 / 058

W109:
not 109015
109016 as of 000678
109018 as of 000074
all 109056/057
in stock D 88 041 €57.00
Garnish moulding front fender, RHS late version
Late version
W108:
012 from 072967
NOT - 014/015
016 from 011937
018 from 010467
019 from 010647
all 057 / 058

W109:
not 109015
109016 as of 000678
109018 as of 000074
all 109056/057
in stock D 88 043 €57.00
Garnish moulding front fender, RHS early version
Early version
W108:
012 until 072966
014/015 all
016 till 011936
018 until 010466
019 to 010646
not 057 / 058

W109:
109015 all
109016 to 000678
109018 to 000073
not 109056/057
no longer available D 88 041a
Garnish moulding front fender, RHS early version
Early version
W108:
012 until 072966
014/015 all
016 till 011936
018 until 010466
019 to 010646
not 057 / 058

W109:
109015 all
109016 to 000678
109018 to 000073
not 109056/057
no longer available D 88 043a
Border left
no longer available D 88 049
Border right
016 FROM CHASSIS 000679; 018 FROM CHASSIS 000074
no longer available D 88 050
Clip / upper part
016 FROM CHASSIS 000679; 018 FROM CHASSIS 000074
no longer available D 69 293
Fastener lower part
low stock level D 67 188 €0.20
Splash guard, LHS
low stock level D 88 075 €382.82
Splash guard, RHS
low stock level D 88 087 €382.82
Rubber profile f. splash guards 0,8m
ORDER BY THE METER
in stock C 88 078 €5.70
Self-tapping screw / fixing mudguard 5.5x16 SW8
Left-hand-drive
in stock G 49 043 €0.50
Self-tapping screw / fixing mudguard 5.5x16 SW8
Right-hand-drive
in stock G 49 043 €0.50
Washer, hydraulic unit on holder
Left-hand-drive
in stock G 42 103 €1.12
Washer, hydraulic unit on holder
Right-hand-drive
in stock G 42 103 €1.12
Spreader clip nut
Right-hand-drive
in stock C 54 173 €0.65
Seal strap / sold per meter
ORDER BY THE METER
in stock F 69 252 €4.70
Bumper left
low stock level D 88 102 €602.67
Bumper right 2nd choice with scratches
in stock D 88 114 €495.00
Stiffing
no longer available D 88 116
Button head screw
in stock D 88 130 €1.01
Hex. nut M 8
in stock C 32 027 €0.54
Hex. socket screw M8x16
in stock G 29 036 €0.46
Spring washer
in stock B 03 018 €0.30
Cover, bumper joint, front
no longer available D 88 128
Button head screw
in stock D 88 130 €1.01
Hex. nut M 8
in stock C 32 027 €0.54
Washer, hydraulic unit on holder
in stock G 42 103 €1.12
Lock washer
in stock G 22 020 €0.30
Set protection rails front, left + right
no longer available D 88 180a
Set of protection rails left/right front and rear W108/109
low stock level D 88 180b €305.00
Hex. nut
in stock C 07 425 €0.40
Holder left
in stock D 88 182 €84.56
Holder right
in stock D 88 184 €84.56
Screw
in stock G 32 023 €2.39
Spring ring B10
in stock G 49 063 €0.50
Bumper upper part left
no longer available D 88 137
Bumper top right
in stock D 88 145 €601.54
Hex. socket screw M8x16
in stock G 29 036 €0.46
Spacer for bumper tops
in stock D 88 245 €5.90
Spring washer
in stock B 03 018 €0.30
Hex. nut M 8
in stock C 32 027 €0.54
Rubber buffer
in stock C 68 011 €0.85
Holder inside left
in stock D 88 153 €98.79
Holder inside right
in stock D 88 155 €98.79
Screw
in stock G 32 023 €2.39
Washer 10,5 DIN 125
in stock G 49 063a €0.70
Spring ring B10
in stock G 49 063 €0.50
Washer for bumper to cross member 5mm
NO LONGER INSTALLED
no longer available D 88 186
Screw
in stock G 32 023 €2.39
Washer 10,5 DIN 125
in stock G 49 063a €0.70
Spring ring B10
in stock G 49 063 €0.50
Bumper, rear left
no longer available D 88 201
Bumper right rear
no longer available D 88 217
Stiffening Reproduction
in stock D 88 219 €195.00
Button head screw
in stock D 88 130 €1.01
Hex. nut M 8
in stock C 32 027 €0.54
Cover, tray lower part left / lower part right
currently not in stock, but available for order D 88 229 €65.84
Button head screw
in stock D 88 130 €1.01
Hex. nut M 8
in stock C 32 027 €0.54
Holder left
currently not in stock, but available for order D 88 252 €256.37
Holder right
in stock D 88 260 €150.16
Screw
in stock G 32 023 €2.39
Washer 10,5 DIN 125
in stock G 49 063a €0.70
Spring ring B10
in stock G 49 063 €0.50
Mounting bracket
in stock D 88 264 €39.50
Button head screw
in stock D 88 130 €1.01
Hex. nut M 8
in stock C 32 027 €0.54
Protective rubber
in stock D 88 222 €272.50
Set of protection rails left/right front and rear W108/109
low stock level D 88 180b €305.00
Washer, hydraulic unit on holder
in stock G 42 103 €1.12
Lock washer
in stock G 22 020 €0.30
Bumper upper part rear left
no longer available D 88 237
Bumper upper part rear right
no longer available D 88 243
Hex. socket screw M8x16
in stock G 29 036 €0.46
Spacer for bumper tops
in stock D 88 245 €5.90
Spring washer
in stock B 03 018 €0.30
Hex. nut M 8
in stock C 32 027 €0.54
Screw
in stock G 32 023 €2.39
Spring ring B10
in stock G 49 063 €0.50
Washer 10,5 DIN 125
in stock G 49 063a €0.70
Rubber washer
in stock C 72 149 €0.97
Mounting bracket
currently not in stock, but available for order D 88 272 €94.87
Intermediate layer, bracket/rear manure
no longer available D 88 274
Hex. head screw
in stock G 49 060 €1.54
Rubber washer Mercedes star to rear lid
in stock D 52 067 €0.40
Hex. head screw
in stock G 49 060 €1.54
License plate moulding, front
no longer available D 88 279
Replacement item available
To the replacement item
Washer 5.3 DIN 9021
in stock G 88 123 €0.99
Ring for license plate cover
NO LONGER AVAILABLE
no longer available D 88 285
Hex. nut
in stock C 88 251g €0.34
License plate moulding, stainless steel
in stock D 88 286 €25.62
Spacer roller for license plate cover
in stock D 88 288 €10.48
Rubber buffer
in stock D 88 289 €7.65
Panhead screw 5x18
in stock G 81 062 €3.24
Hex. nut
in stock C 88 251g €0.34
Washer
in stock C 88 251d €0.20
  • in stock in stock
  • low stock level low stock level
  • currently not in stock, but available for order currently not in stock, but available for order
  • no longer available no longer available
86 Windshield Washer Unit overview 88 Front and Rear End Sheet Metal
.product-group-10 .product-group-15 .product-group-18 .product-group-22 .product-group-30 .product-group-35 .product-group-39 .product-group-45 .product-group-70 .product-group-73 .product-group-85 .product-group-92 .product-group-96 .product-group-100 .product-group-106 .product-group-123 .product-group-127 .product-group-134 .product-group-140 .product-group-144 .product-group-147 .product-group-154 .product-group-160 .product-group-165 .product-group-170 .product-group-178 .product-group-185 .product-group-199 .product-group-205 .product-group-215 .product-group-218 .product-group-230 .product-group-234 .product-group-238 .product-group-241 Panel
Views:
Draft & List Draft & Gallery Gallery
Front fender left
no longer available D 88 017
Front fender right
no longer available D 88 027
Hexagon head screw 6x15 DIN 933
in stock G 42 088 €2.19
Washer
in stock F 88 015 €7.30
Adhesive tape, foam 2000mm
low stock level F 88 020 €10.74
Flat clip nut
in stock D 88 036 €0.60
Washer
in stock F 88 015 €7.30
Hexagon head screw 6x15 DIN 933
in stock G 42 088 €2.19
Underlay 2 mm
low stock level F 88 017 €33.29
Panhead screw 5,5x19 DIN 7981
no longer available G 81 187a
Clip nut
in stock D 88 040 €2.33
Garnish moulding front fender, LHS late version
in stock D 88 041 €57.00
Garnish moulding front fender, RHS late version
in stock D 88 043 €57.00
Garnish moulding front fender, RHS early version
no longer available D 88 041a
Garnish moulding front fender, RHS early version
no longer available D 88 043a
Border left
no longer available D 88 049
Border right
no longer available D 88 050
Clip / upper part
no longer available D 69 293
Fastener lower part
low stock level D 67 188 €0.20
Splash guard, LHS
low stock level D 88 075 €382.82
Splash guard, RHS
low stock level D 88 087 €382.82
Rubber profile f. splash guards 0,8m
in stock C 88 078 €5.70
Self-tapping screw / fixing mudguard 5.5x16 SW8
in stock G 49 043 €0.50
Self-tapping screw / fixing mudguard 5.5x16 SW8
in stock G 49 043 €0.50
Washer, hydraulic unit on holder
in stock G 42 103 €1.12
Washer, hydraulic unit on holder
in stock G 42 103 €1.12
Spreader clip nut
in stock C 54 173 €0.65
Seal strap / sold per meter
in stock F 69 252 €4.70
Bumper left
low stock level D 88 102 €602.67
Bumper right 2nd choice with scratches
in stock D 88 114 €495.00
Stiffing
no longer available D 88 116
Button head screw
in stock D 88 130 €1.01
Hex. nut M 8
in stock C 32 027 €0.54
Hex. socket screw M8x16
in stock G 29 036 €0.46
Spring washer
in stock B 03 018 €0.30
Cover, bumper joint, front
no longer available D 88 128
Button head screw
in stock D 88 130 €1.01
Hex. nut M 8
in stock C 32 027 €0.54
Washer, hydraulic unit on holder
in stock G 42 103 €1.12
Lock washer
in stock G 22 020 €0.30
Set protection rails front, left + right
no longer available D 88 180a
Set of protection rails left/right front and rear W108/109
low stock level D 88 180b €305.00
Hex. nut
in stock C 07 425 €0.40
Holder left
in stock D 88 182 €84.56
Holder right
in stock D 88 184 €84.56
Screw
in stock G 32 023 €2.39
Spring ring B10
in stock G 49 063 €0.50
Bumper upper part left
no longer available D 88 137
Bumper top right
in stock D 88 145 €601.54
Hex. socket screw M8x16
in stock G 29 036 €0.46
Spacer for bumper tops
in stock D 88 245 €5.90
Spring washer
in stock B 03 018 €0.30
Hex. nut M 8
in stock C 32 027 €0.54
Rubber buffer
in stock C 68 011 €0.85
Holder inside left
in stock D 88 153 €98.79
Holder inside right
in stock D 88 155 €98.79
Screw
in stock G 32 023 €2.39
Washer 10,5 DIN 125
in stock G 49 063a €0.70
Spring ring B10
in stock G 49 063 €0.50
Washer for bumper to cross member 5mm
no longer available D 88 186
Screw
in stock G 32 023 €2.39
Washer 10,5 DIN 125
in stock G 49 063a €0.70
Spring ring B10
in stock G 49 063 €0.50
Bumper, rear left
no longer available D 88 201
Bumper right rear
no longer available D 88 217
Stiffening Reproduction
in stock D 88 219 €195.00
Button head screw
in stock D 88 130 €1.01
Hex. nut M 8
in stock C 32 027 €0.54
Cover, tray lower part left / lower part right
currently not in stock, but available for order D 88 229 €65.84
Button head screw
in stock D 88 130 €1.01
Hex. nut M 8
in stock C 32 027 €0.54
Holder left
currently not in stock, but available for order D 88 252 €256.37
Holder right
in stock D 88 260 €150.16
Screw
in stock G 32 023 €2.39
Washer 10,5 DIN 125
in stock G 49 063a €0.70
Spring ring B10
in stock G 49 063 €0.50
Mounting bracket
in stock D 88 264 €39.50
Button head screw
in stock D 88 130 €1.01
Hex. nut M 8
in stock C 32 027 €0.54
Protective rubber
in stock D 88 222 €272.50
Set of protection rails left/right front and rear W108/109
low stock level D 88 180b €305.00
Washer, hydraulic unit on holder
in stock G 42 103 €1.12
Lock washer
in stock G 22 020 €0.30
Bumper upper part rear left
no longer available D 88 237
Bumper upper part rear right
no longer available D 88 243
Hex. socket screw M8x16
in stock G 29 036 €0.46
Spacer for bumper tops
in stock D 88 245 €5.90
Spring washer
in stock B 03 018 €0.30
Hex. nut M 8
in stock C 32 027 €0.54
Screw
in stock G 32 023 €2.39
Spring ring B10
in stock G 49 063 €0.50
Washer 10,5 DIN 125
in stock G 49 063a €0.70
Rubber washer
in stock C 72 149 €0.97
Mounting bracket
currently not in stock, but available for order D 88 272 €94.87
Intermediate layer, bracket/rear manure
no longer available D 88 274
Hex. head screw
in stock G 49 060 €1.54
Rubber washer Mercedes star to rear lid
in stock D 52 067 €0.40
Hex. head screw
in stock G 49 060 €1.54
License plate moulding, front
no longer available D 88 279
Replacement item available
To the replacement item
Washer 5.3 DIN 9021
in stock G 88 123 €0.99
Ring for license plate cover
no longer available D 88 285
Hex. nut
in stock C 88 251g €0.34
License plate moulding, stainless steel
in stock D 88 286 €25.62
Spacer roller for license plate cover
in stock D 88 288 €10.48
Rubber buffer
in stock D 88 289 €7.65
Panhead screw 5x18
in stock G 81 062 €3.24
Hex. nut
in stock C 88 251g €0.34
Washer
in stock C 88 251d €0.20
  • in stock in stock
  • low stock level low stock level
  • currently not in stock, but available for order currently not in stock, but available for order
  • no longer available no longer available
Oldtimer Gummiprofile
Please visit our special shop for classic rubber profiles.
Lade Inhalte ...
